PTAC AMANA | HEC (HIGH EFFICIENCY) R32 J | 15,000 BTUs
Is it the right size for this room?
Amana doesn't publish a room size for this unit. From its 14,800 BTU/h of cooling, we estimate ≈ 230 to 340 sq ft. Choose your room's area.
It's the right size.
For a 280 to 335 sq ft room, this is the range we estimate for this unit: 14,800 BTU/h of cooling and a heater of up to 5,000 W when the cold calls for it.
AirGreen estimate: Amana publishes no room size, so we apply the application ranges Trane publishes for its PTACs of the same cooling capacity. Our estimator confirms the exact area on site.
What it does, in numbers
$30.82
Cooling, all summer
Less than a 60 W light bulb
Bulbs left on day and night for a year. Cooling: 5 h a day for 40 days, the assumption used by Hydro-Québec's air-conditioning calculator. Same calculation for every line: wattage × hours × 11.142 ¢/kWh.
≈$227
Heating, all winter
Typical 285 sq ft room with one exterior wall, in Montréal: 2,036 kWh of heat per winter (Environment Canada 1991–2020 climate normals).
≈ $258 for the year, before tax. Winter is 88% of it. If your home stays in the first tier of Rate D in summer (7.065 ¢/kWh), cooling drops to $19.54.
Capacities and currents: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Power draw: 1,383 W in cooling (14,800 BTU/h ÷ EER 10.7), 5,000 W on the 5 kW heater. Hydro-Québec Rate D in effect since April 1, 2026: 11.142 ¢/kWh second tier, before tax.
What you should know about this one
Published, verifiable facts, not brochure claims.
14,800What it really delivers in cooling
The name says 15,000 BTU: that's the unit's size class. Amana publishes 14,800 BTU/h at 230 V, and 14,500 at 208 V, the supply in many buildings. Better to read it here than on the spec sheet after installation.
5,000 WThe heater that heats the room
At Amana, the two digits after the series letter (the ** in HEC153J**AXXX) set the heater when ordering: 1.5, 2.5, 3.5 or 5.0 kW at 230 V, 1.3 to 4.1 kW at 208 V. At 5.0 kW it takes a 6-30P plug on 30 A; at 3.5 kW, a 6-20P on 20 A. It heats the room all winter.
10.7Efficiency above the standard model
Amana publishes an EER of 10.7 for this HEC, against 10.3 for the standard PTC of the same size. For the same capacity, it draws fewer watts in summer.
4.4Pints of water it removes per hour
The dehumidification Amana publishes in cooling mode: 4.4 pints per hour. It's what keeps a room comfortable in summer without it turning clammy.
7⅝ inHow far it sticks into the room
Amana quotes a 7⅝ in deep front, one of the slimmest in the industry: the unit takes less space out of the room.
4 °CRoom freeze protection
As soon as the unit senses 40 °F (4 °C) or below, it starts the fan and the heater: an empty room won't freeze in winter.
6-30PThe outlet it needs
With the 5.0 kW heater: a NEMA 6-30P plug on a dedicated 30 A circuit. With 3.5 kW: 6-20P on 20 A. With 2.5 kW: 6-15P on 15 A. In a replacement, the outlet already in the wall dictates the heater size.
It fits the standard 42 × 16 in sleeve
Amana sleeves have the industry-standard dimensions: 42 in wide, 16 ¹⁄₁₆ in high, 14 ⅛ in deep. Our estimator checks the sleeve and the grille in place before ordering.
What it needs on site
In a replacement, we check the outlet and the breaker first: they set the heater size you can use. Our estimator confirms the sleeve, the outlet and the slope before ordering.

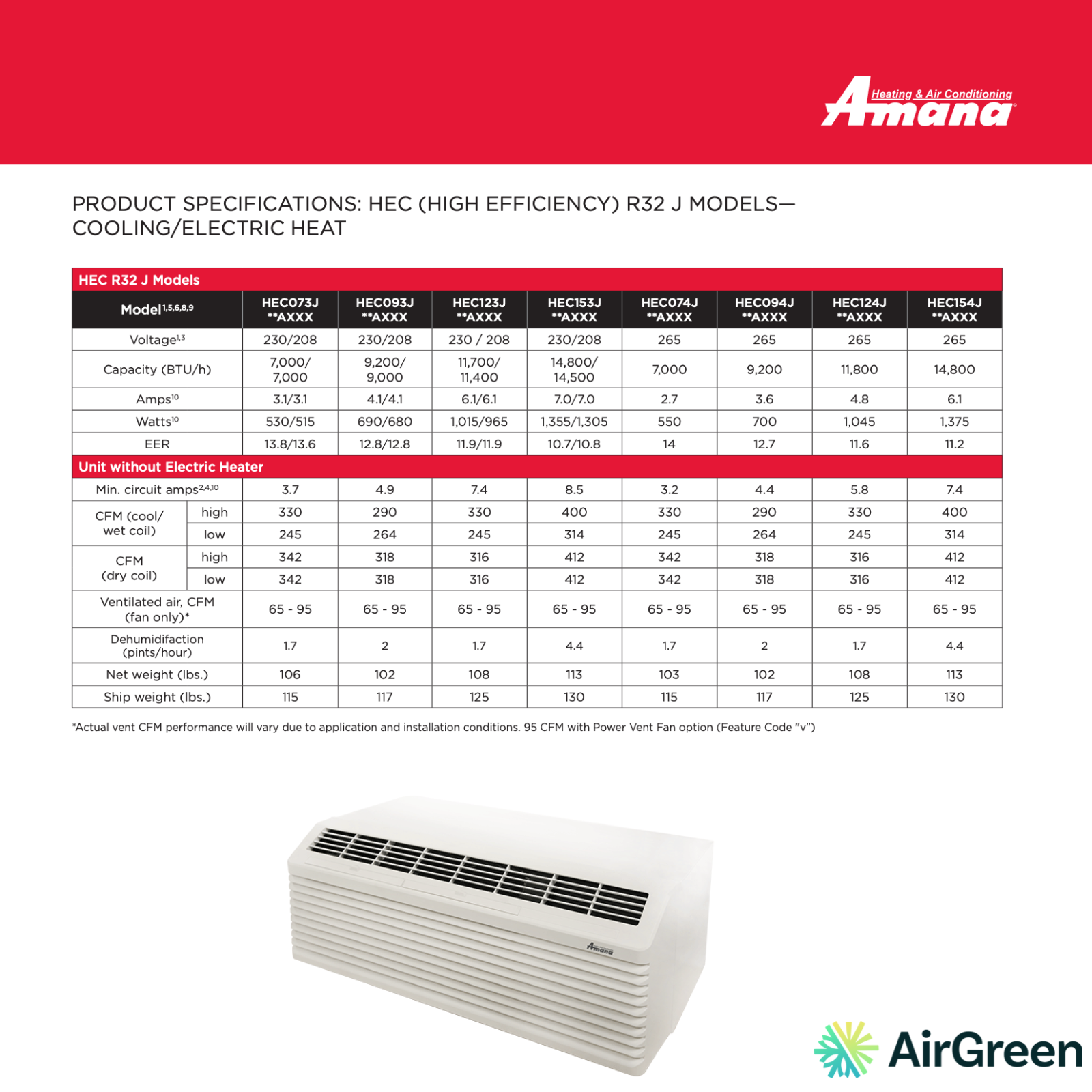

Complete spec sheetData and cited sources
- Model
- HEC153J**AXXX
- Cooling capacity (208/230 V)
- 14,500 / 14,800 BTU/h
- Electric heater (options)
- 1.5 kW · 2.5 kW · 3.5 kW · 5.0 kW
- EER (208/230 V)
- 10.8 / 10.7
- Current — compressor
- 7 A
- Airflow (low/high)
- 314 / 400 cfm
- Dehumidification
- 4.4 pints/h
- Application range
- ≈ 230 to 340 sq ft (AirGreen estimate)
- Front
- 7⅝ in deep
- Sleeve
- 42 × 16 ¹⁄₁₆ in, 14 ⅛ in deep
- Net weight
- 113 lb
- Refrigerant
- R-32
- Power supply
- 208/230 V · 1 ph · 60 Hz
All values: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Operating cost: cooling at 1,383 W for 200 h per summer; heating estimated for a typical 285 sq ft room (2,036 kWh of heat per winter); at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The neighbouring models
Talk to an HVAC technician before you choose
We check the existing sleeve, the outlet and the heater size, and give you an installed price. For a building, we order the same series for every room.
High-efficiency PTAC unit designed for comfort and energy efficiency
At AirGreen, we know that a high-performance HVAC system doesn't just heat or cool a space: it must provide optimal comfort, reduce energy costs, and last. The AMANA | HEC (HIGH EFFICIENCY) R32 J | 15,000 BTU PTAC perfectly embodies these values, combining advanced technology, proven reliability, and adaptability to meet residential and commercial needs in Montreal, Laval, Longueuil, the North Shore, and the South Shore.
Energy performance and long-term savings
The HEC153J**AXXX model boasts an EER of up to 14.0 and a COP of up to 3.9 , making it one of the most efficient units in its class. These high efficiencies often qualify for subsidies offered by power companies, reducing the overall cost of ownership.
-
R32 Refrigerant : With a GWP of 677 , it is more environmentally friendly than R410A and can offer up to 12% more efficiency while requiring less refrigerant charge.
-
Condensate Dispersion System : By reusing condensate water to improve cooling, the unit maximizes its efficiency and reduces water discharge.
Quiet operation for optimal comfort
In a hotel, condo, or office, silence is essential. This PTAC has been completely redesigned to be the quietest ever made by Amana :
-
Interior tangential fan for gentle and quiet diffusion.
-
Two separate motors (interior/exterior) optimizing airflow and reducing noise.
-
STC index of 29 , limiting sound transmission towards the interior.
Integrated technologies for intelligent control
Bluetooth® and RF integration allows you to configure, diagnose and manage the unit with unprecedented flexibility:
-
Amana mobile app (iOS and Android): quick settings, advanced diagnostics.
-
Eden Concierge compatibility : centralized energy management, with the possibility of reducing consumption by up to 35% .
-
Eden Wireless Thermostat (optional): immediate connectivity and simplified control.
Robust and practical design
Built to last, this model is assembled in the USA at the Amana factory in Waller, Texas, with rigorous quality controls:
-
5-year limited warranty (1 year parts and labor, up to 5 years on certain components).
-
Washable and easy-access filters : simplified maintenance to extend lifespan.
-
“Quiet White” front face with a modern and discreet design.
-
Reduced front depth (7⅝") : frees up space in the room.
-
Zero ground clearance : installation possible directly on finished floor.
Increased security and reliability
The PTAC AMANA HEC R32 J incorporates intelligent protection and comfort features:
-
Room frost protection : activates the heating if the temperature drops below 4°C.
-
High pressure switch : protects against overload.
-
Delayed fan start (30 seconds) to maximize air conditioning distribution.
-
Automatic switching to auxiliary heating in the event of heat pump failure.
Ideal applications in Montreal and its surrounding areas
This device is perfectly suited for:
-
Hotels and motels looking for a quiet, energy-efficient solution.
-
Offices and commercial spaces requiring independent control by zone.
-
Condos and residential buildings where compact and discreet wall installation is an asset.
-
Rental properties where reliability and ease of maintenance are priorities.
Why choose AirGreen for your AMANA PTAC installation?
At AirGreen, we don't just sell a product. We offer:
-
Professional installation by certified and experienced refrigeration engineers.
-
Responsive after-sales service and original parts.
-
Free on-site assessments to determine the best configuration for your building.
-
Payment upon satisfaction policy : pay only when everything is as you expected.
Conclusion: A smart investment
The PTAC AMANA | HEC R32 J | 15,000 BTU is a strategic choice for anyone looking for energy performance , acoustic comfort , connected technology and long-term reliability . Whether you're modernizing a hotel, improving the comfort of an office or optimizing the energy efficiency of a condo, this unit meets the highest standards.
