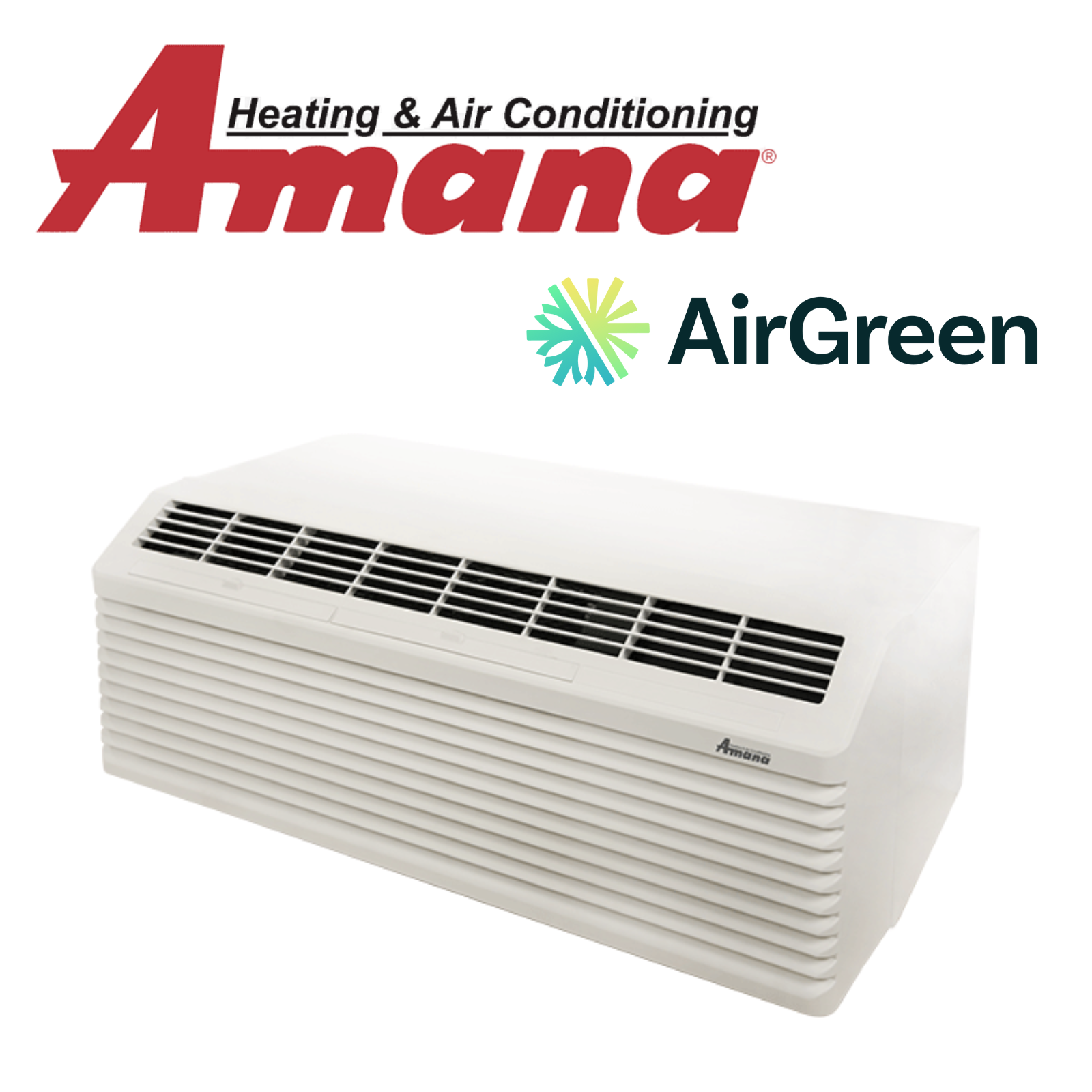

PTAC AMANA | HEC (HIGH EFFICIENCY) R32 J | 12,000 BTUs
Is it the right size for this room?
Amana doesn't publish a room size for this unit. From its 11,700 BTU/h of cooling, we estimate ≈ 165 to 245 sq ft. Choose your room's area.
It's the right size.
For a 175 to 225 sq ft room, this is the range we estimate for this unit: 11,700 BTU/h of cooling and a heater of up to 5,000 W when the cold calls for it.
AirGreen estimate: Amana publishes no room size, so we apply the application ranges Trane publishes for its PTACs of the same cooling capacity. Our estimator confirms the exact area on site.
What it does, in numbers
$21.91
Cooling, all summer
Less than a 60 W light bulb
Bulbs left on day and night for a year. Cooling: 5 h a day for 40 days, the assumption used by Hydro-Québec's air-conditioning calculator. Same calculation for every line: wattage × hours × 11.142 ¢/kWh.
≈$163
Heating, all winter
Typical 205 sq ft room with one exterior wall, in Montréal: 1,464 kWh of heat per winter (Environment Canada 1991–2020 climate normals).
≈ $185 for the year, before tax. Winter is 88% of it. If your home stays in the first tier of Rate D in summer (7.065 ¢/kWh), cooling drops to $13.89.
Capacities and currents: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Power draw: 983 W in cooling (11,700 BTU/h ÷ EER 11.9), 5,000 W on the 5 kW heater. Hydro-Québec Rate D in effect since April 1, 2026: 11.142 ¢/kWh second tier, before tax.
What you should know about this one
Published, verifiable facts, not brochure claims.
11,700What it really delivers in cooling
The name says 12,000 BTU: that's the unit's size class. Amana publishes 11,700 BTU/h at 230 V, and 11,400 at 208 V, the supply in many buildings. Better to read it here than on the spec sheet after installation.
5,000 WThe heater that heats the room
At Amana, the two digits after the series letter (the ** in HEC123J**AXXX) set the heater when ordering: 1.5, 2.5, 3.5 or 5.0 kW at 230 V, 1.3 to 4.1 kW at 208 V. At 5.0 kW it takes a 6-30P plug on 30 A; at 3.5 kW, a 6-20P on 20 A. It heats the room all winter.
11.9Efficiency above the standard model
Amana publishes an EER of 11.9 for this HEC, against 11.4 for the standard PTC of the same size. For the same capacity, it draws fewer watts in summer.
1.7Pints of water it removes per hour
The dehumidification Amana publishes in cooling mode: 1.7 pints per hour. It's what keeps a room comfortable in summer without it turning clammy.
7⅝ inHow far it sticks into the room
Amana quotes a 7⅝ in deep front, one of the slimmest in the industry: the unit takes less space out of the room.
4 °CRoom freeze protection
As soon as the unit senses 40 °F (4 °C) or below, it starts the fan and the heater: an empty room won't freeze in winter.
6-30PThe outlet it needs
With the 5.0 kW heater: a NEMA 6-30P plug on a dedicated 30 A circuit. With 3.5 kW: 6-20P on 20 A. With 2.5 kW: 6-15P on 15 A. In a replacement, the outlet already in the wall dictates the heater size.
It fits the standard 42 × 16 in sleeve
Amana sleeves have the industry-standard dimensions: 42 in wide, 16 ¹⁄₁₆ in high, 14 ⅛ in deep. Our estimator checks the sleeve and the grille in place before ordering.
What it needs on site
In a replacement, we check the outlet and the breaker first: they set the heater size you can use. Our estimator confirms the sleeve, the outlet and the slope before ordering.

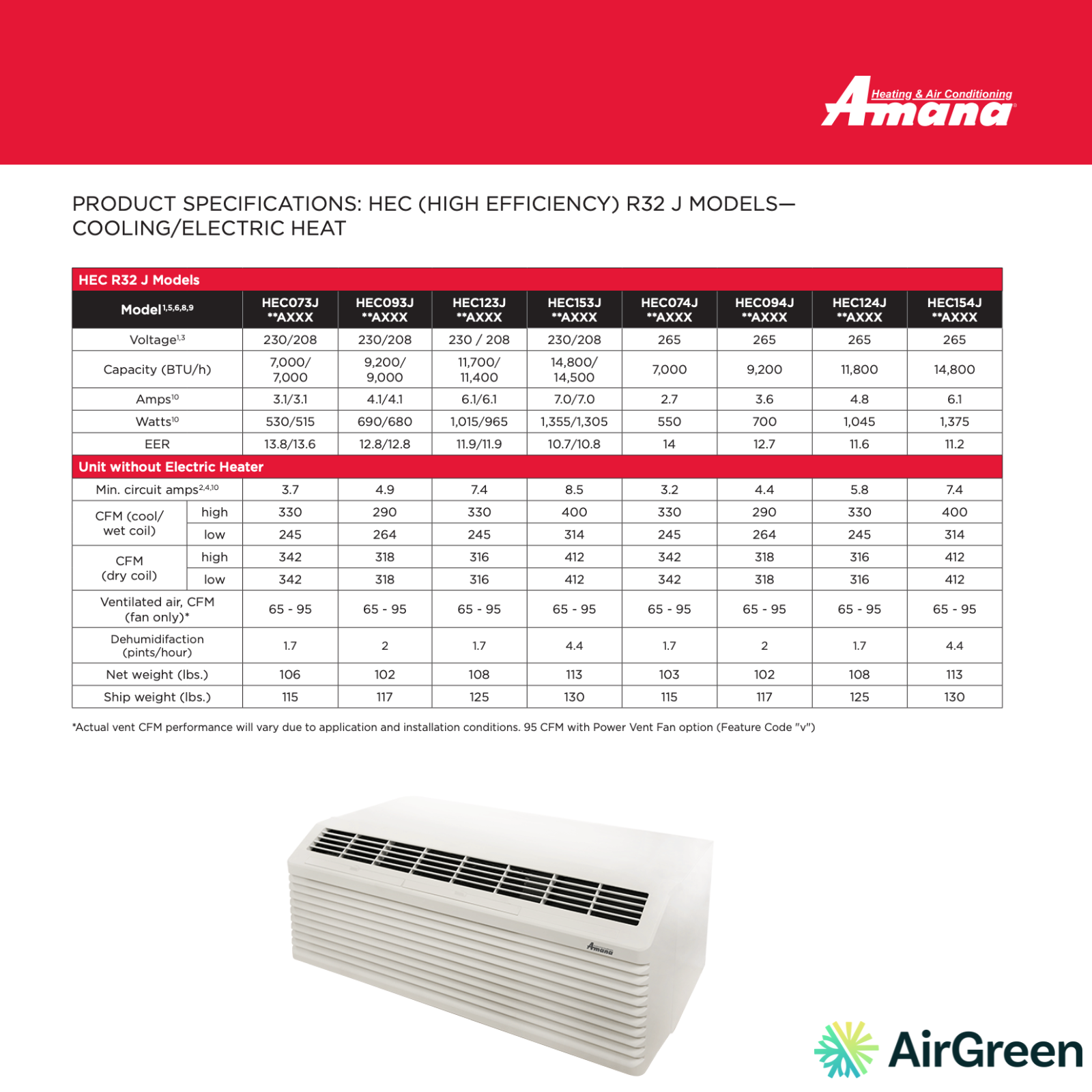

Complete spec sheetData and cited sources
- Model
- HEC123J**AXXX
- Cooling capacity (208/230 V)
- 11,400 / 11,700 BTU/h
- Electric heater (options)
- 1.5 kW · 2.5 kW · 3.5 kW · 5.0 kW
- EER
- 11.9
- Current — compressor
- 6.1 A
- Airflow (low/high)
- 245 / 330 cfm
- Dehumidification
- 1.7 pints/h
- Application range
- ≈ 165 to 245 sq ft (AirGreen estimate)
- Front
- 7⅝ in deep
- Sleeve
- 42 × 16 ¹⁄₁₆ in, 14 ⅛ in deep
- Net weight
- 108 lb
- Refrigerant
- R-32
- Power supply
- 208/230 V · 1 ph · 60 Hz
All values: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Operating cost: cooling at 983 W for 200 h per summer; heating estimated for a typical 205 sq ft room (1,464 kWh of heat per winter); at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The neighbouring models
Talk to an HVAC technician before you choose
We check the existing sleeve, the outlet and the heater size, and give you an installed price. For a building, we order the same series for every room.
Performance and energy efficiency for comfort
At AirGreen, we understand that a high-performance HVAC system is a strategic investment, whether for a residential, hotel, or commercial building. The AMANA | HEC (HIGH EFFICIENCY) R32 J | 12,000 BTU PTAC embodies this approach, combining cutting-edge technology, energy efficiency, and long-term reliability.
A design focused on efficiency
With an EER of up to 14.0 and a COP of up to 3.9 , this model boasts performance that can make you eligible for various subsidies offered by electricity companies in Quebec. The use of R-32 refrigerant , which complies with strict environmental standards, reduces the carbon footprint while offering up to 12% more energy efficiency compared to R-410A.
Silence and comfort
The design of this PTAC has been redesigned to achieve an exceptionally low noise level, ideal for hotel rooms, offices or residences requiring a quiet environment.
-
Internal tangential fan for smooth operation.
-
STC rating of 29 significantly reduces noise transmission.
-
Dual motor separating the internal and external circuits, minimizing vibrations.
Smart connectivity
Bluetooth® integration allows for device setup and diagnostics via the Amana app on iOS and Android.
Additionally, built-in RF connectivity ensures out-of-the-box compatibility with the Eden Wireless Thermostat (DS01G) and the Eden Concierge Energy Management System, capable of reducing PTAC energy consumption by up to 35% .
Reliability and durability
Each unit is assembled in the USA at the Waller, Texas facility and 100% tested before shipping.
Reliability Features:
-
Dryer filter protecting the compressor.
-
Room frost protection triggers heating at 4°C or below.
-
Compressor Lock-In preventing short cycles that are detrimental to lifespan.
-
5-year limited warranty (parts and some sealed components, 1 year full labor).
Simplified installation and maintenance
Designed to optimize space, the 7⅝" front profile fits easily, even when installed flush with the floor .
Easy maintenance thanks to:
-
Washable and removable filters .
-
Condensate dispersion system reducing water discharge and increasing cooling efficiency.
-
Concealed ventilation control , preventing unauthorized manipulation.
Advanced air management options
The PTAC AMANA HEC R32 J also offers intelligent functions to optimize interior comfort:
-
Smart Vent & Economizer to introduce outside air according to temperature and humidity conditions.
-
Configurable constant fan mode .
-
30-second delay to release remaining conditioned air after the compressor stops.
Ideal applications in Montreal, Laval, North Shore and South Shore
Whether it's for modernizing a hotel in Laval , improving the comfort of a residential building in Longueuil or installing it in a commercial building in downtown Montreal , this model meets the needs of demanding managers. Its energy efficiency, connectivity and durability make it a strategic choice for reducing operating costs while increasing occupant satisfaction.
Why choose AirGreen for your Amana PTAC installation?
At AirGreen, we don't just sell a product. We offer:
-
Free on-site estimate to determine the optimal configuration.
-
Installation by certified refrigeration engineers , guaranteeing performance and compliance with standards.
-
Price transparency : no hidden costs, prices confirmed before work.
-
Responsive after-sales service , supported by our field expertise.
Conclusion
The AMANA | HEC (HIGH EFFICIENCY) R32 J | 12,000 BTU PTAC combines technology, silence, energy efficiency, and robustness, all supported by AirGreen expertise. A sustainable, high-performance solution perfectly suited to the needs of building owners and managers in the greater Montreal area.
