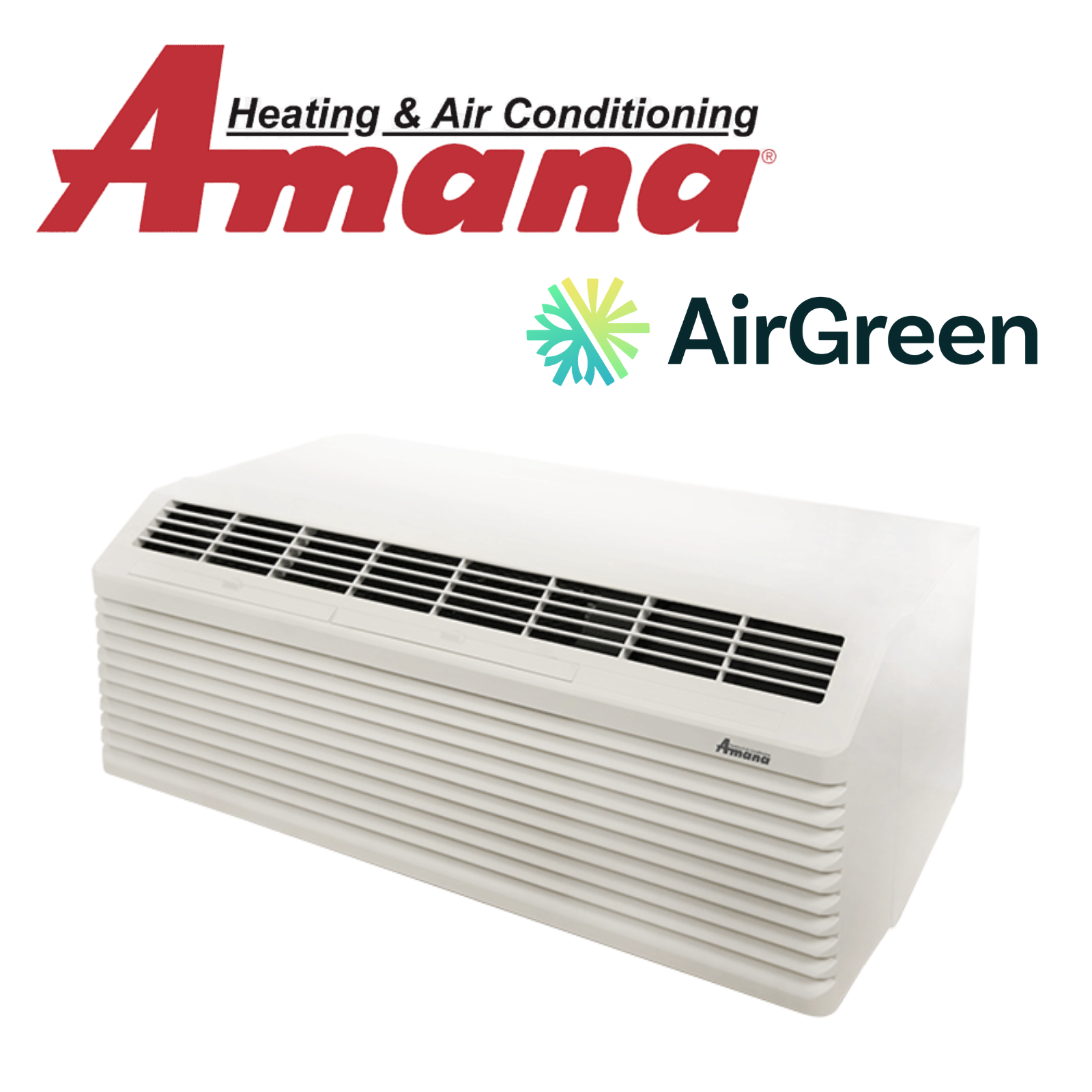

PTAC AMANA | HEC (HIGH EFFICIENCY) R32 J | 9,000 BTUs
Is it the right size for this room?
Amana doesn't publish a room size for this unit. From its 9,200 BTU/h of cooling, we estimate ≈ 125 to 190 sq ft. Choose your room's area.
It's the right size.
For a 130 to 175 sq ft room, this is the range we estimate for this unit: 9,200 BTU/h of cooling and a heater of up to 5,000 W when the cold calls for it.
AirGreen estimate: Amana publishes no room size, so we apply the application ranges Trane publishes for its PTACs of the same cooling capacity. Our estimator confirms the exact area on site.
What it does, in numbers
$16.02
Cooling, all summer
Less than a 60 W light bulb
Bulbs left on day and night for a year. Cooling: 5 h a day for 40 days, the assumption used by Hydro-Québec's air-conditioning calculator. Same calculation for every line: wattage × hours × 11.142 ¢/kWh.
≈$125
Heating, all winter
Typical 158 sq ft room with one exterior wall, in Montréal: 1,125 kWh of heat per winter (Environment Canada 1991–2020 climate normals).
≈ $141 for the year, before tax. Winter is 89% of it. If your home stays in the first tier of Rate D in summer (7.065 ¢/kWh), cooling drops to $10.16.
Capacities and currents: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Power draw: 719 W in cooling (9,200 BTU/h ÷ EER 12.8), 5,000 W on the 5 kW heater. Hydro-Québec Rate D in effect since April 1, 2026: 11.142 ¢/kWh second tier, before tax.
What you should know about this one
Published, verifiable facts, not brochure claims.
9,200What it really delivers in cooling
The name says 9,000 BTU: that's the unit's size class. Amana publishes 9,200 BTU/h at 230 V, a little more than its size class, and 9,000 at 208 V, the supply in many buildings.
5,000 WThe heater that heats the room
At Amana, the two digits after the series letter (the ** in HEC093J**AXXX) set the heater when ordering: 1.5, 2.5, 3.5 or 5.0 kW at 230 V, 1.3 to 4.1 kW at 208 V. At 5.0 kW it takes a 6-30P plug on 30 A; at 3.5 kW, a 6-20P on 20 A. It heats the room all winter.
12.8Efficiency above the standard model
Amana publishes an EER of 12.8 for this HEC, against 12.1 for the standard PTC of the same size. For the same capacity, it draws fewer watts in summer.
2Pints of water it removes per hour
The dehumidification Amana publishes in cooling mode: 2 pints per hour. It's what keeps a room comfortable in summer without it turning clammy.
7⅝ inHow far it sticks into the room
Amana quotes a 7⅝ in deep front, one of the slimmest in the industry: the unit takes less space out of the room.
4 °CRoom freeze protection
As soon as the unit senses 40 °F (4 °C) or below, it starts the fan and the heater: an empty room won't freeze in winter.
6-30PThe outlet it needs
With the 5.0 kW heater: a NEMA 6-30P plug on a dedicated 30 A circuit. With 3.5 kW: 6-20P on 20 A. With 2.5 kW: 6-15P on 15 A. In a replacement, the outlet already in the wall dictates the heater size.
It fits the standard 42 × 16 in sleeve
Amana sleeves have the industry-standard dimensions: 42 in wide, 16 ¹⁄₁₆ in high, 14 ⅛ in deep. Our estimator checks the sleeve and the grille in place before ordering.
What it needs on site
In a replacement, we check the outlet and the breaker first: they set the heater size you can use. Our estimator confirms the sleeve, the outlet and the slope before ordering.

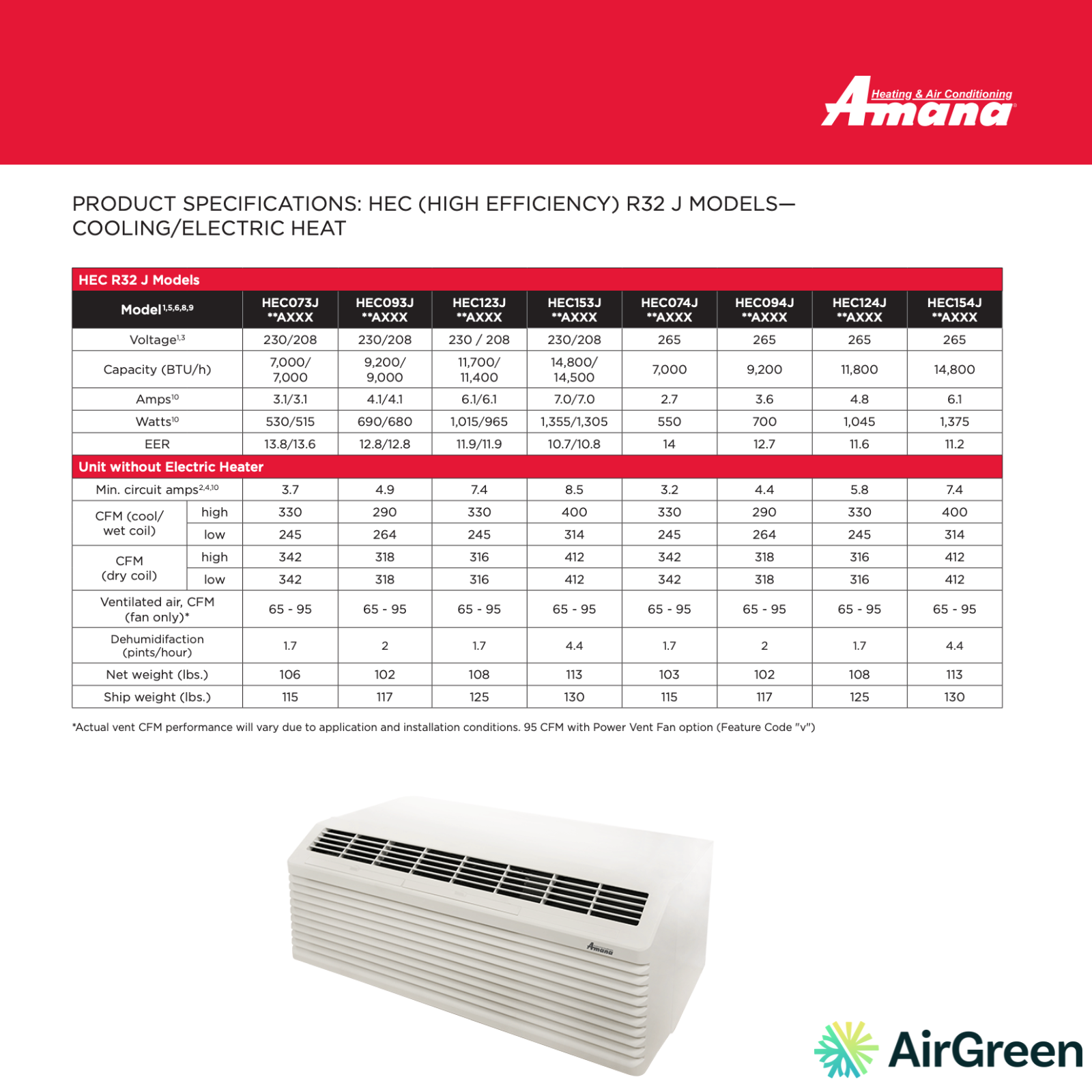

Complete spec sheetData and cited sources
- Model
- HEC093J**AXXX
- Cooling capacity (208/230 V)
- 9,000 / 9,200 BTU/h
- Electric heater (options)
- 1.5 kW · 2.5 kW · 3.5 kW · 5.0 kW
- EER
- 12.8
- Current — compressor
- 4.1 A
- Airflow (low/high)
- 264 / 290 cfm
- Dehumidification
- 2 pints/h
- Application range
- ≈ 125 to 190 sq ft (AirGreen estimate)
- Front
- 7⅝ in deep
- Sleeve
- 42 × 16 ¹⁄₁₆ in, 14 ⅛ in deep
- Net weight
- 102 lb
- Refrigerant
- R-32
- Power supply
- 208/230 V · 1 ph · 60 Hz
All values: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Operating cost: cooling at 719 W for 200 h per summer; heating estimated for a typical 158 sq ft room (1,125 kWh of heat per winter); at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The neighbouring models
Talk to an HVAC technician before you choose
We check the existing sleeve, the outlet and the heater size, and give you an installed price. For a building, we order the same series for every room.
A smart choice for optimal comfort and exceptional energy efficiency
At AirGreen, we know that a high-performance HVAC system isn't just about the temperature it provides, but also the quality, reliability, and energy efficiency it delivers every day. The AMANA | HEC (HIGH EFFICIENCY) R32 J | 9,000 BTU PTAC perfectly embodies this balance, combining remarkable performance, optimized fuel consumption, and a design designed for occupant comfort.
Energy efficiency that translates into real savings
With EERs up to 14.0 and a COP of up to 3.9 , this model is designed to meet the most stringent energy efficiency requirements. In many cases, this performance allows our customers to benefit from subsidies offered by electricity companies , thus reducing the cost of acquisition and maximizing the return on investment.
At AirGreen, we installed this model in a residential building in Laval , where management wanted to replace aging, energy-intensive units. The result: a significant reduction in electricity consumption and an estimated return on investment of less than three years.
Ultra-quiet operation, a guarantee of comfort
The PTAC AMANA HEC R32 J is the quietest ever designed by the brand , thanks to:
-
Two separate engines (interior/exterior)
-
An interior tangential fan reducing noise
-
An STC of 29 , guaranteeing a peaceful environment
In a project in Longueuil , a hotel chose this model to equip its rooms. Guests immediately noticed the improvement in acoustic comfort, contributing to better online reviews.
Connected technology for smart control
With built-in Bluetooth® connectivity , the AMANA PTAC quickly sets up via the Amana mobile app (iOS and Android), reducing installation time and facilitating maintenance. In addition, the built-in RF antenna allows it to connect to the Eden thermostat and the Eden Concierge energy management system, reducing energy consumption by 35% or more .
In Montreal , a condo owner opted for this solution to centralize control of his units. The result: simplified management and substantial savings on air conditioning and heating costs.
An eco-responsible and efficient refrigerant
The R32 used by this model has a GWP of only 677 , meeting the strictest environmental regulations. It offers up to 12% more efficiency than R410A and reduces the required refrigerant charge by up to 40% .
Elegant design and optimized installation
The modern Quiet White front panel blends seamlessly into any interior. Its shallow 7⅝" depth frees up valuable floor space, and it's easy to install thanks to the flush-to-the-floor installation feature .
We recently installed this model in a commercial office in Boucherville (South Shore) , where interior aesthetics and space optimization were priorities.
Advanced features for worry-free use
-
Condensate Dispersion System : rapid evaporation of water for increased efficiency
-
Frost protection : automatic activation of heating below 4°C
-
Compressor Lock-In : protection against excessive start-ups
-
Automatic emergency heating : switch to electric resistance if necessary
-
Washable and easy to remove filters
-
Interface for remote control (Front Desk Control)
A guarantee of quality and durability
Assembled in the USA for over 45 years , every AMANA PTAC is 100% tested before shipment, with leak testing and compressor protection via an integrated filter drier . Its 6-year warranty, straight from the distributor, covers the compressor, parts and labor for 6 years.
Why choose AirGreen for your installation?
-
Free on-site estimate
-
Highly qualified refrigeration technicians
-
Transparent prices with no surprises
-
Payment only at the end, once satisfied
At AirGreen, we put our expertise at the service of your comfort and peace of mind, by offering you the most efficient HVAC solutions adapted to your needs.
Warranty: 6 years on the compressor, 6 years on parts and 6 years on labor, straight from the distributor.
