PTAC AMANA | HEC (HIGH EFFICIENCY) R32 J | 7,000 BTUs
Is it the right size for this room?
Amana doesn't publish a room size for this unit. From its 7,000 BTU/h of cooling, we estimate ≈ 105 to 170 sq ft. Choose your room's area.
It's the right size.
For a 130 to 175 sq ft room, this is the range we estimate for this unit: 7,000 BTU/h of cooling and a heater of up to 5,000 W when the cold calls for it.
AirGreen estimate: Amana publishes no room size, so we apply the application ranges Trane publishes for its PTACs of the same cooling capacity. Our estimator confirms the exact area on site.
What it does, in numbers
$11.30
Cooling, all summer
Less than a 60 W light bulb
Bulbs left on day and night for a year. Cooling: 5 h a day for 40 days, the assumption used by Hydro-Québec's air-conditioning calculator. Same calculation for every line: wattage × hours × 11.142 ¢/kWh.
≈$109
Heating, all winter
Typical 138 sq ft room with one exterior wall, in Montréal: 982 kWh of heat per winter (Environment Canada 1991–2020 climate normals).
≈ $121 for the year, before tax. Winter is 91% of it. If your home stays in the first tier of Rate D in summer (7.065 ¢/kWh), cooling drops to $7.16.
Capacities and currents: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Power draw: 507 W in cooling (7,000 BTU/h ÷ EER 13.8), 5,000 W on the 5 kW heater. Hydro-Québec Rate D in effect since April 1, 2026: 11.142 ¢/kWh second tier, before tax.
What you should know about this one
Published, verifiable facts, not brochure claims.
7,000What it really delivers in cooling
The name says 7,000 BTU: that's the unit's size class. Amana publishes 7,000 BTU/h at 230 V and at 208 V, the supply in many buildings: the capacity doesn't drop.
5,000 WThe heater that heats the room
At Amana, the two digits after the series letter (the ** in HEC073J**AXXX) set the heater when ordering: 1.5, 2.5, 3.5 or 5.0 kW at 230 V, 1.3 to 4.1 kW at 208 V. At 5.0 kW it takes a 6-30P plug on 30 A; at 3.5 kW, a 6-20P on 20 A. It heats the room all winter.
13.8Efficiency above the standard model
Amana publishes an EER of 13.8 for this HEC, against 12.8 for the standard PTC of the same size. For the same capacity, it draws fewer watts in summer.
1.7Pints of water it removes per hour
The dehumidification Amana publishes in cooling mode: 1.7 pints per hour. It's what keeps a room comfortable in summer without it turning clammy.
7⅝ inHow far it sticks into the room
Amana quotes a 7⅝ in deep front, one of the slimmest in the industry: the unit takes less space out of the room.
4 °CRoom freeze protection
As soon as the unit senses 40 °F (4 °C) or below, it starts the fan and the heater: an empty room won't freeze in winter.
6-30PThe outlet it needs
With the 5.0 kW heater: a NEMA 6-30P plug on a dedicated 30 A circuit. With 3.5 kW: 6-20P on 20 A. With 2.5 kW: 6-15P on 15 A. In a replacement, the outlet already in the wall dictates the heater size.
It fits the standard 42 × 16 in sleeve
Amana sleeves have the industry-standard dimensions: 42 in wide, 16 ¹⁄₁₆ in high, 14 ⅛ in deep. Our estimator checks the sleeve and the grille in place before ordering.
What it needs on site
In a replacement, we check the outlet and the breaker first: they set the heater size you can use. Our estimator confirms the sleeve, the outlet and the slope before ordering.

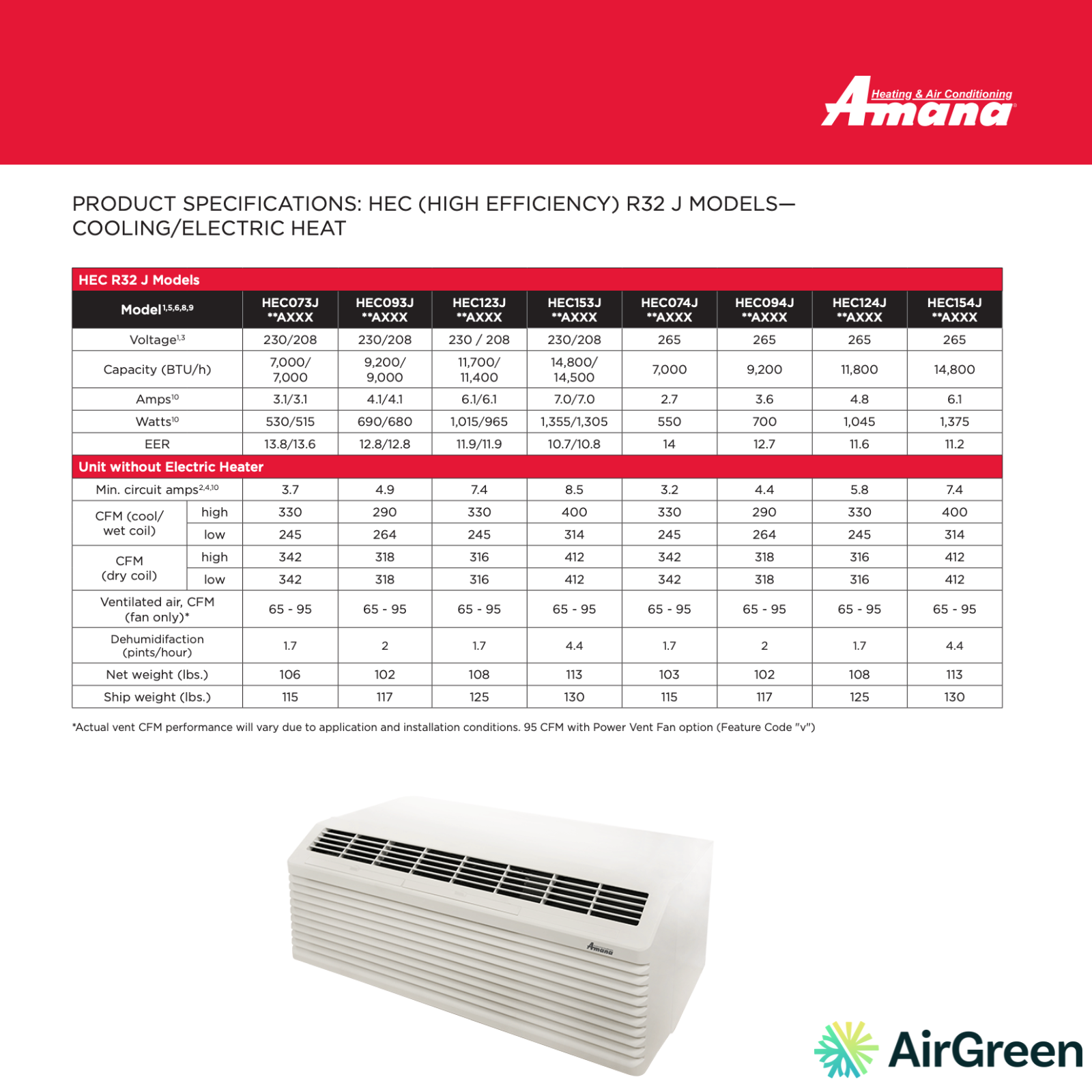

Complete spec sheetData and cited sources
- Model
- HEC073J**AXXX
- Cooling capacity (208/230 V)
- 7,000 / 7,000 BTU/h
- Electric heater (options)
- 1.5 kW · 2.5 kW · 3.5 kW · 5.0 kW
- EER (208/230 V)
- 13.6 / 13.8
- Current — compressor
- 3.1 A
- Airflow (low/high)
- 245 / 330 cfm
- Dehumidification
- 1.7 pints/h
- Application range
- ≈ 105 to 170 sq ft (AirGreen estimate)
- Front
- 7⅝ in deep
- Sleeve
- 42 × 16 ¹⁄₁₆ in, 14 ⅛ in deep
- Net weight
- 106 lb
- Refrigerant
- R-32
- Power supply
- 208/230 V · 1 ph · 60 Hz
All values: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Operating cost: cooling at 507 W for 200 h per summer; heating estimated for a typical 138 sq ft room (982 kWh of heat per winter); at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The neighbouring models
Talk to an HVAC technician before you choose
We check the existing sleeve, the outlet and the heater size, and give you an installed price. For a building, we order the same series for every room.
High-end HVAC performance for optimal comfort in Montreal and its surrounding areas
At AirGreen, we know that a high-performance HVAC system isn't just about providing hot or cold air: it must provide comfort, energy efficiency, and long-term reliability. The AMANA | HEC (HIGH EFFICIENCY) R32 J | 7,000 BTU PTAC perfectly embodies this vision. Designed to meet the needs of homes, businesses, and hotels in Montreal , Laval , Longueuil , as well as the North and South Shores , this model combines advanced technology, exceptional energy efficiency, and quiet operation.
A device designed for efficiency and durability
The PTAC AMANA HEC073J stands out for its remarkable performance, with an EER of up to 14.0 and a COP of up to 3.9 . These values demonstrate superior energy efficiency, which can open the door to numerous subsidies offered by electricity companies in Quebec.
-
R-32 refrigerant gas : low global warming potential (GWP of 677) and up to 12% more efficient than R-410A .
-
Reduced emissions : superior environmental performance to traditional refrigerants.
-
Reduced refrigerant consumption : up to 40% less than R-410A, contributing to reduced maintenance costs.
Sound comfort at the heart of design
In residential or hotel environments, noise can be a critical factor. This AMANA PTAC has been completely redesigned to become the quietest in the range .
-
Dual fan motors (inner and outer) to reduce vibration and noise.
-
Indoor tangential fan : a uniform and discreet airflow.
-
STC rating of 29 : high level sound insulation for peaceful sleep.
Connectivity and smart management
This model doesn't just offer comfort: it integrates connected features to simplify management and maximize efficiency.
-
Built-in Bluetooth® : quick setup via the AMANA mobile app (iOS and Android).
-
Built-in RF communication : Direct connection to the Eden wireless thermostat (DS01G, sold separately) and the Eden Concierge energy management system, reducing consumption by up to 35% or more .
-
Centralized control : management from a reception desk or a monitoring platform, ideal for hotels and managed residences.
A design thought out for the user and the installer
Installation and design
-
Front depth of only 7 ⅝" : saves valuable space in the room.
-
Zero ground clearance : installation possible flush with the finished floor.
-
Hidden ventilation hatch : settings protected against unauthorized manipulation.
Easy maintenance
-
Washable and removable filters : quick and easy cleaning.
-
Built-in filter dryer : protects the compressor and extends the life of the system.
-
Condensate dispersion system : rapid evaporation of water to improve cooling efficiency.
Long-term safety and reliability
The AMANA HEC073J PTAC is designed to last:
-
6-year warranty : 6 years on the compressor, 6 years on parts and 6 years on labor, straight from the distributor.
-
100% Factory Tested : Full checks including leak tests before shipping.
-
Frost protection : automatic heating activation at 4°C or lower.
-
High pressure switch : prevents damage due to overpressure.
-
Protected compressor start : prevents harmful short cycles.
-
Automatic emergency heating mode : switches to electric resistance in the event of compressor failure.
Examples of installations carried out by AirGreen
We have installed the PTAC AMANA HEC073J in several contexts:
-
Downtown Montreal hotels : discreet integration into high-end rooms, offering comfort and silence to guests.
-
Senior residences in Laval : centralized management via Eden Concierge to optimize energy consumption.
-
Offices in Longueuil : installation to replace obsolete units, with measurable energy savings from the first month.
Each installation is carried out by our certified refrigeration engineers, who guarantee precise work and fast and efficient after-sales service.
Why choose AirGreen for your AMANA PTAC installation?
At AirGreen, our HVAC installation expertise is based on:
-
Free on-site estimates to determine the best configuration.
-
Transparent and guaranteed prices before work begins.
-
No advance payment: you only pay when you are 100% satisfied .
-
A network of highly qualified technicians covering Montreal , Laval , Longueuil , North Shore and South Shore .
Conclusion: AMANA excellence at the service of your comfort
The PTAC AMANA | HEC (HIGH EFFICIENCY) R32 J | 7,000 BTU is much more than an air conditioner/heater: it's a complete, connected, efficient, and sustainable solution. Whether you're a hotel owner, building manager, or a demanding individual, this model offers the peace of mind and energy savings you're looking for.
Contact AirGreen today to schedule your free estimate and discover how this PTAC can transform your everyday comfort.
Warranty: 6 years on the compressor, 6 years on parts and 6 years on labor, straight from the distributor.
