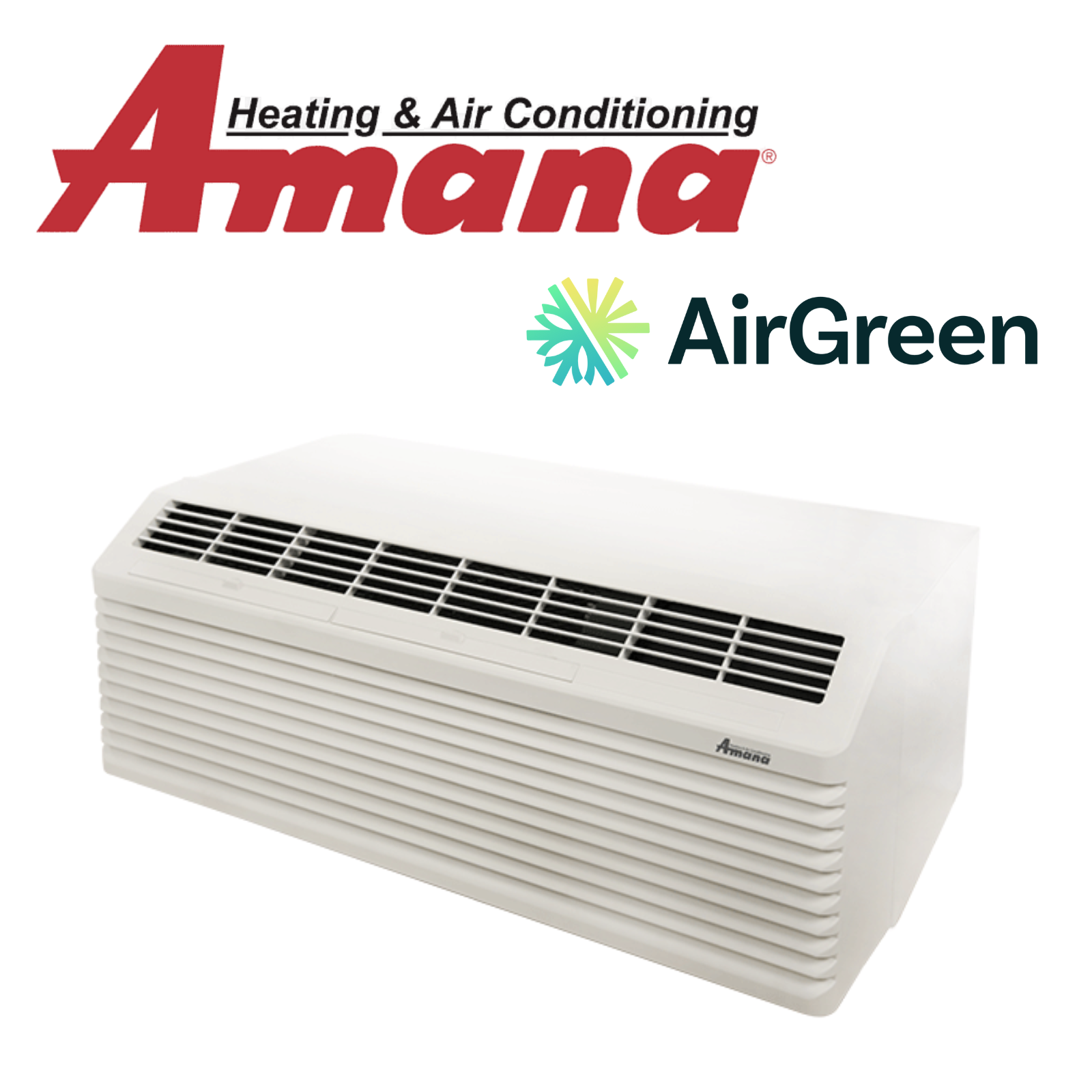

AMANA PTAC Heat Pump | 7000 BTU | HEH (HIGH EFFICIENCY) R32 J
Is it the right size for this room?
Amana doesn't publish a room size for this unit. From its 7,100 BTU/h of cooling, we estimate ≈ 105 to 170 sq ft. Choose your room's area.
It's the right size.
For a 130 to 175 sq ft room, this is the range we estimate for this unit: 7,100 BTU/h of cooling, 6,300 BTU/h of heat-pump heating and a heater of up to 5,000 W when the cold calls for it.
AirGreen estimate: Amana publishes no room size, so we apply the application ranges Trane publishes for its PTACs of the same cooling capacity. Our estimator confirms the exact area on site.
What it does, in numbers
$11.90
Cooling, all summer
Less than a 60 W light bulb
Bulbs left on day and night for a year. Cooling: 5 h a day for 40 days, the assumption used by Hydro-Québec's air-conditioning calculator. Same calculation for every line: wattage × hours × 11.142 ¢/kWh.
≈$101
Heating, all winter
≈ $8 less than baseboard heaters
Typical 138 sq ft room with one exterior wall, in Montréal: 982 kWh of heat per winter (Environment Canada 1991–2020 climate normals). The heat pump is counted only at 8 °C and warmer, where Amana rates its output; below that, the heater, at the price of a baseboard. If it keeps heating in colder weather, the bill goes down.
≈ $113 for the year, before tax. Winter is 89% of it. If your home stays in the first tier of Rate D in summer (7.065 ¢/kWh), cooling drops to $7.55.
Capacities and currents: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Power draw: 534 W in cooling (7,100 BTU/h ÷ EER 13.3), 470 W in heat-pump mode, 5,000 W on the 5 kW heater. Hydro-Québec Rate D in effect since April 1, 2026: 11.142 ¢/kWh second tier, before tax.
What you should know about this one
Published, verifiable facts, not brochure claims.
7,100What it really delivers in cooling
The name says 7,000 BTU: that's the unit's size class. Amana publishes 7,100 BTU/h at 230 V and at 208 V, the supply in many buildings: the capacity doesn't drop.
5,000 WThe heater that takes over
At Amana, the two digits after the series letter (the ** in HEH073J**AXXX) set the heater when ordering: 1.5, 2.5, 3.5 or 5.0 kW at 230 V, 1.3 to 4.1 kW at 208 V. At 5.0 kW it takes a 6-30P plug on 30 A; at 3.5 kW, a 6-20P on 20 A. It heats when the heat pump can no longer keep up.
13.3Efficiency above the standard model
Amana publishes an EER of 13.3 for this HEH, against 12.4 for the standard PTH of the same size. For the same capacity, it draws fewer watts in summer, and its COP of 3.9 (against 3.6) trims the winter too.
3.9The COP published at 8 °C
Amana publishes a heat-pump COP of 3.9: 6,300 BTU/h of heat at 230 V. Each kWh you pay for gives back 3.9 in heat, against 1 for the heater or a baseboard.
−7 °CWhen the heat pump hands over
Amana switches the unit from heat pump to the heater when the coil drops below 20 °F (−7 °C), or when the heat pump can't keep up on a two-stage thermostat.
1.7Pints of water it removes per hour
The dehumidification Amana publishes in cooling mode: 1.7 pints per hour. It's what keeps a room comfortable in summer without it turning clammy.
7⅝ inHow far it sticks into the room
Amana quotes a 7⅝ in deep front, one of the slimmest in the industry: the unit takes less space out of the room.
4 °CRoom freeze protection
As soon as the unit senses 40 °F (4 °C) or below, it starts the fan and the heater: an empty room won't freeze in winter.
It fits the standard 42 × 16 in sleeve
Amana sleeves have the industry-standard dimensions: 42 in wide, 16 ¹⁄₁₆ in high, 14 ⅛ in deep. Our estimator checks the sleeve and the grille in place before ordering.
What it needs on site
In a replacement, we check the outlet and the breaker first: they set the heater size you can use. Our estimator confirms the sleeve, the outlet and the slope before ordering.

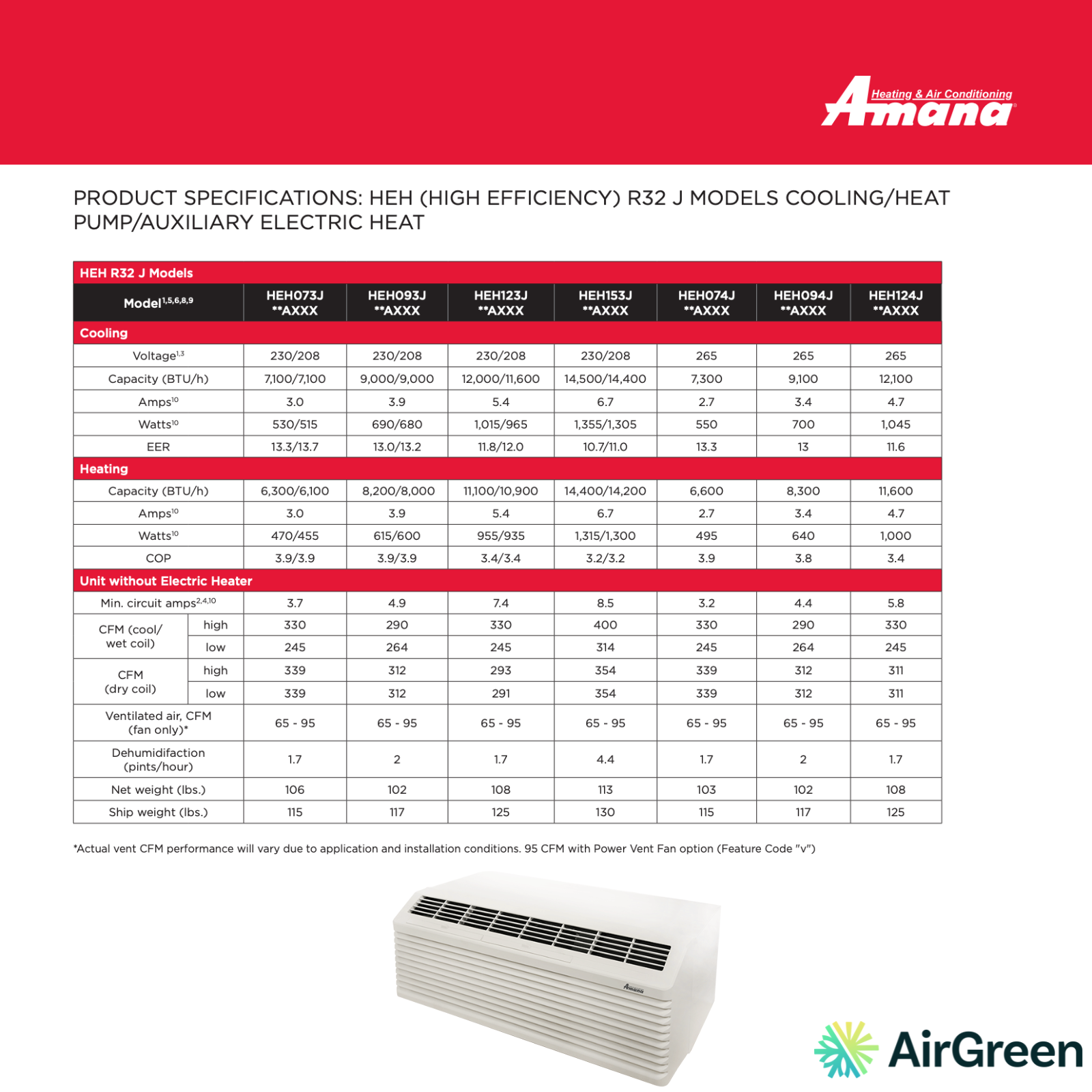

Complete spec sheetData and cited sources
- Model
- HEH073J**AXXX
- Cooling capacity (208/230 V)
- 7,100 / 7,100 BTU/h
- Heating capacity, heat pump (208/230 V)
- 6,100 / 6,300 BTU/h
- Electric heater (options)
- 1.5 kW · 2.5 kW · 3.5 kW · 5.0 kW
- EER (208/230 V)
- 13.7 / 13.3
- COP (heat pump, 8 °C)
- 3.9
- Current — compressor
- 3 A
- Power — cooling (208/230 V)
- 515 / 530 W
- Power — heat pump (230 V)
- 470 W
- Airflow (low/high)
- 245 / 330 cfm
- Dehumidification
- 1.7 pints/h
- Application range
- ≈ 105 to 170 sq ft (AirGreen estimate)
- Front
- 7⅝ in deep
- Sleeve
- 42 × 16 ¹⁄₁₆ in, 14 ⅛ in deep
- Net weight
- 106 lb
- Refrigerant
- R-32
- Heat pump → heater
- coil below 20 °F (−7 °C)
- Power supply
- 208/230 V · 1 ph · 60 Hz
All values: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Operating cost: cooling at 534 W for 200 h per summer; heating estimated for a typical 138 sq ft room (982 kWh of heat per winter, heat pump counted at 8 °C and warmer); at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The neighbouring models
Talk to an HVAC technician before you choose
We check the existing sleeve, the outlet and the heater size, and give you an installed price. For a building, we order the same series for every room.
Performance and energy efficiency: an optimal choice for your HVAC needs
At AirGreen, we know that choosing the right heating, ventilation, and air conditioning (HVAC) system is essential for the comfort and energy efficiency of your space. The AMANA | 7000 BTU | HEH (HIGH EFFICIENCY) R32 J PTAC Heat Pump stands out for its high performance, quiet operation, and innovative features. Designed to provide consistent comfort in residential, commercial, and hospitality environments, it is the result of decades of expertise and quality manufacturing in the United States.
Energy efficiency and potential savings
One of the main advantages of this heat pump is its exceptional energy efficiency , with an EER of up to 14.0 and a COP of up to 3.9 . These values can allow you to benefit from subsidies offered by electricity companies in the Montreal, Laval, Longueuil, North Shore and South Shore regions.
Another major advantage is the use of R-32 refrigerant :
-
Global Warming Potential (GWP) reduced to 677 , in line with strict environmental regulations.
-
Up to 12% more efficient than R-410A , with a 40% lower refrigerant charge.
-
Lower overall lifecycle emissions than R-454B.
These features translate into a tangible reduction in energy consumption and minimal environmental impact.
Remarkably quiet operation
Thanks to its advanced design, the PTAC AMANA is one of the quietest models on the market .
-
Two separate motors for the indoor and outdoor fans.
-
Tangential fan for a smooth and discreet airflow.
-
Sound insulation index ( STC ) of 29, guaranteeing a quiet environment.
Whether in a hotel room, an office or a residence, this system offers optimal acoustic comfort , essential for quality of life and well-being.
Integrated technologies for intelligent control
This heat pump incorporates several innovations that simplify management and maintenance:
-
Bluetooth® connectivity via the Amana app (iOS and Android): quick setup, accurate diagnostics and remote adjustments.
-
Built-in RF communication to wirelessly connect an Eden thermostat (DS01G) or the Eden Concierge system, reducing energy consumption by up to 35% or more .
-
Constant fan mode and centralized management thanks to Eden software for optimal air and energy control.
These features provide building managers and owners with unparalleled flexibility to optimize comfort and savings.
Durable design and simplified maintenance
The AMANA PTAC heat pump is designed to last, with features that make it easier to maintain:
-
Washable and reusable air filters , easily accessible on the front of the unit.
-
Condensate dispersion system that reuses cooling water to improve thermal efficiency.
-
Protection against frost when the temperature drops below 4°C.
-
Zero ground clearance for an aesthetic and space-optimized installation.
Each unit is 100% factory tested in Texas, with leak checking and full performance check.
Examples of AirGreen installations
At AirGreen, we have installed this model in different contexts in Montreal, Laval and Longueuil :
-
At a North Shore hotel complex, AMANA PTACs reduced annual energy bills by 28% while improving sound comfort.
-
In an office building in Boucherville, integration with the Eden Concierge system optimized room-by-room temperature management, reducing operating costs.
These concrete results demonstrate the versatility and profitability of this model.
Why choose AirGreen for your installation?
-
Free on-site assessment : we analyze your needs before providing you with a transparent quote.
-
Certified and experienced technicians : complete expertise in HVAC installation , repair and maintenance.
-
No deposit required : you only pay once you are 100% satisfied with the service.
We guarantee fast, efficient service tailored to your needs, whether for a residential, commercial or hotel project.
Conclusion
The AMANA PTAC Heat Pump | 7000 BTU | HEH (HIGH EFFICIENCY) R32 J is a sound investment for those looking for a high-performance, quiet, durable, and energy-efficient HVAC system. Combining technological innovation, environmental friendliness, and reliability, it perfectly meets the needs of owners and managers looking to reduce costs while maximizing comfort.
Contact AirGreen today for a free evaluation and discover how this heat pump can transform your thermal comfort while maximizing your savings.
