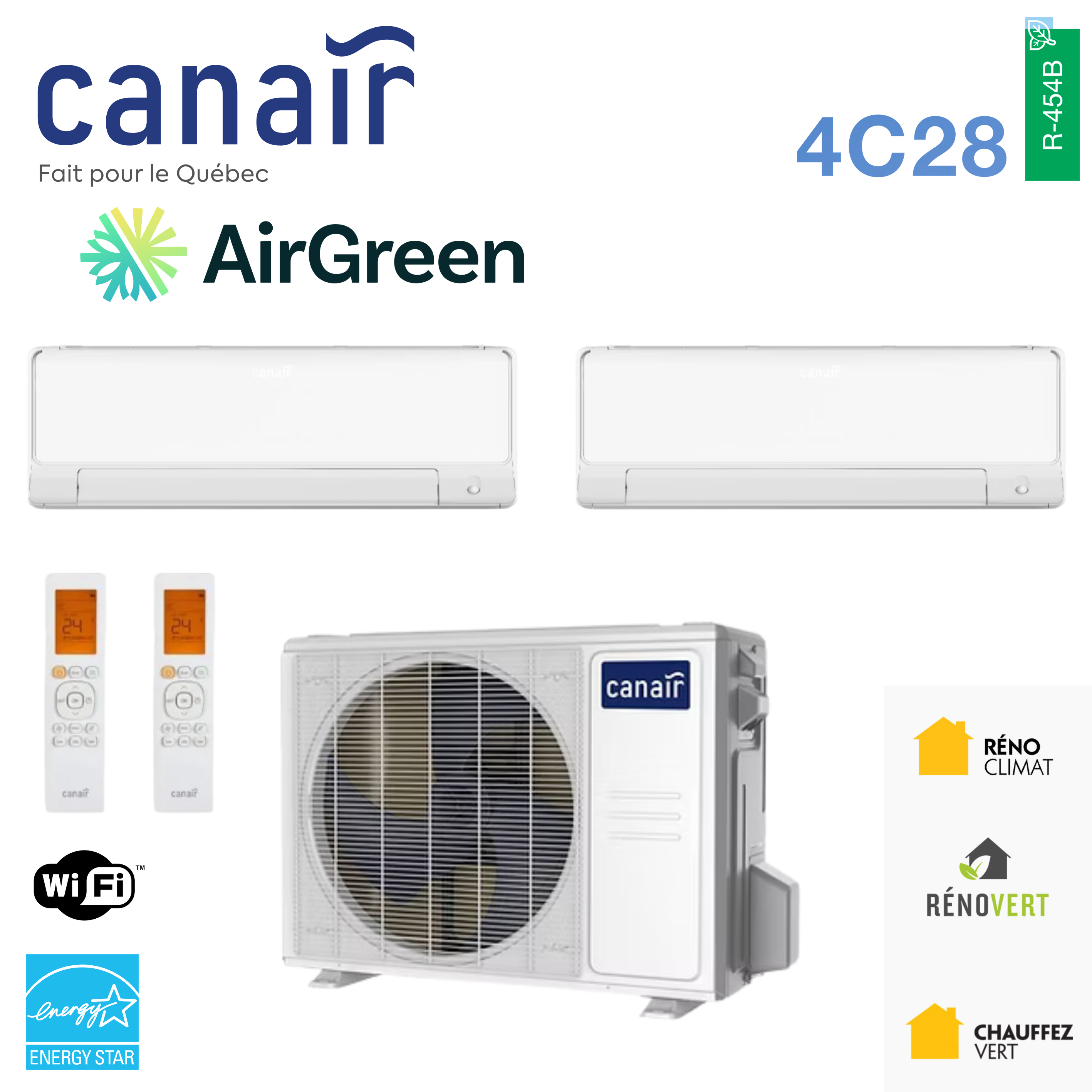

CANAIR 4C28 Heat Pump - R454B | 2-Zone - 36,000 BTU Outdoor

In stock
SKU: 4C28MC536H21-624
36,000BTU/h · 2 heads
−30 °Cheats down to
$4,560LogisVert, indicative
ENERGY STAR® cold climateENERGY STAR Most EfficientOptional Wi-FiR-454BUp to 5 heads
Areas
Talk to a technician · 514 316-2973
Outdoor unit 4C28MC536H21Possible indoor models 4C28SEH06H21, 4C28SEH09H21, 4C28SEH12H21, 4C28SEH18H21, 4C28SEH24H21, 4C28SEH33H21AHRI 215449730· ENERGY STAR 3712089
In short

The CanAir 4C28 R454B 36 000 multi-zone heat pump heats and cools 2 rooms with a single outdoor unit. it delivers 38,000 BTU/h at −8 °C, heats down to −30 °C and qualifies for a $4,560 LogisVert grant. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.

01 · The verdict in 10 seconds

2 rooms, one outdoor unit.

Compared with the 141 multi-zone systems of 36,000 BTU we sell. Every number on this page carries its source.

ENERGY STAR Most EfficientNEEP 387515AHRI 215449730LogisVert · October 1, 2026
+Indoor head from 19.5 dB(A)Rank 7 (tied) of 134. Class median: 28 dB(A).
+38,000 BTU/h at −8 °CRank 9 (tied) of 138. Class median: 27,400 BTU/h.
+$4,560 LogisVert grantRank 5 (tied) of 100. Class median: $3,480.
!Good to know: 65 dB(A) outdoorsRank 127 of 141; class median: 61 dB(A).
38,000BTU/h certified at −8 °C
−30 °Cstill heating
2 → 5heads, on the same unit
2.12COP at −8 °C
$4,560LogisVert, indicative
02 · The machine

The parts that make a multi-zone system.

Tap a part to learn more.

4C28MC536H21

Outdoor unit

One compressor for the whole house. It supplies up to 5 heads and modulates from 10,000 to 38,000 BTU/h depending on what the rooms call for (NEEP).

03 · How it works

Turn rooms on and off. Watch the power being shared.

One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.

04 · My plan

Tell us your rooms. We tell you if this size is enough.

Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.

05 · The series

The whole series at a glance: find the box that fits you.

Each box is a product: the outdoor unit’s size, and the number of heads.

Outdoor2 zones3 zones4 zones5 zones6 zones
18,000BTU
23
27,000BTU
234
36,000BTU
Here345
48,000BTU
23456

CanAir 4C28 R454B 36 000 · 2 zones

38,000 BTU/h
at −8 °C
$4,560
LogisVert

Up to 5 heads on this outdoor unit. Tap another box to see that size.

06 · Deep cold

At −15 °C, it still delivers 100 % of its rated capacity.

Tap a temperature: certified capacity, efficiency and the cost of one hour of heating.

It slows down, it speeds up: the certified modulation range

Light bar: from minimum to maximum capacity. Dark mark: the rated value.

+8.3 °C
10,000 → 44,000 BTU/h
-8 °C
8,000 → 38,000 BTU/h
-15 °C
7,200 → 36,000 BTU/h
Source: NEEP, minimum, rated and maximum ratings at 47, 17 and 5 °F.
07 · The bill

At every temperature, cheaper than baseboards.

Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.

08 · Efficiency

The official ratings, on the same scales as before.

SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.

SEER2 · seasonal cooling23.0
Scale 1 – 30Median: 21
Rank 18 (tied) of 141 in its class.
HSPF2 · seasonal heating10.7
Scale 1 – 15Median: 10
Rank 13 (tied) of 141 in its class.
EER2 · cooling in peak heat13.0
Scale 1 – 20Median: 12
Rank 15 (tied) of 138 in its class.
COP at −15 °C2.0
Scale 0 – 4Median: 1.9
Rank 28 (tied) of 118 in its class.
ENERGY STAR Most EfficientCold climate · ID 3712089 · ENERGY STAR database
09 · LogisVert grant

A grant you can calculate, not guess.

38,000 BTU/h÷ 1,000 ×$120=$4,560

The capacity at −8 °C comes from Hydro-Québec’s list of October 1, 2026. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).

Set for this system (AHRI 215449730). Another head combination (ducted, console) can change the AHRI number, and so the amount.
Cap: the grant never exceeds 100 % of the purchase and installation cost before taxes.
9 months after installation to apply; +5 % when two measures are in the same request.
All about LogisVert, with the simulator
10 · Report card

Where it ranks among same-size multi-zone systems.

Compared with the 141 multi-zone systems of 36,000 BTU we sell, using the LogisVert list figures. Weaknesses too, said plainly.

11 · Head-to-head

Against three other brands in its class.

Same rated size, other manufacturers. Pick the opponent.

12 · Multi-zone or wall units

One multi-zone or several wall units? Both sides, honestly.

This multi-zone2 wall units
On the wall1 outdoor unit2 outdoor units
Electrical1 dedicated circuitOne circuit per unit
CapacityShared between roomsReserved for each room
If the outdoor unit stopsEvery zone stopsOnly one room
ModesSame mode everywhereEach room chooses
LogisVert$4,560 for the systemDepends on each model

We compare both options on your floor plan during the estimate.

13 · Installation

What to know before installing a multi-zone system.

Dimensions, wiring and lines, drawn. Then our six steps.

The outdoor unit, dimensioned

38.39 in
4C28MC536H21Depth 16.34 in
38.58 in
Dimensions: product sheet (W × D × H).

One circuit for the whole house

Electrical panel
Load calculation before the quote
40 A max. breaker
MCA 37 A · 220 V
Outdoor unit
Head 1
Head 2
Our RBQ licence covers electrical work (subclass 16).
01Room-by-room visit and surveyWe measure each zone and note insulation and windows. The on-site estimate is free.
02Heads and line layoutOne pair of lines per head.
03Outdoor unit baseAbove the snow line, away from the neighbours’ bedroom windows.
04Exposed, finished linesLines 1/4 - 3/8 in under line covers, no work inside the walls.
05Dedicated circuit220 V, MCA 37 A, 40 A protection. The panel load calculation is done before the quote.
06Commissioning, zone by zoneEach head is tested and the controls set up. Then the LogisVert application within 9 months.
14 · Sound

Published sound levels, on one scale.

We use the outdoor figure to choose where the unit goes.

19.5
47
65
28
61
20 dB(A)3040506070
19.5 Reference head, lowest speed47 Reference head, highest speed28 Class indoor median65 Outdoor unit61 Class outdoor median
Values in dB(A). Indoor values are those of the sheet’s reference head; each head has its own, confirmed for the chosen model. Municipal noise by-laws vary by borough.
15 · What sets it apart

What is particular about this machine.

Only facts published by ENERGY STAR, NEEP or the manufacturer.

Most EfficientENERGY STARAmong the year’s most efficient according to ENERGY STAR, on top of its cold-climate certification.
10,000BTU/h at low speedMinimum certified capacity (NEEP): it slows down instead of stopping when a single room calls.
−30 °CColdest certified pointNEEP still lists 22,400 BTU/h at a COP of 1.47 at −22 °F.
150 WBase pan heaterHeater in the outdoor unit’s base pan, against ice (NEEP).

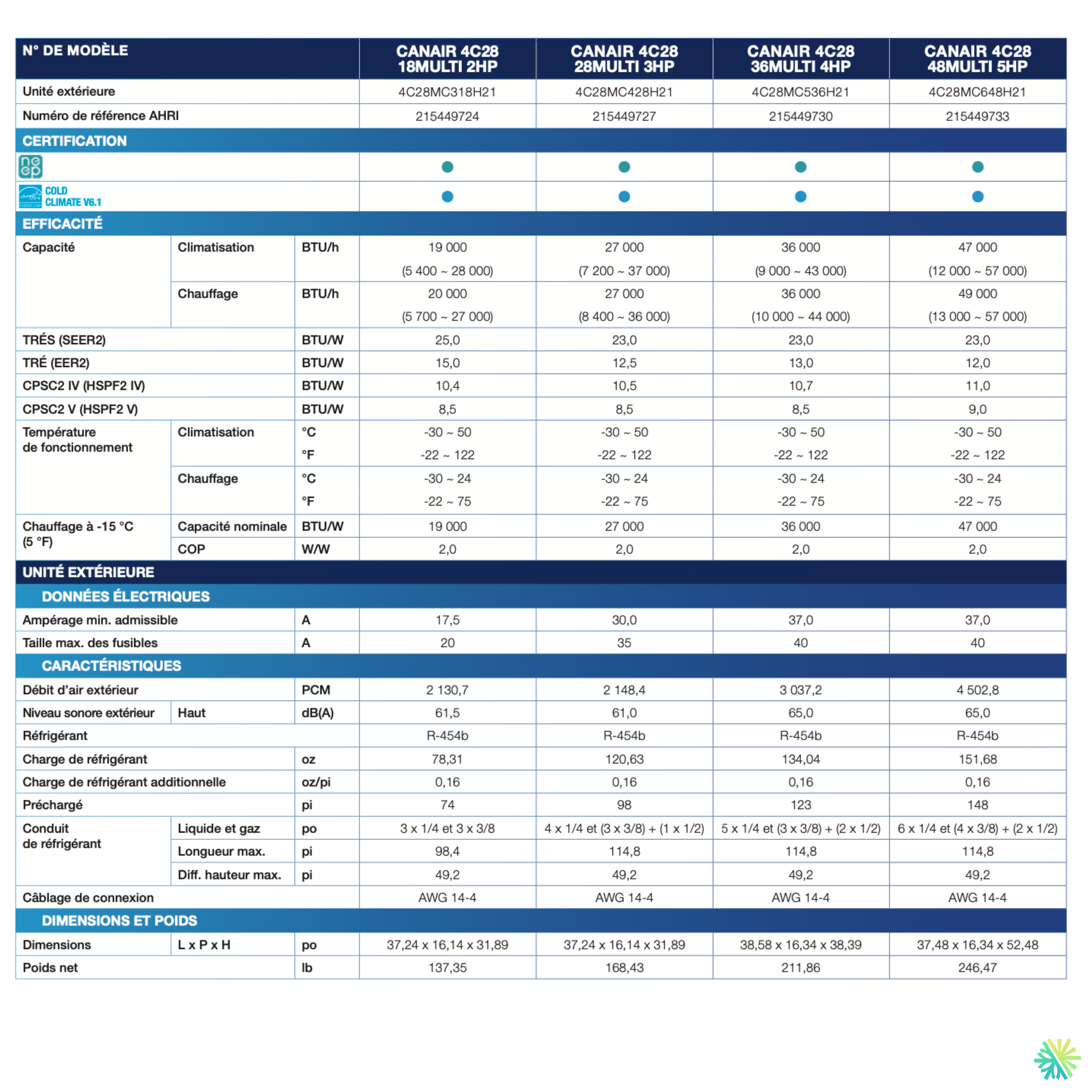

16 · Specifications

Every number, and where it comes from.

Each line carries its source; a line with no published value is not shown.

Performance
Cooling capacity (size)36,000 BTU · 3 tonsSheet
Certified cooling at 35 °C36,000 BTU/hNEEP
SEER2 (seasonal cooling efficiency)23.0AHRI
EER2 (instant cooling efficiency)13.0AHRI
HSPF2 (seasonal heating efficiency, region IV)10.7AHRI
HSPF2, region V (coldest)8.5NEEP
Heating
Capacity at +8.3 °C36,000 BTU/h · COP 4NEEP
Capacity at −8 °C38,000 BTU/h · COP 2.12NEEP
Capacity at −15 °C36,000 BTU/h · COP 2.0NEEP
Capacity at −30 °C (max.)22,400 BTU/h · COP 1.47NEEP
Modulation range10,000 – 38,000 BTU/hNEEP
Heats down to−30 °CSheet
Zones and heads
Zones on this product2 Zones (Dual Zone)Sheet
Maximum zones5 ZonesSheet
Possible indoor models4C28SEH06H21, 4C28SEH09H21, 4C28SEH12H21, 4C28SEH18H21, 4C28SEH24H21, 4C28SEH33H21Sheet

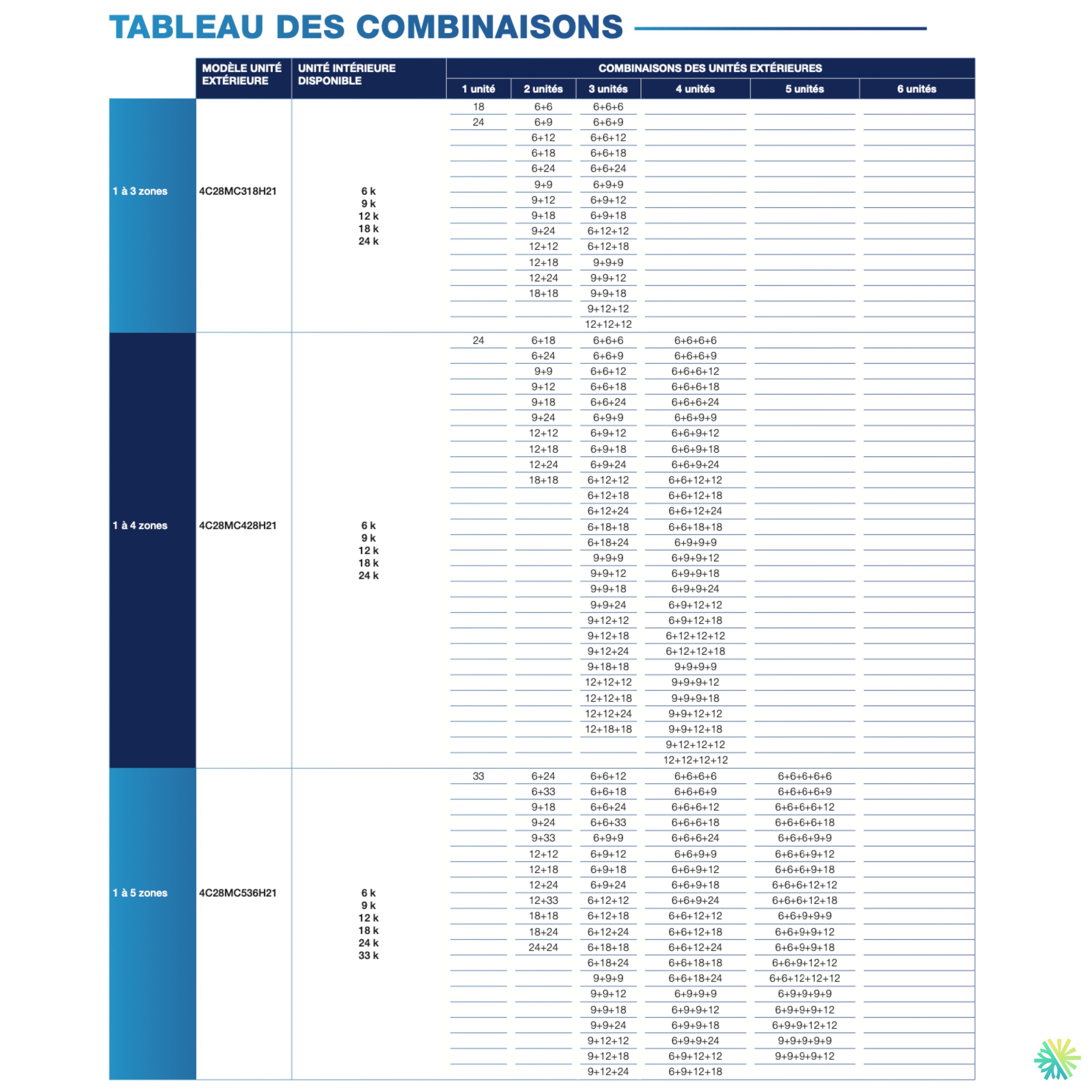

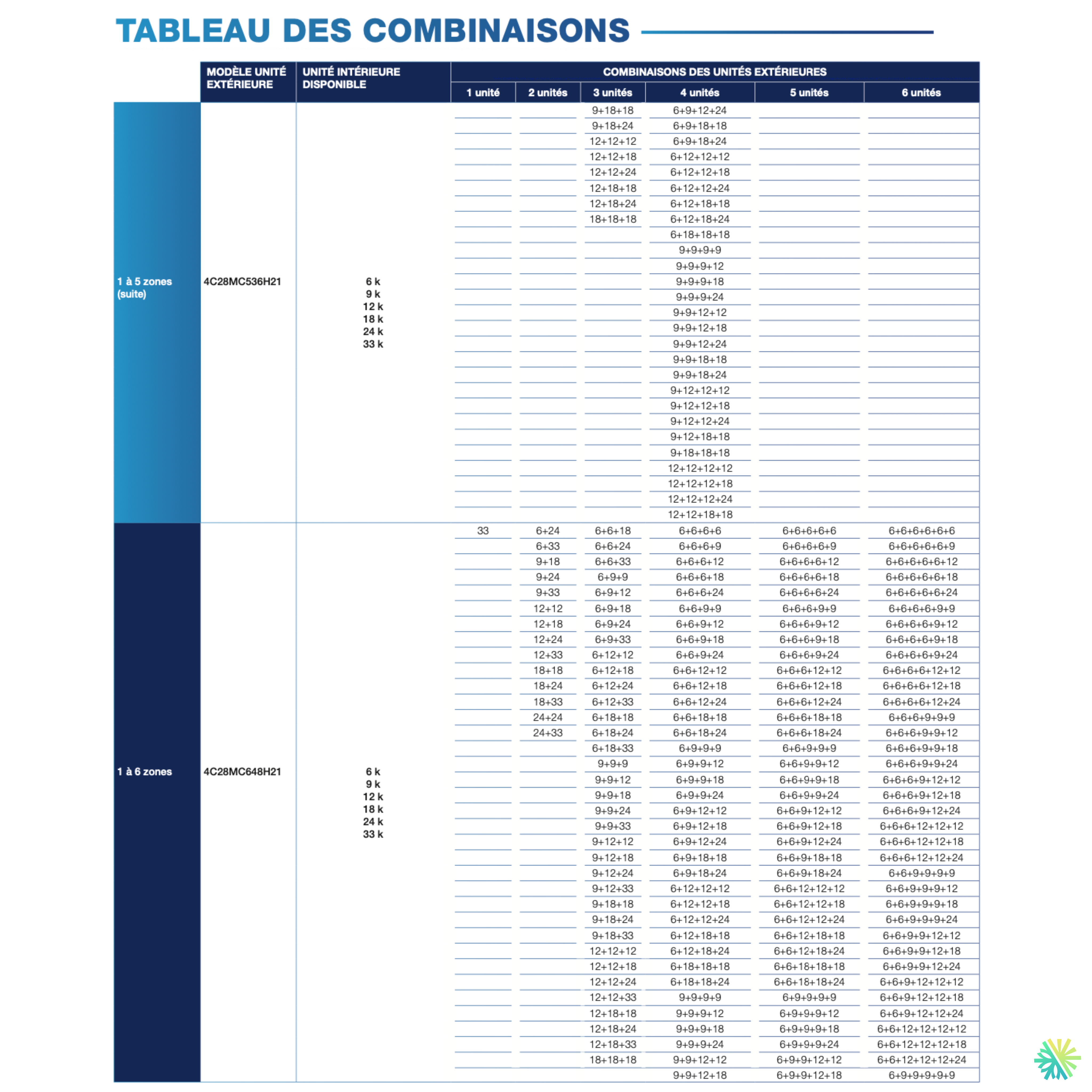

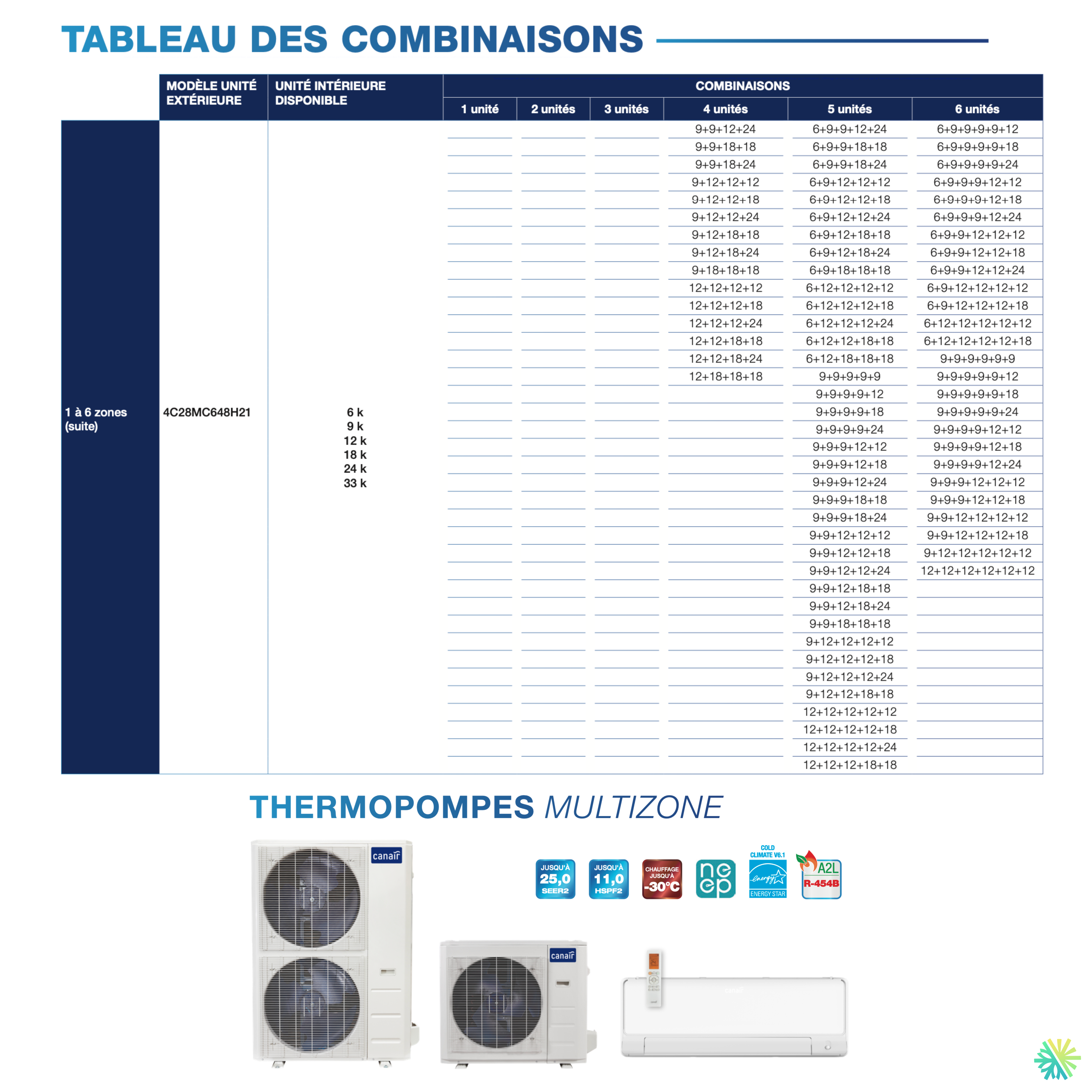

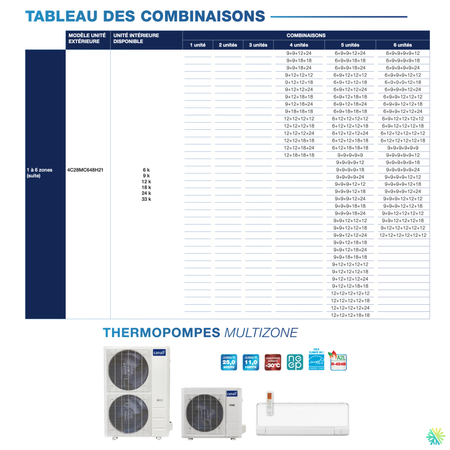

Combinations offered12 · 6+24 … 24+24Sheet
Indoor dimensions (W × D × H)33.40 x 9.18 x 11.76 inSheet
Vertical louversAutoSheet
Horizontal louversManualSheet
Airflow (reference head)442 CFMSheet
Indoor sound (reference head)19.5 – 47 dB(A)Sheet
Installation
Outdoor unit (W × D × H)38.58 x 16.34 x 38.39 inSheet
Line sizes1/4 - 3/8 inSheet
Outdoor sound65 dB(A)Sheet
Base pan heater150 WNEEP
Electrical
Voltage220 VSheet
MCA (minimum circuit ampacity)37 ASheet
MOP (maximum overcurrent protection)40 ASheet
RefrigerantR-454BSheet
Wi-FiOptionalSheet
Certifications and warranty
AHRI215449730AHRI
ENERGY STARYes · cold climate · ID 3712089ENERGY STAR
ENERGY STAR Most EfficientYesENERGY STAR
LogisVert grant (indicative)$4,560LogisVert
Warranty (compressor · parts · labour)10 yrs · 10 yrs · 0 yrsSheet
AirGreen extended warrantyPossibleSheet
17 · Official brochures

The manufacturer’s documentation, as PDF.

18 · Description

Everything we have written about this system.

The power of performance serving Quebec comfort

At AirGreen , we believe that a heating and air conditioning system must do much more than simply regulate the temperature: it must create a stable, healthy and pleasant living environment throughout the year, regardless of the harshness of the Quebec climate.
This is precisely what the CANAIR 4C28 - R454B | 2-Zone - 36,000 BTU Outdoor heat pump brilliantly accomplishes.

Designed specifically for the needs of homes and businesses in Greater Montreal , Laval , Longueuil , as well as the North and South Shores , this heat pump is a concentrate of innovation and performance. It combines cutting-edge technology, exemplary robustness and unparalleled energy efficiency, all supported by Quebec reliability and know-how.

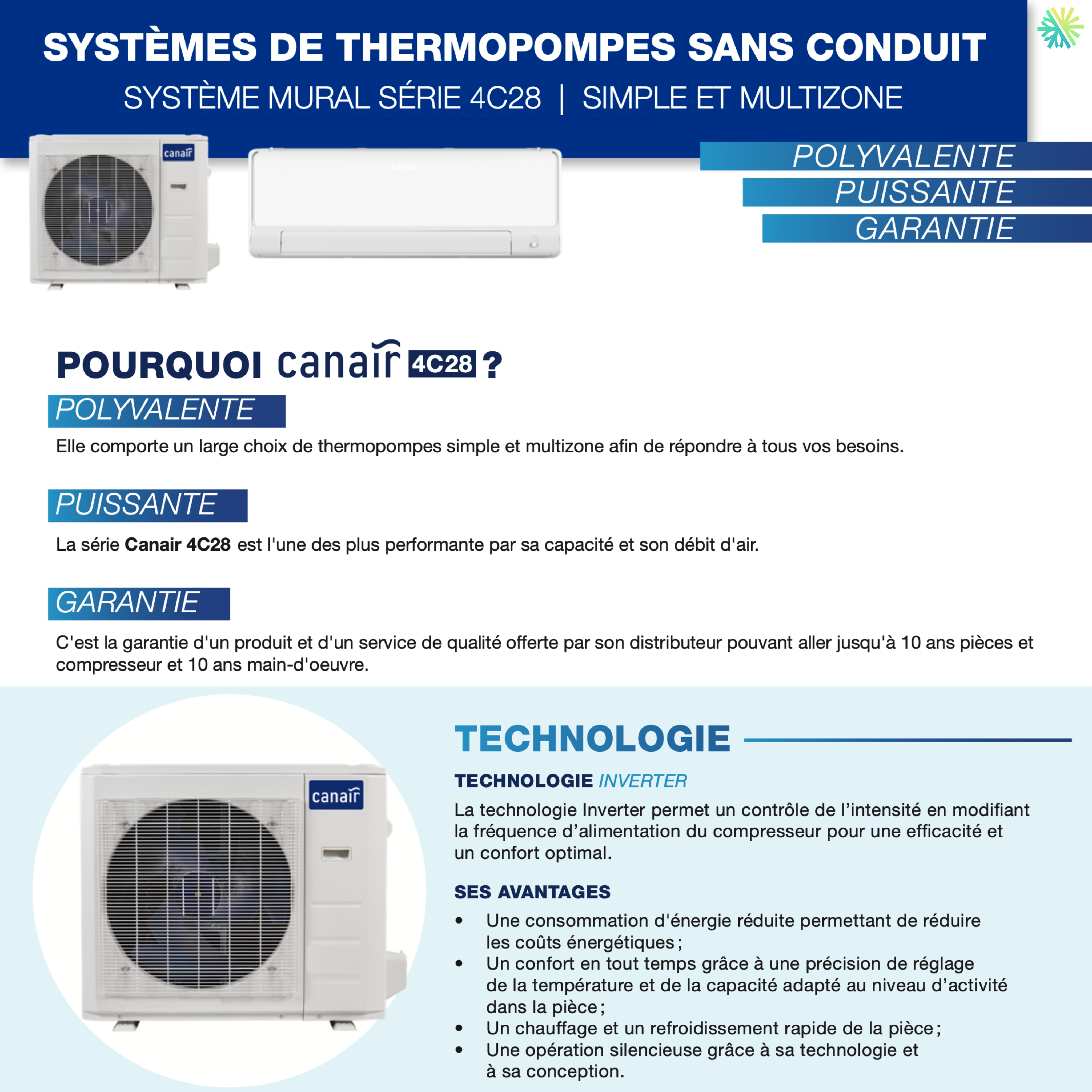

Cutting-edge technology: perfect control thanks to the Inverter

The CANAIR 4C28 series is based on advanced Inverter technology , an intelligent system that adapts the compressor power in real time according to the needs of the room. Unlike older fixed-cycle models, the Inverter continuously adjusts the motor's power frequency, thus maintaining a stable temperature without wasting energy.

This smooth operation offers several concrete advantages :

  • Up to 30% energy savings compared to conventional models;

  • Unparalleled temperature stability , without unpleasant jolts or drafts;

  • Low noise level , ideal for bedrooms, offices or relaxation areas;

  • Increased longevity thanks to more balanced use of the compressor;

  • Instant responsiveness , allowing you to reach the desired temperature in just a few minutes.

This precise indoor climate control transforms your daily life, providing a tailored comfort experience, whether you are at home, in an office or in a business.


A performance that defies the Quebec cold

With a heating capacity down to -30°C , the CANAIR 4C28 heat pump was designed for Quebec winters. Icy days and snowstorms are no longer an obstacle: it continues to provide constant and pleasant heat, without losing efficiency.

The numbers speak for themselves:

  • 36,000 BTUs of power to efficiently heat two main areas of a home (e.g., a living room and a master bedroom).

  • 23.0 SEER2 in air conditioning, energy efficiency higher than the majority of models on the market.

  • 10.7 HSPF2 in heating, guaranteeing reduced consumption even in very cold weather.

  • 13.0 EER2 for excellent cooling efficiency.

The result: balanced performance, controlled consumption and an uninterrupted comfort experience, summer and winter.


Choosing R-454B refrigerant: an ecological breakthrough

In a context where energy sustainability is a key priority, the CANAIR 4C28 adopts the new R-454B refrigerant, successor to R-410A. This innovative refrigerant reduces the environmental impact on global warming by almost 80% .

By choosing this model, you are making a concrete gesture for the planet , without sacrificing performance:

  • Increased efficiency through better heat transfer;

  • Lower ecological impact , with reduced global warming potential;

  • Full compliance with new Canadian and North American environmental standards .

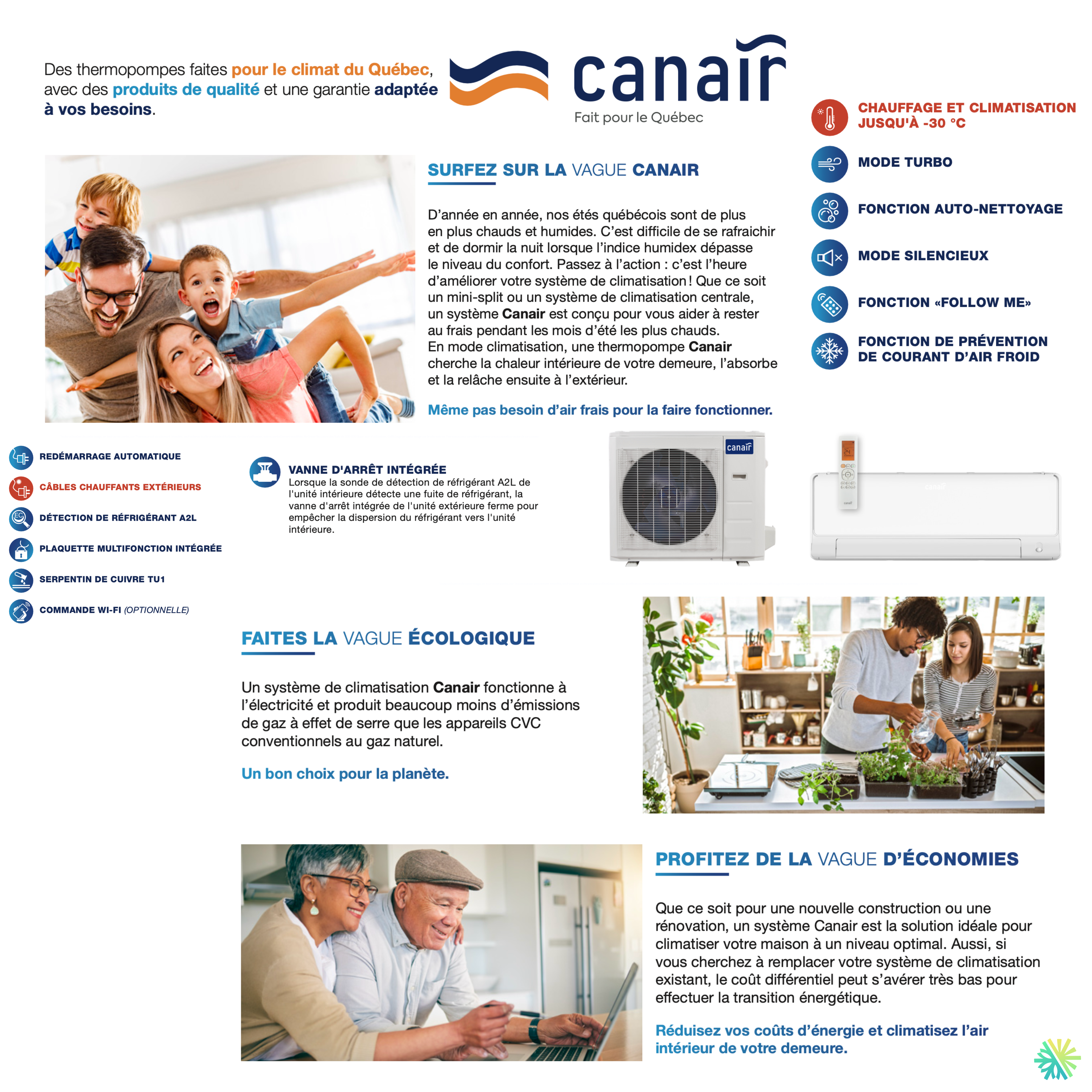

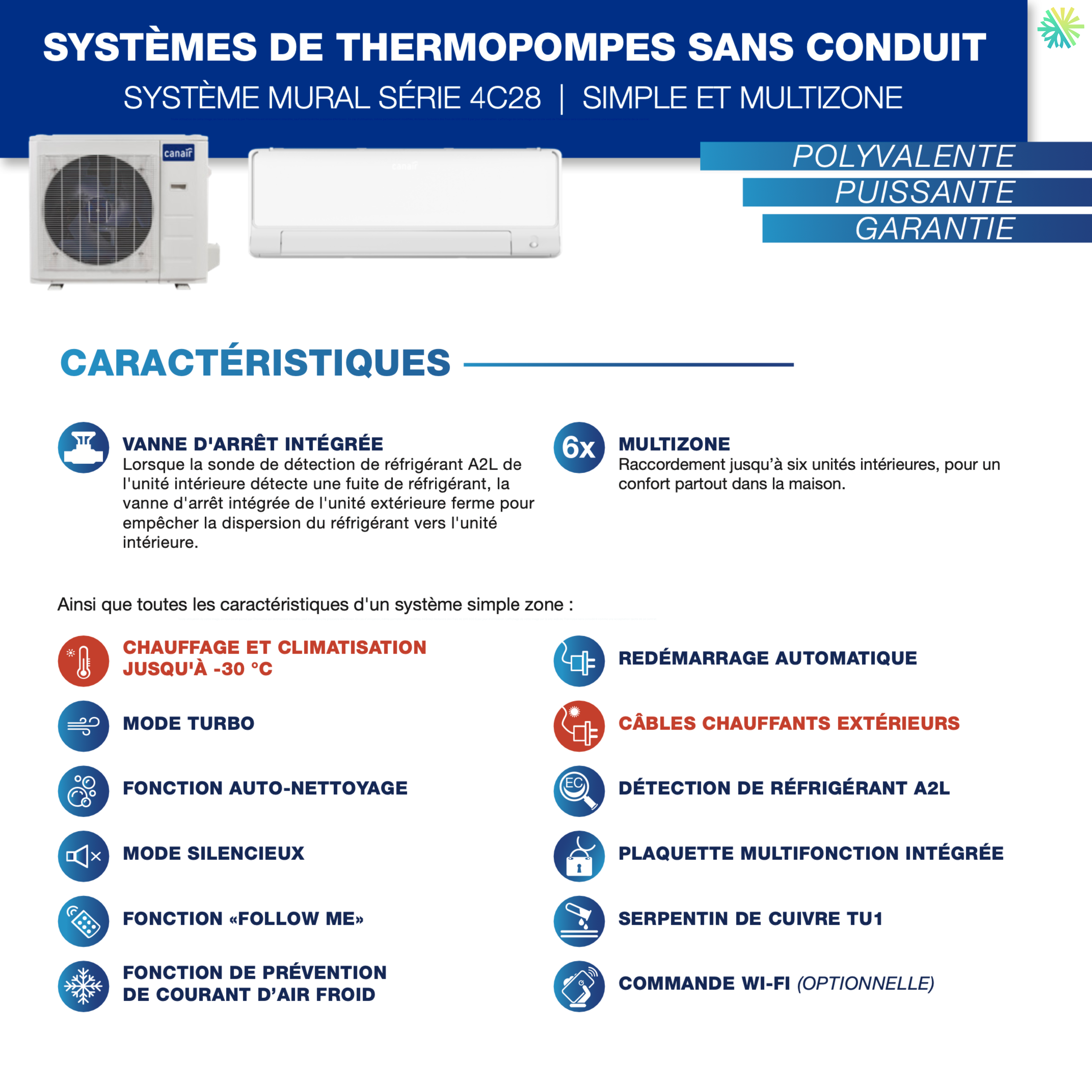

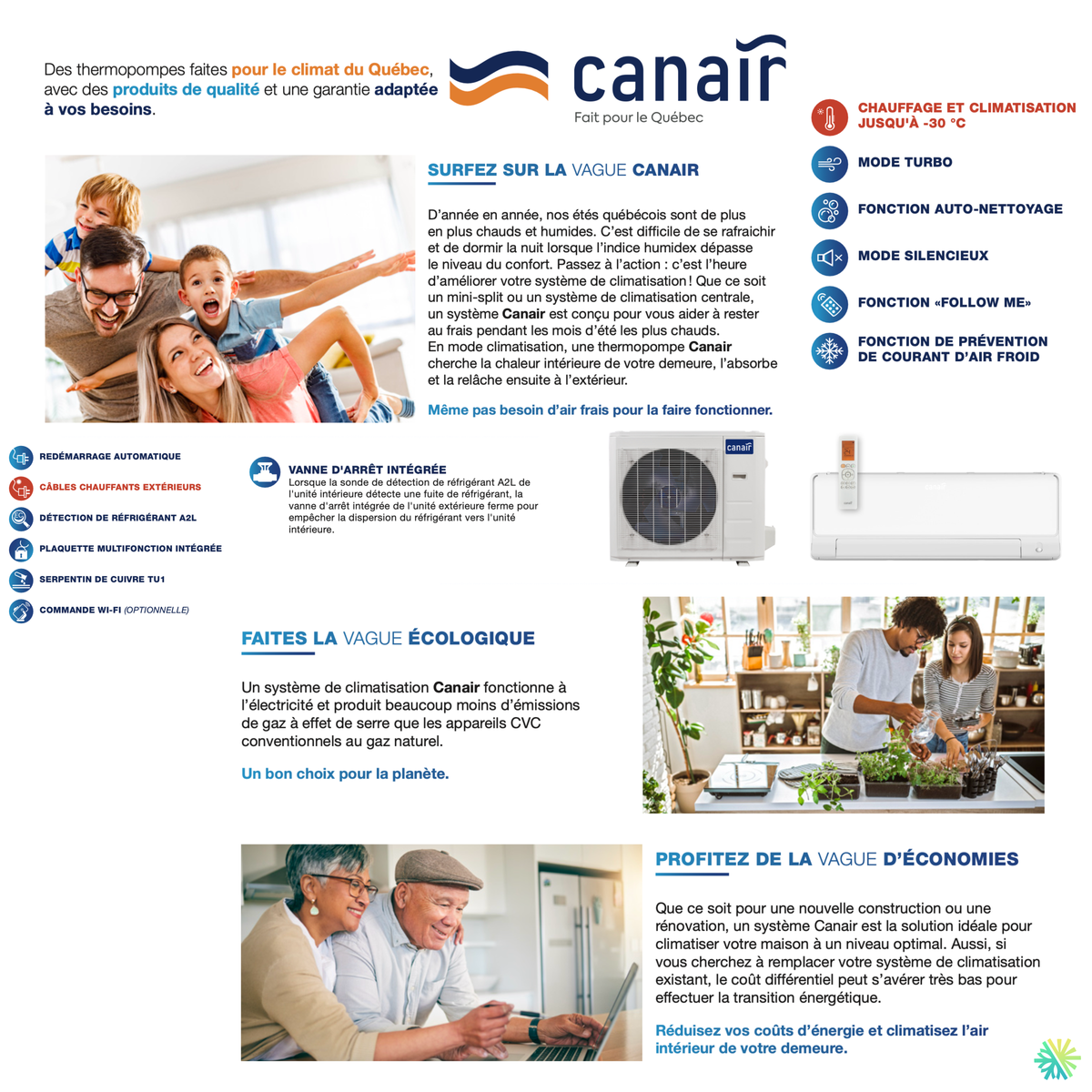

Intelligent design for peace of mind

Every component of the 4C28 series has been developed with reliability, safety and absolute comfort in mind.
Here are some of the features our customers appreciate the most:

  • Turbo Mode : Allows you to quickly reach the desired temperature, whether for heating or air conditioning.

  • Self-Cleaning Function : Eliminates moisture and prevents mold growth in the coils, extending the life of the unit.

  • Silent Mode : Ideal for a peaceful night or a quiet working environment.

  • “Follow Me” function : the temperature adapts to the precise location of the remote control.

  • Refrigerant leak detection : safety system that automatically shuts down the device in the event of an anomaly.

  • Integrated heating cables : installed at the base and around the compressor to prevent ice formation and ensure smooth start-up, even at -30°C.

  • Optional Wi-Fi control : Control your heat pump from your smartphone, wherever you are.

These features, combined with the robustness of the design, make the CANAIR 4C28 a durable and safe ally for all seasons.


Versatility and flexibility: up to five connected zones

The 4C28 - 2 Zones - 36,000 BTU model is part of a series capable of managing up to 5 independent interior zones . This modularity allows the system to be adapted to each residence or building.
Each indoor unit can operate independently, with its own temperature, mode and schedule.

It is the ideal solution for owners of multi-story houses, duplexes or small businesses wishing to optimize their comfort while reducing their energy consumption .


Exceptional guarantee and total peace of mind

The CANAIR 4C28 heat pump comes with one of the most generous warranties in the industry :

  • 10 years on the compressor ;

  • 10 years on parts ;

  • up to 10 years on labor (with additional option).

This comprehensive warranty reflects the quality of the product and the confidence that CANAIR and AirGreen place in the durability of their equipment.
It also means you can invest with peace of mind, knowing your system is fully protected for the next decade .


An ecological and economical investment

Choosing a CANAIR 4C28 also means choosing a system that reduces your carbon footprint while reducing your electricity bills.
Thanks to its high energy efficiency, this model is eligible for the provincial LogisVert grant of $3,600 (updated: July 2025).

Moreover :

  • You reduce your heating costs by up to 40% compared to a traditional electric system.

  • You reduce your greenhouse gas emissions .

  • You increase the resale value of your property , an important argument in the current real estate market.


Professional installation by AirGreen

At AirGreen , our mission is not limited to sales: we ensure a complete, meticulous and guaranteed installation .
Our highly qualified and accredited refrigeration technicians take care of every step of the process:

  1. Free on-site evaluation to determine the optimal configuration for your system.

  2. Personalized recommendations , based on the surface area, sun exposure and insulation of your building.

  3. Quick and clean installation , respecting the standards of the Régie du bâtiment du Québec (RBQ) .

  4. Performance testing and adjustments , to ensure maximum efficiency from day one.

Our promises:

  • Transparent pricing, no hidden costs ;

  • No deposit required until complete customer satisfaction ;

  • Fast, local and courteous after-sales service ;

  • Preventive maintenance offered , to extend the life of your system.


Customer Testimonial – Longueuil

"We had the CANAIR 4C28 heat pump installed by AirGreen last winter. The team was professional from start to finish. The system heats quickly, even at -28°C, and remains impressively quiet. It's a real change in our daily comfort."

This testimonial reflects the experience of many owners who have chosen AirGreen for the reliability of its service and the performance of its installations.


Why choose AirGreen for your HVAC project?

  • Quebec company specializing in HVAC , serving individuals and businesses for several years.

  • Certified and experienced installers , recognized for the quality of their work.

  • Large selection of ENERGY STAR® products , adapted to the Quebec climate.

  • Eco-responsible commitment : reduction of emissions, energy efficiency, choice of green refrigerants.

  • Local presence : offices and showrooms in Montreal and Boucherville , service throughout Greater Montreal .


Conclusion: excellence in comfort from AirGreen and CANAIR

The CANAIR 4C28 - R454B | 2-Zone - 36,000 BTU Outdoor heat pump is not just a heating and cooling unit: it is a complete and durable solution , designed to meet the demands of the Quebec climate while reducing your energy consumption.

Combining innovation, robustness and elegance, it embodies the perfect union between modern technology and local expertise . Installed by AirGreen, it becomes the energetic heart of your home , ensuring warmth, freshness and tranquility all year round.

19 · Questions

What people ask us about multi-zone systems.

Can I heat one room and cool another at the same time?

No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.

What happens when every room calls for heat?

They share the outdoor unit’s capacity: 38,000 BTU/h at −8 °C, 36,000 at −15 °C and 22,400 at −30 °C.

How many heads can I connect?

Up to 5 on this outdoor unit. This product is configured for 2 heads.

Can I mix head sizes?

Yes. The “Zones” menu offers 12 combinations, from 6+24 to 24+24 (in thousands of BTU). Each head is sized for its room.

How much is the LogisVert grant?

$4,560 according to Hydro-Québec’s list of October 1, 2026. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.

Is it ENERGY STAR certified?

Yes, cold climate, ID 3712089. It also meets the ENERGY STAR Most Efficient criteria, according to the ENERGY STAR database.

Down to what temperature does it heat?

Down to −30 °C. At −30 °C, it still delivers 22,400 BTU/h with a COP of 1.47.

Is it noisy?

Indoors, the reference head goes down to 19.5 dB(A). Outdoors, 65 dB(A): we place the unit away from bedroom windows.

Why a multi-zone instead of several wall units?

One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.

What does the warranty cover?

Our sheet lists 10 years on the compressor and 10 years on parts; labour is not included by the manufacturer. AirGreen extended warranty: possible.

AirGreen

A multi-zone system is planned room by room. At your home.

We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.

RBQ 5645-9605-01Ventilation 15.8, refrigeration 15.10, electrical 16
We handle the circuitOur licence covers the electrical work
LogisVert : $4,560AHRI 215449730 checked against the list of October 1, 2026
Beware of scamsHydro-Québec does no phone or door-to-door solicitation for LogisVert
Sources checked on October 1, 2026.NEEP, Cold Climate Air Source Heat Pump List, product 387515 (AHRI 215449730): capacities and COP, modulation, SEER2, EER2, HSPF2.ENERGY STAR certified heat pump database, ID 3712089.Hydro-Québec, LogisVert eligible heat pump list (owner, existing home), file of October 1, 2026; participation guide, version 1.10.Costs: Hydro-Québec Rate D, 11.142 ¢/kWh (second tier, since 1 April 2026). Amounts shown are estimates; only the responsible bodies confirm the grant awarded.
