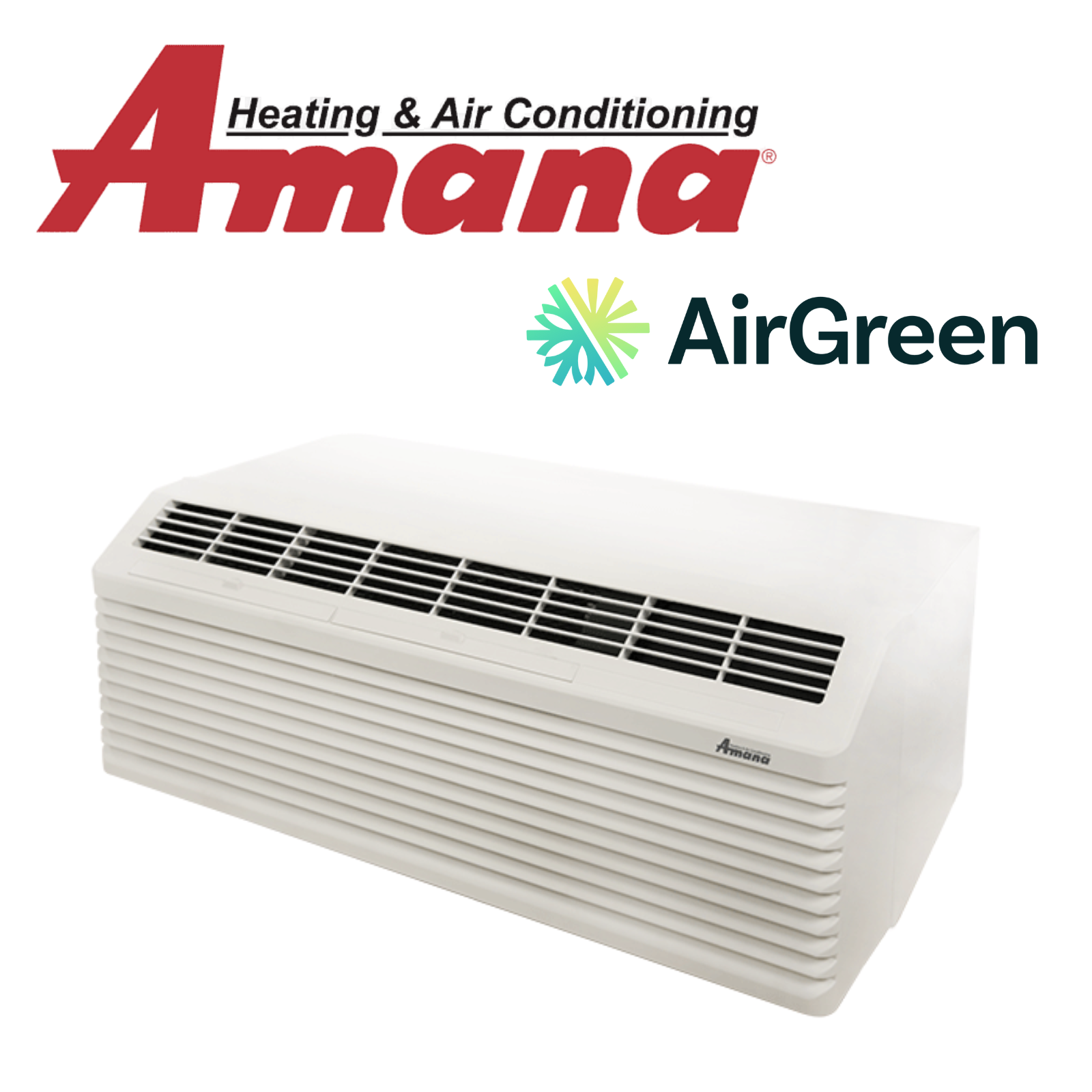

AMANA PTAC Heat Pump | 7000 BTU | HEH (HIGH EFFICIENCY) R410A K
Is it the right size for this room?
Amana doesn't publish a room size for this unit. From its 7,100 BTU/h of cooling, we estimate ≈ 105 to 170 sq ft. Choose your room's area.
It's the right size.
For a 130 to 175 sq ft room, this is the range we estimate for this unit: 7,100 BTU/h of cooling, 6,500 BTU/h of heat-pump heating and a heater of up to 5,000 W when the cold calls for it.
AirGreen estimate: Amana publishes no room size, so we apply the application ranges Trane publishes for its PTACs of the same cooling capacity. Our estimator confirms the exact area on site.
What it does, in numbers
$12.17
Cooling, all summer
Less than a 60 W light bulb
Bulbs left on day and night for a year. Cooling: 5 h a day for 40 days, the assumption used by Hydro-Québec's air-conditioning calculator. Same calculation for every line: wattage × hours × 11.142 ¢/kWh.
≈$101
Heating, all winter
≈ $8 less than baseboard heaters
Typical 138 sq ft room with one exterior wall, in Montréal: 982 kWh of heat per winter (Environment Canada 1991–2020 climate normals). The heat pump is counted only at 8 °C and warmer, where Amana rates its output; below that, the heater, at the price of a baseboard. If it keeps heating in colder weather, the bill goes down.
≈ $113 for the year, before tax. Winter is 89% of it. If your home stays in the first tier of Rate D in summer (7.065 ¢/kWh), cooling drops to $7.71.
Capacities and currents: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Power draw: 546 W in cooling (7,100 BTU/h ÷ EER 13.0), 510 W in heat-pump mode, 5,000 W on the 5 kW heater. Hydro-Québec Rate D in effect since April 1, 2026: 11.142 ¢/kWh second tier, before tax.
What you should know about this one
Published, verifiable facts, not brochure claims.
7,100What it really delivers in cooling
The name says 7,000 BTU: that's the unit's size class. Amana publishes 7,100 BTU/h at 230 V and at 208 V, the supply in many buildings: the capacity doesn't drop.
5,000 WThe heater that takes over
At Amana, the two digits after the series letter (the ** in HEH073K**AXXX) set the heater when ordering: 1.5, 2.5, 3.5 or 5.0 kW at 230 V, 1.3 to 4.1 kW at 208 V. At 5.0 kW it takes a 6-30P plug on 30 A; at 3.5 kW, a 6-20P on 20 A. It heats when the heat pump can no longer keep up.
13.0Efficiency above the standard model
Amana publishes an EER of 13.0 for this HEH, against 12.0 for the standard PTH of the same size. For the same capacity, it draws fewer watts in summer, and its COP of 3.7 (against 3.4) trims the winter too.
3.7The COP published at 8 °C
Amana publishes a heat-pump COP of 3.7: 6,500 BTU/h of heat at 230 V. Each kWh you pay for gives back 3.7 in heat, against 1 for the heater or a baseboard.
−7 °CWhen the heat pump hands over
Amana switches the unit from heat pump to the heater when the coil drops below 20 °F (−7 °C), or when the heat pump can't keep up on a two-stage thermostat.
1.7Pints of water it removes per hour
The dehumidification Amana publishes in cooling mode: 1.7 pints per hour. It's what keeps a room comfortable in summer without it turning clammy.
7⅝ inHow far it sticks into the room
Amana quotes a 7⅝ in deep front, one of the slimmest in the industry: the unit takes less space out of the room.
4 °CRoom freeze protection
As soon as the unit senses 40 °F (4 °C) or below, it starts the fan and the heater: an empty room won't freeze in winter.
It fits the standard 42 × 16 in sleeve
Amana sleeves have the industry-standard dimensions: 42 in wide, 16 ¹⁄₁₆ in high, 14 ⅛ in deep. Our estimator checks the sleeve and the grille in place before ordering.
What it needs on site
In a replacement, we check the outlet and the breaker first: they set the heater size you can use. Our estimator confirms the sleeve, the outlet and the slope before ordering.

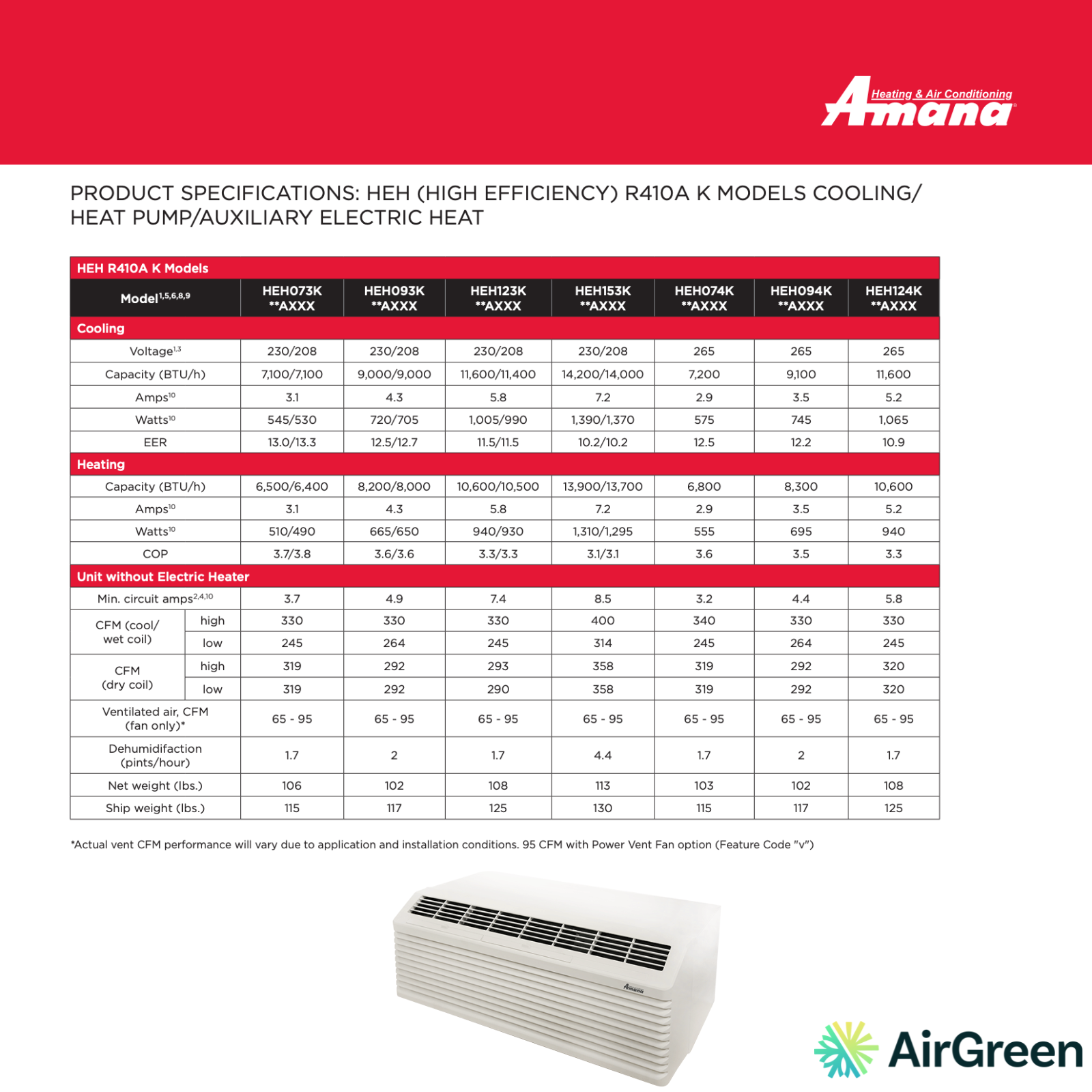

Complete spec sheetData and cited sources
- Model
- HEH073K**AXXX
- Cooling capacity (208/230 V)
- 7,100 / 7,100 BTU/h
- Heating capacity, heat pump (208/230 V)
- 6,400 / 6,500 BTU/h
- Electric heater (options)
- 1.5 kW · 2.5 kW · 3.5 kW · 5.0 kW
- EER (208/230 V)
- 13.3 / 13.0
- COP (heat pump, 8 °C)
- 3.7
- Current — compressor
- 3.1 A
- Power — cooling (208/230 V)
- 530 / 545 W
- Power — heat pump (230 V)
- 510 W
- Airflow (low/high)
- 245 / 330 cfm
- Dehumidification
- 1.7 pints/h
- Application range
- ≈ 105 to 170 sq ft (AirGreen estimate)
- Front
- 7⅝ in deep
- Sleeve
- 42 × 16 ¹⁄₁₆ in, 14 ⅛ in deep
- Net weight
- 106 lb
- Refrigerant
- R-410A
- Heat pump → heater
- coil below 20 °F (−7 °C)
- Power supply
- 208/230 V · 1 ph · 60 Hz
All values: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Operating cost: cooling at 546 W for 200 h per summer; heating estimated for a typical 138 sq ft room (982 kWh of heat per winter, heat pump counted at 8 °C and warmer); at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The neighbouring models
Talk to an HVAC technician before you choose
We check the existing sleeve, the outlet and the heater size, and give you an installed price. For a building, we order the same series for every room.
A high-performance, quiet solution for your HVAC needs
At AirGreen, we know that thermal comfort and peace of mind are essential, whether for a hotel, a residential building, or a commercial space. The AMANA PTAC Heat Pump | 7000 BTU | HEH (HIGH EFFICIENCY) R410A K perfectly embodies this balance by offering superior energy performance, remarkably quiet operation, and smart features, all in a compact size.
Energy efficiency that reduces your costs
Designed to maximize efficiency, this heat pump boasts an EER of up to 14.0 and a COP of up to 3.9 , which can help you qualify for several subsidies offered by Quebec electricity providers. For building managers, this means substantial savings on operating costs while reducing your carbon footprint. Thanks to its environmentally friendly R-410A refrigerant gas and innovative condensate dispersion system , it optimizes performance while extending compressor life.
Ultra-quiet operation for unparalleled comfort
The quiet operation of this Amana PTAC is made possible by an interior tangential fan and two independent motors (interior/exterior), as well as an STC rating of 29. This level of noise discretion is ideal for hotel rooms, residential units or any environment where peace and quiet is essential. Occupants can thus enjoy a restful sleep without noise disturbance.
Connectivity and smart management
Bluetooth® and RF integration allows for easy control and diagnostics via the Amana mobile app, available on iOS and Google Play. This connectivity makes setup faster, allows for real-time performance monitoring, and offers the potential to reduce energy consumption by up to 35% when paired with the optional Eden Concierge energy management system.
Managers can also connect the heat pump to an Eden wireless thermostat or a centralized management system, thus improving energy cost control.
Modern design and flexible installation
With an elegantly designed Quiet White front and a depth of only 7⅝" , the AMANA PTAC Heat Pump blends harmoniously into any type of decor, optimizing the available space. It can be installed directly on the floor without clearance , offering great flexibility in layout.
Proven reliability and simplified maintenance
Manufactured and assembled in the USA for over 45 years, each unit is 100% factory tested , including a leak check before shipment. The system features a filter dryer to protect the compressor, and its easy-to-remove, washable filters facilitate regular monthly maintenance, ensuring performance and longevity.
Comfort and protection features
-
Frost protection : automatic heating activation at 4°C or lower.
-
30-second fan off delay : to circulate remaining conditioned air and improve efficiency.
-
Compressor lock : prevents short cycles, extending the life of the unit.
-
Automatic emergency heating : switches to electric resistance in the event of compressor failure.
-
Hidden ventilation control : discreet control to prevent unauthorized manipulation.
Concrete example of AirGreen installation
Recently, our team installed several AMANA PTAC Heat Pump | 7000 BTU units in a Longueuil hotel complex. The manager wanted to reduce energy costs while providing optimal acoustic comfort for guests. Thanks to the integration of the Eden system and its quiet operation, the hotel saw a 28% decrease in energy consumption in the first quarter, while receiving rave reviews from guests regarding the quality of comfort.
Why choose AirGreen for your installation?
-
Certified technicians with extensive expertise in PTAC installation.
-
Free on-site assessment to determine the ideal configuration.
-
Transparent pricing and payment only at the end of the project.
-
Responsive after-sales service to ensure optimal long-term operation.
In summary , the AMANA PTAC Heat Pump | 7000 BTU | HEH (HIGH EFFICIENCY) R410A K is an ideal solution for those looking for a unit that is efficient, energy-efficient, quiet, and equipped with advanced control options. With AirGreen, you benefit from expert installation and comprehensive support to maximize your comfort and savings.
Contact us today for a free estimate and to discover how this heat pump can transform the comfort and energy performance of your building.
