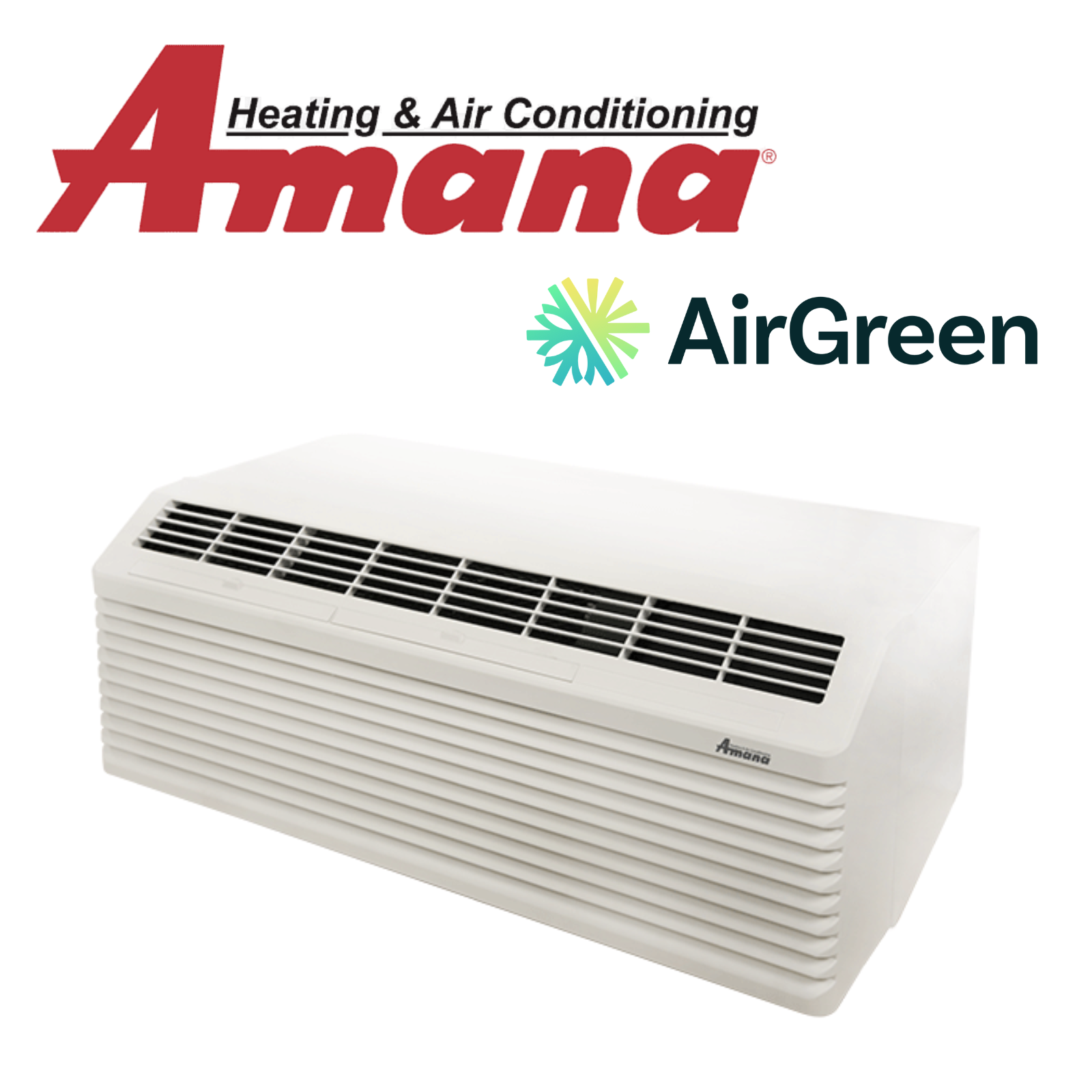

PTAC AMANA | 7,000 BTUs | HEC (HIGH EFFICIENCY) R410A K
Is it the right size for this room?
Amana doesn't publish a room size for this unit. From its 7,000 BTU/h of cooling, we estimate ≈ 105 to 170 sq ft. Choose your room's area.
It's the right size.
For a 130 to 175 sq ft room, this is the range we estimate for this unit: 7,000 BTU/h of cooling and a heater of up to 5,000 W when the cold calls for it.
AirGreen estimate: Amana publishes no room size, so we apply the application ranges Trane publishes for its PTACs of the same cooling capacity. Our estimator confirms the exact area on site.
What it does, in numbers
$11.90
Cooling, all summer
Less than a 60 W light bulb
Bulbs left on day and night for a year. Cooling: 5 h a day for 40 days, the assumption used by Hydro-Québec's air-conditioning calculator. Same calculation for every line: wattage × hours × 11.142 ¢/kWh.
≈$109
Heating, all winter
Typical 138 sq ft room with one exterior wall, in Montréal: 982 kWh of heat per winter (Environment Canada 1991–2020 climate normals).
≈ $121 for the year, before tax. Winter is 90% of it. If your home stays in the first tier of Rate D in summer (7.065 ¢/kWh), cooling drops to $7.55.
Capacities and currents: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Power draw: 534 W in cooling (7,000 BTU/h ÷ EER 13.1), 5,000 W on the 5 kW heater. Hydro-Québec Rate D in effect since April 1, 2026: 11.142 ¢/kWh second tier, before tax.
What you should know about this one
Published, verifiable facts, not brochure claims.
7,000What it really delivers in cooling
The name says 7,000 BTU: that's the unit's size class. Amana publishes 7,000 BTU/h at 230 V and at 208 V, the supply in many buildings: the capacity doesn't drop.
5,000 WThe heater that heats the room
At Amana, the two digits after the series letter (the ** in HEC073K**AXXX) set the heater when ordering: 1.5, 2.5, 3.5 or 5.0 kW at 230 V, 1.3 to 4.1 kW at 208 V. At 5.0 kW it takes a 6-30P plug on 30 A; at 3.5 kW, a 6-20P on 20 A. It heats the room all winter.
13.1Efficiency above the standard model
Amana publishes an EER of 13.1 for this HEC, against 12.0 for the standard PTC of the same size. For the same capacity, it draws fewer watts in summer.
1.7Pints of water it removes per hour
The dehumidification Amana publishes in cooling mode: 1.7 pints per hour. It's what keeps a room comfortable in summer without it turning clammy.
7⅝ inHow far it sticks into the room
Amana quotes a 7⅝ in deep front, one of the slimmest in the industry: the unit takes less space out of the room.
4 °CRoom freeze protection
As soon as the unit senses 40 °F (4 °C) or below, it starts the fan and the heater: an empty room won't freeze in winter.
6-30PThe outlet it needs
With the 5.0 kW heater: a NEMA 6-30P plug on a dedicated 30 A circuit. With 3.5 kW: 6-20P on 20 A. With 2.5 kW: 6-15P on 15 A. In a replacement, the outlet already in the wall dictates the heater size.
It fits the standard 42 × 16 in sleeve
Amana sleeves have the industry-standard dimensions: 42 in wide, 16 ¹⁄₁₆ in high, 14 ⅛ in deep. Our estimator checks the sleeve and the grille in place before ordering.
What it needs on site
In a replacement, we check the outlet and the breaker first: they set the heater size you can use. Our estimator confirms the sleeve, the outlet and the slope before ordering.

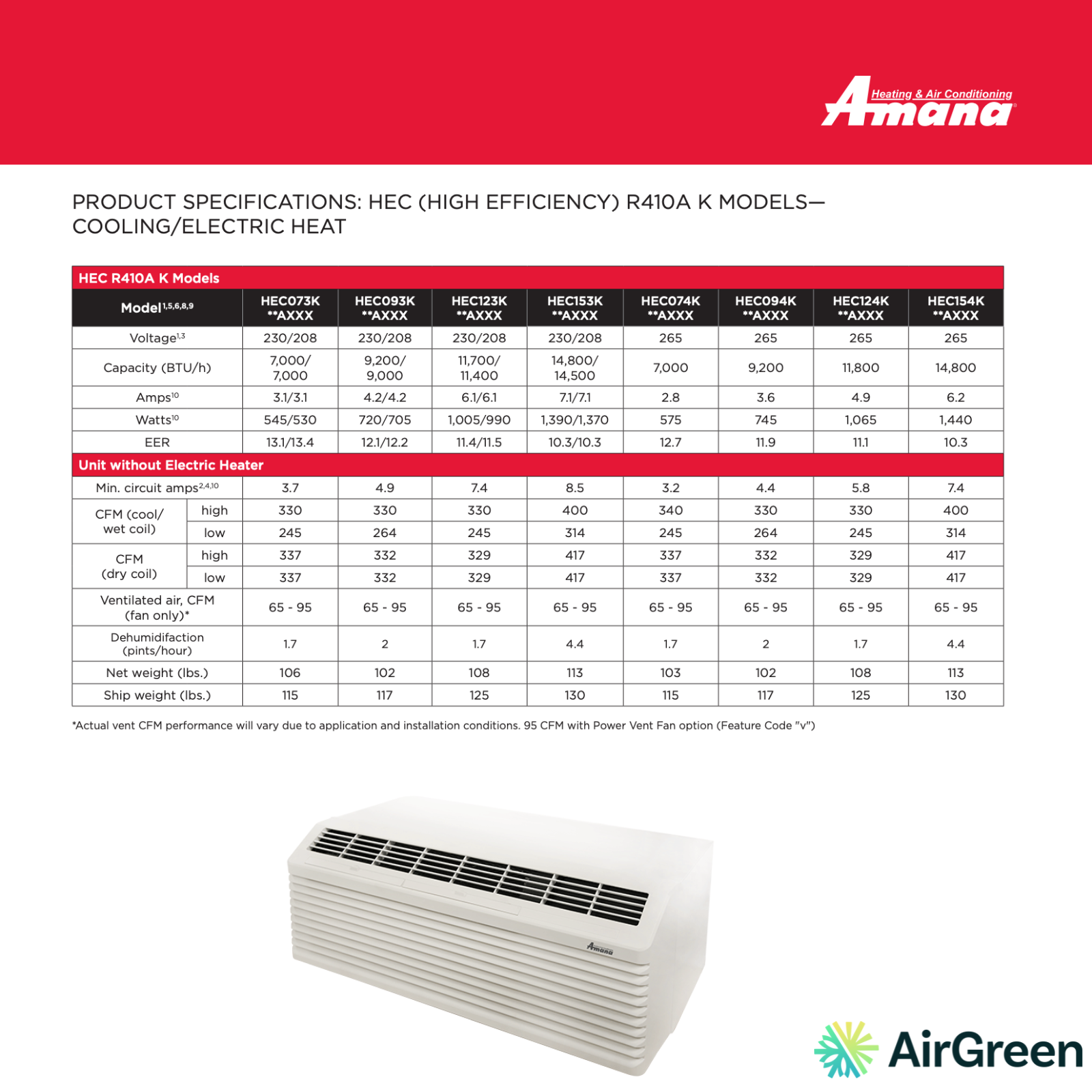

Complete spec sheetData and cited sources
- Model
- HEC073K**AXXX
- Cooling capacity (208/230 V)
- 7,000 / 7,000 BTU/h
- Electric heater (options)
- 1.5 kW · 2.5 kW · 3.5 kW · 5.0 kW
- EER (208/230 V)
- 13.4 / 13.1
- Current — compressor
- 3.1 A
- Airflow (low/high)
- 245 / 330 cfm
- Dehumidification
- 1.7 pints/h
- Application range
- ≈ 105 to 170 sq ft (AirGreen estimate)
- Front
- 7⅝ in deep
- Sleeve
- 42 × 16 ¹⁄₁₆ in, 14 ⅛ in deep
- Net weight
- 106 lb
- Refrigerant
- R-410A
- Power supply
- 208/230 V · 1 ph · 60 Hz
All values: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Operating cost: cooling at 534 W for 200 h per summer; heating estimated for a typical 138 sq ft room (982 kWh of heat per winter); at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The neighbouring models
Talk to an HVAC technician before you choose
We check the existing sleeve, the outlet and the heater size, and give you an installed price. For a building, we order the same series for every room.
A high-efficiency PTAC system designed for performance and comfort
At AirGreen, we know that choosing an air conditioning and heating system for a residential or commercial environment must combine energy performance , acoustic comfort , long-term reliability and ease of use . The PTAC AMANA | 7,000 BTU | HEC (HIGH EFFICIENCY) R410A K perfectly embodies these criteria, offering a turnkey solution for hotels, residences, offices or any space requiring autonomous and efficient climate control.
Exceptional energy performance and substantial savings
The HEC073K model boasts energy efficiency ratings (EER) of up to 14.0 and a coefficient of performance (COP) of up to 3.9 , making it one of the most efficient PTAC systems on the market. This performance may allow you to access certain subsidies offered by electricity companies in Quebec , reducing the initial cost of your investment.
The use of R-410A refrigerant not only ensures optimal efficiency, but also a reduced environmental impact, in line with current standards.
Quiet operation for optimal comfort
One of the strong points of this AMANA PTAC is its quiet operation . Thanks to an interior tangential fan and two separate motors (interior/exterior), noise is reduced to a minimum, providing an environment conducive to rest or concentration. With an STC index of 29 , it is an ideal choice for hotel rooms, offices or residences.
Smart connectivity and simplified control
The AMANA PTAC is equipped with integrated Bluetooth® connectivity and an RF antenna for wireless communication with the Eden thermostat (DS01G) and the Eden Concierge energy management system . This combination allows:
-
Quick setup via the Amana mobile app (iOS and Android).
-
Easy diagnosis and troubleshooting .
-
Reduction of energy consumption by up to 35% .
For building managers, centralized control via Eden is a major asset.
Modern design and flexible installation
With its elegant Quiet White faceplate and clean lines, this PTAC blends seamlessly into any decor, even high-end. Its reduced 7 1/2-inch depth frees up space in the room, and its zero-floor clearance installation offers maximum flexibility.
Key technical features
-
Cooling Capacity : 7,000 BTU
-
Dimensions (W x D x H) : 42 x 21.5 x 16 in
-
Voltage : 220V
-
Refrigerant : R-410A
-
Warranty : 5 years (compressor and specific parts), 1 year parts and labor
-
Serial number : HEC073K**AXXX
Advanced systems for sustainability and efficiency
The AMANA PTAC incorporates several technologies that extend its lifespan and optimize its performance:
-
Condensate Dispersion System : Rapid evaporation of water to improve cooling.
-
Frost protection : Automatic activation of heating if the temperature drops below 4°C.
-
Compressor Lockout : Prevents short cycling to extend compressor life.
-
Automatic emergency heating : Switches to electric resistance if the heat pump no longer provides heating.
-
Easy-to-remove washable filters : Simplified maintenance and reduced maintenance costs.
A trusted manufacturing
Assembled in the USA, in Waller, Texas , the AMANA PTAC benefits from over 45 years of engineering expertise and rigorous testing . Each unit is 100% tested before shipment, ensuring reliability and performance from the moment it is put into service.
Why choose AirGreen for your AMANA PTAC installation?
At AirGreen, we don't just sell a product: we offer a complete solution including:
-
Free on-site estimate in Montreal, Laval, North Shore and South Shore.
-
Certified refrigeration technicians for optimal installation.
-
Fast and efficient after-sales service .
-
Payment at the end only , when you are completely satisfied.
Our team is fully proficient in installing PTAC systems in various settings: residences, hotels, office buildings and healthcare facilities.
Conclusion and Call to Action
The PTAC AMANA | 7,000 BTU | HEC (HIGH EFFICIENCY) R410A K is a smart investment to combine energy savings , lasting comfort and advanced technology . With AirGreen, you benefit not only from a high-end product, but also from installation and maintenance expertise that guarantees optimal performance.
Contact us today for a free quote and to find out how this system can improve your comfort while reducing your energy costs.
