If the click of an old baseboard thermostat wakes you at night, the 1E65-144 electronic thermostat works silently and handles up to 4,000 W at 240 V.
Quick facts
In a bedroom heated by an electric baseboard, the snap of an old mechanical thermostat can be enough to disturb your sleep. The 1E65-144 (EMERSON's White-Rodgers line) is a silent electronic thermostat with no programming: you set a temperature and it holds it. Its 4,000 W capacity at 240 V also leaves room for a space with several baseboards.
A steady setpoint, no noise
- Silent operation: an electronic thermostat, without the click of older mechanical models.
- Settings: optional proportional control, and an off position that stops heating while keeping the thermostat powered.
- Resistive load of 2 to 16.7 A: 250 to 2,000 W at 120 V, or 500 to 4,000 W at 240 V.
- Setpoint from 7 to 32 °C (45 to 90 °F): the large-character display reads from 0 to 37 °C.
- Mounting: 4.2 x 5 x 1.25 in., 2- or 4-wire hookup; optional F61-2642 adapter plate to offset the thermostat.
Which heaters it controls
The 1E65-144 runs resistive loads for heating only: electric baseboards and convectors on a 120 or 240 V circuit. It is not suited to a central system, a load switched by a contactor or relay, or electric floor heating. The instructions cover resistive loads only and do not name fan-forced heaters. It has no Wi-Fi.
Compared with the programmable models
The EMERSON Line Voltage 1E65-151 and the EMERSON BP150 follow one weekday schedule and one weekend schedule, with early start and a safety mode, but their load does not exceed 3,000 W at 240 V (12.5 A). The BP150's sheet also mentions a nightlight mode. The 1E65-144 remains the pick for a fixed setpoint or a heavier load; proportional control is also an option on its sheet.
Installing on a 120 or 240 V circuit
We first switch off the circuit breaker at the panel, before opening the electrical box. We then add up the wattage of the connected baseboards or convectors to confirm it falls between 250 and 2,000 W at 120 V, or between 500 and 4,000 W at 240 V, and turn on proportional control if you want it. That check starts at the free in-home estimate.
Manufacturer document: 1E65-144 installation instructions (37-6862, bilingual). Sold and installed by AirGreen. We serve Montréal, Laval, Longueuil, the North Shore and the South Shore.
Key facts: EMERSON Line Voltage 1E65-144
Four things to know, then its ID card in twelve answers. “—” means the manufacturer does not publish it.
Is the EMERSON Line Voltage 1E65-144 compatible with your heating?
Two steps, thirty seconds. The verdict takes your system and your wiring into account.
Full compatibility table
A thermostat that works on 120/240 V
Tap an element to see what it does. A working diagram, not a substitute for the manufacturer’s installation guide.
Try the EMERSON Line Voltage 1E65-144 before you buy
Raise the setpoint, change the mode: see how it responds.
Winter, Rate Flex D and rebates: what this thermostat changes
With Hydro-Québec’s Rate Flex D, electricity costs less most of the winter and more during a few peak hours. Turning the setpoint down a few degrees during those hours is what counts.
What each room costs
An interactive drawing of what this kind of control does day to day.
The EMERSON Line Voltage 1E65-144 or its closest sibling?
The most useful comparison: the model right next to it in our catalogue.
The right thermostat in three questions
If this model is not the right one for you, the page says so and shows you which one is.
Installed and set up by our technicians, in five steps
What we do at your place, in order. The on-site estimate is free.
- 01LoadWe add up the heaters on the circuit and check the thermostat’s range.
- 02Shut-offBreaker shut off at the panel, 2- or 4-wire circuit identified.
- 03MountingWiring, mounting, power back on.
- 04TestHeating checked room by room.
- 05SettingsSchedule, connection and app if the model has them.

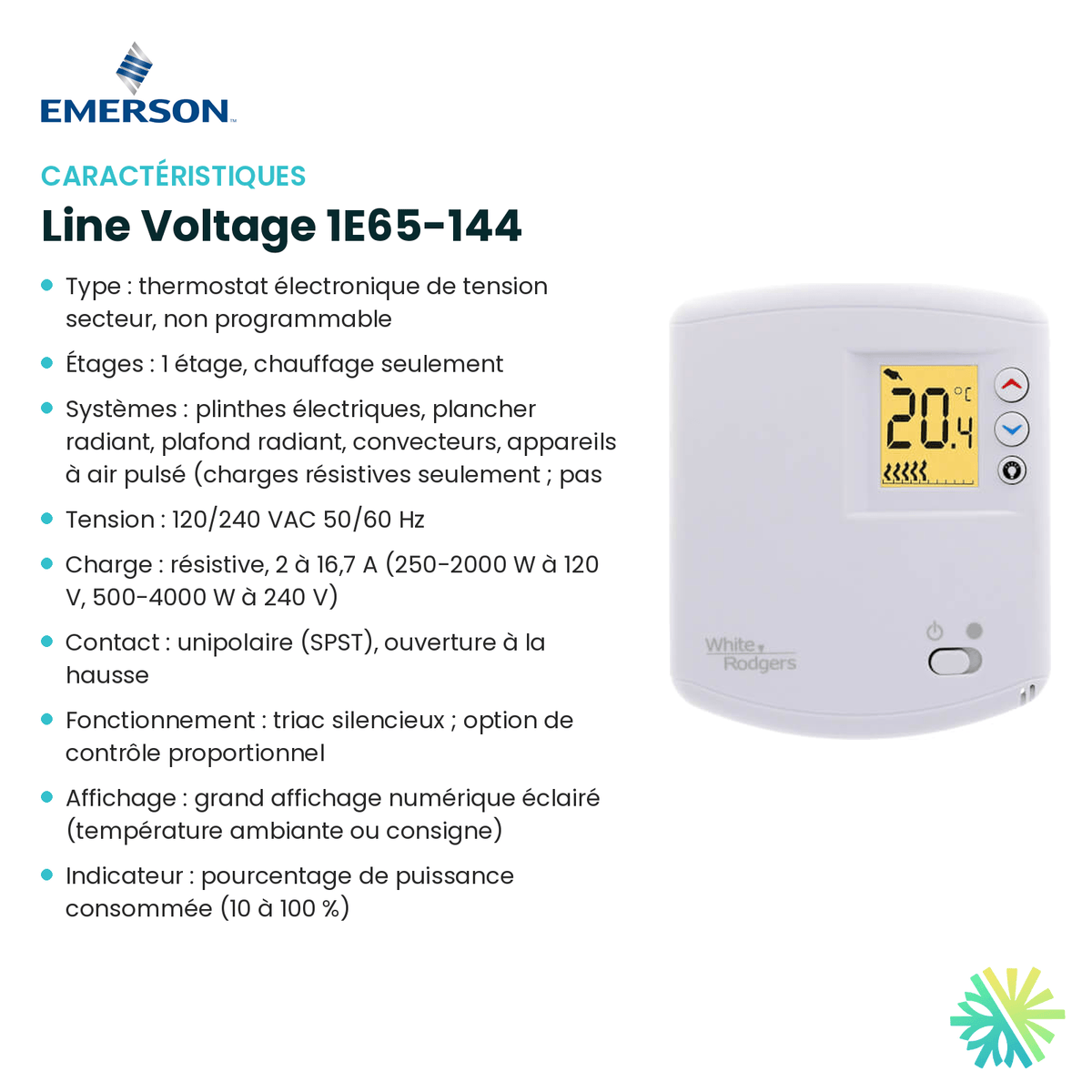

EMERSON Line Voltage 1E65-144 specifications
From the manufacturer’s sheet. Type a word: the list filters as you write.
No line matches. Try another word.
Frequently asked questions about the EMERSON Line Voltage 1E65-144
Short answers, no detours.
What does the EMERSON Line Voltage 1E65-144 work with?
According to the manufacturer’s sheet: heating only, resistive loads (electric baseboards, convectors); not for a central system or a load switched by a contactor or relay.
What load can it control?
Up to 4,000 W at 240 V (2,000 W at 120 V), per the manufacturer’s sheet.
Who installs it?
Our technicians: the circuit is shut off at the panel, the heater load is checked, then the thermostat is wired and tested.
Can it be controlled remotely?
Not directly: it has no built-in Wi-Fi.
Does AirGreen install it?
Yes. We sell and install this product in Montréal, Laval, Longueuil, the South Shore and the North Shore. The on-site estimate is free.
