When an electric furnace becomes the heart of a complex HVAC diagnosis
In a residence in Beaconsfield, our AirGreen team responded to a service call on an electric furnace installed in a mechanical basement where several elements of the HVAC system intersected: rigid ducts, electrical supply, water heater, limited clearances, existing ducts, and partially obstructed access. This type of environment requires a methodical approach, as a heating failure is not always limited to a single visible component.
At AirGreen, we regularly work on residential systems in Montreal, Laval, Longueuil, on the North Shore and the South Shore, but homes in the West Island, like in Beaconsfield, often have a particularity: older mechanical installations, sometimes modified over the years, where ducts, electrical wires, and heating appliances coexist in a confined space. In this specific case, the customer's request was clear: the house was no longer heating properly, the furnace seemed to operate intermittently, and some rooms remained cold despite thermostat adjustments.
A central system with existing ducts and electric furnace

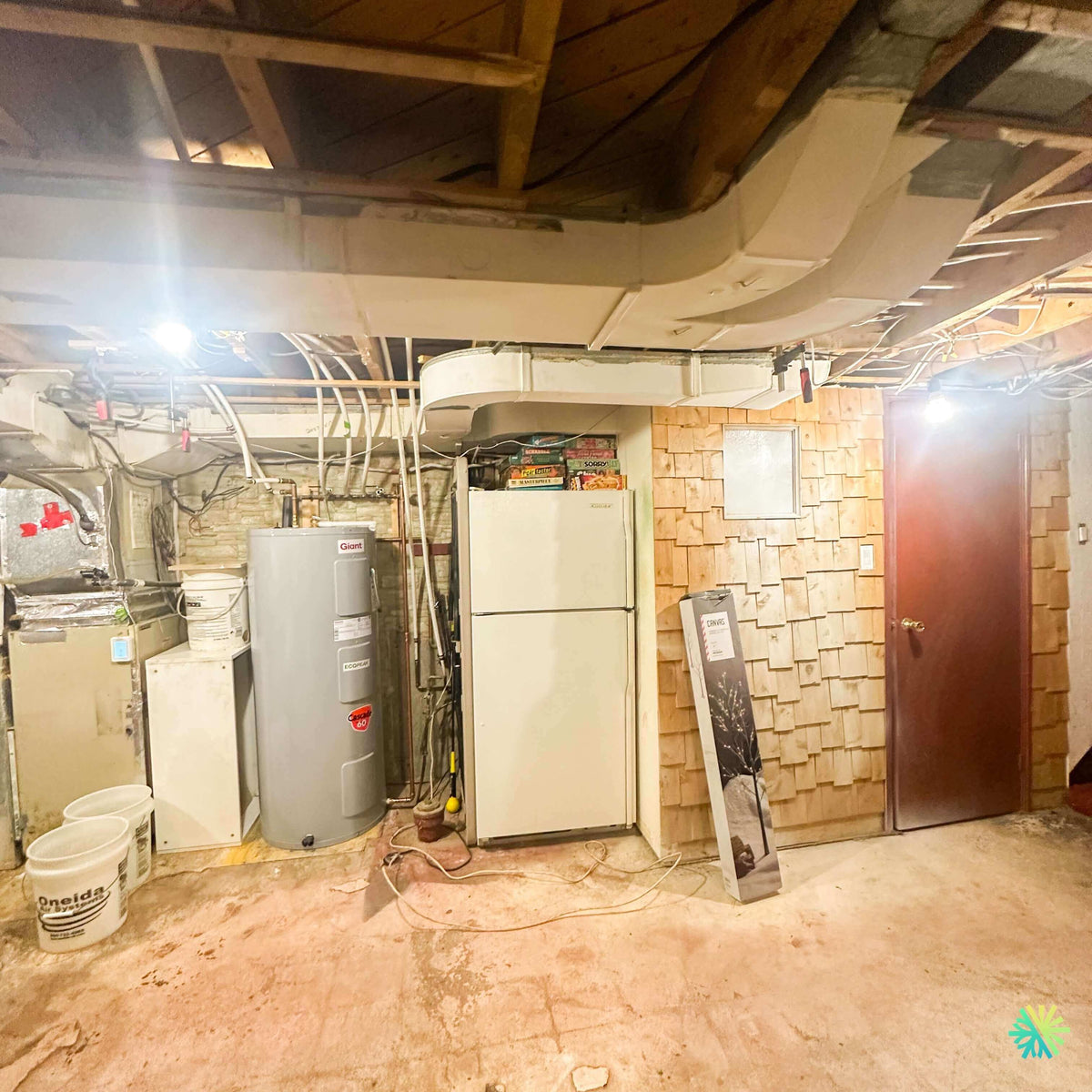

The machine in question was a residential electric furnace connected to a central duct network. Visually, the installation showed an indoor cabinet connected to the main ducts, with a distribution network already in place on the basement ceiling. The presence of metal ducts, fittings, transitions, and a tight mechanical environment confirmed that the intervention had to be done precisely.
An electric furnace typically operates with several heating elements, a blower fan, relays, sequencers, a control board, thermal protections, and a thermostat. When a customer notices a loss of heat, the possible causes can be numerous:
- burnt heating element;
- defective relay or sequencer;
- fan not starting properly;
- thermostat problem;
- air restriction in the ducts;
- clogged filter;
- unstable power supply;
- loose connection;
- safety protection triggered;
- overload related to poor airflow.
In this Beaconsfield home, the symptoms pointed to a partial failure rather than a complete breakdown: the system seemed to respond to the demand, but the heat delivered in the house was insufficient and irregular.
Symptoms observed by the client
The client reported three important signs to us:
- Some areas of the house remained cold, especially when the outside temperature dropped.
- The furnace started, but the air blown was not always warm enough.
- The system seemed to run longer than before to reach the requested temperature.
This information is essential. An electric furnace blowing lukewarm air for long periods may indicate that one or more heating elements are not activating. Conversely, if the fan runs too early or too long without sufficient heating, comfort quickly decreases and electricity consumption increases unnecessarily.
Complete diagnosis of the electric furnace in Beaconsfield
Our technician first performed a safe visual inspection of the installation. In a mechanical basement like this one, workspace is sometimes limited, and the environment must be checked before opening the device: clearances, panel access, wire condition, presence of moisture, proximity to the water heater, ceiling ducts, and risks related to previous modifications.
Thermostat and heating demand verification
The first step was to confirm that the thermostat was correctly sending the heating demand to the furnace. A poorly calibrated, improperly connected, or aging thermostat can create symptoms similar to a furnace failure.
We checked:
- the temperature setting;
- the system's response during a heat request;
- the signal continuity;
- the startup delay;
- the fan's behavior;
- the consistency between the thermostat's demand and the furnace's response.
The thermostat responded correctly. Therefore, the fault did not come from the wall control.
Electrical inspection of the furnace
An electric furnace relies entirely on a stable power supply. A weakened connection, a worn circuit breaker, a damaged relay, or an open heating element can significantly reduce heating capacity.
Our technician then inspected the internal components:
- power terminal block;
- high voltage connections;
- power relays;
- sequencers;
- heating elements;
- thermal protections;
- internal wiring;
- fan motor;
- control compartment.
The goal was to determine if all heating stages were activating correctly. On several electric furnaces, the heating elements do not all start at the same time. They are activated in sequence to avoid a sudden electrical surge. If a sequencer gets stuck or a relay no longer closes properly, part of the capacity disappears, even if the system still seems to be working.
Airflow and ducts: a frequently underestimated factor
In this type of central installation, the failure is not always purely electrical. Poor airflow can cause internal overheating, trigger safety devices, or reduce comfort in certain rooms.
We therefore checked:
- condition of the filter;
- cleanliness of the blower compartment;
- visible restrictions in the ducts;
- duct transitions;
- connections above the furnace;
- airflow to the main rooms.
In this Beaconsfield home, the existing ducts were functional, but the mechanical environment showed that a thorough inspection was necessary. The ducts ran through an open ceiling, with several crossings of cables and pipes. In a context like this, a simple vibration, a poorly secured duct, or a partially collapsed joint can alter the system’s behavior.
Problem identified: partial heating and weakened control component
After testing, our diagnosis identified an incomplete activation of the heating sequence. The furnace was receiving the request, the fan was running, but the full electrical capacity was not engaging steadily. This perfectly explained the symptoms: lukewarm air, prolonged cycles, discomfort in certain areas, and reduced performance.
The main cause was related to a weakened power control component, preventing some heating elements from activating properly. This type of failure is common in older electric furnaces or systems that have been heavily used over several winters.
Repair completed and system restarted
Our intervention consisted of securing the power supply, accessing the internal components, replacing the defective part, and verifying the complete operation of the heating sequence. Once the repair was completed, we restarted the furnace and observed several full cycles.
We validated:
- the fan startup;
- the progressive activation of heating elements;
- the temperature of the blown air;
- electrical stability;
- the absence of abnormal odor;
- the absence of excessive vibration;
- the response to the thermostat;
- the return to regular operation.
The result was immediate: the furnace produced more consistent heat, the blown air was noticeably warmer, and the system regained heating capacity suited to the home.
Why this type of repair requires experience
A common mistake is to conclude too quickly that an electric furnace must be replaced as soon as it no longer heats properly. In many cases, targeted repairs can restore reliable performance, especially when the cabinet, fan, ducts, and main power supply are still in good condition.
However, incomplete diagnostics should be avoided. Replacing a thermostat without testing sequencers, changing a heating element without checking airflow, or ignoring thermal protections can lead to repeated breakdowns. At AirGreen, our approach is to understand the system’s full operation before recommending a solution.
Mistakes to avoid with an electric furnace
For homeowners in Beaconsfield, Montreal, Laval, Longueuil, on the North Shore or the South Shore, certain mistakes can worsen an electric furnace breakdown:
Do not ignore lukewarm blown air
Lukewarm air may seem less urgent than a complete breakdown, but it often indicates the furnace is operating at reduced capacity. The system then consumes electricity without providing the expected comfort.
Do not leave a dirty filter for too long
A clogged filter reduces airflow, increases the furnace's internal temperature, and can cause safety trips.
Do not modify ducts without calculation
An improvised modification of the ducts can unbalance the static pressure and reduce heat distribution in certain rooms.
Do not constantly reset a circuit breaker
If a circuit breaker trips, there is a reason. Repeatedly resetting it without diagnosis can become dangerous.
A reassuring service call for the customer
After the repair, we explained to the customer how the furnace works, the cause of the breakdown, and the signs to watch for in the coming weeks. The customer was especially reassured to know the system could be repaired without immediate full replacement.
This transparency is part of how we work. Good HVAC service is not just about replacing a part: it also means helping the homeowner understand their system, its limits, and maintenance needs.
Recommended maintenance to prevent a new breakdown
To extend the life of an electric furnace, we recommend periodic inspection, especially before cold seasons. Preventive maintenance helps spot weakened connections, worn elements, neglected filters, and ventilation problems before they cause a breakdown.
Effective maintenance should include:
- complete electrical inspection;
- heating element check;
- relay and sequencer test;
- blower motor inspection;
- filter inspection;
- airflow check;
- thermostat test;
- observation of a complete heating cycle.
AirGreen: expertise in residential HVAC repair
This intervention in Beaconsfield clearly illustrates our expertise in electric furnace repair and residential HVAC service. We work on central systems, wall-mounted heat pumps, central heat pumps, wall air conditioners, multi-zone systems, air exchangers, and many other indoor comfort devices.
Our strength lies in our ability to diagnose precisely, even in complex mechanical environments. In this case, the cramped space, exposed ducts, and possible age of some components required a thorough analysis. The result: targeted repair, restored heat, and a reassured customer.
A lasting solution for a Beaconsfield home
At the end of the intervention, the residence had regained stable and efficient heating. The electric furnace responded correctly to the thermostat, the heat was better distributed, and the system no longer seemed to run unnecessarily during long cycles.
For a homeowner, this type of result is essential: less discomfort, less uncertainty, and better control of energy consumption. For AirGreen, this is exactly the goal of a successful service call: identify the real cause, fix the problem precisely, and ensure reliable operation.
