A Guardian central heat pump struggling to cool despite apparent operation
In Villeray–Saint-Michel–Parc-Extension, in the heart of Montreal, our AirGreen team was called for HVAC service on a Guardian central heat pump installed outside a semi-detached residence. Upon arrival, the outdoor unit caught attention due to its setup: installed near the house wall, close to a fence, with rather tight side access and low vegetation around the installation area.
The client contacted us because the system seemed to be working but was not delivering the expected performance. The outdoor fan started, the indoor unit was blowing air, but the house remained uncomfortable on hot days. The thermostat was constantly calling for cooling, cycles became long, and some rooms stayed warmer than others despite normal settings.
This type of situation is common with central systems: the device appears to be running, but the actual performance is insufficient. A central heat pump can lose a lot of efficiency without shutting down completely. This is exactly what makes diagnosis important. It is not enough to see that the fan is running or the compressor starts; the entire system must be checked, from the outdoor unit to the duct network.
A Guardian central system used for heating and cooling
The equipment observed was a Guardian central heat pump, with an estimated capacity around 30,000 to 36,000 BTU, or about 2.5 to 3 tons, a common range for a medium-sized residence in Montreal. This type of installation is designed to distribute cooled or heated air through a duct network, with an indoor unit connected to a furnace or central blower.
The Guardian brand is often associated with robust equipment, but like any HVAC system, performance heavily depends on maintenance, electrical condition, airflow, and installation conditions. In this particular case, the outdoor unit had several years of service and was located in an environment where leaves, dust, humidity, yard debris, and temperature variations could gradually affect the condenser.
On a central heat pump, the critical elements to check are numerous:
- the outdoor coil;
- the condenser fan;
- the compressor;
- the start and run capacitor;
- the contactor;
- the refrigerant pressures;
- the indoor filter;
- the indoor coil;
- the airflow in the ducts;
- the thermostat;
- the low voltage connections;
- the clearance around the outdoor unit.
In a professional intervention, all these points must be considered before concluding a leak, refrigerant shortage, or compressor failure.
Symptoms reported by the client
The client explained that the problem developed gradually. At the start of the season, the central heat pump seemed to operate normally. Then, during the first periods of sustained heat, indoor comfort deteriorated. The temperature dropped very slowly, then stabilized above the requested setpoint.
The main symptoms were as follows:
- weak cooling despite constant demand;
- very long cycles;
- air blown less cold than usual;
- outdoor fan working, but insufficient performance;
- louder noise at startup;
- house becoming uncomfortable in the late afternoon;
- feeling that the system was running without actually cooling.
This kind of problem can quickly suggest a refrigerant shortage. However, at AirGreen, we avoid jumping directly to this conclusion. A central system can show abnormal pressure due to a dirty outdoor coil, low indoor airflow, a weakened condenser, or a worn contactor. Adding refrigerant without a full diagnosis can worsen the problem instead of fixing it.
Complete diagnosis and restoration of the Guardian central heat pump
Outdoor environment inspection
The first step was the inspection of the outdoor unit. The Guardian device was installed near the wall, with limited space on some sides. The fence and surrounding vegetation did not completely block the unit but reduced ease of access and encouraged debris accumulation.
We observed that the outdoor coil was covered with dust, plant fibers, and compacted dirt between the fins. To the naked eye, the unit might have seemed simply aged, but on closer inspection, the condenser was no longer able to dissipate heat effectively. In cooling mode, this heat dissipation is essential: if the heat does not exit properly outside, the system loses its ability to cool the interior.
We also checked the condition of the base and the level of the unit. The unit was stable, but the space around it needed better maintenance to prevent weeds and yard debris from further reducing air circulation.
Electrical check: a weakened capacitor and a worn contactor
After the visual inspection, we opened the service panel to check the electrical components. On a Guardian central heat pump, the capacitor plays a crucial role in the operation of the compressor and fan. When it loses capacity, the motor may start with difficulty, run less efficiently, or overheat.
Our measurements confirmed that the dual capacitor was weakened. It was not completely dead, which explained why the system still started, but its actual value was below the acceptable range. This weakness contributed to noisier startup and irregular compressor performance.
We also inspected the contactor. The contacts showed signs of wear and pitting. A worn contactor can create less stable power supply to the compressor, cause overheating, and reduce system reliability. In this case, it was better to replace it during the intervention rather than wait for a complete failure.
The replaced components were therefore:
- the dual capacitor for the compressor and fan;
- the outdoor contactor;
- some weakened electrical terminals;
- wiring ties exposed to moisture.
This replacement helped stabilize the heat pump's startup and reduce electrical stress on the motors.
Thorough cleaning of the outdoor coil

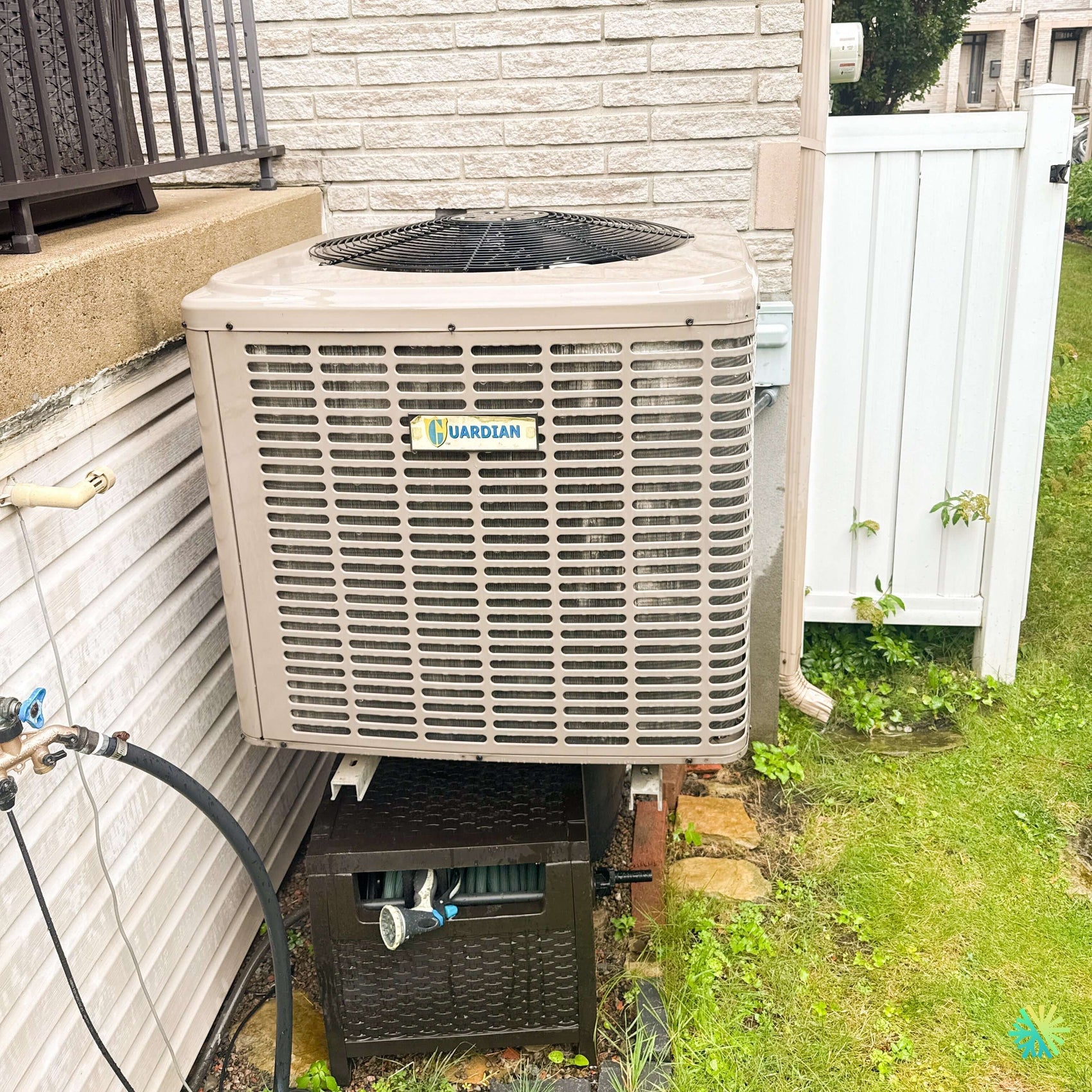

Once the electrical components were secured, we proceeded to clean the outdoor coil. This step was essential. In the image, you can clearly see the front grille of the Guardian unit, behind which is the coil. Over time, this area can hold a significant amount of dirt, especially in an urban yard where dust, pollen, leaves, and grass clippings circulate easily.
The cleaning was done carefully to avoid crushing the fins. We removed accumulated debris, cleaned the condenser surface, and checked that air could flow properly again through the coil. This operation had a direct effect on operating pressures and the system's ability to reject heat.
A dirty condenser can cause several symptoms:
- reduced air conditioning capacity;
- high discharge pressure;
- hotter compressor;
- longer cycles;
- higher electrical consumption;
- premature wear of components;
- feeling that the device operates without cooling effectively.
In this intervention at Villeray–Saint-Michel–Parc-Extension, cleaning the coil was as important as replacing the electrical parts.
Refrigerant check: a reading to interpret with caution
Before cleaning and electrical correction, system pressures could suggest a charge problem. However, a central heat pump with a dirty outdoor coil and a weakened capacitor can give misleading readings. That is why we waited until the unit was clean and electrically stable before drawing a conclusion.
After restoration, the measurements approached normal behavior. We checked the pressure, suction line temperature, discharge temperature, and air blowing performance. No major recharge was necessary. The main problem was not a lack of refrigerant but a combination of poor outdoor dissipation and weakened electrical components.
This step helped avoid a common mistake: adding refrigerant to compensate for a maintenance or electrical problem. Such an intervention could have increased system pressure, reduced its efficiency, and masked the real cause of the failure.
Indoor check: filter, coil, and airflow
Since it was a central heat pump, we also inspected the indoor part. A central system depends on good airflow in the ducts. Even if the outdoor unit is repaired, a clogged filter or a dirty indoor coil can prevent the home from receiving the expected comfort.
We checked the filter, the return air condition, the intake temperature, and the blowing temperature. The filter was dirtier than the recommended level. It did not completely block the system, but it reduced the airflow enough to worsen the problem. We recommended immediate replacement and explained to the customer the importance of checking it more often during heavy use periods.
The airflow was then validated across several registers. Some rooms were less well served, which is common in homes with older ductwork. However, the main air conditioning issue was mostly due to the outdoor heat pump and not a major network blockage.
Post-repair tests: more stable and efficient air conditioning
After replacing the capacitor and contactor, cleaning the coil, and checking the interior, we restarted the system and observed its behavior over several cycles. The startup was smoother, the outdoor noise more consistent, and the blowing temperature significantly improved.
The thermostat started responding more normally, without excessive continuous demand. The Guardian central heat pump regained a more consistent cooling capacity, and the customer noticed a rapid improvement in indoor comfort.
The final result was clear:
- more stable compressor start;
- functional and steady outdoor fan;
- better heat exchange at the condenser;
- cooler air blown;
- shorter cycles;
- reduced risk of electrical failure;
- client reassured about the general condition of the equipment.
Why this repair was preferable to an immediate replacement
In many cases, when a central system ages and performs less well, some owners immediately think of a full replacement. However, a well-targeted repair can extend the equipment’s lifespan when the compressor is still healthy and the refrigerant circuit remains stable.
In this service, a complete replacement was not necessary in the short term. The compressor worked properly once powered under good conditions, the fan responded well, and the refrigerant charge showed no obvious sign of a major leak. The client therefore benefited from correcting the real weaknesses before considering a new system.
That said, we also explained the natural limits of older equipment. A central heat pump with several years of service must be monitored more closely. If other major components start to weaken, or if energy efficiency becomes insufficient, replacement could eventually become more cost-effective. Our role is to provide a clear picture without pushing for an unnecessary solution.
Mistakes to avoid with a Guardian central heat pump
This service in Villeray–Saint-Michel–Parc-Extension illustrates several common mistakes we observe in Greater Montreal.
Letting the condenser get dirty
An outdoor condenser must be inspected regularly. Even a thin layer of dirt can reduce heat exchange. In the dense residential areas of Montreal, outdoor units quickly accumulate dust, pollen, and plant debris.
Neglecting the capacitor
A weakened capacitor does not always cause an immediate failure. It can make the system operate unstably for weeks before completely failing. Replacing it at the right time protects the compressor.
Ignoring noises at startup
A harder start, buzzing, or unusual sound can indicate an electrical problem. These are signs to take seriously.
Replacing the refrigerant without diagnosis
A drop in performance is not automatically a leak. The diagnosis must always include air, electricity, the condenser, the filter, and temperature measurements.
Forgetting the indoor filter
A dirty filter reduces airflow, increases cycle duration, and can affect both air conditioning and heating.
HVAC expertise tailored to Montreal homes
At AirGreen, we regularly service central heat pumps, central air conditioners, wall-mounted heat pumps, MultiZone systems, electric furnaces, and complete HVAC installations in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore.
In neighborhoods like Villeray–Saint-Michel–Parc-Extension, installations are often influenced by available space, proximity to neighbors, fences, balconies, narrow walls, and restricted access. These realities require a precise approach. An outdoor unit placed in a tight space can work properly, but it must be clean, well cleared, and regularly inspected.
This repair of a Guardian central heat pump demonstrates the importance of a complete diagnosis. The problem was not unique; it was a combination of factors: dirty coil, weakened capacitor, worn contactor, and indoor airflow to monitor. By fixing each point, we restored performance without unnecessary replacement.
Comfort restored and a machine protected
At the end of the service call, the customer had a stable and more efficient air conditioning system. The Guardian central heat pump responded better to the thermostat, the air blown was cooler, and the cycles were better controlled. More importantly, the most vulnerable components were replaced before causing a more serious breakdown.
A good HVAC repair is not just about getting a machine running again. It involves understanding what weakened it, fixing the real cause, validating the result, and giving the customer useful advice to prevent a recurrence. This is the method we apply to every service call, whether in Montreal, Laval, Longueuil, on the North Shore, on the South Shore, or directly in a neighborhood like Villeray–Saint-Michel–Parc-Extension.
