A central air conditioning failure in a narrow yard: the kind of call where every detail matters
In Charlemagne, our AirGreen team was called for a HVAC repair on a Lennox central heat pump installed at the back of a single-family home, very close to a brick wall and foundation. The client contacted us because the system could no longer maintain a comfortable temperature in the house, despite increasingly long operating cycles. The thermostat was calling for cooling, the outdoor unit started at times, but the result inside remained disappointing: lukewarm air at the registers, discomfort in the rooms most exposed to the sun, and the impression that the machine was working without really producing.

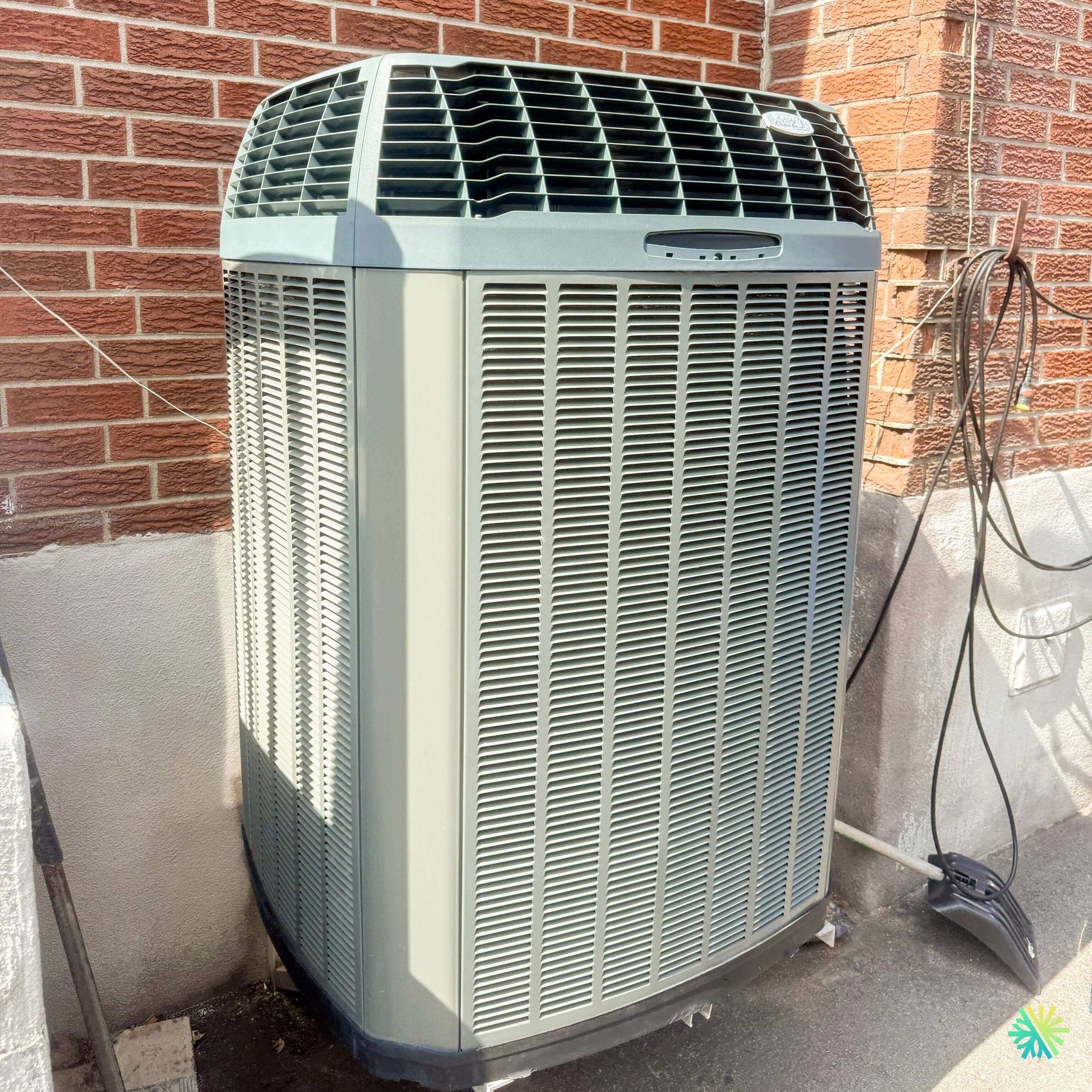

On site, the device showed the typical characteristics of a large-capacity residential central heat pump, connected to an indoor duct system and a furnace or central fan. The Lennox outdoor condenser, vertical format with a top grille and ventilated side panels, was installed on an outdoor base very close to the house. This type of equipment is robust but requires a complete diagnosis when performance drops, as the cause can come from several places: power supply, capacitor, contactor, fan motor, outdoor coil, refrigerant charge, indoor coil, airflow, or low voltage control.
Symptoms reported by the client
The client described a gradual failure rather than a sudden stop. This detail is important because a central heat pump that loses efficiency over several days or weeks does not always show an immediate major failure. In this case, the symptoms were as follows:
- The air blown into the house was less cold than before;
- The system ran for a long time without reaching the setpoint;
- The outdoor unit started but seemed to lack power;
- The outdoor fan made an irregular noise at startup;
- Some parts remained hot despite a constant demand on the thermostat;
- The client feared a compressor failure.
At this stage, several hypotheses were possible. A Lennox central heat pump can show this behavior when the outdoor coil is partially blocked, when a capacitor weakens, when a contactor wears out, when there is a restriction in indoor airflow, or when refrigerant loss reduces cooling efficiency. Our role was therefore to separate visible symptoms from the real cause.
Outdoor inspection: a location that influenced performance
The outdoor unit was placed in a relatively confined space, between masonry surfaces and backyard elements. This type of installation is common in residential neighborhoods of Charlemagne, where yards can be compact and the available space for a central heat pump is not always ideal.
We first checked the clearances around the unit. A central heat pump needs a good volume of air around the condenser to reject heat in cooling mode. Even if the unit looks clean from a distance, the fins can be clogged with dust, leaves, pollen, tree seeds, grass clippings, and deposits accumulated over the seasons. In the greater Montreal area, in Laval, Longueuil, on the North Shore and the South Shore, this type of clogging is very common, especially after several summers of use.
The visual inspection showed a buildup of dirt in the lower areas of the coil and less efficient airflow than expected. We also checked the stability of the base, the condition of the panels, the top grille, the passage of refrigerant lines, and the general condition of visible connections. A central unit like this must be carefully inspected, as poor heat exchange can raise operating pressures and strain the compressor.
Electrical check: the critical point of diagnosis
Before performing more advanced tests, we secured the power supply and opened the service compartment. Lennox central systems use electrical components that must be tested precisely: contactor, capacitor, low voltage wiring, main power supply, fan motor, and control circuit.
Our technicians checked:
- the voltage at the outdoor disconnect;
- the call voltage from the thermostat;
- the state of the contactor;
- the actual capacity of the capacitor;
- electrical connections;
- signs of overheating;
- the fan motor startup;
- the compressor’s response to the cooling demand.
The diagnosis revealed a weakened capacitor. It was not completely out of service, which explained why the device still started sometimes, but its measured value was below what was needed to ensure stable operation. A weak capacitor can cause difficult startups, a fan that runs less efficiently, a more stressed compressor, and an overall loss of performance.
In many service calls, this component is underestimated. Yet, on a central heat pump, a weakened capacitor can be the start of a chain of more costly problems. If the machine continues to operate in this state, the compressor may overheat or suffer premature wear.
Technical cleaning of the Lennox condenser
After the electrical inspection, we proceeded to clean the outdoor condenser. The goal was not only to make the device visually clean but to restore the coil’s heat exchange capacity. On a central heat pump, air must pass through the fins with minimal resistance. When dirt accumulates, discharge pressure can increase, the compressor works harder, and the air produced inside becomes less cold.
We used a suitable method to clear the fins without damaging them. Cleaning a central coil must be done carefully: too high pressure can bend the fins, while cleaning too quickly can leave debris trapped deep inside. Once the coil was cleaned, the airflow around the unit improved significantly.
Capacitor replacement and startup stabilization
The faulty capacitor was replaced with a part that meets the capacity required by the device. After the replacement, we restarted the central heat pump and observed its startup behavior. The outdoor fan resumed stable rotation, the compressor engaged normally, and the irregular noise reported by the customer disappeared.
This step confirmed that the failure was not due to a complete compressor breakdown. The system rather needed a targeted electrical correction combined with a refurbishment of the outdoor condenser. This is exactly the type of situation where a thorough diagnosis helps avoid premature equipment replacement.
Refrigeration check: pressures, temperature, and actual performance
Once the startup stabilized, we performed a refrigeration check. For a Lennox central heat pump, it is not enough to say the system is “low on gas” as soon as it cools poorly. This too quick conclusion can lead to unnecessary recharges or incomplete repairs.
We compared several data points:
- Outdoor temperature at the time of the test;
- Return air temperature;
- Blow temperature;
- Suction pressure;
- Discharge pressure;
- Compressor behavior;
- Cycle stability;
- Condition of the outdoor coil after cleaning.
Readings showed a clear improvement after cleaning and replacing the capacitor. The temperature difference inside returned to a much more consistent range, and the system began producing more efficient cooling. No rushed recharge was done without proof of a charge problem, as refrigerant overcharge can also harm performance and damage the unit.
An HVAC repair that avoided an unnecessary replacement
After testing, the customer regained a functional and more stable central air conditioning system. The intervention corrected the main cause of the problem while improving the overall efficiency of the installation. The system was not new, but it could still provide reliable service with the right corrections.
What caused the loss of performance
The failure was due to a combination of factors, which is very common on central heat pumps installed for several years.
Weakened capacitor
The capacitor was no longer providing the necessary capacity for the proper operation of the motor and compressor. The unit could start, but in an unstable way. This type of weakness often causes intermittent failure, which is harder for the customer to understand.
Dirty outdoor coil
The condenser had lost part of its capacity to dissipate heat. Even though the outdoor unit still appeared to be in good condition, buildup on the fins was reducing heat transfer.
Limited access and clearance
The location near the wall and foundation made maintenance more important. A unit installed in a compact space must be regularly monitored, as the slightest air obstruction can amplify performance issues.
Repairs performed by AirGreen
During this service call to Charlemagne, our team carried out a complete intervention including:
- electrical diagnosis of the outdoor unit;
- capacitor test;
- contactor inspection;
- power supply check;
- technical cleaning of the outdoor coil;
- replacement of weakened capacitor;
- compressor start test;
- validation of fan operation;
- reading operating temperatures;
- performance check after repair;
- maintenance recommendations to prevent recurrence.
This approach allows treating the actual failure rather than just its effects. A simple breaker reset or superficial cleaning would not have solved the problem permanently.
Why a complete diagnosis is essential on a central heat pump
A central heat pump is an integrated system. The outdoor unit is only part of the installation. The comfort felt in the house also depends on the indoor fan, the filter, the indoor coil, the ducts, the thermostat, and the balance of air distribution.
During our intervention, we also asked the client to confirm the condition of the indoor filter and the regularity of its replacement. A filter that is too dirty can reduce airflow, freeze the indoor coil, or give the impression that the outdoor unit is defective. In a house with ducts, especially when there are multiple floors or distant rooms, airflow is as important as the condenser’s performance.
Mistakes to avoid with a Lennox central system
Waiting for the machine to stop completely
When cycles become longer, the air is less cold, or the noise changes, it is best to request a service call quickly. A weak component can often be replaced before causing more serious damage.
Adding refrigerant without diagnosis
A system that cools poorly is not automatically a system that lacks refrigerant. Poor ventilation, a dirty coil, or an electrical problem can produce similar symptoms.
Neglecting exterior cleaning
Cleaning the condenser is one of the most important maintenance tasks for a central heat pump. In Montreal, Laval, Longueuil, on the North Shore and the South Shore, outdoor conditions make this maintenance particularly relevant.
Blocking clearances around the unit
Items stored near the condenser, hoses, plants, fences too close, or leaf buildup can hinder air circulation. Even a powerful unit will lose efficiency if it cannot breathe properly.
Final result: comfort restored and client reassured
At the end of the service, the Lennox central heat pump operated much more steadily. The start-up was smooth, the outdoor fan ran normally, pressures matched the observed conditions, and the air blown into the house was noticeably cooler.
The client was especially reassured to know that the compressor was not broken and that a full system replacement was not necessary at this stage. A well-targeted repair extended the equipment’s lifespan while restoring indoor comfort.
AirGreen expertise in Charlemagne and the greater Montreal area
At AirGreen, we work on central heat pumps, central air conditioners, electric furnaces, wall systems, multi-zone units, and many other residential HVAC equipment. Every service call is handled with a clear method: listen to the symptoms, inspect the installation, measure actual data, fix the causes, and verify the result.
This repair in Charlemagne shows that a central system that seems at the end of its life can sometimes be restored with precise intervention. The right diagnosis makes all the difference between a reasonable repair and an unnecessary expense.
AirGreen serves Montreal, Laval, Longueuil, the North Shore and the South Shore for HVAC repair, HVAC maintenance, diagnostics, installation, and replacement of heating and cooling systems. For a central heat pump that cools poorly, heats less effectively, makes noise, starts with difficulty, or runs intermittently, our team can identify the cause and offer a solution tailored to your home.
