Repair of an Electric Furnace in Pont-Viau

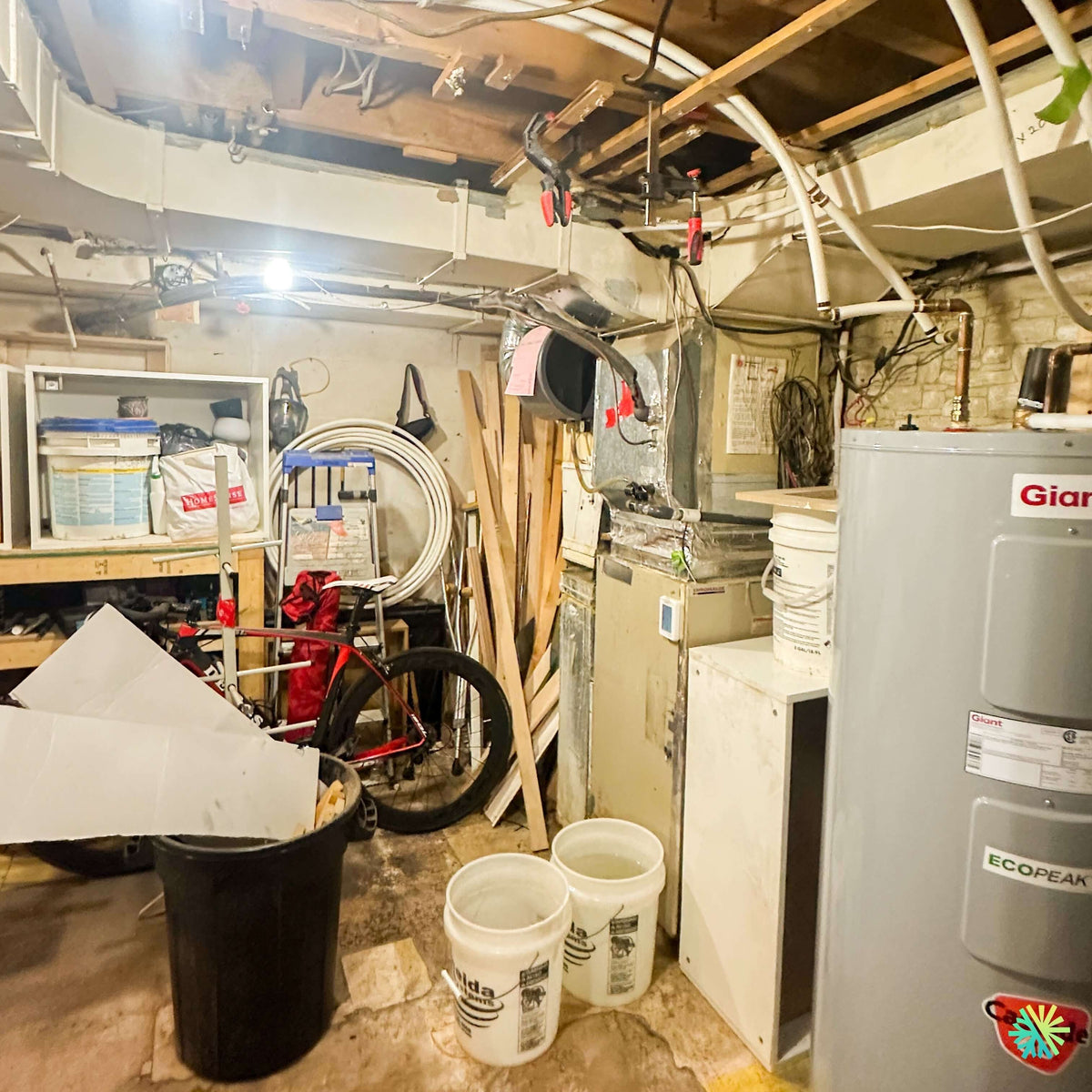

An electric furnace installed in a cluttered mechanical room, with unstable heating and signs of moisture

In Pont-Viau, in the Laval area, our AirGreen team was called for a central heating problem on a residential electric furnace connected to an existing duct network. The client noticed irregular heat, ventilation sometimes present without real temperature rise, and concern related to visible moisture around the mechanical room. The presence of floor boilers, a Giant ECOPEAK hot water tank, old metal ducts, and a very crowded space immediately indicated that the intervention would require more than a simple quick thermostat check.

The main device was a central electric furnace, installed vertically in a basement mechanical room, with a plenum and distribution ducts above. The exact brand of the furnace was not clearly visible from the available access, but the configuration matched a typical installation serving several rooms through ducts. In this type of HVAC system, performance depends not only on the heating elements: it also depends on ventilation, air return, filter condition, duct cleanliness, low voltage control, and electrical safety.

Symptoms reported before our arrival

The client had noticed several signs that developed gradually:

• air came out of the vents but often seemed lukewarm;
• the temperature requested on the thermostat took too long to be reached;
• the furnace started, then seemed to shut off before completing an effective cycle;
• some parts remained cold despite a heating demand;
• the mechanical room showed signs of moisture and accumulated water;
• the system seemed to operate less regularly than before.

These symptoms can come from several causes. On an electric furnace, low heat can be related to a faulty heating element, an intermittent sequencer, a worn relay, activated thermal protection, insufficient airflow, or an incomplete thermostat signal. Moisture, on the other hand, can come from an evaporator drain, a humidifier, a hot water tank, condensation on ducts, or a nearby pipe. Even if the water does not always come directly from the furnace, it can complicate the intervention and create risks for electrical connections or low voltage control.

Our diagnosis therefore had to be comprehensive: heating, ventilation, ducts, humidity, safety, and accessibility.

A visual inspection that immediately guided the diagnosis

Upon entering the mechanical room, several elements caught our attention. The space was very crowded with materials, tools, containers, a bicycle, ducts, plumbing, and a water heater. The furnace was partially embedded in a set of ducts and fittings, with limited access to the service panels. This type of configuration is common in some residences in Pont-Viau, Laval, Montreal, Longueuil, on the North Shore and the South Shore, especially when systems have been modified over the years.

We visually checked:

• the condition of the furnace cabinet;
• access to the panels;
• the supply plenum;
• the metal ducts above the unit;
• signs of moisture around the system;
• the presence of boilers possibly used to collect water;
• the visible low voltage wires;
• the clearance around the equipment;
• the apparent condition of the return air;
• the proximity of the hot water tank and plumbing.

This inspection allowed us to establish two priorities: confirm why the furnace was not heating properly and determine if humidity could influence the system’s operation or safety.

Checking the thermostat and heating control

The first technical step was to trigger a heating demand at the thermostat. In an electric furnace, the thermostat sends a control signal, then the furnace must start its sequence: heating call, control activation, ventilation start or maintenance, activation of heating elements, then normal shutdown when the requested temperature is reached.

During our tests, the furnace responded to the demand, but the sequence was not entirely stable. The ventilation would start, but the heat produced did not always seem to match the demand. This type of behavior can give the customer the impression that the furnace is working, when in reality only part of the heating is active.

So we checked:

• continuity of the signal from the thermostat;
• the furnace's response to the heat call;
• fan operation;
• the delay between demand and heat production;
• the temperature of the blown air;
• cycle stability over several minutes;
• normal shutdown after demand reduction.

This step ruled out a simple thermostat programming error. The problem required a more thorough inspection of the furnace and its immediate environment.

Electrical diagnosis: connections, relays, and heating elements

On an electric furnace, the electrical compartment is at the heart of the diagnosis. The heating elements consume significant power, and the control components must operate in a precise order. A weakened connection, a worn relay, or an intermittent sequencer can prevent the full activation of heat.

We carefully inspected the accessible components, taking into account the proximity of moisture observed in the room. The points checked included:

• main electrical connections;
• control terminals;
• accessible relays and sequencers;
• low voltage wires;
• signs of overheating;
• signs of oxidation;
• the reaction of the heating elements;
• thermal protections;
• ventilation stability during heat activation.

The diagnosis revealed instability in the heating sequence, combined with an environment that could affect the system's reliability: difficult access, dust, aging ducts, and moisture present around the installation. The goal was therefore not to replace the unit unnecessarily but to correct the weak points that prevented stable operation.

Airflow and duct network inspection

An electric furnace can be in good electrical condition but produce poor results if the air does not circulate properly. Airflow is essential: it allows the heating elements to transfer their heat without overheating and distributes this heat throughout the house.

In this Pont-Viau residence, the duct network showed several signs of aging. We examined the joints, the plenum, the air return, and the visible sections on the ceiling. Some ducts appeared to have been modified over time, which can create air leaks, restrictions, or areas where pressure is poorly balanced.

We paid special attention to:

• the condition of the filter;
• air circulation at the return;
• the pressure felt at the outlets;
• visible losses in the ducts;
• the presence of excessive dust;
• vibrations;
• the areas where air could escape before reaching the rooms.

Poor airflow can cause short cycling. The furnace heats, the internal temperature rises too quickly, a protection activates, then the system shuts off. The customer then sees a machine that starts but never heats effectively. This is a common problem in residential HVAC service calls.

Humidity management and risk inspection around the furnace

The presence of boilers and water traces in the mechanical room was treated as an important diagnostic element. Even though an electric furnace normally does not produce condensate in heating mode, several nearby pieces of equipment can generate or reveal moisture: air conditioning coil installed above the furnace, evaporator drain, humidifier, water heater, piping, condensation on cold ducts, or local infiltration.

We checked if water could reach:

• low voltage wires;
• control connections;
• service panels;
• the furnace base;
• ducts;
• accessible electrical components.

Humidity was not treated as a mere aesthetic detail. In a mechanical room, water can accelerate oxidation, make some contacts less reliable, and complicate equipment safety. We therefore recommended keeping the space clear, identifying any persistent water sources, and never allowing containers to mask an active problem.

A methodical restart to restore more regular and safe heating

After inspection and testing, we made the necessary corrections: tightening accessible connections, targeted cleaning of critical areas, validating the heating control, checking airflow, and controlled restart. The intervention stabilized the furnace’s response and confirmed that the unit could still provide adequate heat, provided certain recommendations are followed.

Operational tests after intervention

Once the corrections were made, we restarted the system in heating mode. We observed the full sequence rather than limiting ourselves to a quick start. This approach is essential because an electric furnace may seem to operate during the first few minutes before shutting off if a protection trips.

The tests performed included:

• heat call at the thermostat;
• starting the ventilation;
• gradual activation of the heat;
• checking the blowing temperature;
• observing the cycle over an extended period;
• checking for normal shutdown;
• listening for abnormal noises;
• visual inspection after operation;
• confirmation of a more stable system response.

The result was positive: the furnace produced more consistent heat, ventilation was more coherent, and the client noticed an improvement in comfort.

Why access to the mechanical room influences service quality

This intervention illustrates an important reality: a central furnace must remain accessible. When a mechanical room becomes a storage space, the intervention takes longer and some signs of problems can be hidden. In this case, clutter around the furnace complicated access to the panels, ducts, and inspection points.

For a residential HVAC system, it is best to keep clear:

• the furnace panels;
• the filter;
• the control wires;
• the drain if an air conditioning coil is present;
• the main ducts;
• access to the thermostat or control module;
• the space around the water heater and plumbing.

This clearance allows not only more effective repair but also faster detection of leaks, noises, odors, or signs of overheating.

Mistakes to avoid with an electric furnace

Several mistakes can worsen a breakdown or reduce the lifespan of an electric furnace.

Ignoring ventilation without heat

If the fan runs but the air remains lukewarm, do not assume the furnace is simply slow. This may indicate a heating element is not activating, a relay is defective, or a protection is cutting off the heat.

Allowing water to accumulate near the equipment

Even if the water seems to come from another device, it must be taken seriously. Moisture and electrical components never mix well.

Replacing the thermostat too quickly

A new thermostat will not fix poor airflow, an intermittent sequencer, a weak connection, or a defective heating element. Diagnosis must always precede replacement.

Neglecting the filter

A dirty filter reduces airflow, increases the fan’s effort, and can cause safety shutdowns. It is one of the simplest but also most common causes of weak heating.

Closing too many vents

Closing several air outlets to “force” heat elsewhere can unbalance the system. The furnace must operate with sufficient air circulation.

When to repair rather than replace

In this intervention in Pont-Viau, the repair was relevant because the furnace still passed tests after correcting the weak points. We do not recommend a complete replacement when a system can be safely and logically put back into service.

However, several criteria must be monitored:

• age of the furnace;
• frequency of breakdowns;
• condition of the ducts;
• availability of parts;
• condition of heating elements;
• stability of electrical connections;
• recurring presence of humidity;
• actual comfort after service;
• medium-term maintenance cost.

If breakdowns recur or the duct network becomes too problematic, it may be relevant to consider an upgrade, notably with a central heat pump combined with an electric furnace or a more efficient system. But in this case, the goal was first to restore heating function and give the client a clear picture of the system’s condition.

Local expertise for Pont-Viau, Laval, and Greater Montreal

Pont-Viau often features residences where mechanical systems have evolved with the building: old ducts, added air conditioning, water heater changes, adapted ducts, basement spaces used for storage, and sometimes limited access. These details directly influence the quality of the diagnosis.

At AirGreen, we regularly service Laval, Montreal, Longueuil, the North Shore, and the South Shore for service calls on electric furnaces, central heat pumps, wall air conditioners, wall heat pumps, and complete HVAC systems. Each intervention is handled according to the actual context of the home, not just the reported symptom.

Final result: a more stable furnace and a better-equipped client

At the end of the service, the electric furnace in Pont-Viau was operating more stably. The heat produced was more consistent, the heating sequence responded better to the thermostat, and the points of caution were clearly explained to the client.

We recommended monitoring:

• any new water accumulation;
• temperature variations at the vents;
• cycles that are too short;
• unusual noises;
• overheating odors;
• the condition of the filter;
• accessibility of the mechanical room.

This repair demonstrates the importance of a complete HVAC diagnosis. An electric furnace is not an isolated device: it works with a thermostat, a duct network, airflow, a mechanical environment, and electrical components that all need to work together. By addressing the entire system, we were able to restore comfort, improve reliability, and help the client better understand the necessary steps to prevent a recurrence.
