A service call in a technical room where heating, ventilation, and sensitive equipment needed to be stabilized
In Saint-François, our AirGreen team intervened in a particularly busy technical room, where the electric furnace had to operate in a demanding environment: insulated ventilation ducts, structured wiring, IT equipment, network cabinets, ceiling piping, restricted access, and temporary fans used to compensate for thermal discomfort. This type of space leaves no room for improvisation. When heating or ventilation becomes unstable, it’s not just comfort that is affected: ambient temperature, air circulation, and equipment safety can quickly become problematic.
The client contacted us because the HVAC system was no longer responding consistently. The electric furnace seemed to start, then stop prematurely. In some areas, the air circulated weakly. In others, the temperature rose too quickly, especially near electrical and IT equipment. Floor fans had been placed to circulate the air, but this temporary solution did not fix the root cause of the problem. It only masked a loss of performance in the main system.
An installation where every detail mattered
Upon our arrival, the first observation was the mechanical environment. The technical room in Saint-François had several important elements: insulated ducts on the ceiling, ventilation sections close to cable trays, sensitive equipment generating heat, portable fans, as well as limited access around certain HVAC components. In this context, an electric furnace cannot be evaluated as an isolated device. It is part of a broader balance between heating, air circulation, filtration, duct pressure, and internal heat evacuation.
The client specifically reported:
- short heating cycles;
- a temperature difficult to stabilize;
- insufficient airflow at certain registers;
- a buildup of heat in the technical room;
- an impression that the furnace was "straining" without delivering its full output;
- the use of temporary fans to compensate for the lack of circulation.
These symptoms could indicate an electrical failure, a sequencer problem, an unstable contactor, a triggered thermal protection, a restriction in the ducts, or a furnace fan no longer delivering the correct airflow.
Initial diagnosis: do not confuse room overheating with heating failure
In a technical room, poor air circulation can produce contradictory symptoms. On one hand, some areas seem too hot due to electronic equipment. On the other, the heating system may seem ineffective because the air is not circulating properly through the network. It is therefore necessary to distinguish a true heat production failure from a distribution problem.
Our technician began by checking the demand sequence at the thermostat, the response of the electric furnace, the fan start-up, and the stability of the airflow. The furnace was indeed receiving a demand, but its behavior was not perfectly stable. The fan started, heat was produced, then the sequence became irregular. This type of reaction often points the diagnosis toward a control problem, thermal limit, or airflow issue.
Electrical inspection of the furnace
An electric furnace relies on several components that must work in the correct order: low voltage transformer, relays, sequencers, contactors, heating elements, ventilation motor, control board or module, thermostat, and thermal safeties. A single weakened component can cause intermittent operation.
We therefore carried out a complete electrical inspection:
- main power supply check;
- validation of the control voltage;
- inspection of accessible connections;
- checking the heating demand;
- testing the response of relays and contactors;
- observation of the activation of heating elements;
- temperature safety checks;
- checking the continuity of the ventilation circuit.
The diagnosis revealed a heating sequence disrupted by a combination of air restriction and excessive demand in the technical room. The furnace was not simply "dead": it was protecting itself against an unfavorable operating condition.
Airflow: the often underestimated cause
In several service calls in Montreal, Laval, Longueuil, on the North Shore and the South Shore, we find that electric furnace problems are often worsened by poor airflow. A furnace can produce heat properly, but if air does not pass through the unit with enough volume, the internal temperature rises too quickly. Safety limits can then shut off the heating to protect the equipment.
In this technical room in Saint-François, the duct network visible on the ceiling, the insulated sections, elbows, connections, and equipment density made air circulation particularly important. We evaluated the supply points, air return, possible restrictions, and the pressure felt in the ducts. Temporary fans confirmed that the client had already identified a stagnant air problem, but the real fix had to come from the main HVAC system.
Inspection of ducts and restriction areas

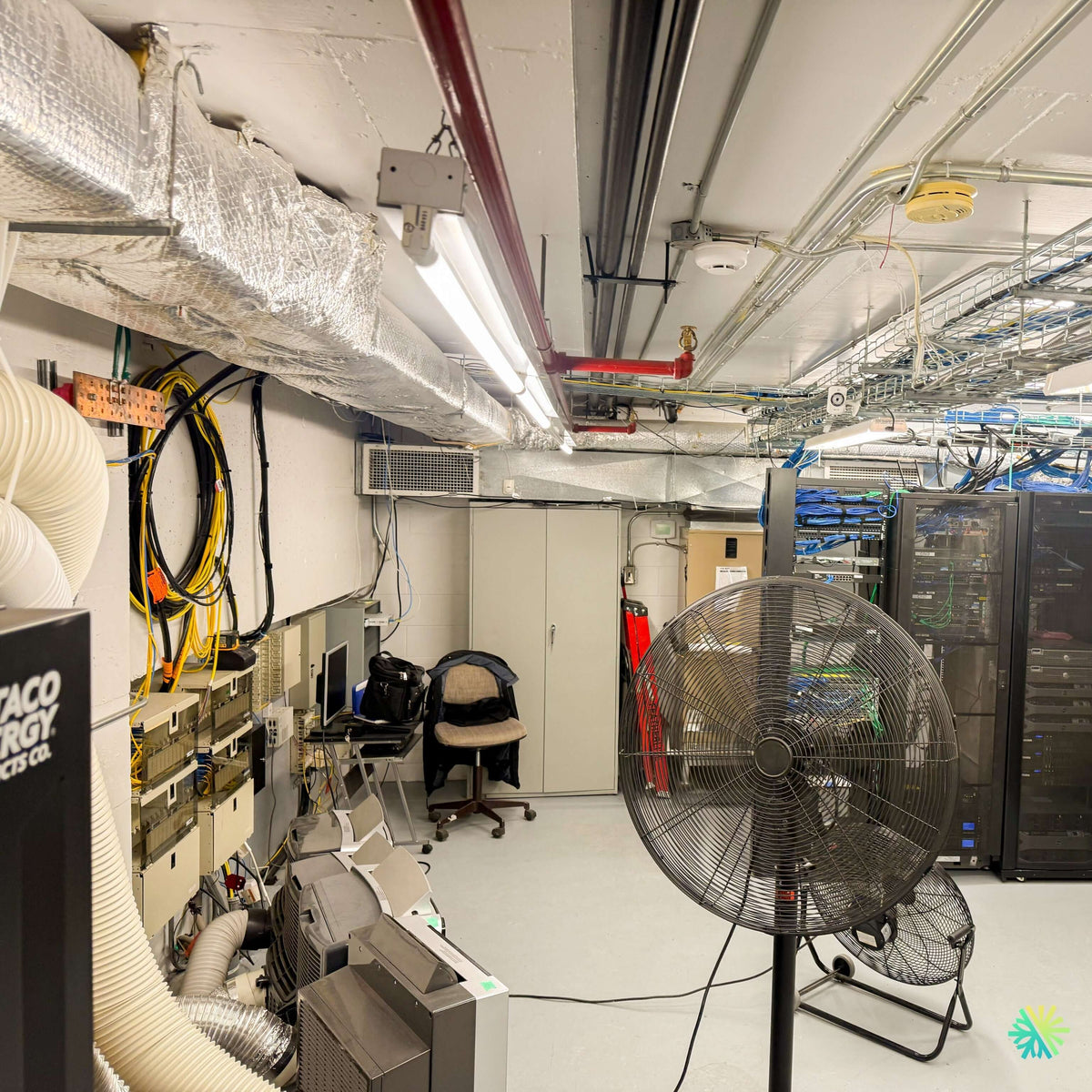

The service image shows an environment where ducts run close to cables, lighting, piping, and technical equipment. In this type of installation, ducts may have been modified over the years to accommodate new systems. Each modification can cause performance loss: choking, poorly sealed connection, overly compressed flexible duct, mispositioned damper, or displaced insulation.
We checked the visible areas to identify:
- collapsed or compressed ducts;
- poorly sealed joints;
- sections where air could leak;
- obstacles to air return;
- signs of dust around the connections;
- partially blocked grilles or registers;
- the effects of temporary fans on overall circulation.
This inspection confirmed that the electric furnace needed to be put back into service with particular attention to the airflow, not just heat production.
Operation sequence correction
After the checks, we made the necessary adjustments to stabilize the heating sequence. The priority was to ensure that the electric furnace starts correctly, that the fan provides sufficient airflow before and during the activation of the elements, and that safety devices are not triggered by excessive temperature rise.
The intervention included:
- cleaning of accessible areas affecting air circulation;
- inspection and tightening of accessible control connections;
- validation of the fan operation;
- testing the heating element sequence;
- control of the supply air temperature;
- observation of behavior over several complete cycles;
- recommendations on air organization in the technical room.
An electric furnace should not be evaluated on a single startup. We let the system run long enough to observe its stability, measure the evolution of the airflow, and confirm that premature shutdowns did not recur.
An environment sensitive to thermal imbalances
The presence of network cabinets and electronic equipment added a significant constraint. These devices generate continuous heat. If the general ventilation does not evacuate this heat or distribute it properly, the room can become unstable even if the furnace is working. The problem then does not come solely from the heating but from the overall balance between heating, ventilation, and passive or mechanical cooling.
We explained to the client that portable fans should only be a temporary measure. They can help circulate the air, but they do not fix a duct restriction or a faulty HVAC sequence. A reliable system must be able to maintain a stable temperature without constantly relying on supplemental equipment placed on the floor.
A system brought back under control and a safer technical room
After the intervention, the electric furnace returned to a more stable sequence. The startup was more consistent, the fan responded better, the heat was distributed with fewer interruptions, and the client had a better understanding of the elements to monitor. The goal was not just to get the heating running again, but to reduce the risk of recurrence in an environment where air circulation is essential.
Result observed after the tests
Once the corrections were made, we validated several operating cycles. The furnace responded to demand without immediate shutdown. The blowing temperature was more stable, and the air circulation in the room seemed better balanced. Temporary fans could still be used for occasional mixing, but they were no longer necessary to compensate for an unstable heating sequence.
The client mainly achieved three concrete results:
- more reliable heating;
- better air distribution;
- a reduction in premature shutdowns related to thermal protection.
Mistakes to avoid in a technical room
When an electric furnace serves or influences a technical room, certain mistakes can quickly worsen the situation. The first is blocking air returns with storage, cables, or equipment added over time. The second is placing powerful fans without understanding their effect on air pressure. A poorly oriented fan can disrupt circulation rather than improve it.
It is also important to avoid modifying the ducts without recalculating the impact on airflow. A removed, moved, or compressed section can be enough to create short cycles. Finally, intermittent shutdowns should never be ignored. An electric furnace that frequently cuts off is often trying to protect itself. Continuing to use it without diagnosis can damage components or accelerate wear on contactors and sequencers.
Practical advice after the intervention
After this repair in Saint-François, we recommended regular monitoring of the room, especially during rapid outdoor temperature changes. Technical rooms react differently than typical residential rooms. Internal equipment produces heat, ducts can be hard to access, and ventilation needs change depending on the room's use.
We especially recommend:
- keep air returns and outlets clear;
- avoid leaning objects against the ducts;
- monitor for unusual ventilation noises;
- have the furnace inspected before the cold season;
- check that temporary fans are not masking a permanent problem;
- document changes made to the equipment in the room;
- request an HVAC diagnosis as soon as short cycles appear.
These simple actions reduce the risk of breakdowns and improve system stability.
AirGreen expertise for electric furnaces in Saint-François
Our intervention demonstrates the importance of a comprehensive approach. An electric furnace is not just a box with heating elements. It depends on a precise electrical sequence, sufficient airflow, a well-designed duct network, a properly configured thermostat, and a mechanical environment that does not interfere with its operation.
At AirGreen, we work on various HVAC systems in the greater Montreal area, in Laval, Longueuil, on the North Shore and the South Shore. Service calls in technical rooms require a broader understanding than simple residential interventions, as internal heat sources, added equipment, and restricted access can turn a minor issue into a recurring breakdown.
Conclusion: precise repair for a more stable HVAC system
This repair of an electric furnace in Saint-François restored a reliable heating sequence, improved air circulation, and reduced premature shutdowns. Thanks to a complete electrical check, airflow analysis, duct inspection, and tests over several cycles, we were able to pinpoint the real cause of the problem rather than replacing parts unnecessarily.
In a technical room, HVAC performance relies on balance. Heating, ventilation, filtration, air circulation, and internal heat management must work together. When this balance is disrupted, comfort decreases, equipment is more stressed, and breakdowns become more frequent. A structured intervention helps restore stability and extend the system's lifespan.
