A high-altitude intervention in a stairwell where every detail mattered
In this residence in Longueuil, our AirGreen team was called for a common problem, but rarely simple when it occurs in such a particular space: a wall-mounted heat pump installed very high, above a window, in a narrow stairwell with a sloped ceiling. At first glance, the indoor unit seemed in good condition. Yet, the client reported several worrying symptoms: irregular performance, a feeling of less fresh air than before, a slight ventilation noise, and occasional moisture traces under the device on hot days.
This type of service call requires more than a simple visual check. A wall-mounted mini-split heat pump installed high can hide drainage problems, internal clogging, or air circulation issues that are not immediately visible from the floor. In this particular case, the unit’s location complicated access: the device was positioned above a curtain, in a narrow vertical space, with a staircase nearby and a wooden railing limiting the installation of work equipment.
At AirGreen, we regularly encounter this kind of setup in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Homes with open stairwells, mezzanines, or cathedral ceilings are often equipped with a wall-mounted heat pump placed high to promote better air distribution. This is a good installation strategy when well designed, but it also requires more rigorous maintenance, as dust, humidity, and condensate can accumulate more discreetly.
Symptoms observed before our diagnosis
The client described a device that was still working but no longer provided the same comfort as before. The problem was therefore not a complete breakdown. It was more subtle: the heat pump would start, blow air, but the performance seemed unstable. During periods of high humidity, the client also noticed a slightly damp smell near the unit, as well as occasional dripping that was not constant.
This kind of symptom can come from several causes:
- Partially blocked condensate tray
- Clogged drainage hose
- Fan turbine loaded with dust
- Saturated filters
- Dirty evaporator
- Temperature sensor influenced by the high placement
- Poor air circulation caused by the wall and ceiling configuration
- Beginning of drainage restriction without total blockage
In a stairwell, air stratification must also be considered. Warm air naturally rises. A wall-mounted heat pump installed near the ceiling can therefore react differently from a unit located in a typical living room. If the internal sensor detects a higher temperature than that felt at the living areas, the unit may modulate in a way that seems inconsistent to the customer.
Safe access to the wall unit
The first difficulty of this intervention in Longueuil was access. The wall unit was installed above a window, very close to a ceiling slope. It was not enough to climb on a standard step ladder. Our technicians had to secure the area, protect the wall, clear the curtain, and position the work equipment in a way that allowed intervention without damaging the interior finish or the wooden handrail of the staircase.
This step is essential in residential HVAC service calls. A well-done repair always starts with a clean and safe approach. In this case, the unit was placed in an area where poor handling could have caused marks on the wall, damage to the curtain, or incomplete access to the lower part of the unit, where the condensate tray, motorized flaps, and some drainage points are located.
Complete inspection of the wall-mounted heat pump
Once the unit was accessible, our team carried out a methodical inspection. We first checked the general condition of the device: front panel, filters, flaps, indoor heat exchanger, fan, and visible points of the drainage system. The filters were dirty, but not enough to explain the performance drop on their own. The main problem was further along, in the condensate tray and drain area.
The tray showed an accumulation of wet dust and organic residues. This mixture often forms a fine paste that slows down water drainage. The heat pump could therefore operate normally for a while, then start retaining too much water during long periods of air conditioning. This is exactly the kind of situation that causes intermittent leaks: the customer does not always see water, but the problem returns when outdoor humidity increases or when the unit runs for several hours without stopping.
Diagnosis: partially blocked drainage and dirty internal ventilation
The diagnosis confirmed two main issues. First, the condensate drain was partially blocked. Water was still flowing, but too slowly. Second, the ventilation turbine had a dust buildup that reduced the quality of the airflow. On a wall-mounted heat pump, these two problems are often linked: less efficient ventilation increases operating time, which produces more condensation; if the drain is slowed, the tray fills faster than expected.
We also checked that the problem was not caused by a more serious defect, such as an electronic board failure, a faulty sensor, or refrigerant loss. The operation tests showed no error codes or abnormal compressor behavior. The blowing temperature and operating cycle indicated a device capable of producing cold, but limited by internal dirt buildup and poor condensate drainage.
Technical cleaning and drainage restoration
The intervention involved carefully dismantling the accessible sections of the indoor unit, cleaning the filters, clearing the condensate tray, and treating the drain. We removed the deposits accumulated in the tray, then checked the flow with a controlled water test. This test is essential: visual cleaning alone is not enough. It must be confirmed that the water actually leaves the unit at a steady flow, without backflow, stagnation, or overflow.
The turbine was then cleaned to restore a more stable airflow. A dirty turbine can produce several misleading symptoms: slight noise, vibration, loss of power, damp smell, and uneven air distribution. In a stairwell, these effects are amplified because the air circulates vertically and the unit often works to diffuse air to several adjacent zones.
Checking the vents, the sensor, and the operating mode

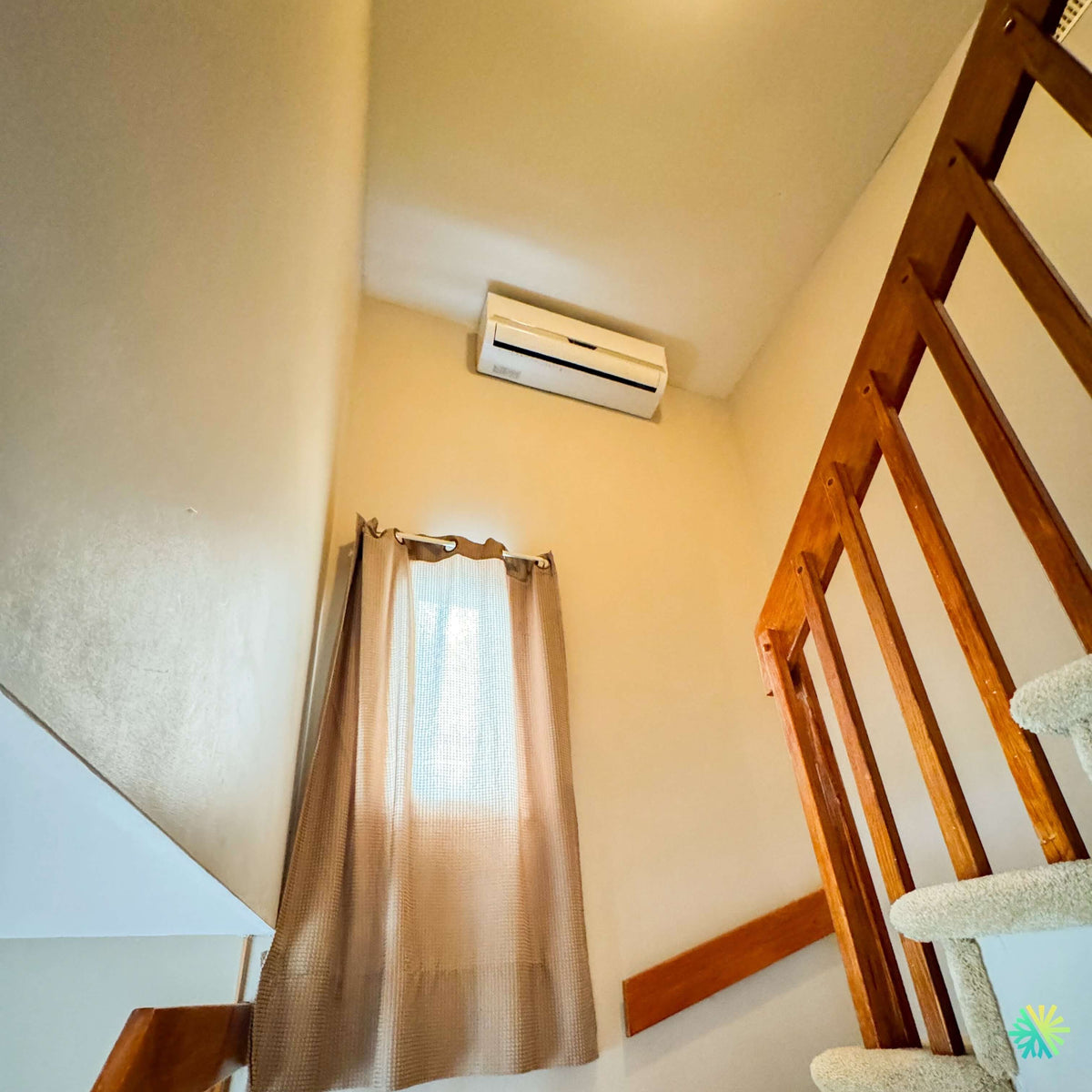

After cleaning, we tested the motorized vents. In the photo, you can see that the unit is installed very close to the sloped ceiling. The orientation of the vents therefore becomes important: if the air jet is directed too high, it can bounce off the ceiling slope; if it is directed too low, it can create a draft sensation near the staircase. Our technicians adjusted the settings to promote a more natural diffusion towards the living space.
We also explained to the client how to use the ventilation and air conditioning modes according to the season. A wall-mounted heat pump installed high should not always be used with the same settings as a unit placed in a closed room. In summer, an automatic ventilation mode can be useful, but only if the unit is clean and the drain works perfectly. In winter, the air direction should favor the downward flow of heat to occupied areas.
Result: comfort restored and device secured for the season
After restoration, the wall-mounted heat pump returned to much more stable operation. The airflow was more consistent, the ventilation noise had decreased, and the drainage test confirmed proper condensate evacuation. The client was also reassured on an important point: the device showed no immediate signs of major failure. The situation was related to necessary technical maintenance and progressive obstruction, not an expensive compressor breakdown.
Why this type of problem often recurs in Longueuil and on the South Shore
In many homes in Longueuil and the South Shore, wall-mounted heat pumps are installed in open spaces to maximize coverage: stairwells, central corridors, living rooms with high ceilings, mezzanines, or walls near a common area. These locations are effective for distributing air, but they also expose the device to a large amount of circulating dust.
In a stairwell, the air often carries particles from several levels of the house. Curtains, stair carpets, railings, openings between floors, and natural air movements all contribute to loading the filters and the turbine. Even if the unit looks clean from the outside, the inside can accumulate enough dust to reduce performance.
Mistakes to avoid with a wall-mounted heat pump installed high up
A common mistake is to wait for a significant leak to appear before requesting service. However, a leak is often the last sign of a problem that has been present for some time. When water starts to come out of the unit, it usually means that the tray or drain can no longer keep up with the condensate production.
You should also avoid simply increasing the fan speed to compensate for a loss of performance. If the turbine is dirty or the drain is slowed, forcing the device can worsen discomfort without fixing the cause. Similarly, cleaning only the filters is not enough when the clogging is in the fan wheel or the internal tray.
Signs that justify a HVAC service call
A wall-mounted heat pump should be inspected when one of the following signs is observed:
- Air less cold or less hot than before
- Humidity smell at startup
- New noise coming from the indoor unit
- Water drops under the unit
- Vents that move poorly
- Low airflow despite clean filters
- Longer operation to reach the requested temperature
- Marks on the wall under the unit
- Intermittent shutdown without clear explanation
These symptoms do not always mean a major breakdown, but they indicate that a diagnosis is necessary. At AirGreen, we favor a structured approach: observation, partial disassembly if needed, drainage tests, basic electrical checks, airflow control, and validation of the result after intervention.
A clean, precise intervention adapted to the house’s configuration
This repair in Longueuil clearly demonstrates the importance of adapting the intervention to the real environment. The machine was not simply “on the wall”; it was installed in a high, narrow area with a window, a curtain, a sloped ceiling, and a stairwell. Each of these elements influences how to diagnose, clean, and test the unit.
Our technicians took the time to protect the space, properly access the unit, clean the relevant components, and explain to the client the preferred settings. The result was tangible: a quieter wall-mounted heat pump, functional drainage, improved airflow, and greater peace of mind before the next heat periods.
AirGreen expertise for wall-mounted heat pump repairs
AirGreen works every day on residential HVAC systems in Greater Montreal, including Montreal, Laval, Longueuil, the North Shore, and the South Shore. Our service calls cover wall-mounted heat pumps, wall air conditioners, MultiZone systems, central heat pumps, electric furnaces, cassettes, ducted systems, and accessories like air exchangers and humidifiers.
In the case of this wall-mounted heat pump in Longueuil, the solution was not to replace the unit or sell an unnecessary service. The right answer was an accurate diagnosis, targeted technical cleaning, and drainage correction. This is often what makes the difference between a unit that continues to deteriorate and a system that regains its full usefulness for several seasons.
