Repair of a Lennox Furnace in Chomedey

An HVAC service call in Chomedey for a Lennox central furnace with intermittent heating problem

In Chomedey, in the Laval area, AirGreen was called for a service call on a Lennox central furnace connected to a metal duct network. The installation was in a compact mechanical space, with distribution ducts, PVC ventilation piping, condensate drain, electrical connections, and limited access around the unit. This type of setup requires a methodical intervention, as a heating failure can stem from a control problem as much as from an airflow, drainage, internal safety, or startup sequence issue.

The client noticed increasing discomfort: the furnace would start but did not always maintain the requested temperature. At times, the system seemed to operate normally; at other times, it stopped too early or blew air that was less warm than expected. In a house served by a central system, this kind of failure quickly becomes problematic, especially when some rooms heavily depend on the proper balance of the ducts.

Our goal was clear: to perform a complete HVAC diagnosis, identify the real cause of the intermittent operation, secure the equipment, fix the problem, and restore stable, predictable, and reliable heating to the client.

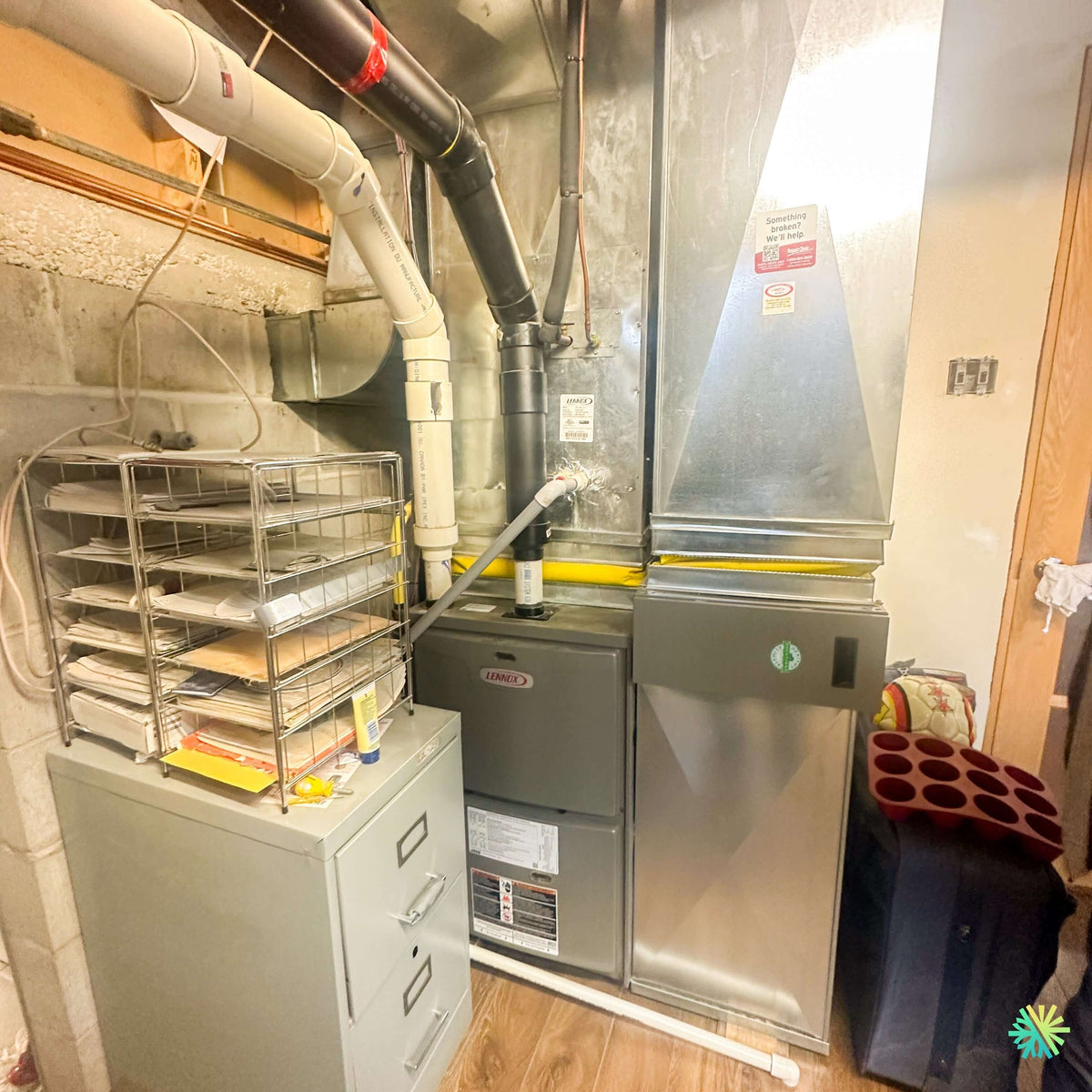

A Lennox central furnace installed in a tight mechanical space

The unit visible on site is a Lennox central furnace, installed with a vertical metal plenum and a galvanized sheet metal duct network. The setup also shows PVC ventilation ducts, a condensate line, and several peripheral elements that play an important role in the overall system operation.

In residences in Chomedey, Laval, Montreal, Longueuil, on the North Shore and the South Shore, this type of central system is very common. It allows heating the entire house from a single unit by distributing air through ducts. When everything is properly adjusted, the comfort is uniform. But when a component becomes unstable, the impact is felt throughout the property.

A central furnace generally includes:

• a circulation fan;
• a control board;
• sensors and safety devices;
• an induction or ventilation motor depending on the configuration;
• a heat exchanger or heating module;
• a condensate drainage system if applicable;
• a connection to the thermostat;
• a network of return and supply ducts;
• a filter that protects the equipment and directly influences airflow.

In this specific case, access was partially limited by the immediate environment: storage furniture, tight space, nearby ducts, adjacent wall, and cluttered mechanical area. For a technician, these details matter. A successful HVAC repair also depends on the ability to work cleanly, access panels, test components without forcing connections, and restore the installation without disturbing the client’s space.

Symptoms reported by the client

The client did not describe a total breakdown. The furnace did not seem completely stopped, which made the diagnosis more subtle. Intermittent failures are often more complex than clear shutdowns because the unit may operate during our arrival, then reproduce the fault only under certain conditions.

The observed or reported symptoms included:

• irregular heating;
• cycles sometimes too short;
• indoor temperature difficult to maintain;
• air blown less warm at certain times;
• starts that didn’t always seem to complete;
• feeling that the furnace "hesitated" before operating;
• more noticeable discomfort in certain areas of the house.

This type of behavior can come from a clogged filter, a pressure problem, a partially blocked drain, a control board detecting an anomaly, a misconfigured thermostat, a safety that opens, a worn-out motor, or an airflow issue.

First inspection: observe before replacing

At AirGreen, we avoid random part replacements. A central furnace is a logical system: it follows a precise startup sequence. If one of the expected signals is not received, if a safety detects an abnormal condition, or if the airflow is insufficient, the unit may shut down to protect itself.

We started with a complete visual inspection:

• general condition of the Lennox furnace;
• access to the panels;
• condition of the metal ducts;
• presence of restrictions around the unit;
• condition of the PVC ventilation ducts;
• slope and connection of the condensate drain;
• connection to the thermostat;
• filter and air return;
• low voltage wiring;
• signs of moisture, corrosion, or leaks;
• condition of the lower and upper compartment.

The presence of a condensate drain particularly caught our attention. On a high-efficiency central furnace or a system connected to central air conditioning elements, a partially blocked drainage can cause intermittent shutdowns. The device may start, accumulate water in a sensitive area, trigger a safety shutdown, then restart later once the temporary condition has cleared.

Technical diagnosis: following the operation sequence

To understand the problem, we observed the furnace during an actual heating demand. The thermostat was used to trigger a full cycle, then we followed the device’s response step by step.

Thermostat check

We first confirmed that the thermostat was indeed sending the demand. A poorly programmed thermostat, incorrect configuration, or a loose wire can create symptoms similar to an internal failure.

The points checked:

• selected heating mode;
• requested setpoint;
• furnace response;
• signal stability;
• low voltage wiring;
• delay between the demand and startup.

The demand was transmitted correctly. The problem was therefore further along in the operation sequence.

Airflow check

Poor airflow can cause several problems: overheating, short cycling, discomfort, noise, triggering safety limits, and accelerated fan wear. In a ducted home, a simple clogged filter can disrupt the entire system.

We checked:

• filter;
• return air;
• pressure felt at the ducts;
• fan behavior;
• circulation noise;
• visible restriction in the compartment;
• condition of the plenum;
• access to the supply duct.

The airflow needed to be improved by regular filter maintenance, but it was not the sole cause of the intermittent operation.

Condensate drainage check

The visible drain on the installation was carefully inspected. A poorly cleared condensate drain can cause interruptions that are difficult to diagnose, especially if water accumulates slowly or if the blockage is partial.

We inspected:

• pipe slope;
• connections;
• presence of moisture around the furnace;
• flow;
• signs of deposits;
• connection to the drainage point;
• device reaction during the cycle.

The diagnosis confirmed that a drainage problem was contributing to the irregular behavior. The system was not evacuating condensate as smoothly as it should, which could cause interruptions or intermittent safety shutdowns.

Repair: cleaning the drainage, electrical checks, and restarting the cycle

After isolating the problem, we proceeded with a targeted intervention. The repair focused on the condensate drainage circuit and the necessary related checks to confirm that the furnace could complete its cycle without interruption.

Cleaning and restoring the drain

The drain was cleared and checked to allow more stable flow. In this type of intervention, it is not enough to quickly blow into a pipe. It is necessary to ensure that the slope, fittings, and evacuation point allow reliable operation.

The steps performed included:

1. securing the unit;
2. inspection of the condensate pipe;
3. checking connections;
4. clearing the passage;
5. flow control;
6. observation during a complete cycle;
7. checking for absence of leaks;
8. clean replacement of the work area.

Once drainage was restored, the furnace was able to complete its heating cycles with more stability.

Verification of connections and control board

Since the client reported intermittent operation, we also inspected accessible electrical components. Vibrations, heat, and time can weaken some connections. A slightly loose connection can cause unstable signals or unpredictable shutdowns.

We checked:

• low voltage connections;
• power supply;
• control board;
• main terminals accessible;
• signs of overheating;
• wires near panels;
• behavior at restart.

No major control board replacement was required. The system responded correctly after correcting the drainage and safety checks.

Result: more stable heating and reassured client

After the repair, we restarted the furnace in heating mode and observed the complete cycle. The unit responded to the thermostat's demand, the fan operated normally, and the heating became more stable. The client noticed a concrete improvement: fewer premature shutdowns, better heating continuity, and more consistent operation.

The results obtained:

• heating cycle completed properly;
• condensate drainage restored;
• more stable operation;
• reduced risk of intermittent shutdown;
• no visible leaks after inspection;
• client informed of maintenance actions to perform;
• recommendations given to avoid recurrence of the problem.

For a residence in Chomedey, this intervention prevented a premature replacement of an expensive component. The correct diagnosis directed the repair to the true source of the problem rather than a supposedly defective part.

What this Lennox furnace repair in Chomedey teaches homeowners

A central furnace can show misleading symptoms. When it still blows air, many owners think the unit is working and that the problem is simply the thermostat or the cold outside. However, a central system can be partially broken while giving the impression of working.

Why condensate drains are often neglected

The condensate drain is a small component compared to the furnace itself, but its role is essential. When it becomes blocked, even partially, it can cause:

• intermittent shutdowns;
• moisture around the unit;
• odors;
• safety shutdowns;
• loss of performance;
• long-term damage if water accumulates;
• confusion in diagnosis.

In many homes in Montreal, Laval, Longueuil, on the North Shore and South Shore, we see central furnaces whose drain has not been checked for a long time. Preventive maintenance often helps avoid this type of breakdown.

Mistakes to avoid before a service call

When a central furnace becomes unstable, certain actions can complicate the situation. We recommend avoiding:

• increasing the thermostat temperature excessively;
• resetting the unit multiple times without diagnosis;
• ignoring water traces;
• unplugging wires or opening panels without HVAC expertise;
• replacing the thermostat without validating the furnace;
• blocking access to the unit with objects;
• waiting for the system to stop working completely;
• using portable heaters as a permanent solution.

An intermittent problem is often a warning. The unit still provides heat, but it indicates that a condition is not normal.

The importance of clear access to the furnace

The image of this installation shows a mechanical space also used for storage. This is common in residential basements. However, a central furnace must remain accessible. Technicians must be able to open panels, read labels, inspect ducts, test components, and check drains.

We recommend keeping clear:

• the front of the furnace;
• access to the filter;
• the condensate drain;
• the switches and panels;
• the main ducts;
• the area around the thermostat or cables if applicable.

Good access reduces intervention time and improves diagnostic quality.

Recommended maintenance for a Lennox central furnace

To extend the lifespan of a central furnace, certain actions are essential:

• replace the filter regularly;
• check that the return air grilles are not blocked;
• keep the condensate drain clean;
• monitor unusual noises;
• note cycles that are too short;
• schedule maintenance before winter;
• have connections and safety features inspected;
• check air distribution in distant rooms;
• do not ignore odors or signs of moisture.

A well-maintained furnace offers more consistent heating, better efficiency, and fewer emergency calls.

Repair or replace: the right choice depends on the diagnosis

In this case in Chomedey, repair was the best option. The device could still function properly, and the main cause was localized. Replacing the furnace would have been excessive without proof of a major failure.

A repair is often logical when:

• the breakdown is well identified;
• the equipment responds properly after intervention;
• the main components are still in good condition;
• the ducts are functional;
• the repair cost is reasonable;
• the client wants to extend the system's life.

Replacement becomes more relevant when breakdowns multiply, parts are hard to obtain, consumption becomes too high, or the device can no longer maintain comfort despite repeated repairs.

AirGreen: residential HVAC service in Chomedey, Laval, and Greater Montreal

This intervention in Chomedey illustrates the importance of a precise technical approach. A Lennox furnace that operates intermittently should not be diagnosed quickly based on a single symptom. The sequence must be observed, the thermostat checked, airflow controlled, drainage inspected, safety features validated, and the result confirmed after repair.

AirGreen works on heating, air conditioning, and ventilation systems throughout Greater Montreal: Montreal, Laval, Longueuil, North Shore, and South Shore. Our teams handle furnace repairs, central heat pumps, central air conditioners, wall-mounted heat pumps, multi-zone systems, air exchangers, humidifiers, dehumidifiers, and HVAC accessories.

For this client in Chomedey, the intervention restored more reliable heating without unnecessary replacement. The system was put back into cycle, the drain was fixed, electrical checks were performed, and the client received practical advice to reduce the risk of future breakdowns.

A successful repair means a device that works better, an owner who understands what happened, and an HVAC system that regains its stability when the home's comfort depends on it the most.
