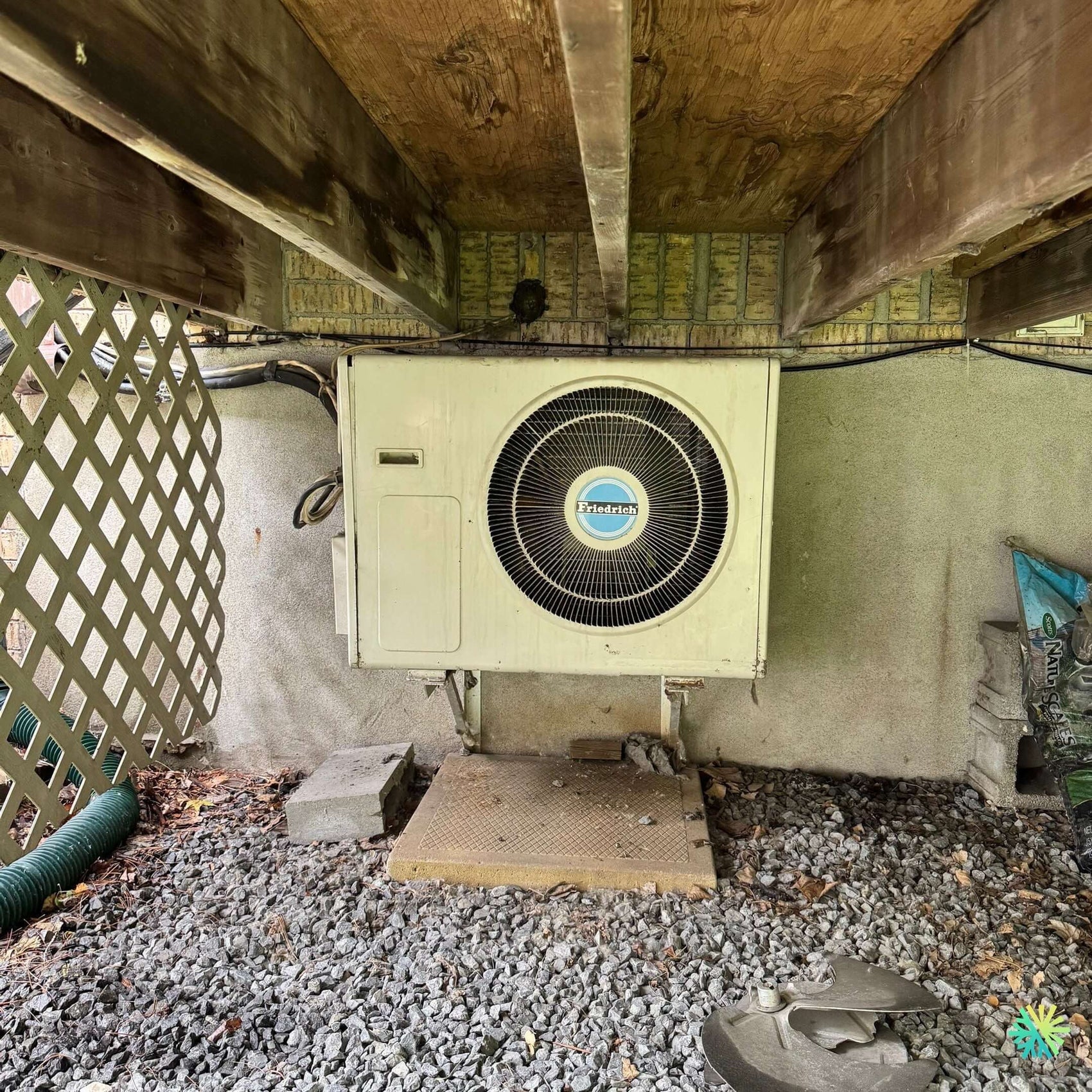

An AirGreen intervention under a balcony, typical of residential installations on the North Shore
At AirGreen , we often encounter outdoor heat pump installations installed under balcony or deck structures , as was the case during this service call in Repentigny , on the North Shore of Montreal . These configurations, while practical for protecting the unit from the elements, can pose significant ventilation and thermal performance challenges.
The unit in question, a Friedrich heat pump , was exhibiting an abnormal noise followed by a complete shutdown of the outdoor fan . The customer had noticed that the system had not been producing either hot or cold air for two days, despite the indoor unit apparently being operational.
On-site diagnosis: a broken fan and obstructed airflow
Upon arriving on site, our technician immediately observed two revealing elements:
-
A broken propeller on the ground , probably torn off by accumulated corrosion and vibrations.
-
A confined space under the balcony , significantly reducing air circulation around the condenser.
These conditions led to overheating of the fan motor , resulting in a compressor safety failure. Without adequate ventilation, the heat pump could no longer dissipate heat, causing automatic shutdowns in protection mode.
Repair and restart steps
The repair work required several technical operations:
-
Complete power cut and securing of the area.
-
Removing the protective cover from the Friedrich outdoor unit.
-
Extraction of the engine and broken propeller using a specialized extractor.
-
Installation of a new original Friedrich fan , balanced and calibrated for the model.
-
Complete cleaning of the condenser coil , clogged with accumulated dust and debris.
-
Rotation test and motor current measurement after replacement.
Once the part was replaced, the motor began to spin freely again, and the compressor was able to resume its normal cycle. The airflow temperature quickly stabilized, confirming the return to optimal performance.
Tips for installations under closed structures
One of the key points of this intervention concerned the configuration of the installation . Installing a heat pump under a terrace or balcony can reduce its lifespan if there is insufficient air circulation.
Our recommendations for this type of situation:
-
Leave at least 60 cm of free space above and around the unit to allow good ventilation.
-
Install a baffle or ventilation duct if the structure is too closed.
-
Check regularly for debris (leaves, gravel, dust).
-
Avoid unventilated wood floors above the condenser, which can trap heat.
Annual maintenance under these conditions is even more crucial: mechanical parts, such as the fan, are more exposed to humidity and corrosion.
Friedrich: a robust brand, but sensitive to maintenance
Friedrich HVAC systems are renowned for their durability and efficiency, but they require rigorous maintenance, especially in high humidity areas such as Repentigny, Terrebonne or Laval .
Common signs of impending failure on these units include:
-
Clicking or vibrating noise coming from the fan.
-
Smells of overheating or sudden shutdown of the outdoor unit.
-
Warm blown air even in air conditioning mode.
-
Excessive frost or condensation on refrigeration ducts.
In most cases, early preventive intervention can avoid the need for complete replacement of the motor or compressor – two expensive parts.
AirGreen expertise in Repentigny and throughout the North Shore
This intervention perfectly illustrates the AirGreen philosophy: diagnose precisely, repair sustainably, and advise with transparency .
Our certified technicians travel throughout Montreal, Laval, Longueuil, the North Shore and the South Shore , and are trained on all brands — Friedrich, Sharp, Gree, Fujitsu, Midea, Goodman, Trane , and many others.
Each service includes:
-
A complete on-site diagnosis with electrical and thermal measurements.
-
Genuine parts installed to manufacturer standards.
-
A detailed report with photos and maintenance recommendations.
-
Personalized advice to extend the life of the system.
In summary
This Friedrich heat pump repair in Repentigny demonstrates the importance of proper ventilation and regular preventative maintenance. With a quick fan replacement and a thorough system inspection , our AirGreen team restored this home's HVAC system to full functionality and safety.
Under a balcony, in a narrow courtyard or on a side wall, we adapt each intervention to the client's reality to guarantee performance, durability and comfort all year round.
