A condenser installed in an indoor parking lot: an HVAC failure caused by dirt buildup, accumulated heat, and challenging technical access
In La Prairie, our AirGreen team was called for a HVAC repair on a wall-mounted heat pump mini-split type, whose outdoor unit was installed in an indoor parking lot, on a metal wall bracket, near ventilation ducts and other condensers lined up along a concrete wall. This installation context is very different from a condenser placed in a backyard or on a balcony: air circulates differently, dust accumulates faster, heat can become trapped, and access for diagnosis requires a precise approach.
The customer reported a marked drop in performance. The indoor unit was running, but the air blown was no longer as cool in cooling mode and heating efficiency became irregular. At times, the heat pump would start, then quickly slow down. In other cases, it seemed to run without reaching the requested temperature. The problem was especially noticeable on warmer days, when the parking area itself became milder and the condenser had to reject heat into an already less favorable environment.
On site, we observed an outdoor unit of a wall-mounted heat pump, likely connected to a residential wall-mounted indoor head. The condenser size, refrigerant line configuration, and wall-mounted installation indicated a mini-split system, with a common residential capacity often between 12,000 and 18,000 BTU according to the nameplate and indoor setup. The exact brand was not the key factor in the intervention: the problem mainly came from the operating conditions of the condenser and several components that needed to be methodically checked.
Symptoms observed before diagnosis
The customer had noticed several typical signs of a wall-mounted heat pump losing efficiency:
- less cold air in cooling mode;
- longer operation without reaching the setpoint;
- intermittent shutdown of the outdoor unit;
- outdoor fan noise louder than usual;
- feeling that the system is straining during peak demand periods;
- performance varies depending on parking lot temperature;
- concern about a possible compressor failure.
These symptoms can quickly suggest a refrigerant shortage or a faulty compressor. However, in an environment like this, another cause is very common: the condenser lacks fresh air, its coil is dirty, and the machine ends up working under too difficult conditions. Our diagnosis therefore had to cover both the refrigeration side and the mechanical, electrical, and environmental condition of the installation.
A special installation: outdoor unit in an indoor garage
A wall-mounted heat pump condenser should normally expel heat outside in cooling mode and absorb energy from ambient air in heating mode. When installed in an indoor parking area, even if the space is ventilated, the environment can become problematic if clearance is limited or if multiple units discharge their heat in the same area.
In this case, several elements deserved special attention:
- proximity to concrete walls;
- presence of ventilation ducts on the ceiling;
- alignment of multiple outdoor units;
- accumulation of parking dust;
- partially channeled air circulation;
- restricted access to side panels;
- installation height on wall bracket;
- risk of hot air recirculation around the condenser.
This setup is not impossible to maintain, but it requires a well-thought-out HVAC installation and more rigorous maintenance. In a garage, coils can accumulate fine particles, mineral dust, tire residue, sand, dried de-icing salt, and debris lodged in the fins. Even if the unit looks fine from a distance, its heat exchange can be significantly reduced.
Visual inspection of the condenser

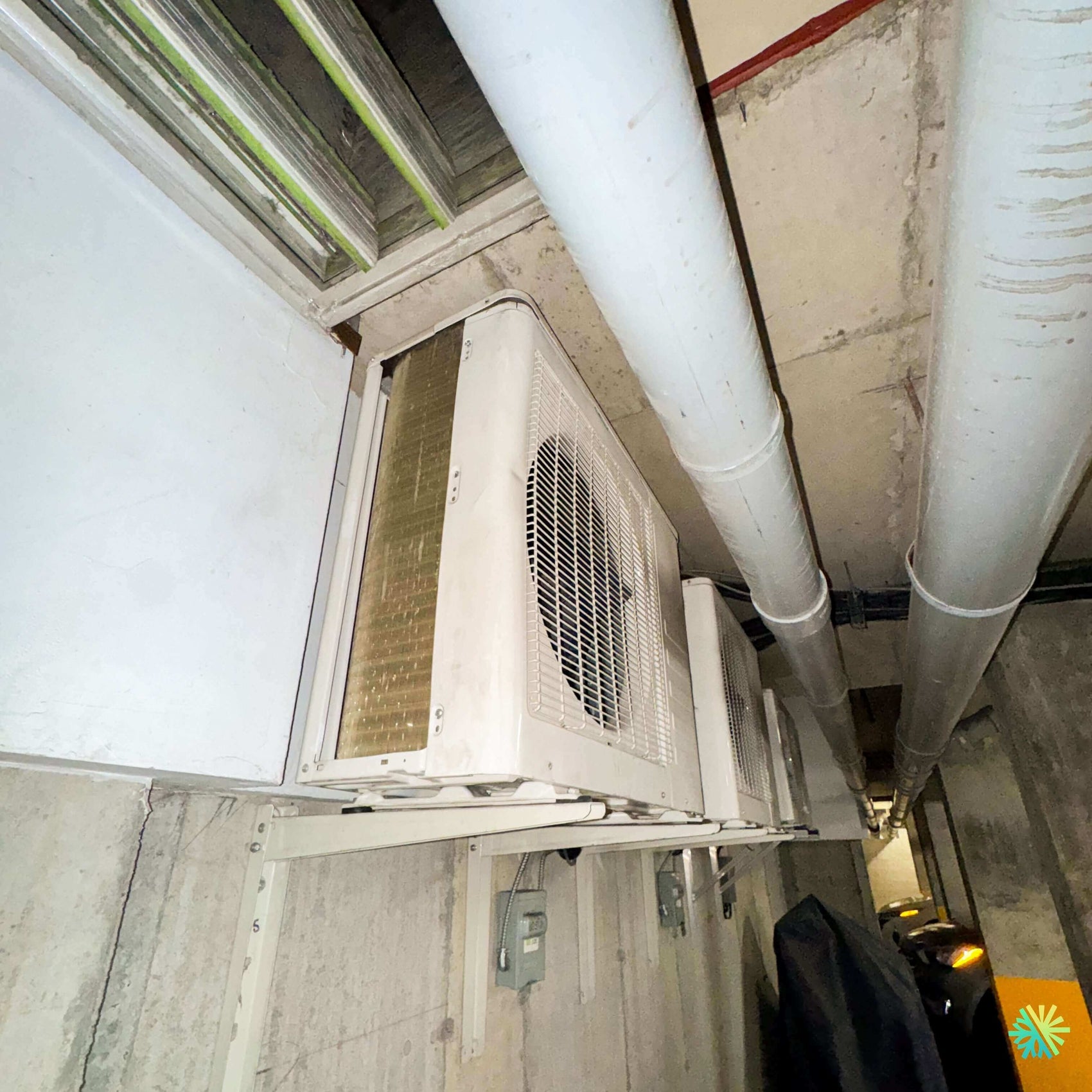

We started by inspecting the outdoor unit. The condenser was installed on a metal wall bracket, fixed to the concrete. The elevated positioning freed up floor space but made access to the coil and service panels more difficult. We checked the stability of the support, the condition of the fasteners, vibrations, the state of the refrigerant lines, wiring, the disconnect switch, and the drain or associated ducts.
The outdoor coil showed a visible buildup of dust and fine deposits. In an outdoor yard, dirt often consists of leaves, pollen, and plant debris. In an indoor parking lot, it is different: finer, drier, sometimes stickier, and it lodges deeply in the fins. This blockage reduces airflow through the coil and forces the fan to work harder.
Outdoor fan inspection
The outdoor fan is a crucial element on a wall-mounted heat pump. Even if the compressor works properly, a weakened or slowed fan prevents heat transfer. We observed the startup, rotation speed, mechanical noise, and motor stability.
The fan was spinning, but its efficiency was reduced by the condition of the coil and limited airflow around the unit. The motor showed no obvious sign of complete blockage, but the system was operating under less favorable pressure and temperature conditions. This kind of situation can cause protective shutdowns, especially when cooling demand is high.
Electrical diagnosis: power supply, board, and control components
After securing the device, we checked the accessible electrical components. On a wall-mounted heat pump of the mini-split type, the electronic components and communication between the indoor and outdoor units play a crucial role. A failure can come from a board, a sensor, a DC motor, a bad signal, or unstable power supply.
We tested:
- the supply voltage;
- the quality of the connections;
- the condition of the terminal blocks;
- the communication between units;
- the startup behavior;
- the control signals;
- the absence of overheating signs;
- the operation of the outdoor fan;
- the inverter compressor’s response.
No immediate evidence pointed to a completely defective electronic board. The system responded to demand, but its operation deteriorated under load. This observation reinforced the hypothesis of a thermal transfer and environmental issue rather than a major electronic failure.
Technical cleaning of the outdoor coil
The most important step of the intervention was cleaning the condenser. In this context, a simple blast of air or a quick rinse would not have been enough. The fins had to be carefully cleared to restore airflow without damaging the coil.
We performed cleaning adapted to the indoor parking location. The goal was to remove accumulated deposits while controlling runoff and splatter, since the unit was in a common area and not an outdoor yard. This precaution is essential in a residential garage or condominium parking lot.
After cleaning, the airflow through the condenser improved. The fan could move air more efficiently, and the outdoor unit began to operate with less stress. This improvement had a direct impact on system stability.
Refrigerant check after cleaning
Once the condenser was cleaned, we restarted the system and observed its behavior. A refrigerant reading before cleaning can sometimes be misleading, as a clogged coil changes pressures and can mimic some symptoms of a refrigerant problem. It was therefore important to validate the data after restoring air circulation.
We checked:
- the air temperature at the indoor unit;
- the cycle stability;
- the compressor response;
- the temperature of the refrigerant lines;
- the consistency of cooling operation;
- the absence of rapid shutdown after startup;
- the system's ability to maintain prolonged demand.
Results improved after cleaning. The system produced more stable air, and the outdoor unit no longer seemed to enter stress mode as quickly. We did not conclude a refrigerant leak without clear evidence, as adding refrigerant to a system with a fouled condenser can worsen the situation.
A targeted HVAC repair that restored performance without unnecessary replacement
The intervention in La Prairie demonstrated that a wall-mounted heat pump that is malfunctioning is not necessarily at the end of its life. In this case, the problem was mainly related to the installation environment, condenser fouling, and the system's difficulty in properly rejecting heat.
The main cause of the problem
Outdoor coil clogged with parking dust
The condenser had accumulated fine deposits that limited heat transfer. This blockage reduced the system's ability to cool effectively.
Difficult air circulation around the unit
Installation in an indoor parking lot, near walls, ducts, and other units, increased the risk of hot air recirculation. A wall-mounted heat pump needs a well-ventilated environment to deliver its full performance.
Operation under stress
The compressor and fan were not necessarily defective, but they were working under more demanding conditions. This situation explained the long cycles, intermittent stops, and reduced comfort.
Work carried out by AirGreen
During this service call, our team performed a complete intervention:
- visual inspection of the condenser;
- wall mount inspection;
- clearance control;
- inspection of refrigerant lines;
- basic electrical check;
- outdoor fan test;
- observation of the compressor in operation;
- technical cleaning of the outdoor coil;
- system restart;
- temperature verification;
- function check after cleaning;
- maintenance recommendations adapted to an indoor parking area.
This method helped identify the real cause of the problem without unnecessarily replacing costly components.
Mistakes to avoid with this type of installation
Believing that an indoor garage always protects the unit
A condenser placed inside a parking garage is not exposed to rain or leaves, but it can get dirty in other ways. Fine dust and parking lot particles can be harder to remove than simple outdoor deposits.
Ignoring clearances around the condenser
Even if the unit is securely mounted on the wall, it must be able to breathe. When hot air stays around the device, performance quickly decreases.
Adding refrigerant too quickly
A drop in performance is not automatically caused by a leak. A clogged coil can produce similar symptoms. Diagnosis must be done in the correct order.
Neglecting maintenance because the unit is not very visible
Condensers installed in garages or parking areas are sometimes forgotten because they are not in the yard or on the balcony. However, they require regular inspection.
Why maintenance is even more important in La Prairie and on the South Shore
In La Prairie, as in many areas of the South Shore, condominiums, townhouses, and residential buildings can have particular HVAC configurations. Some condensers are installed on wall mounts, in technical spaces, garages, or semi-indoor areas. These locations can work well, but only if the air circulates properly and maintenance is done at the right time.
AirGreen regularly operates in Montreal, Laval, Longueuil, on the North Shore and the South Shore for similar issues: performance loss, dirty condenser, intermittent shutdown, abnormal noise, lack of heating, insufficient cooling, or fault diagnosis on a wall-mounted heat pump.
Final result: improved performance and stabilized operation
After cleaning and checks, the wall-mounted heat pump returned to more stable operation. The air blown inside was more consistent, the cooling cycle was more regular, and the outdoor unit operated with less strain. The client was reassured: the compressor was not condemned, and the breakdown could be fixed with precise technical intervention.
We also recommended scheduling more frequent periodic maintenance than for a traditional outdoor unit. In an indoor parking lot, condenser cleaning should not be delayed too long, especially if several units operate in the same technical corridor.
AirGreen expertise for wall-mounted heat pumps in complex configurations
At AirGreen, we know that HVAC repair is not just about replacing a part. It requires understanding the installation, environment, symptoms, and actual operating conditions. This intervention in La Prairie perfectly illustrates the importance of a complete diagnosis: a device that seems weak can regain its performance when heat transfer, ventilation, and operating parameters are properly restored.
For a wall-mounted heat pump that cools poorly, heats less effectively, stops, makes noise, displays an error code, or seems to lose power, our team can identify the real cause and offer an appropriate solution. AirGreen serves Montreal, Laval, Longueuil, the North Shore, and the South Shore for HVAC repair, HVAC maintenance, diagnostics, installation, and replacement of residential systems.
