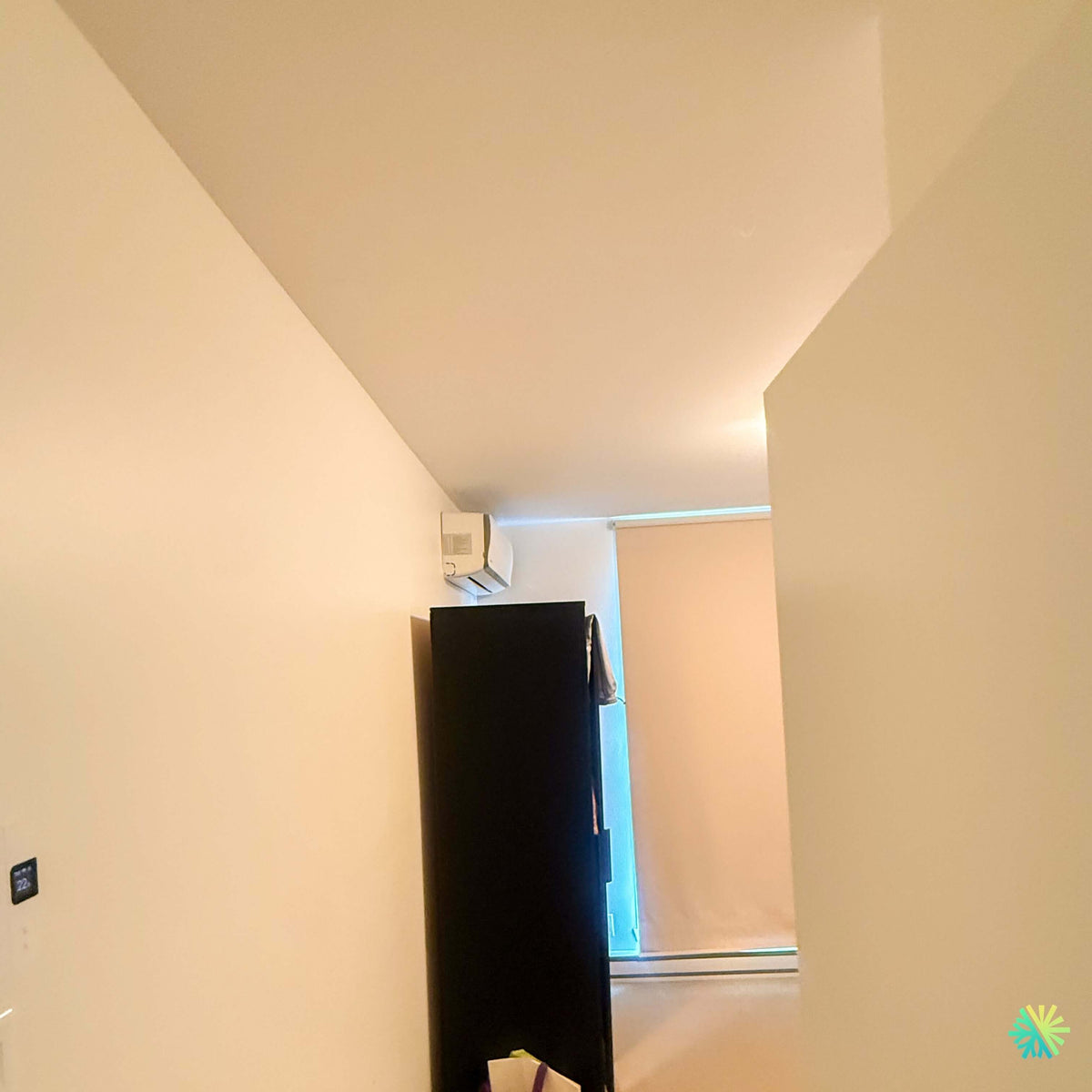

A wall-mounted heat pump difficult to access, installed near a window, with comfort that had become uneven in the room
In Pointe-Claire, our AirGreen team was called for a wall-mounted heat pump repair in a residential unit where indoor comfort had become irregular. The device, installed very high on the wall, near a window and above a large piece of furniture, was still working but no longer delivering the expected performance. The client noticed that the room took too long to cool down, the airflow seemed weaker than before, and the device produced a louder ventilation noise during extended cycles.
This type of HVAC intervention requires more than a simple restart. A wall-mounted heat pump may appear to operate normally while suffering from an air circulation, drainage, sensor, internal clogging, or less favorable installation issue affecting diffusion. In this specific case, the unit's location added a difficulty: the air was blown into an area partially blocked by furniture and influenced by the proximity of the window.
An indoor configuration that complicated air distribution
The wall unit was placed in a corner of the room, above a tall piece of furniture and very close to a large window with a blind. This setup is not uncommon in condos and apartments in Pointe-Claire, Montreal, Laval, Longueuil, on the North Shore and the South Shore, but it requires special attention during diagnosis.
In this configuration, several elements can affect comfort:
- Furniture can hinder the natural projection of air;
- The window can create a thermal variation zone around the unit;
- A low or sloped ceiling can affect air return;
- Curtains or blinds can accumulate dust near the device;
- The unit's temperature sensor may read a different temperature than that felt in the occupied area.
The client did not describe a complete breakdown. The heat pump started, responded to the remote control, and blew air. The problem was rather a gradual loss of performance, with unstable comfort depending on the time of day and the position in the room.
Symptoms observed before our intervention
During our discussion with the customer, several symptoms were identified. The unit was running, but it could no longer stabilize the temperature as quickly as before. In cooling mode, the air seemed less powerful. In ventilation mode, a slightly irregular noise was heard. The customer also noticed that the unit seemed to run longer, even when the requested temperature was reasonable.
The main symptoms were as follows:
- weakened airflow at the indoor unit outlet;
- slower cooling of the room;
- more pronounced ventilation noise;
- feeling of cool air concentrated near the unit, but less noticeable further away;
- prolonged operation without uniform comfort;
- visible early dust buildup in some areas of the unit.
These clues led us to a complete inspection of the indoor ventilation, filter condition, fan, evaporator, and condensate drain behavior.
HVAC diagnosis: check the air before suspecting the refrigerant
In many service calls, a drop in performance is quickly associated with a refrigerant shortage. However, on wall-mounted heat pumps, low airflow can give exactly this impression. If air does not properly pass through the evaporator, the system may run longer, cool less efficiently, and give the customer the impression that the unit lacks power.
Our diagnosis therefore started with the most important elements: the air intake, the blower, the heat exchanger, and the drainage.
Filter inspection
The filters were loaded with fine dust. They were not completely blocked, but dirty enough to reduce air intake. In a wall unit installed near a window and a blind, dust can accumulate faster, especially when the unit often runs in cooling mode during hot periods.
Checking the ventilation fan
The fan showed a buildup of dust on several fins. This accumulation causes two problems: it reduces the volume of air blown and can slightly unbalance the rotation, which explains the louder noise. A dirty fan does not necessarily mean the motor is defective, but it must be cleaned before assessing the need for a part.
Condition of the indoor evaporator
The evaporator had started to accumulate a thin layer of dirt. This deposit limits heat exchange and forces the heat pump to run longer. In this case, the unit was still producing cool air, but it had lost some of its efficiency.
Condensate drain test
We then checked the drain flow. The drain was not completely clogged, but the drainage was slower than desired. In air conditioning, a partially slowed drain can cause humidity odors, intermittent dripping, or water accumulation in the internal tray. Even though no major leaks were present at the time of our visit, it was important to intervene before the problem turned into water damage.
Intervention performed: cleaning, adjustment, and performance validation
After confirming that the performance drop was mainly due to internal dirt buildup and limited air distribution caused by the room’s configuration, we proceeded with a complete intervention.
Cleaning the filters and front panel
The filters were removed, cleaned, and properly reinstalled. The front panel and intake areas were also cleaned to improve air circulation. This first step helped restore better air intake into the unit.
Cleaning the turbine
We cleaned the ventilation turbine in accessible areas to remove compacted dust on the blades. After this intervention, the ventilation noise was more stable and the airflow more consistent. This type of cleaning is often decisive for a wall-mounted heat pump that seems “weaker” than before.
Cleaning the condensate tray and clearing the drain
The condensate tray was cleaned, then the drainage line was cleared. We performed a flow test to confirm that the water was draining properly. This step is essential in areas like Pointe-Claire and Greater Montreal, where summer humidity can heavily strain wall-mounted air conditioning systems.
Adjusting air distribution
Since the unit was installed above a tall piece of furniture, we paid special attention to the orientation of the louvers. The goal was to project the air more effectively into the room without creating a current too concentrated in one area. Proper louver adjustment can significantly improve the comfort feeling, especially when the unit is not placed in the center of a clear wall.
A clear result: better airflow, quieter operation, and more stable comfort
After restarting, we observed an immediate improvement in airflow. The heat pump projected air further into the room, the ventilation noise was less pronounced, and the indoor temperature stabilized more quickly. The client noticed that the air circulated better around the furniture and that the unit seemed to operate with less effort.
Why this repair avoided an unnecessary replacement
No major parts needed replacement. The ventilation motor responded properly, the electronic board showed no signs of failure, and the system’s overall behavior did not justify a full replacement. The problem mainly came from internal maintenance, drainage, and diffusion configuration.
This is an important point: a successful HVAC repair is not always spectacular, but it must be precise. Replacing a part without diagnosis can be costly and may not solve the real cause. In this case, the right solution was to restore airflow, secure condensate drainage, and adjust the unit’s use according to the room environment.
Practical advice given to the client
We recommended the client clean the filters more frequently, especially during heavy air conditioning use. With a unit installed near a window, a blind, and a tall piece of furniture, dust can accumulate quickly.
We also advised monitoring certain signs:
- sudden drop in airflow;
- heavier turbine noise;
- musty smell at startup;
- appearance of drops under the unit;
- cooling slower than before;
- continuous operation without uniform comfort.
These signs often indicate that maintenance or a service call is needed before the problem becomes more costly.
AirGreen and wall-mounted heat pump repairs in Pointe-Claire
At AirGreen, we regularly service wall-mounted heat pumps, wall air conditioners, MultiZone systems, central heat pumps, and other HVAC equipment in Pointe-Claire, Montreal, Laval, Longueuil, on the North Shore and the South Shore. Each service call is different because the unit’s location, system age, past maintenance, and room configuration directly affect performance.
In this project, our approach restored comfort without major replacement. The unit regained stronger airflow, more stable operation, and secure condensate drainage. For the client, the result was tangible: a more comfortable room, a quieter heat pump, and greater confidence in their system.
