A dual-zone installation neatly integrated into a room with real wall-space constraints
At Saint-Philippe, on the South Shore, we completed the installation of a Fujitsu Aquila XLTH dual-zone heat pump to provide targeted heating and cooling to two distinct areas of the property. As is often the case with residential projects, the challenge was not limited to choosing the equipment: we also had to find the best location for each indoor unit, organize the refrigerant line routes, and maintain a clean interior finish.

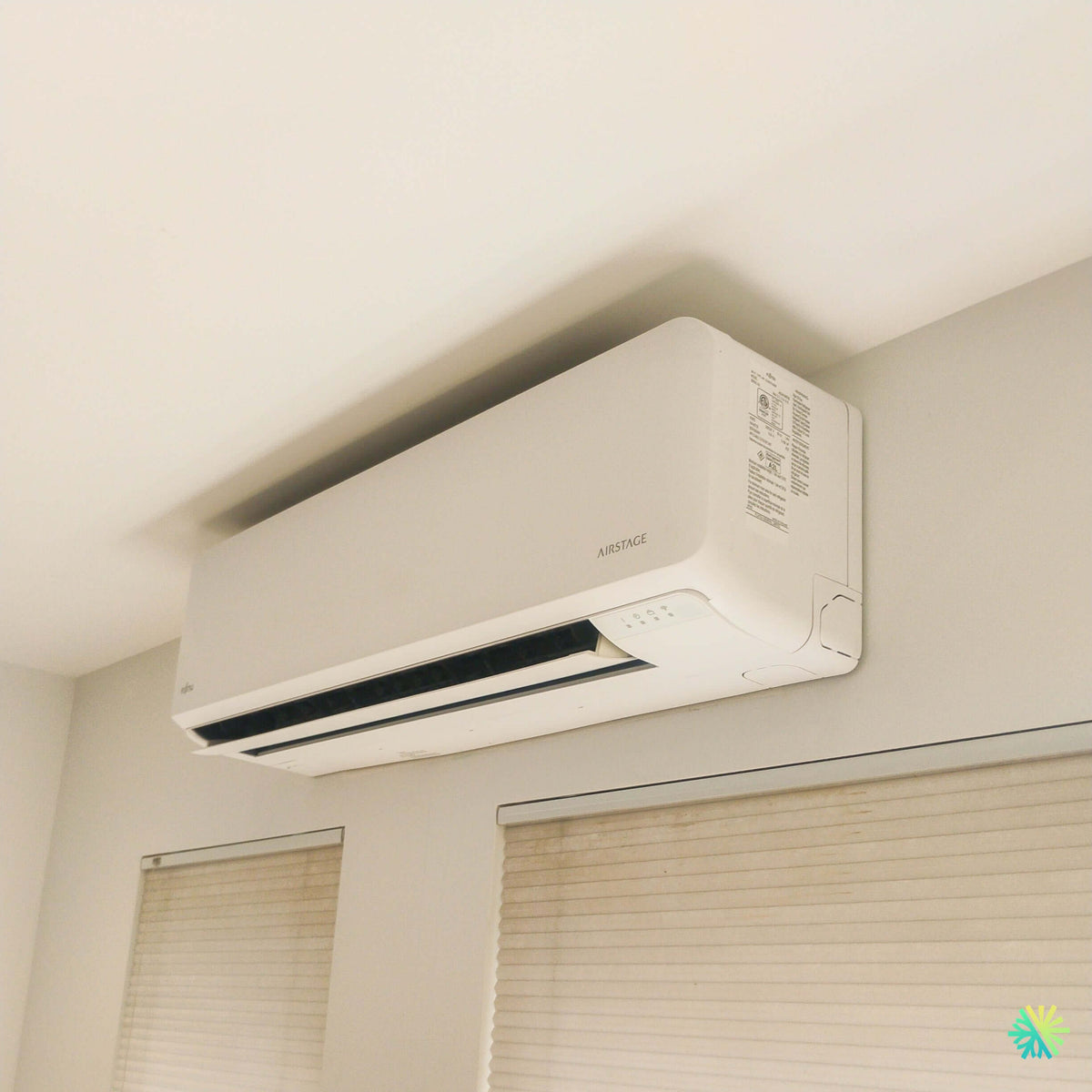

The photograph shows one of the Fujitsu wall-mounted units installed in the upper section of a wall, just above two windows fitted with blinds. The available space was relatively precise: the unit had to be installed high enough to promote good air distribution, but not flush against the ceiling or the corner of the wall. The width of the unit, the position of the windows, the future opening of the front panel, and the access required for maintenance also had to be taken into account.
The result is a compact and discreet installation. The Fujitsu AIRSTAGE unit is aligned above the main window and uses a section of wall that would otherwise have been difficult to utilize. The floor and lower walls therefore remain clear for arranging the room.
Why a dual-zone heat pump was suitable for this property
A dual-zone heat pump connects two indoor units to a single outdoor unit. This configuration is particularly effective when two spaces have different heating and cooling needs.
It may involve, for example:
- of a ground floor and an upper floor;
- of an open-plan area and a bedroom;
- of a front and a rear section of the house;
- of a basement and a main level;
- of two rooms separated by a hallway;
- of a sun-exposed area and a naturally cooler room.
A single wall-mounted unit placed in a common area cannot always distribute air evenly throughout a compartmentalized home. Doors, walls, and changes in level reduce natural air circulation. Even a properly sized unit can therefore provide excellent comfort in its main room while leaving the second zone too warm in summer or insufficiently heated in winter.
The dual-zone system directly serves both spaces.
Each indoor unit can be adjusted individually, providing greater flexibility day to day. A bedroom can be kept cooler at night, while the main living area remains set according to the occupants’ preferences.
Two independent indoor units, but one shared refrigeration system
It is important to understand a particular feature of multi-zone systems.
The indoor units can be controlled separately: one can be turned off, its temperature changed, or its fan adjusted without applying exactly the same setting to the other zone.
However, all units connected to the same outdoor unit must operate in compatible modes. Fujitsu states in its documentation that AIRSTAGE multi-zone systems can provide heating and cooling, but not simultaneously in opposite modes. One zone therefore cannot be in heating mode while the other is calling for cooling.
This feature is generally well suited to a Quebec home. In winter, both zones normally require heating. In summer, they require cooling.
During commissioning, we explain this operation to the occupants so that the remote controls are used consistently.
Fujitsu Aquila XLTH: a solution designed for cold climates
One of the important criteria for this project was the system’s ability to serve as a true heating appliance during the winter.
Fujitsu documentation for the Aquila H and Aquila CTEB series indicates cold-climate heating operation down to -26 °C for units designed for this purpose. This feature is particularly relevant in Saint-Philippe, where winter temperatures can fall well below zero.
However, a minimum operating temperature must never be confused with the machine’s rated capacity.
When it is very cold, the actual available capacity may differ from the capacity stated under milder conditions. That is why selection must take the building’s actual needs into account.
We consider, among other factors:
- the area of each zone;
- ceiling height;
- the quality of the insulation;
- the amount of glazing;
- the number of exterior walls;
- the building’s orientation;
- air infiltration;
- the capacity required at low temperatures;
- the existing or supplemental heating system.
A quick BTU-per-square-foot rule can be useful as a preliminary estimate, but it does not replace a proper analysis.
Available capacities in the Fujitsu multizone lineup
The product-line documentation presents outdoor units rated at 18,000, 24,000, 36,000 and 45,000 BTU/h that can power different numbers of indoor units.
The 18,000 BTU/h unit can be paired with two indoor units, while the larger models offer more zoning possibilities.
Fujitsu allows various combinations of wall-mounted heads and concealed units, including:
- wall-mounted;
- Slim Duct;
- compact cassette;
- Mid Static Duct.
This flexibility can be useful when a property has very different rooms. One zone may use a wall-mounted unit, while another may, in certain permitted configurations, receive a ducted unit.
The documentation also specifies that an outdoor unit can accept a connected capacity of up to approximately 130 %, depending on the permitted combinations. However, this does not mean that the compressor produces 130% of its rated capacity.
Fujitsu clearly states that exceeding 100% in the combination of indoor units does not increase the system’s production capacity.
In other words, adding the BTUs listed on the two indoor units is not a reliable way to determine the actual capacity available when both zones are operating simultaneously.
The most important detail in the photo: the location of the indoor unit
In this Saint-Philippe installation, the unit is positioned in the upper part of the wall, near a corner of the room and directly above a window.
This type of location requires more precision than a large, completely unobstructed wall.
Maintain sufficient clearance above the unit
Room air is generally drawn in through the upper part of the wall-mounted unit.
It is therefore necessary to leave enough space for the unit to breathe properly. A unit installed too close to the ceiling may have limited airflow and become more difficult to maintain.
The front panel must also be able to open so that the filters can be removed.
In this project, we positioned the unit high up while maintaining visible clearance from the ceiling.
Working near a wall corner
The right side of the unit is relatively close to the perpendicular wall.
A position that is too tight could make it difficult to access the side components and connection elements. The space must therefore be measured before securing the wall plate.
We also consider the clearance needed to route the lines without crushing them or creating excessive bends.
Installing the unit above a window
The space above a window is often an excellent location when it is compatible with the unit's dimensions.
It offers several advantages:
- no loss of useful wall space for furniture;
- air distribution from a high point;
- more natural visual integration;
- use of an area that is often unused.
However, the structure must be taken into account. Above an opening, there are generally framing elements that can affect the position of the drilling and mounting plate.
We must also protect the window frame and avoid any risk of condensation above it.
Distributing air above the windows
A wall-mounted unit works by circulating a large volume of air through the room.
In cooling mode, cold air naturally sinks. Installing the unit high up therefore allows the louver to project the air farther before it descends into the occupied zone.
In heating mode, warm air tends to rise. It is therefore useful to direct the louver downward to bring the heat down to occupant level.
Installing the unit above the windows therefore makes it possible to benefit from a high air-distribution point while preserving the usable space below.
However, curtains or blinds that could hang directly in front of the air outlet should be avoided.
The blinds visible in the photograph remain low enough not to obstruct the unit.
A finish that takes future maintenance into account
An aesthetically pleasing installation must never become impossible to maintain.
The filters of indoor units must be cleaned regularly. The owner must be able to open the front panel without removing a shelf, rod, or decorative structure.
During our installations, we also consider more substantial service work:
- heat exchanger cleaning;
- turbine inspection;
- condensate pan inspection;
- access to electronic components;
- possible removal of the unit.
This is why a few inches of properly planned clearance are worth much more than an installation placed flush against the ceiling simply to save space.
Behind the finish: the steps that determine the reliability of a dual-zone heat pump
Two refrigerant circuits to organize properly
A dual-zone installation has two sets of connections between the indoor units and the outdoor unit.
Each zone has its own refrigerant lines and communication connections.
The circuits must be identified precisely to prevent an indoor unit from being connected to the wrong outdoor port.
A mix-up can lead to:
- communication problems;
- error codes;
- inconsistent operation;
- difficulties during commissioning.
We therefore identify each zone before closing the line covers and test the units separately.
Preparing reliable refrigerant connections
The refrigerant connections must remain perfectly sealed for many years.
A slow leak may initially go unnoticed, then lead to:
- reduced heating;
- reduced cooling;
- prolonged operation;
- error codes;
- compressor damage.
After making the connections, we complete the necessary testing and vacuuming steps before commissioning.
Why vacuuming is essential
Vacuuming removes the air and moisture inside the refrigerant lines.
This step is not visible in the final photo, but it is essential.
Moisture in the circuit can cause chemical reactions, contaminate the compressor oil, and affect system reliability.
A professional installation is therefore not limited to achieving an attractive exterior finish.
Two drains to check
Each indoor unit produces condensate in cooling mode.
The water must be directed outdoors or to a suitable drainage point without flowing back toward the unit.
We check:
- the drain slope;
- the absence of a reverse slope;
- the connections;
- the outlet point;
- the drainage during testing;
- the absence of leaks near the wall.
When the unit is installed above a window, this step becomes even more important. A leak could damage the frame, wall, or finishing elements below.
One outdoor unit for two zones: understanding capacity sharing
The advantage of a multi-zone system is that it can operate two units from a single compressor.
However, it should be remembered that the compressor has a total capacity.
When both indoor units are operating at high capacity at the same time, power is distributed between the zones.
This is precisely why the selection of combinations must be validated rather than carried out solely by adding BTUs.
Fujitsu also indicates that the combination tables are not intended to determine system capacity and recommends using its Design Simulator software for equipment selection for H-series AIRSTAGE systems.
Inverter compressor and modulation
Fujitsu documentation specifies that the systems use an inverter-driven compressor, or inverter.
This technology allows the compressor to adjust its speed instead of operating only at full capacity or being completely stopped.
In a dual-zone application, this modulation is particularly useful when:
- only one indoor unit is operating;
- both zones have nearly reached their temperature;
- demand is low in the spring or fall;
- one room requires more energy than the other.
The desired result is more consistent operation rather than a constant succession of starts and stops.
Indoor unit maintenance
To maintain performance, filters must be cleaned regularly.
A heavily soiled filter can:
- decrease airflow;
- lengthen cycles;
- increase noise;
- reduce capacity;
- accelerate fouling of the heat exchanger.
We recommend frequent inspection during periods of heavy use.
The homeowner should also monitor:
- unusual odors;
- new noises;
- water droplets;
- reduced airflow;
- error codes.
More thorough professional HVAC maintenance makes it possible to clean the heat exchanger, turbine, and drainage system when necessary.
Winter maintenance of the outdoor unit
In Saint-Philippe, snow and ice must be taken seriously.
The outdoor unit must have adequate clearance so that air can circulate.
We recommend:
- to remove accumulated snow around the unit;
- never to pile snow in front of the fan;
- to monitor ice buildup;
- to keep the air intakes clear;
- not to completely cover the unit during the winter.
The defrost cycle produces water that can then freeze beneath the heat pump. A significant buildup must be corrected before it reaches the base of the unit.
Mistakes to avoid with a dual-zone system
Several mistakes can reduce the benefits of a multi-zone system:
- choose two units that are too large;
- place a unit in a hallway in the hope of heating several bedrooms;
- ignore capacity sharing;
- block the upper intake;
- install the unit directly against a side wall;
- forget about future maintenance;
- create a drain with a reverse slope;
- reverse the zone circuits;
- use two contradictory modes;
- assume that a combination is eligible without verifying the exact models.
A good heat pump installation therefore depends not only on selection but also on dozens of less obvious details.
Subsidies: the exact models remain decisive
Certain cold-climate heat pumps may be eligible for subsidy programs.
Eligibility must nevertheless be confirmed based on the exact combination of:
- model of the outdoor unit;
- model of the first indoor unit;
- model of the second indoor unit;
- performance reference;
- current program criteria.
The photograph makes it possible to identify the Fujitsu AIRSTAGE range, but not to read the exact model number with sufficient certainty.
We therefore avoid assigning a precise subsidy amount based solely on the appearance of the unit.
A well-integrated installation in Saint-Philippe
This Fujitsu Aquila XLTH dual-zone heat pump now provides the homeowner with a heating and cooling solution suited to two areas of the house while using only one outdoor unit.
The indoor installation shown in the photograph stands out in particular for:
- a high position;
- clean integration above a window;
- adequate clearance from the ceiling;
- efficient use of the available wall space;
- an unobstructed airflow outlet;
- preserved access to the filters and for maintenance.
At AirGreen, we install wall-mounted heat pumps, multi-zone systems, and HVAC systems in Saint-Philippe, on the South Shore, as well as in Montreal, Laval, Longueuil, and on the North Shore.
Every home has its own geometry. Windows, corners, doors, stairs, and drainage constraints directly influence where a unit can actually be installed.
Our approach consists of using these constraints to achieve a functional, clean, and durable installation rather than simply placing the unit in the easiest location.
