Three comfort zones from a single outdoor heat pump: an MIDEA 28 installation adapted to the available space in Noyan
In Noyan, Montérégie, this installation of a MIDEA 28 triple-zone heat pump illustrates very well what distinguishes a good multi-zone project from a simple equipment installation. The challenge was not only to install an outdoor unit and connect three indoor units: it was necessary to choose a realistic outdoor location, maintain adequate access to the equipment, consider the space available around the house, and prepare a system capable of managing the comfort of three distinct zones.

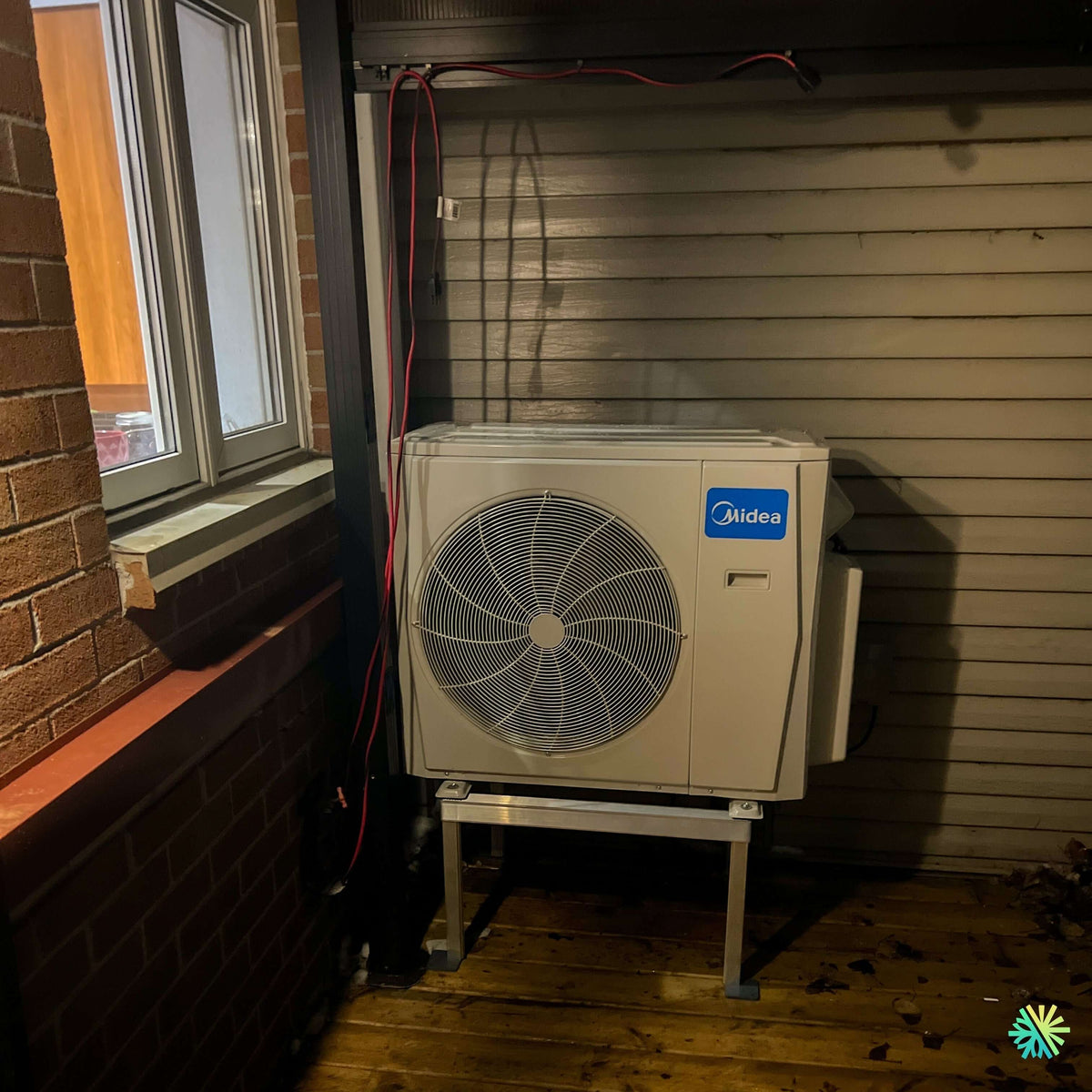

The photograph taken on the job site clearly shows one of the project’s important elements: the outdoor unit MIDEA was installed on an independent metal support, on a wooden deck, in a relatively tight space between a brick wall with a window and an exterior wall with horizontal siding. This type of configuration requires more precise planning than an installation carried out in the middle of a completely unobstructed large wall.
At AirGreen, we place great importance on these details because the performance of a multi-zone heat pump does not depend solely on the figures listed in a brochure. Its location, the quality of the refrigerant connections, the selection of indoor units, condensate drainage, electrical supply, and future accessibility for maintenance all contribute to the final result.
Why a triple-zone heat pump was appropriate for this property
The principle of a multi-zone system is simple: a single outdoor unit supplies multiple indoor units, with each zone controllable individually. Midea documentation specifies that a multi-zone system can heat or cool several rooms while separately adjusting the temperature of each indoor unit.
For a property where three areas have different needs, this approach makes it possible to:
- to set the temperature of each space independently;
- to reduce the number of outdoor units around the building;
- to concentrate outdoor maintenance on a single condenser;
- to adapt operation to the rooms actually in use;
- to preserve more space around the property.
Midea also indicates that individual control makes it possible to heat or cool only the rooms in use instead of systematically conditioning the entire house.
This feature is particularly useful in a home where the bedrooms, living room, and other living spaces do not necessarily have the same occupancy schedules or heating and cooling loads.
The MIDEA 28 triple-zone system: the technical data that really matters
In Midea’s multi-zone range, the configuration Extreme Heat three zones uses the condenser MO3HX-H18B-2A. For the reference combination with three 6,000 BTU/h All Easy Pro wall-mounted units, the manufacturer indicates the number AHRI 215471457.
For this reference match, the documentation provides the following values, among others:
- power supply of 208/230 V, single-phase, 60 Hz;
- indicated cooling/heating capacity of 19,000 / 20,000 BTU/h;
- SEER2 of 25;
- EER2 of 15;
- heating rating indicated at 10,4 in the manufacturer's table;
- maximum indicated outdoor sound level of 62 dB(A);
- condenser dimensions of approximately 946 × 410 × 810 mm, or approximately 37 1/4 × 16 1/8 × 31 7/8 in..
These figures help explain why this platform attracts attention for multi-zone residential projects: it combines capacity suited to several spaces with high seasonal efficiency.
However, it remains essential to distinguish the rated capacity of the outdoor unit of the sum of the rated capacities listed on the indoor units. In a multi-zone system, the three heads may have different sizes depending on the rooms, but the actual available capacity must always be evaluated according to the combination authorized by the manufacturer.
The Midea brochure also points out that when a combination of indoor units exceeds the condenser's rated capacity, the capacity actually available to each unit may be reduced, particularly in heating mode.
This is important information for a homeowner who simply compares the BTUs listed on three wall-mounted units and adds them together. A three-zone heat pump must be designed as a complete system, rather than as three independent air conditioners connected to the same outdoor unit.
What the installation photo in Noyan teaches us
The outdoor configuration of this project is particularly interesting.
The Midea condenser is located on a wooden terrace, near a window and in a space enclosed by two walls. Rather than placing the unit directly on the terrace, we used a rigid metal stand, with four support points distributing the load across the floor.
This approach offers several practical advantages.
Keeping the outdoor unit separate from the terrace surface
A heat pump should not be treated like a simple outdoor piece of furniture. It produces vibrations, drains water during defrost cycles, and must remain accessible.
The stand keeps the condenser in a stable position while maintaining open space beneath the unit. For an installation intended to operate in heating mode during the Quebec winter, this space beneath the unit becomes particularly useful for managing water produced during defrosting.
Working in a limited outdoor space
The photograph also shows that the location could not be chosen at random. The condenser is located near:
- a brick wall;
- a window;
- of a wall with cladding;
- of possible traffic on the terrace.
In this type of environment, we check access to the service panels, airflow around the condenser, and the route of the line sets before permanently securing the equipment.
A poorly positioned unit may function, but make a future intervention considerably more difficult. A professional installation must therefore consider from the outset HVAC maintenance, troubleshooting, and the potential replacement of certain components.
Three indoor units do not mean three identical requirements
One of the most common pitfalls when selecting a triple-zone heat pump is to choose three indoor units with the same capacity simply because there are three rooms.
The proper method is instead to analyze each zone separately:
Floor area and volume
A large open area does not have the same needs as a small bedroom. Ceiling height also affects the amount of air to be treated.
Orientation and windows
A room with significant sun exposure may have a substantially higher cooling load than a room on the opposite side of the house.
Insulation
Two rooms of the same size may require very different capacities depending on the insulation of the walls and ceiling, the windows, and air infiltration.
Actual room use
An office used all day, a bedroom used mainly at night, and a living room occupied in the evening do not have the same demand profile.
The Midea multizone range offers several indoor unit formats. The brochure includes wall-mounted units, floor consoles, cassettes, and ducted units. Midea presents this flexibility as one of the advantages of the multizone platform.
For the Noyan project, the exterior photo does not show the three indoor units or their rating plates. Their exact capacity must therefore be confirmed from the models actually installed and the combination used on the site, rather than simply inferred from the outdoor unit.
Inverter modulation: essential for a multizone system
A multizone heat pump does not necessarily operate at full capacity continuously.
The technology Inverter allows the compressor and fan motors to adjust their operation when the temperature or demand varies. According to Midea, when not all rooms require heating or cooling at the same time, the system can operate at partial load and reduce its energy consumption.
This modulation is particularly relevant with three zones.
For example, if only one indoor unit requires a small amount of heating while a second has already reached its setpoint temperature and the third is only lightly used, the system has no reason to operate like a traditional full-power on-off appliance.
It is this adaptability that contributes to the more stable comfort generally sought with a MIDEA multizone heat pump.
An important characteristic of multizone systems: the modes must be compatible
One point should be explained before purchase.
The indoor units connected to the same multizone condenser share the same refrigerant circuit. Therefore, one should not imagine three completely independent systems capable of simultaneously providing heating in one zone and cooling in another.
In practice, the units must operate in a compatible mode.
This reality is rarely problematic in a typical residence in Noyan, Montreal, Laval, Longueuil, the North Shore, or the South Shore, but it must be clearly explained from the project’s design stage. Setpoint temperatures may differ from one zone to another, but the system’s overall operation remains coordinated.
A successful HVAC installation depends as much on preparation as on choosing the heat pump
The refrigerant-line routing must be planned before drilling
With three zones, the number of lines increases quickly.
Each indoor unit must be connected to the condenser by its refrigerant lines, communication wiring, and condensate drainage system according to the selected configuration.
Poor planning can lead to:
- unnecessary piping lengths;
- highly visible line-set covers;
- crossings that are difficult to maintain;
- drainage slope issues;
- difficult access to the connections.
We therefore plan the overall routing first before making openings in the walls.
An interesting technology for limiting connection errors
Midea’s documentation also presents the feature SynchroConnect, designed to facilitate matching the indoor units’ electrical connections with their refrigerant circuits.
The manufacturer explains that the system can diagnose the connection status and synchronize the matching between the refrigerant lines and the wiring when they have been connected to different ports.
This obviously does not replace a methodical installation, a leak test, or complete commissioning. Rather, it is an additional tool that makes work easier on a system with several circuits.
The mistakes we aim to avoid with a triple-zone heat pump
Choosing BTUs based only on the home’s total area
A multizone system must be sized zone by zone.
Adding up the head capacities without checking compatibility
A combination of three indoor units must comply with the manufacturer’s tables. The sum of the nominal capacities does not automatically represent the capacity actually available simultaneously.
Installing the condenser wherever there happens to be space
Access for maintenance, clearance, airflow, and defrost management matters just as much as appearance.
Neglecting drainage
In cooling mode, each indoor unit produces condensation. In winter heating mode, the outdoor condenser also produces water during defrost cycles.
Relying solely on the brand to determine eligibility for a rebate
The Midea range includes configurations presented in the ENERGY STAR from the manufacturer, but actual eligibility for financial assistance must always be verified with the exact combination of indoor and outdoor units, as well as the corresponding AHRI reference. ENERGY STAR combination tables occupy a separate section of Midea’s documentation.
In other words, the name MIDEA 28 or the presence of an Extreme Heat condenser alone is not enough to confirm eligibility for a rebate.
What we take away from the MIDEA 28 Noyan project
This installation clearly demonstrates the value of a triple-zone heat pump when a residence requires separate control of several spaces without multiplying the number of outdoor condensers.
In this project, positioning the condenser on a metal support in a relatively compact space was an important part of the installation. The chosen solution integrates the equipment with the terrace while maintaining a structured and accessible installation.
The MIDEA 28 multi-zone then adds the flexibility sought indoors: multiple zones, independently adjustable temperatures, and Inverter technology capable of adapting operation to actual demand.
For us, at AirGreen, the essential point nevertheless remains the same for every project: final quality is never determined solely by the number of BTUs or the SEER2 listed on a technical data sheet. A good HVAC installation begins with sizing, continues with selecting the appropriate combination, and ends with a clean, logical installation designed to remain accessible throughout the system’s entire service life.
This method applies equally to Noyan as for our heat pumps in Montreal, Laval, Longueuil, the North Shore, and the South Shore. Every building has its own constraints, which is precisely why we assess the space, the needs of each zone, and the connection possibilities before determining the final configuration.
For a homeowner currently comparing a multi-zone heat pump, so the best approach is not simply to ask “how many BTUs?” Instead, you need to verify the capacity required in each room, the approved combination of units, matching efficiency, condenser location, line-set routing, and future accessibility for maintenance.
It is this approach that transforms the installation of a MIDEA 28 triple-zone as a genuine comfort system adapted to the building rather than simply assembling three wall-mounted units.
