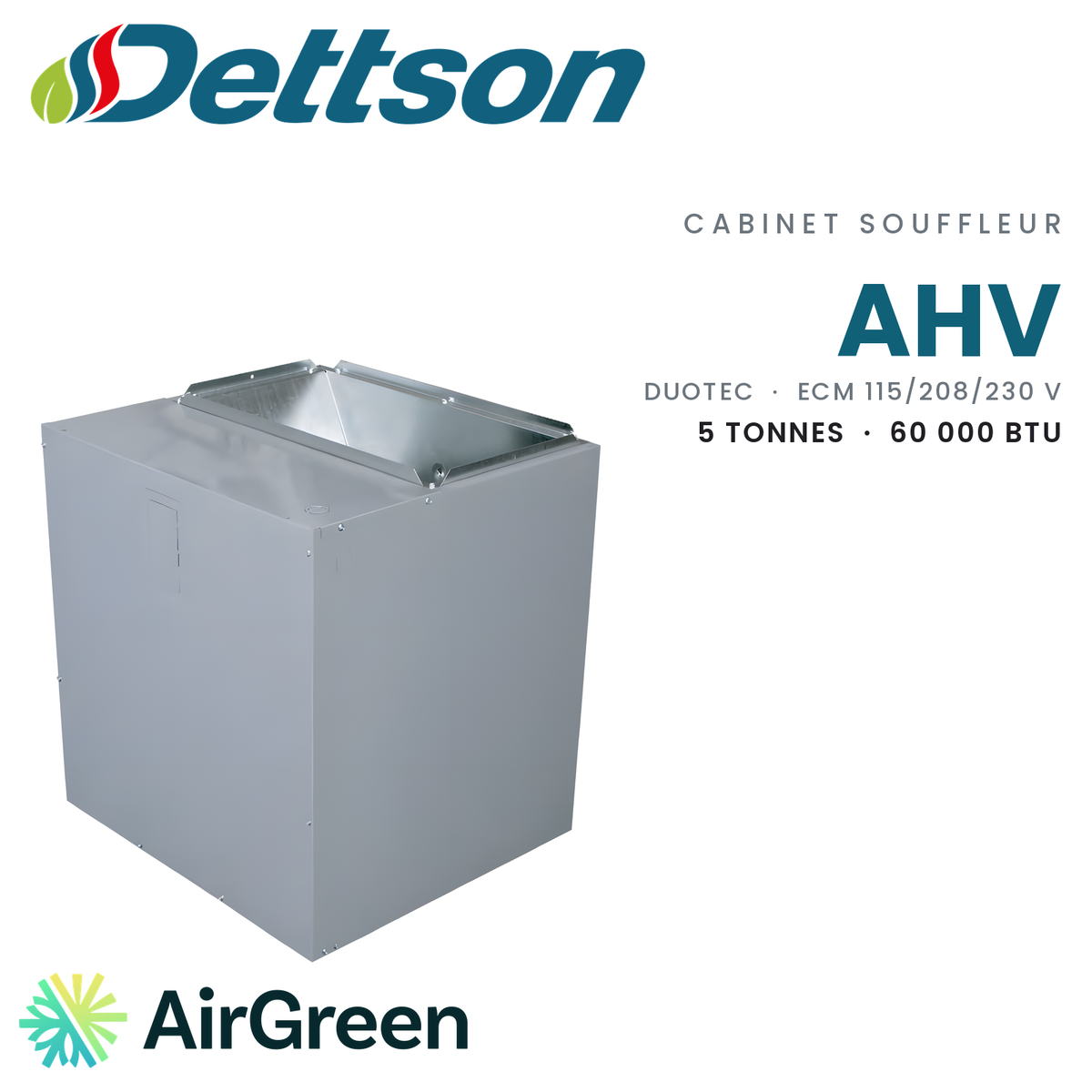

DETTSON AHV Air Handler | 5 Tons - 60000 BTU
Dettson’s 5-ton Duotec AHV air handler, the largest in the series: 3/4 HP ECM motor, dual voltage and EHIA electric backup heat up to 25 kW.
Model numberAHV200024
514 316-2973 · sales@airgreen.ca
Quick facts
For 5-ton systems: a variable-speed Duotec with 5 to 25 kW of backup heat
Replacing the air handler of a large central system
In large homes, extended cottages and houses whose ductwork has been lengthened over successive renovations, the indoor cabinet has a lot of air to move. The Dettson AHV200024 is the largest cabinet in the Duotec AHV series, in the 5-ton (60,000 BTU) size. It moves the air of a central heat pump or air conditioner whose coil goes in a separate cabinet, and it can take electric backup heat.
An ECM motor that is set to the system
The 3/4 HP variable-speed ECM motor covers a range of 540 to 2,000 CFM (255 to 944 L/s). At commissioning, the airflow is set for the chosen outdoor unit and coil, instead of being limited to a few fixed speeds. The cabinet installs upflow, downflow, horizontal left or horizontal right.
Backup heat and power supply
For the AHV20, Dettson permits EHIA kits from 5 to 20 kW, set on motor tap D, and the 25 kW kit, set on tap C. All are factory approved and installed in the field; without electric heat, the EHIA00KN10 kit (0 kW) is used.
The cabinet is dual voltage: 115, 208 or 230 V, single phase. Without a heater, minimum ampacity is 9.5 A at 120 V, 5.5 A at 208 V and 4.8 A at 240 V; maximum overcurrent protection is 20 A at 120 V and 15 A at 208 and 240 V. A 25 kW kit adds its own electrical requirements: we check the home’s electrical service before proposing it.
What is not supplied
Neither the coil nor the filter is included: Dettson requires a remote filter grille or other means of filtration. Sold alone, the air handler has no certified efficiency rating and does not qualify for the LogisVert grant, which follows the certified outdoor unit + air handler pair. The Dettson warranty covers parts for 5 years in residential use; labour is not covered by the manufacturer.
AirGreen installation
A family business established in Montreal for more than fifteen years, AirGreen holds RBQ licence 5645-9605-01 for ventilation, refrigeration and electrical work. For a 5-ton system, our crew:
- visits your home free of charge, measures the ducts and checks the electrical service;
- provides a written quote with the coil, the outdoor unit and the EHIA kit;
- installs the cabinet, the filter grille and the kit, then makes the connections;
- commissions the system and sets the ECM motor’s airflow.
We work in Montreal, Laval, Longueuil, on the North Shore and on the South Shore.
Tell us about your current system: the estimate is free, and financing lets you spread out the payment.
The Duotec for 5-ton systems
The AHV200024 is the largest size in the Duotec AHV series. It moves the air of a 5-ton heat pump or air conditioner, whose coil goes in a separate cabinet, and accepts EHIA electric backup heat up to 25 kW.
- Replacing the air handler of a large 5-ton central system
- Large homes and extended homes whose ductwork has been lengthened
- 25 kW of electric backup heat, or 5 to 20 kW as needed
- Upflow, downflow, horizontal left or right installation

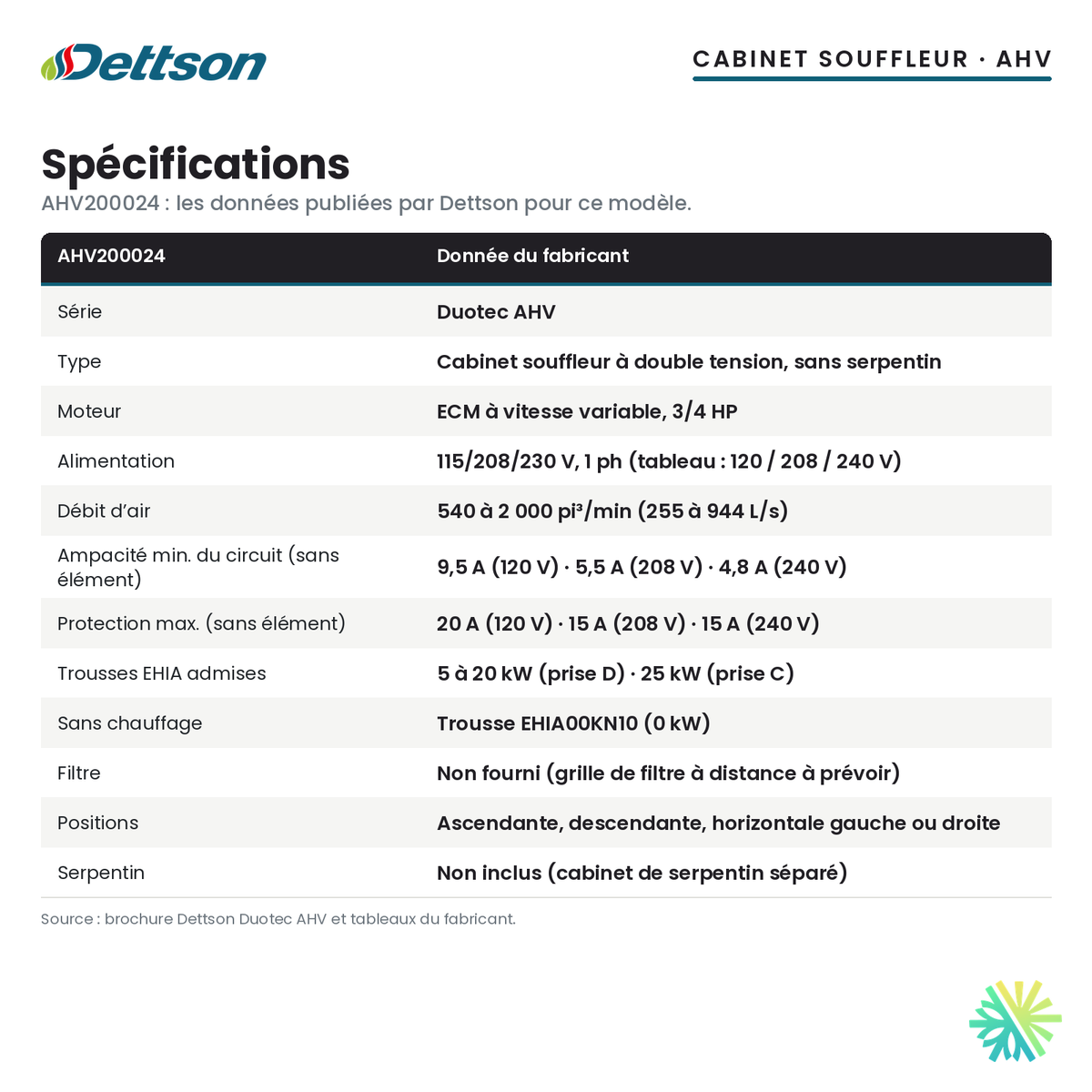

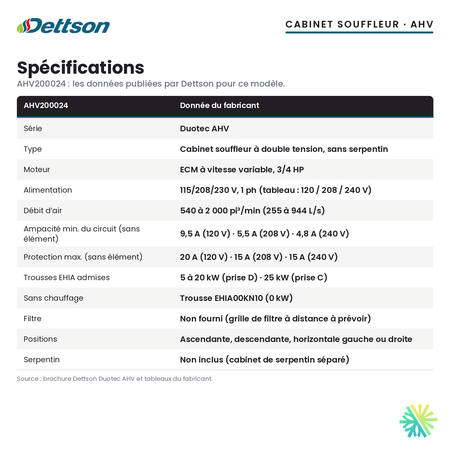

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Sold alone: the LogisVert grant follows the certified outdoor unit + air handler pair. Bought alone, this air handler does not qualify.
- The 25 kW kit is set on motor tap C, the 5 to 20 kW kits on tap D; only Dettson-approved EHIA kits are permitted. Without heat: EHIA00KN10 kit (0 kW).
- Without heater: minimum ampacity of 9.5 A (120 V), 5.5 A (208 V) and 4.8 A (240 V); maximum overcurrent protection of 20 A at 120 V and 15 A at 208 V and 240 V. A heat kit adds its own electrical requirements.
- Filter not supplied: a remote filter grille or other means of filtration must be provided.
- Coil not included: it goes in a separate coil cabinet.
- Dettson warranty: parts 5 years in residential use. Labour is not covered by the manufacturer.
Manufacturer documents
Explore the range
Electric furnaces – air handlersSee allSame brand
DETTSONSee all
Frequently asked questions
Is this air handler right for my 5-ton system?
It is offered in the 5-ton (60,000 BTU) size, with an ECM motor whose range runs from 540 to 2,000 CFM. We confirm the match with the outdoor unit and the coil before ordering.
Can 25 kW of backup heat be installed?
Yes. For the AHV20, Dettson permits the EHIA25KB (25 kW) kit on motor tap C, and the EHIA05KN, EHIA07KN, EHIA10KN, EHIA15KB and EHIA20KB kits on tap D. Backup heat of that size needs a suitable electrical service: we check it during the visit.
What power supply is needed without heat?
Without a heater, Dettson specifies 9.5 A minimum ampacity and 20 A maximum overcurrent protection at 120 V; at 208 V and 240 V, minimum ampacity is 5.5 A and 4.8 A, with 15 A protection.
Are the filter and coil included?
No. The coil goes in a separate cabinet, and Dettson requires a remote filter grille or other means of filtration. Both are included in our quote.
Does it qualify for the LogisVert grant?
Not when bought alone: Hydro-Québec’s grant follows the certified outdoor unit + air handler pair. For a complete system, we check eligibility in the quote.
A 5-ton Dettson Duotec air handler, installed and commissioned by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
