Air Exchanger VENMAR AVS® AI2 SERIES A180E75RT Greater Montreal
Is it the right size for your home?
It delivers 182 cfm net, enough to ventilate 2,100 to 3,400 sq ft. Choose your home's living area.
It's the right size.
For a 2,500 to 3,200 sq ft home, about 150 cfm of air needs to be renewed continuously. This unit delivers 182 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$22.45
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code everywhere in the province. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 64% at 83 cfm.
Airflow and efficiency: manufacturer's data; airflow at 0.4 in and power draw from the V180E75RT spec sheet. Cost: 23 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
Top onlyThe 180 cfm size comes with top ports only
The platform comes with top or side ports, but Venmar notes the 180 cfm models are only available with top ports. The 210 and 230 cfm models also come in a side-port (RS) version.
−30 cfmProtects its core membrane when ducts are too restrictive
If the maximum airflow reached during auto-balancing is 130 cfm or less, the unit takes 30 cfm off to keep the ERV core membrane from deforming under very high static pressure (over 1.3 in w.g.).
64%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 83 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
ERVIt moves moisture too, not just heat
An ERV transfers some moisture between the two airstreams. Useful in a house that gets too dry in winter or takes on a lot of humidity in summer. The trade-off: it generally recovers less heat than a comparable HRV.
−7 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 189 to 182 cfm. Most spec sheets show only the first number, precisely because it looks better.
23 WMeasured at the airflow it actually runs at
Its 81% at 0 °C is measured at 66 cfm, the continuous airflow of a typical home. At that setting it draws 23 W, or about 201 kWh a year.
5 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
6 inWhat it needs on site

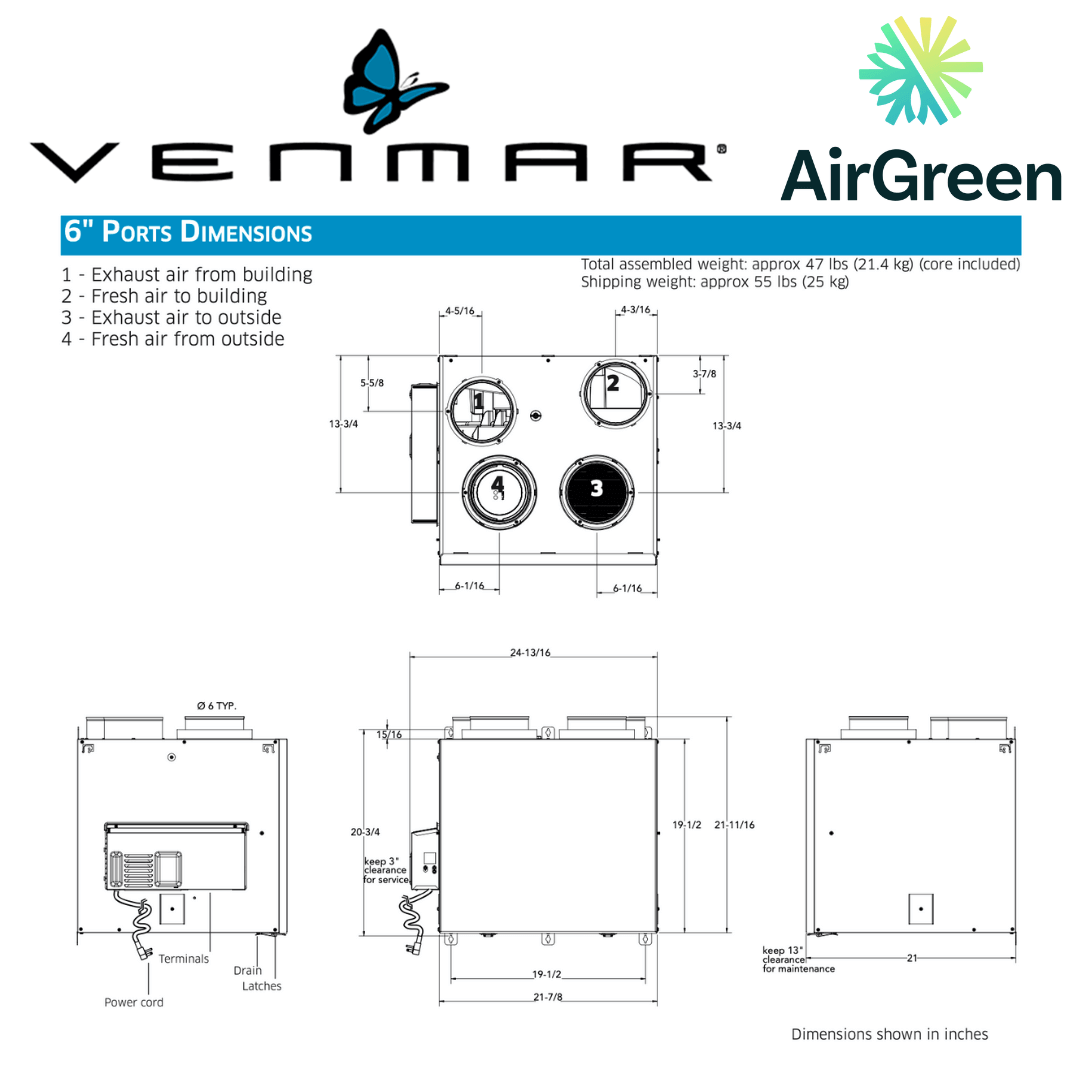

6 in ducts, top connection. It weighs 47 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.
Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 189 cfm
- Net airflow at 0.4 in. w.g.
- 182 cfm
- SRE at 0 °C (66 cfm)
- 81%
- SRE at −25 °C (83 cfm)
- 64%
- ASE at 0 °C
- 84%
- Power draw
- 23 W
- Efficacy
- 2.9 cfm/W
- Type
- ERV
- Connection
- Top ports
- Duct collars
- 6 in
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- Washable MERV 8 filter and washable exhaust filter included
- Dimensions (L × D × H)
- 24.81 × 21 × 21.69 in
- Weight
- 47 lb
- Power supply
- 120 V
- Warranty — core
- 5 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Manufacturer's published data for this model; airflow at 0.4 in and power draw from the V180E75RT spec sheet, a model with identical published ratings. Annual consumption calculated at 23 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.

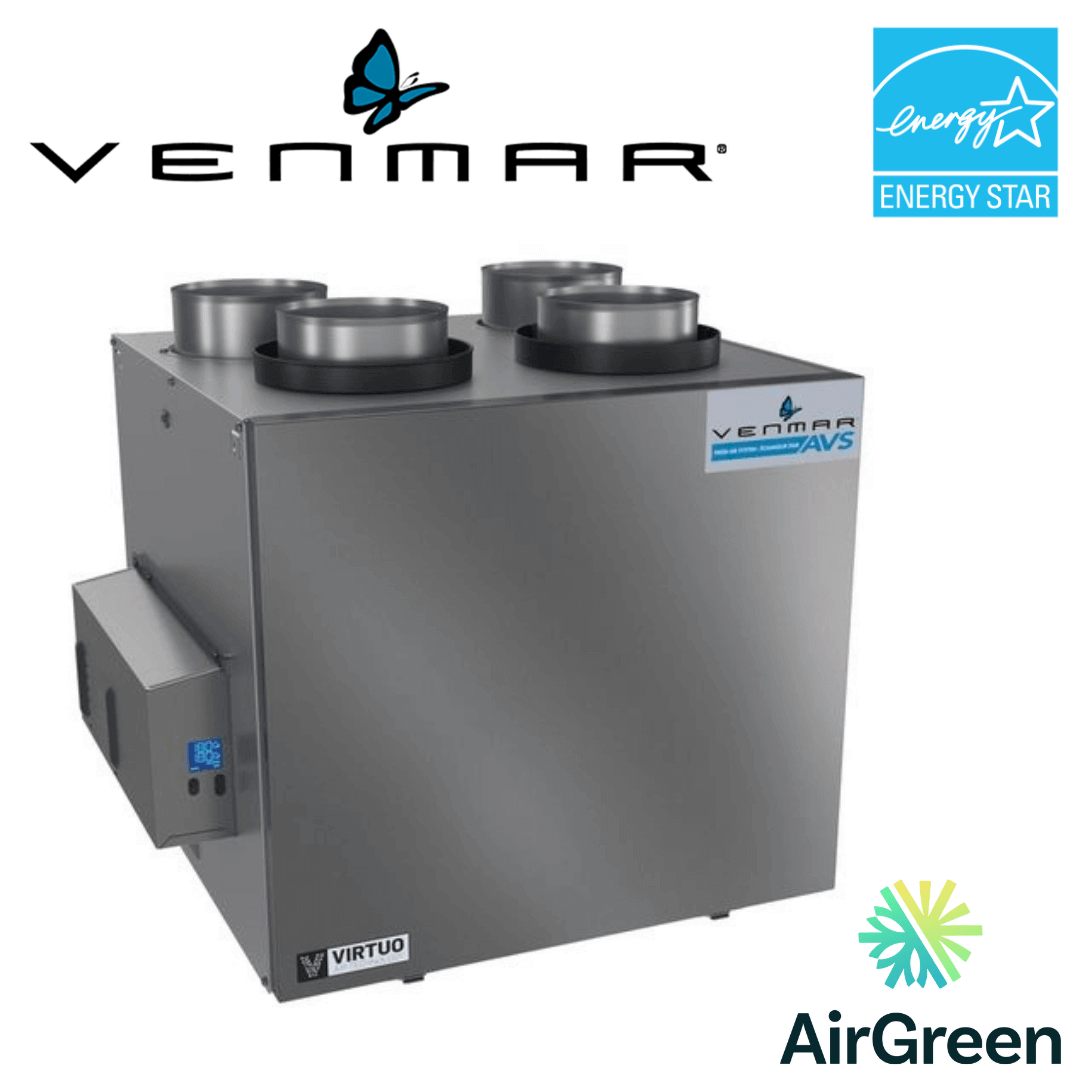

VENMAR AVS® AI2 SERIES ERV 189 CFM 81% SRE A180E75RT
At AirGreen, a renowned HVAC company based in Montreal, we're dedicated to providing premium HVAC sales and installation services throughout Greater Montreal, Laval, Longueuil, South Shore, and North Shore. Our passion for improved air quality and energy efficiency has led us to offer exceptional products in our Air Exchanger section, where we proudly present the Venmar Air Exchangers.
One standout product from our extensive portfolio is the VENMAR AVS® AI2 SERIES ERV 189 CFM 81% SRE A180E75RT, a cutting-edge solution that represents the future of air quality management. This product description will provide in-depth insights into this product and demonstrate why it stands head and shoulders above the competition.
Embrace the Future of Fresh Air
The VENMAR AVS® AI2 SERIES ERV 189 CFM 81% SRE A180E75RT is far more than just an air exchanger. This innovative device, featuring VIRTUO™ technology, represents the future of indoor air management. This technology not only enhances the overall air quality within your home but also promotes energy efficiency and ease of use.
The inclusion of VIRTUO™ technology in the Venmar AVS ERV facilitates one of the quickest installations in its category, potentially saving up to 20 minutes compared to similar products. This expedient process is thanks to auto-balancing and self-adjusting technology, which dramatically reduces the complexity of the installation process. Moreover, the built-in LCD screen delivers real-time airflows, power consumption, and acts as a diagnostic error tool.
Designed for Efficiency and Performance
The VENMAR AVS® AI2 SERIES ERV A180E75RT is designed to consistently deliver outstanding results in terms of airflow verification. This performance is consistent across different types of dwellings, demonstrating its flexibility and adaptability.
One of the key selling points of this ERV is its powerful and efficient ECM PMSM motors, which can deliver up to 189 CFM. This capability makes the A180E75RT an ideal solution for larger homes where effective air management is crucial.
Moreover, installing an Energy Recovery Ventilator (ERV) can substantially improve the indoor air quality of your home. This device supplies a stream of filtered, tempered fresh air from the outdoors while simultaneously exhausting stale polluted air from inside your home. The result? Healthier, more comfortable air in your living spaces.
Enhanced Air Quality
The A180E75RT is designed to deliver superior air quality. Its standard MERV 8 filter features a larger capture area than many competing units, resulting in more effective air filtration. Plus, this design saves homeowners money over the long term due to the filter's reusable, easy-to-wash design.
Seamless Setup with VIRTUO™ Technology
The A180E75RT ERV simplifies the installation process through the application of VIRTUO™ technology. This feature takes care of airflow verification and balancing, eliminating two complex aspects of the installation process. The result is a set-it-and-forget-it simplicity that homeowners will love.
Moreover, the airflow verification, auto-balancing, and self-adjustment technology ensures that the initial configuration quality is maintained across all types of dwellings. This feature adds another layer of convenience for both installers and users.
Powerful and Energy-Efficient Design
The VENMAR AVS® AI2 SERIES ERV 189 CFM 81% SRE A180E75RT is equipped with proprietary ECM PMSM motors, which are known for their energy-efficient operation. This superior ERV core performance and durability reach up to 81% SRE at 0°C at 66 CFM and certified at 64% SRE -25°C at 83 CFM.
The ERV comes with an included MERV 8 filter for enhanced air quality, and high filtration options are available. The device also features an integrated LCD screen for easy CFM setting and real-time monitoring of airflows and power consumption.
Easy Installation and High Compatibility
The VENMAR AVS® AI2 SERIES ERV 189 CFM 81% SRE A180E75RT offers both top and side port configurations to accommodate different installation locations. The device includes universal brackets for wall-mount installation or chains for suspended installation.
Furthermore, this product is compatible with a wide range of modern and user-friendly controls to meet specific needs and different applications.
ENERGY STAR® Certified
The A180E75RT ERV is not just about delivering superior air quality and energy efficiency. It's also about meeting the highest industry standards. This product is proudly ENERGY STAR® certified and meets the rigorous energy efficiency guidelines set by Natural Resources Canada and the US EPA.
Our Commitment at AirGreen
At AirGreen, we believe in offering our customers nothing but the best. With our extensive industry experience and unwavering commitment to customer satisfaction, we deliver a level of service that's second to none in the HVAC sector. Our expert team stands ready to help you choose the right HVAC solutions for your needs, providing professional installation and extended after-sales support.
With the VENMAR AVS® AI2 SERIES ERV 189 CFM 81% SRE A180E75RT, we're confident that we're providing a product that adds significant value to your home. When you choose AirGreen, you're not just choosing a product or a service – you're choosing quality, reliability, and peace of mind.
Contact us today to learn more about the VENMAR AVS® AI2 SERIES ERV 189 CFM 81% SRE A180E75RT and discover how we can transform the air quality in your home. With AirGreen, the future of fresh air is here.
