Air Exchanger VENMAR AVS® K10 SERIES 44500 Greater Montreal

• Energy Star®: Oui
• Warranty (Core-Motor-Parts): ∞-5-5
• Voltage: 115 V
• PCM/CFM - @ 0.2”:
• Maximum sensible recovery efficiency:
• Defrost cycle:

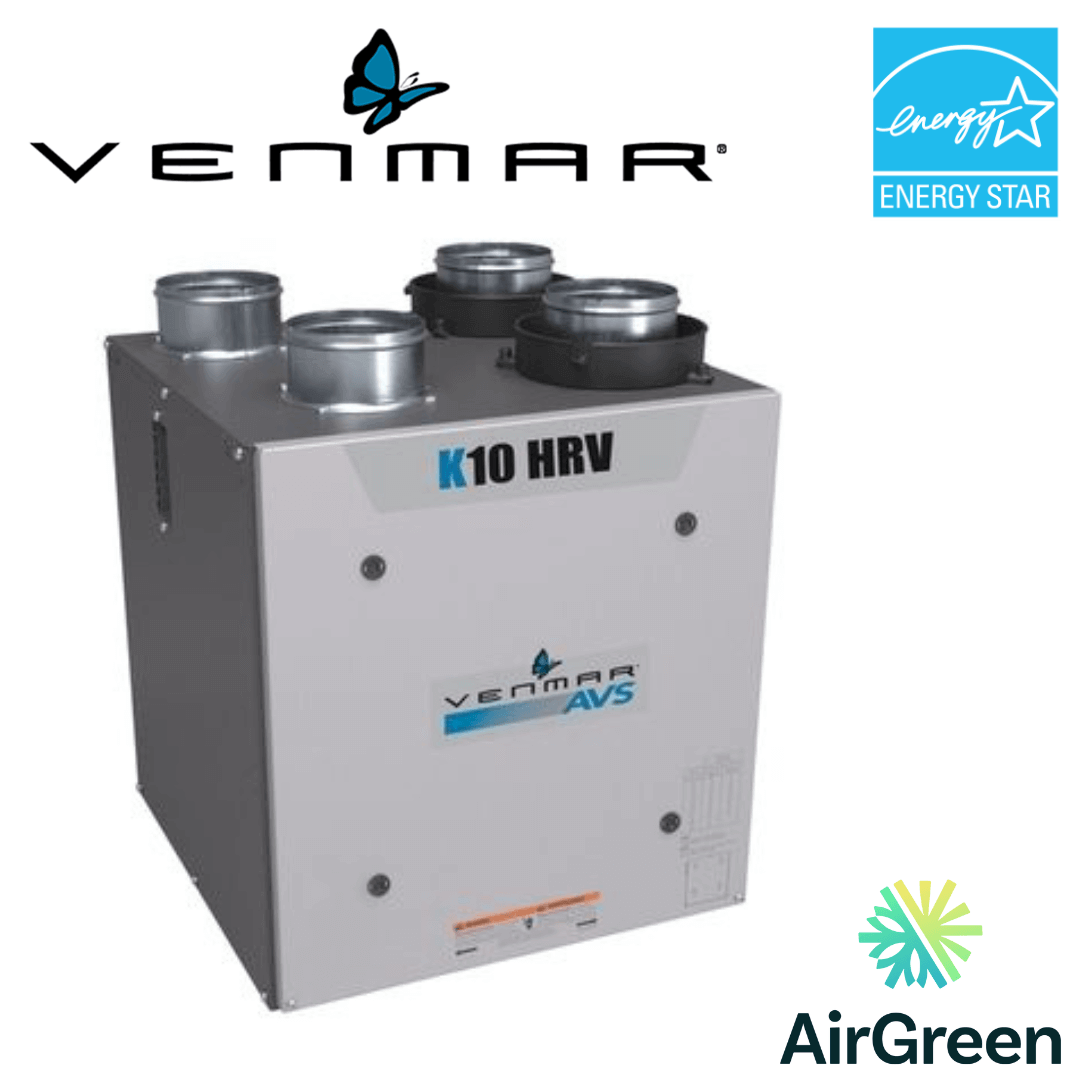

Introducing the VENMAR AVS® K SERIES™ HRV 95 CFM 66% SRE K10 44500 (top ports)

At AirGreen, an HVAC company proudly serving Montreal, we are committed to offering superior HVAC solutions to meet all your indoor comfort needs. As industry leaders in the Greater Montreal area, Laval, Longueuil, South Shore, and North Shore, we have a special section dedicated to air exchangers on our website. Among our unique offerings is the exceptional range of Venmar Air Exchangers. One such distinctive product is the VENMAR AVS® K SERIES™ HRV 95 CFM 66% SRE K10 44500 (top ports).

Engineered specifically for condominiums, apartments, and other limited space applications requiring up to 90 CFM of continuous ventilation, the K10 HRV is your optimal choice. Despite its robust performance, its compact size and 4-inch ports allow for installation in confined spaces, such as closets or mechanical rooms above a hot water tank.

Key Features

• Easy Installation : With a weight of only 30 lbs. (13.6 kg), the K10 HRV can be installed without the need to open the unit. The presence of pressure taps, balancing dampers, integrated hooks, and port straps simplify the installation process. A removable terminal block ensures quicker wall control connections.
• Quiet Operation : Unlike many HRVs on the market, the K10 HRV is equipped with a single blower system, ensuring a quieter operation.
• Reliable Warranty : The K10 HRV is backed by a 5-year warranty for parts only. Additionally, the heat recovery core is covered by a limited lifetime warranty, provided the original proof of purchase is available.

K10 HRV: A Cube with Character

The K10 HRV is capable of meeting the ventilation needs of larger dwellings, despite being as easy to install as other models in the same series. Thanks to its compact size and its 4-inch vertical or horizontal ports, it can be installed in small spaces such as a wardrobe or above a hot water tank in a furnace room.

The K10 HRV is equipped with a single fan, making it quieter than any other similar HRV on the market. Weighing in at just 30 lbs. (13.6 kg), it can be installed without having to open the unit. It comes with pressure taps, balancing dampers, integrated hooks, and belts to connect the ducts to the mouths to simplify installation.

Maintenance

All parts of the K10 HRV that may require maintenance can be removed in less than 5 minutes, allowing quick access for easy maintenance. The motor, equipped with a permanent capacitor, is lubricated for life.

Warranty

The K10 HRV is covered by a 5-year warranty on parts only, while the heat recovery core is covered by a limited lifetime warranty with the original proof of purchase.

Controls

The operation of this unit is simplicity itself. Once installed, press the button located on the upper left side of the unit to select high or low speed or to stop the unit. The LED (located under the button) will then display the mode of the device.

For added convenience, this unit can also be controlled by an optional main control. For the complete list of optional main and auxiliary controls available, please consult the Wall Control Compatibility Chart on the last pages of the wall control specification sheet, available at www.venmar.ca.

Options

The K10 HRV offers a complete range of grids and diffusers, as well as auxiliary electric heating. It also has an exclusive wall mount bracket (No. 19255).

Defrosting System

The K10 HRV uses a recirculation defrost method, which maintains balanced air pressure in the house. If there is a request for ventilation from an auxiliary wall control during the defrost cycle, it is put on hold while the air is exchanged, ensuring that humid air is not recirculated.

Heat Recovery Core

The K10 HRV features a heat recovery core with dimensions of 10" x 10" x 5.5" and a weight of just 4 lbs. This cross-flow core is made of polypropylene, ensuring durability and effective heat transfer. The heat recovery core is covered by a limited lifetime warranty.

Standards and Requirements

The K10 HRV complies with several key requirements and standards. It meets the UL 1812 requirements for the installation of Heat Recovery Ventilators, the CSA C22.2 No. 113 standard applicable to ventilators, and the CSA F326 requirements for the installation of Heat Recovery Ventilators. Its performance has been tested according to the CSA C439 standards, and it is HVI certified.

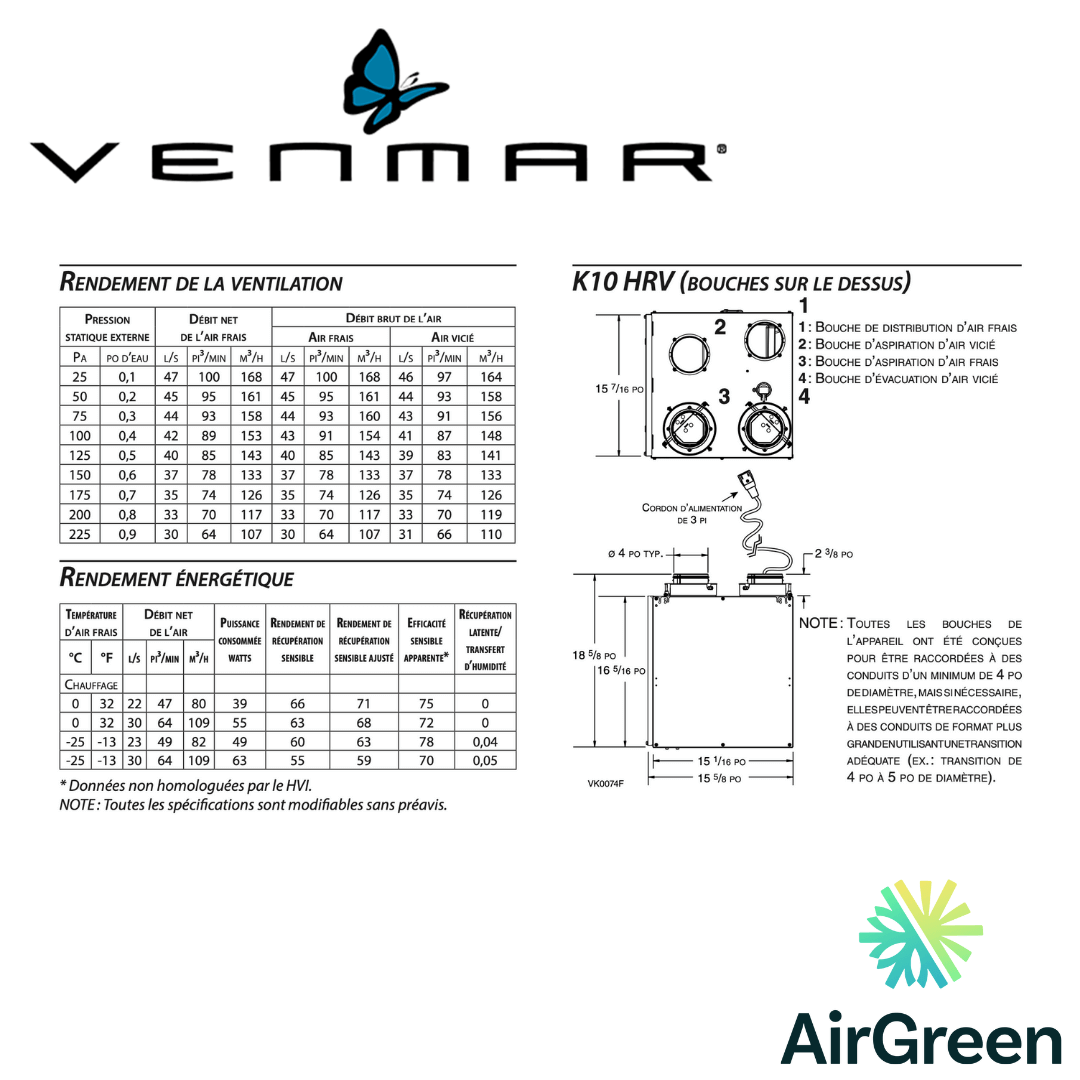

Specifications

• Model: K10 HRV
• Housing: Pre-painted steel
• Speed Control on Unit: Low speed and high speed (other modes available with optional wall controls)
• Part Number: 44500
• Insulation: Expanded polystyrene
• Total Assembled Weight (including polypropylene core): 30 lbs. (13.6 kg)
• Round 4” ports
• Drain: 1/2” (1.2 cm) fitting with 10 ft. (3 m) PVC drain hose
• Core Filters: 2 washable foam filters, 30 ppi, 9.2” x 5.75” x 0.38”
• Supply and Exhaust Blower Motor: 1 motor - Protection type: Thermally protected
• Heat Recovery Core:

• Heat Exchange Surface Area: 42.3 ft.2 (3.9 m2)
• Type: Crossflow
• Material: Polypropylene
