Honeywell HE250A1005/U Humidifier | Installation in Montreal, Laval, Longueuil, South Shore and North Shore
Is it the right size for your home?
It puts 17 gallons of water a day into the air (with 49 °C (120 °F) furnace air), enough to humidify about 2,000 sq ft (our estimate). Pick your home's living area.
It's the right size.
For a 900 to 1,500 sq ft house, it's within its range. It will run at part load on ordinary days and keep a reserve for the coldest days.
AirGreen estimate. Honeywell (Resideo) publishes no area in sq ft for this model, only a volume of 20,000 cu ft. For an average-construction home, we count 120 sq ft per gallon a day, the ratio in AprilAire's and Lennox's tables. Older or leaky house: go one size up; our estimator confirms it on site.
What it does, in numbers
Output: manufacturer's spec (17 gal/day, with 49 °C (120 °F) furnace air).
What you should know about this one
Published, verifiable figures, not brochure claims.
17 galWhat it produces per day, at full output
About 64 litres of water turned into humidity in 24 hours. The control runs it to match the humidity you set: it rarely runs flat out, except in very cold weather.
Heat pumpBehind a heat pump, it produces less
It evaporates water from a pad using the heat of the air coming off the furnace. A heat pump blows cooler air, so it evaporates less. With a heat pump, talk to our estimator: depending on the manufacturer, we connect it to hot water or suggest a steam model instead.
AdvancedMotorized bypass damper
A TrueEASE 'Advanced' model: its damper closes on its own when the house doesn't need humidity. Resideo claims 30 to 50% water savings.
15 VAA larger transformer
The motorized damper draws 0.75 A at 24 V and needs a 15 VA transformer, instead of 10 VA for the Basic models.
AThe US version
A is the US version of the HE250. The Canadian version, the HE250C, ships with the installation hardware.
ControlThe control that comes with it
Honeywell HumidiPRO H6062 digital control.
UpkeepWhat gets replaced, and when
HC26A1008 pad (or HC26E1004 antimicrobial), replace at least once a year.
35%The humidity to aim for in winter, at most
At −7 °C, no more than 35%; at −18 °C, no more than 25%. Above that, the moisture condenses on the windows. The control adjusts for you if it has an outdoor sensor.
5 yearsThe parts warranty
Parts are covered for 5 years by the manufacturer. We register the warranty in your name at start-up.
What it needs on site
Our estimator checks the ducts, the water supply and the drain before ordering.
Complete spec sheetData and cited sources
- Brand
- Honeywell
- Model
- HE250A1005/U
- Type
- Bypass
- Output
- 17 US gal/day (with 49 °C (120 °F) furnace air)
- Control included
- Honeywell HumidiPRO H6062 digital control.
- Upkeep
- HC26A1008 pad (or HC26E1004 antimicrobial), replace at least once a year.
- Living area
- 2,000 sq ft (AirGreen estimate)
- Dimensions (L × D × H)
- 15 × 10.1 × 17.15 in
- Power supply
- 24 V
- Current
- 0.75 A
- Warranty — parts
- 5 years
Output, dimensions, electrical data and warranty: Honeywell manufacturer's data. Living area: AirGreen estimate, explained under « Your home ».
The next model down and up
Talk to an HVAC technician before you choose
We look at your heating system, the electrical panel, the water supply and the drain, and give you an installed price.

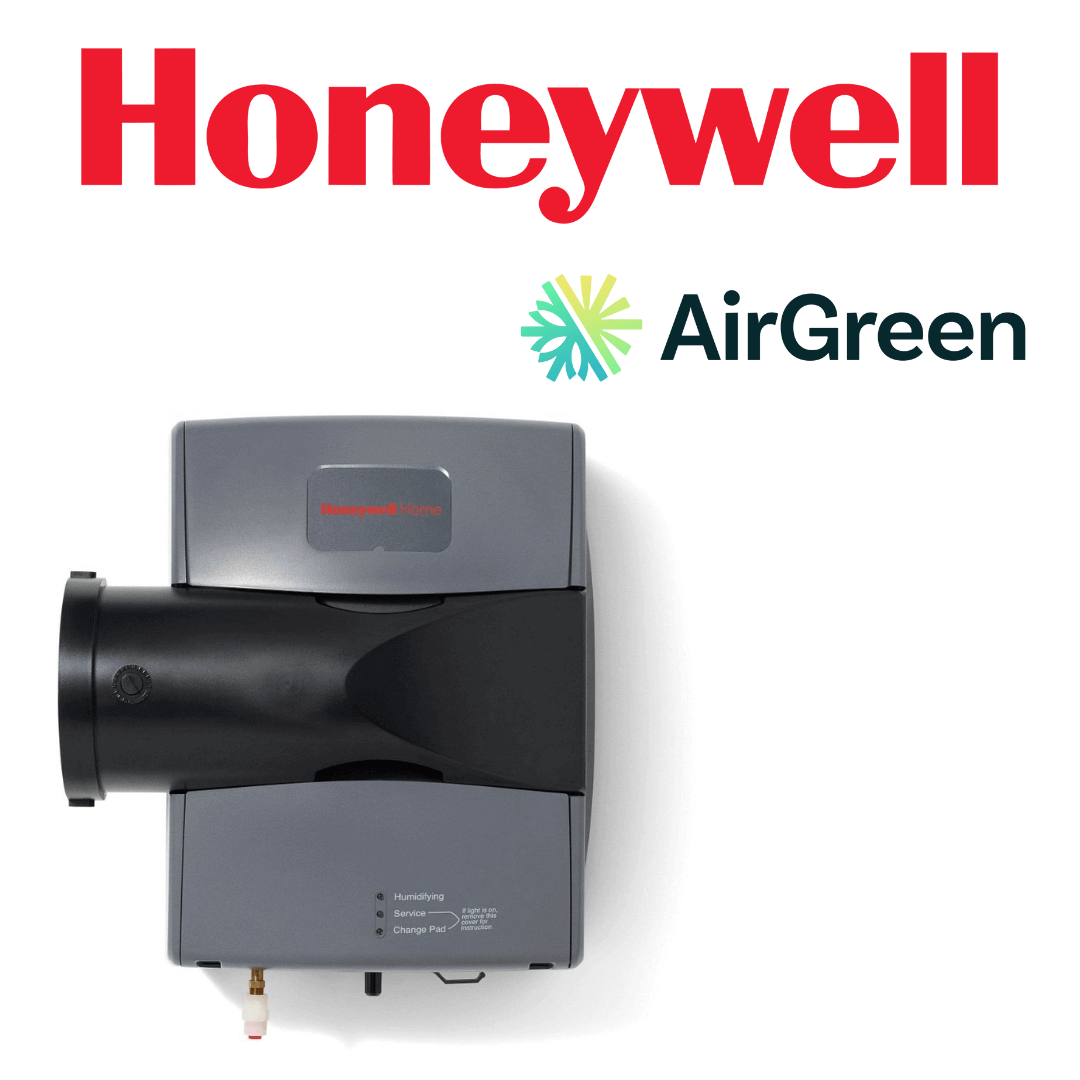

Honeywell HE250A1005/U: the large TrueEASE Advanced, US version
The HE250A1005/U is a TrueEASE bypass humidifier that delivers 17 gal/day with 49 °C (120 °F) furnace air. It suits a home of about 2,000 sq ft by our estimate.
A: the US version of the HE250
A is the US version. The Canadian version, the HE250C1014/U, ships with the installation hardware. Once installed, it's the same humidifier: same HC26 pad, same motorized bypass damper and same HumidiPRO H6062 digital control. The damper closes on its own when the house doesn't need humidity, and Resideo claims 30 to 50% water savings.
What to plan for on site
We cut a 9¾ × 12⅝ in. opening in the plenum and install a 6 in. bypass duct. The motorized damper draws 0.75 A at 24 V, which calls for a 15 VA transformer. A water line and a drain are required. Replace the HC26A1008 pad, or the HC26E1004 antimicrobial pad, at least once a year. With a heat pump, the air in the plenum is cooler than the 49 °C (120 °F) reference and output drops.
Before we install, we come and look
Our estimator visits before any quote: they examine the heating system, the panel capacity, the water supply and the drain. AirGreen installs in Montréal, Laval, Longueuil, the South Shore and the North Shore. Call 514 316-2973.
