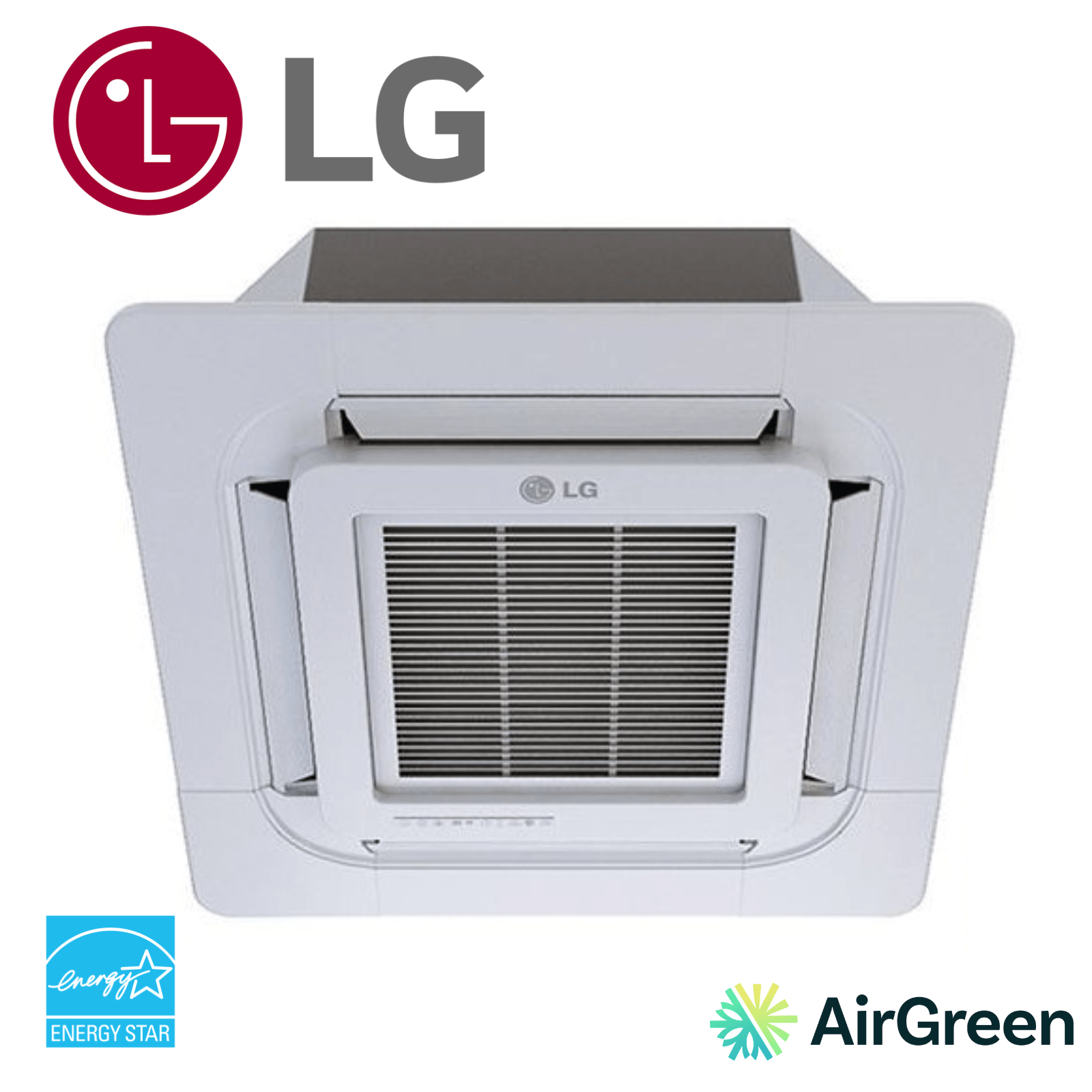

LG: Cassette type 3x3 ceiling mounted air conditioner | 24,000 BTU

A 3x3 Cassette Designed for Large Spaces Where Comfort Must Remain Discreet

The LG 3x3 Cassette Type Ceiling Unit | 24,000 BTU is for homeowners, building managers, contractors, and business owners who want an efficient heating and air conditioning solution without occupying wall space. In an open-plan condo in Montreal, a professional office in Laval, a conference room in Longueuil, a business on the South Shore, or a rental space on the North Shore, the challenge is often the same: achieving stable temperature without a visually dominant wall unit and without a complex duct network.

At AirGreen, we recommend this type of LG ceiling cassette heat pump when the building configuration allows for clean ceiling integration, particularly in spaces with suspended ceilings, commercial slabs, renovated premises, or open areas where air distribution needs to be more balanced than with a conventional wall unit. The 3x3 cassette offers a subtle visual presence, multi-directional air distribution, and capacity suitable for good-sized rooms.

This model, consisting of the indoor unit KNSCB241A and the outdoor unit KUSXB241A, falls into the category of highly versatile HVAC solutions: robust enough for light commercial use, comfortable enough for high-end residential use, and technically capable enough to meet the demands of a well-planned building.

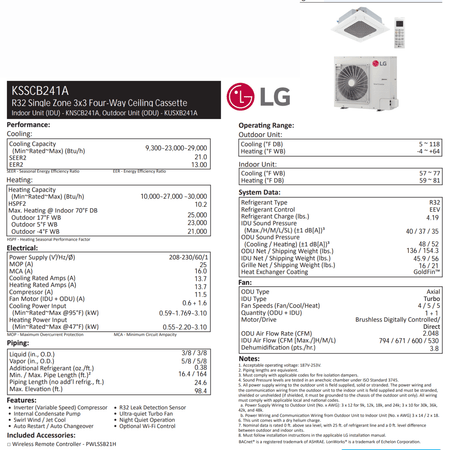

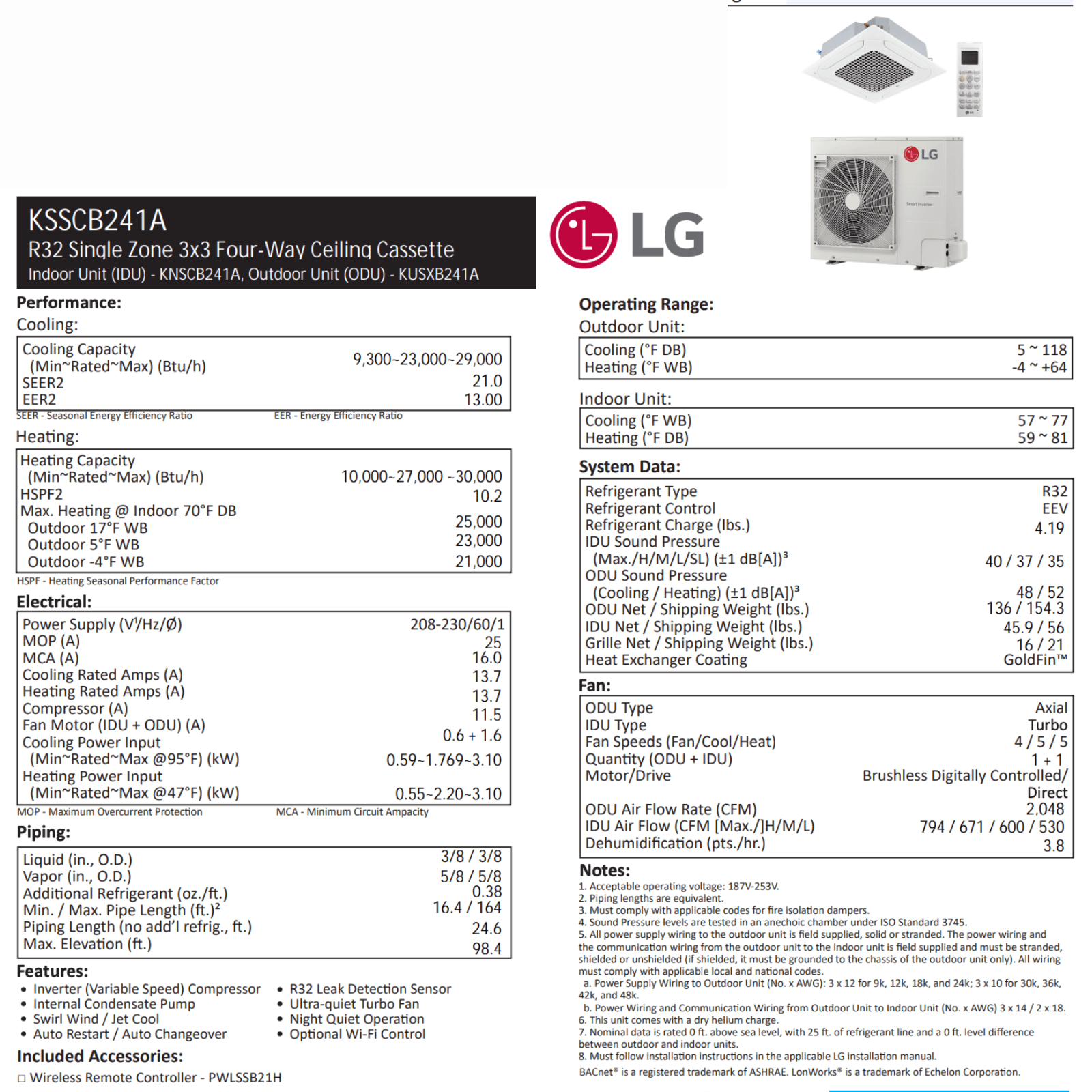

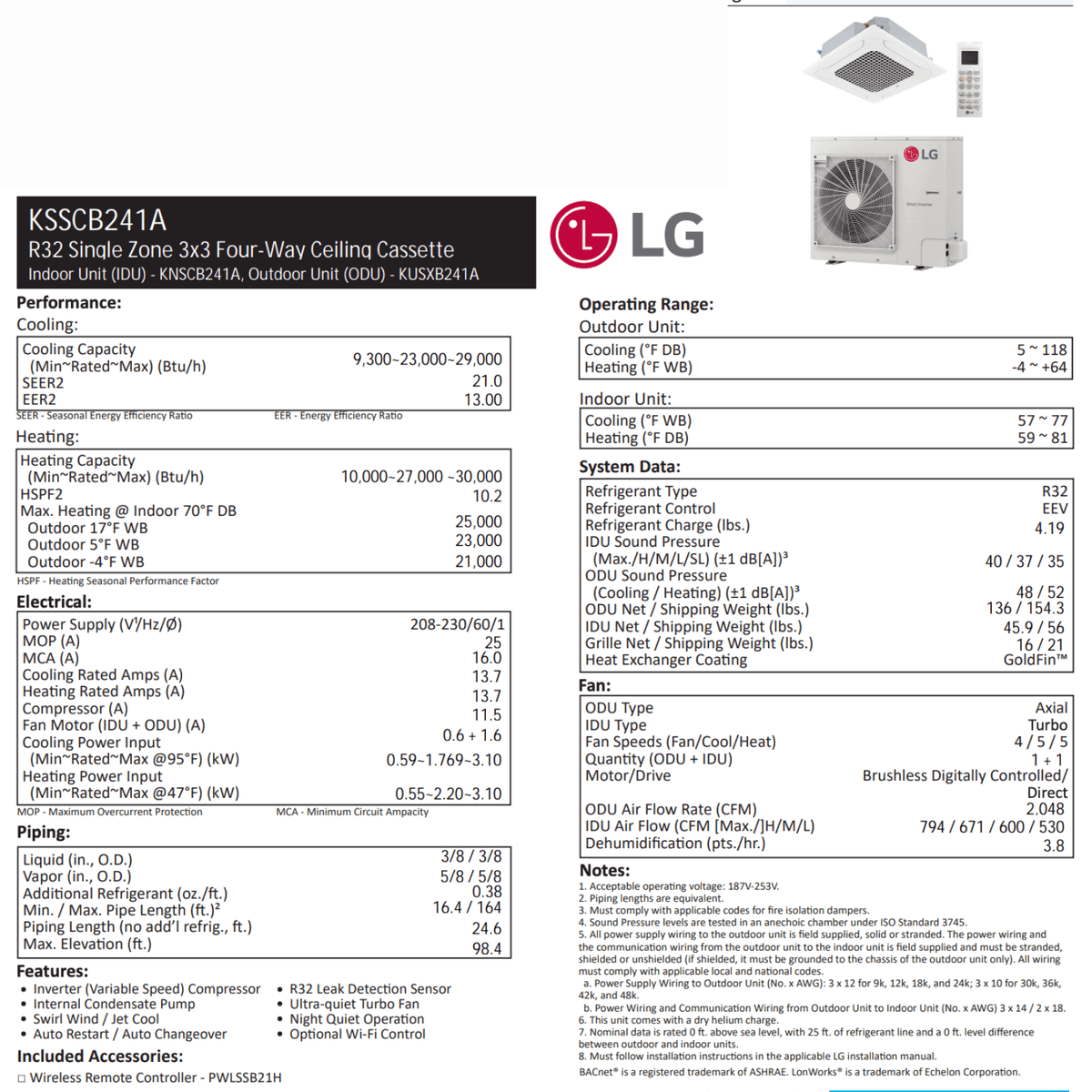

The LG KSSCB241A Model Explained

The LG system associated with this product sheet is designated KSSCB241A. It is a single-zone 3x3 cassette operating on R-32 refrigerant, with an Inverter variable speed compressor, internal condensate pump, quiet operation, Night Quiet mode, auto restart, automatic heating/cooling changeover, R-32 leak detection, and optional WiFi control. The LG technical sheet specifically indicates a modulating cooling capacity of 9,300 to 29,000 BTU/h, a modulating heating capacity of 10,000 to 30,000 BTU/h, a SEER2 of 21.0, an EER2 of 13.0, and an HSPF2 of 10.2.

For a client, these figures mean three concrete things: the system can modulate according to actual demand, it can sustain heating even when the outdoor temperature drops significantly, and its integration requires real HVAC planning. A 3x3 cassette is not a simple device that you randomly install on the ceiling. It requires an analysis of the structure, clearance, drainage, electrical supply, refrigerant line passage, and furniture placement.

More Uniform Air Distribution than a Wall Unit in Several Configurations

One of the main advantages of an LG 3x3 cassette ceiling unit is multi-directional air distribution. In an open room, a wall-mounted unit can sometimes create a very comfortable zone near the unit, then a more unstable zone at the other end. With a properly placed cassette, air is distributed more broadly and naturally.

This is particularly useful in:

• a double living room with open kitchen in Montreal;
• a shared workspace in Laval;
• a clinic or service salon in Longueuil;
• a retail store on the South Shore;
• a multi-purpose room in a multi-unit building on the North Shore;
• a finished basement with a suspended ceiling and multiple occupancy zones.

The Swirl Wind mode helps to distribute air more envelopingly, while the Jet Cool function allows for a quick response when the room has accumulated heat, for example after a sunny day with lots of glazing. In heating, the correct positioning of the cassette limits temperature differences between central areas and room corners.

Where This Model Becomes Particularly Relevant

We often see this need in buildings where the walls are already heavily utilized: large windows, built-in storage, wall art, cabinets, glass doors, or commercial partitions. In this context, a wall unit can hinder layout or impose an aesthetic compromise. The LG 24,000 BTU ceiling cassette allows walls to remain free while providing an efficient heating and air conditioning system.

A representative case encountered by our AirGreen team involved a professional premises on the South Shore with a waiting room, two work areas, and a suspended ceiling. The client wanted to replace a noisy wall unit that blew directly on occupants. The chosen solution involved positioning a central cassette, adjusting the louvers' orientation, and planning for clean drainage to an existing technical point. The desired result was not just a temperature reduction, but improved comfort: less direct draft, more stable distribution, and a more professional appearance.

In another typical scenario in Montreal, an open-plan condo owner sought to free up an entire wall for a custom layout. A 3x3 cassette became logical, but only after validating the ceiling, clearances, piping path, and outdoor location. This is exactly where the expertise of an experienced HVAC contractor changes the final result.

Low-Temperature Heating and LogisVert Eligibility

This LG system is listed as ENERGY STAR and ENERGY STAR Cold Climate, an important point for homeowners in Quebec. The AirGreen product page also indicates a provincial LogisVert grant of $2,040, with an update as of November 26, 2025. As aid programs can vary depending on the installation date, the building, the applicant's situation, and the official list in effect, we always validate the information when preparing a quote.

Hydro-Québec specifies that LogisVert amounts for eligible heat pumps may vary over time and that models installed from November 26, 2025, must be ENERGY STAR certified to be eligible for financial assistance. The program also indicates that financial assistance for an ENERGY STAR certified heat pump is calculated at $50 per 1,000 BTU/h at -8°C, or $120 per 1,000 BTU/h at -8°C when it is cold climate type, subject to program requirements.

In practice, AirGreen assists its clients in understanding this information, but final eligibility always depends on official rules and the actual installation date. Hydro-Québec also indicates that an application must be submitted within nine months of the installation date to benefit from financial assistance.

The Installation Details That Make the Difference

A successful HVAC installation of a ceiling cassette begins before the day of the work. Our technicians first check if the ceiling allows for the integration of the indoor unit, if the structure can receive the anchors, if the ceiling panel can be opened cleanly, and if future access for maintenance is realistic.

The points we systematically validate include:

• the clearance above the ceiling;
• the exact location of the 3x3 grille;
• the distance between the indoor and outdoor unit;
• the slope and path of the drain;
• the capacity of the electrical panel;
• the required amperage according to the 16 A MCA and the 25 A MOP;
• the passage of the 3/8 in – 5/8 in refrigerant lines;
• protection of the outdoor unit against snow, ice, and wind corridors;
• access for future maintenance.

The internal condensate pump is an advantage, but it does not replace serious drainage design. In a suspended ceiling, a poor drain path can cause service calls, water noise, overflows, or ceiling stains. We always test condensate drainage before closing the ceiling and explain to the client the signs to watch out for.

Common Mistakes to Avoid with a 3x3 Cassette

The first mistake is choosing a 24,000 BTU capacity based solely on area. Surface area matters, but it's not enough. Insulation, sun exposure, ceiling height, number of occupants, window type, heat-generating appliances, and room configuration change the actual need. A system that is too large can cycle unnecessarily; a system that is too small can run too long and disappoint during extreme cold or heatwaves.

The second mistake is centering the cassette solely for visual reasons. In some spaces, the architectural center is not the best thermal center. At AirGreen, we consider air circulation, occupied areas, heat sources, and furniture placement.

The third mistake is neglecting the outdoor unit. In Montreal, Laval, Longueuil, on the North Shore, and the South Shore, winter imposes real constraints: snow accumulation, ice, roof runoff, balconies, narrow parking spaces, and noise perceived by neighbors. A good heat pump positioned poorly can lose comfort, durability, and ease of maintenance.

The fourth mistake is treating WiFi as a universal detail. On this model, WiFi is optional. For some clients, a standard remote control is sufficient. For others, especially in a business or rental property, a WiFi module or a centralized control can simplify temperature management and avoid constant adjustments.

Recommended Maintenance to Maintain Performance

A ceiling cassette requires regular maintenance, even when it is discreet. Filters must be cleaned according to use, especially in businesses, salons, offices, or areas where dust and particles accumulate quickly. The grille must remain clear, louvers must move freely, and the condensate drain must be inspected periodically.

During AirGreen HVAC maintenance, we pay particular attention to:

• the condition of the filters;
• the cleanliness of the grille;
• the operation of the louvers;
• condensate drainage;
• operating pressure and temperature;
• the condition of the refrigerant lines;
• the indoor unit's noise level;
• the outdoor unit's clearance;
• the condition of the outdoor coil;
• heating and air conditioning performance.

This monitoring is particularly important for a model installed in a commercial premises, as the unit may operate for long hours, with more door openings, more occupants, and more thermal load variations than in a residential setting.

Why entrust this LG installation to AirGreen

The LG Ceiling Cassette 3x3 | 24,000 BTU is an excellent choice when the building is suitable, but its performance depends directly on the quality of the installation. At AirGreen Heating & Air Conditioning, we don't just sell a unit. We analyze the space, validate constraints, propose a logical positioning, install according to best practices, and remain available after the work.

Our approach is based on clear steps:

1. Assessment of actual needs according to the room, insulation, use, and exposure.
2. Technical validation of the ceiling, drainage, piping, and electricity.
3. Transparent quotation before the start of work, with no surprises at the end.
4. Installation by qualified refrigeration technicians with attention to visible and invisible details.
5. Complete commissioning with functional tests, drainage verification, and explanation of controls.
6. After-installation service for maintenance, adjustments, and questions.

We serve Montreal, Laval, Longueuil, the North Shore, the South Shore, and Montérégie, with concrete experience in residential, commercial, and multi-housing projects. Our $5M civil liability insurance, our RBQ license, and our local presence allow clients to work with a structured, accessible team accustomed to the realities of Quebec buildings.

A wise choice for clean, stable, and discreet comfort

This LG cassette is suitable for clients who want an elegant solution without compromising efficiency. It combines a discreet design, good modulation, balanced air diffusion, a capacity adapted to large spaces, and interesting compatibility with current energy requirements. It becomes particularly relevant when one wants to avoid the visual compromises of a wall unit or when an open space requires more central air distribution.

To obtain a reliable recommendation, the best starting point remains an on-site evaluation. AirGreen can confirm if the LG Ceiling Cassette 3x3 | 24,000 BTU is suitable for your building, check applicable subsidies, plan the installation, and provide you with a clear offer.

Contact AirGreen today for a quote, an HVAC consultation, or an LG heat pump installation in Montreal, Laval, Longueuil, on the North Shore, or the South Shore.
