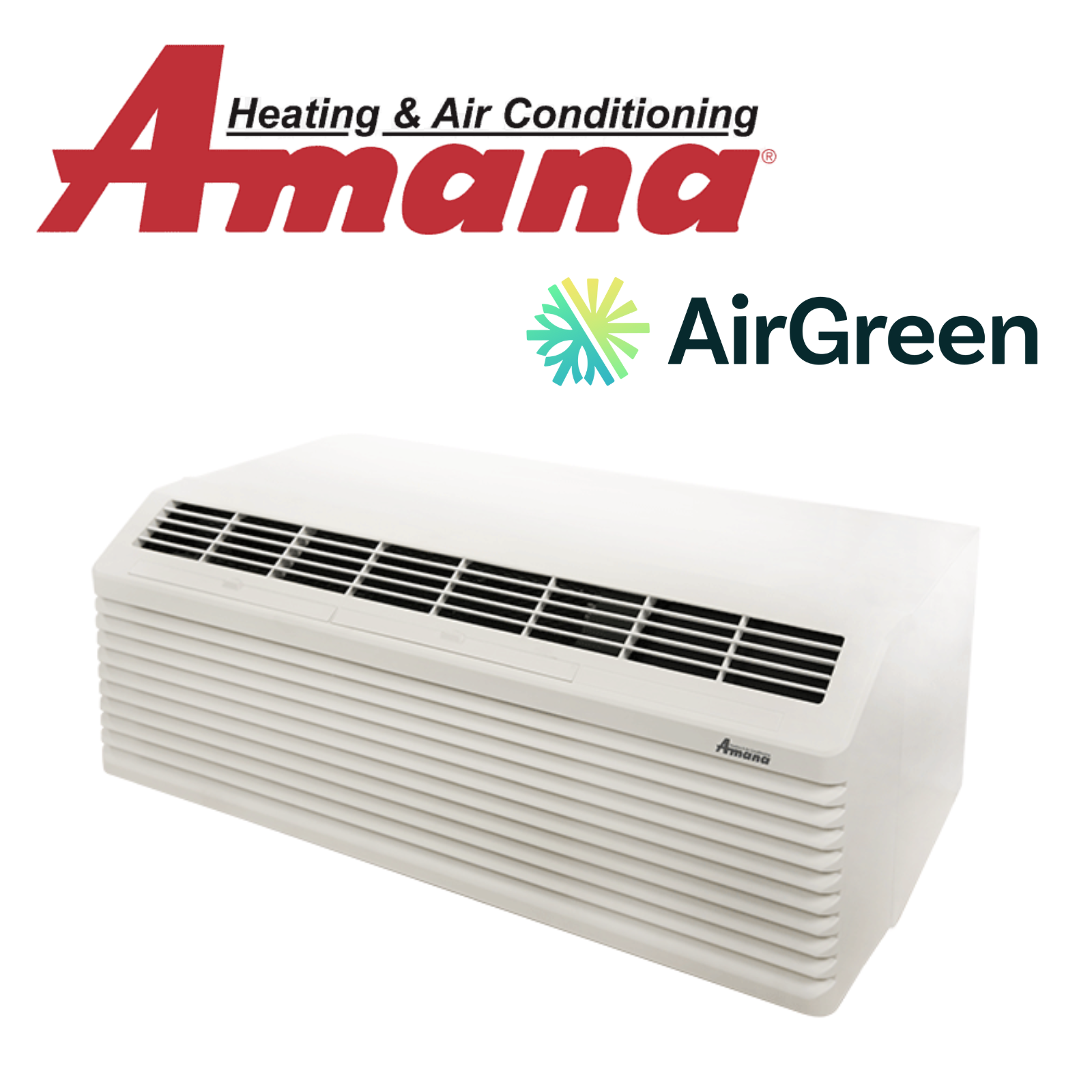

PTAC AMANA | 12,000 BTUs | HEC (HIGH EFFICIENCY) R410A K
Is it the right size for this room?
Amana doesn't publish a room size for this unit. From its 11,700 BTU/h of cooling, we estimate ≈ 165 to 245 sq ft. Choose your room's area.
It's the right size.
For a 175 to 225 sq ft room, this is the range we estimate for this unit: 11,700 BTU/h of cooling and a heater of up to 5,000 W when the cold calls for it.
AirGreen estimate: Amana publishes no room size, so we apply the application ranges Trane publishes for its PTACs of the same cooling capacity. Our estimator confirms the exact area on site.
What it does, in numbers
$22.86
Cooling, all summer
Less than a 60 W light bulb
Bulbs left on day and night for a year. Cooling: 5 h a day for 40 days, the assumption used by Hydro-Québec's air-conditioning calculator. Same calculation for every line: wattage × hours × 11.142 ¢/kWh.
≈$163
Heating, all winter
Typical 205 sq ft room with one exterior wall, in Montréal: 1,464 kWh of heat per winter (Environment Canada 1991–2020 climate normals).
≈ $186 for the year, before tax. Winter is 88% of it. If your home stays in the first tier of Rate D in summer (7.065 ¢/kWh), cooling drops to $14.50.
Capacities and currents: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Power draw: 1,026 W in cooling (11,700 BTU/h ÷ EER 11.4), 5,000 W on the 5 kW heater. Hydro-Québec Rate D in effect since April 1, 2026: 11.142 ¢/kWh second tier, before tax.
What you should know about this one
Published, verifiable facts, not brochure claims.
11,700What it really delivers in cooling
The name says 12,000 BTU: that's the unit's size class. Amana publishes 11,700 BTU/h at 230 V, and 11,400 at 208 V, the supply in many buildings. Better to read it here than on the spec sheet after installation.
5,000 WThe heater that heats the room
At Amana, the two digits after the series letter (the ** in HEC123K**AXXX) set the heater when ordering: 1.5, 2.5, 3.5 or 5.0 kW at 230 V, 1.3 to 4.1 kW at 208 V. At 5.0 kW it takes a 6-30P plug on 30 A; at 3.5 kW, a 6-20P on 20 A. It heats the room all winter.
11.4Efficiency above the standard model
Amana publishes an EER of 11.4 for this HEC, against 11.0 for the standard PTC of the same size. For the same capacity, it draws fewer watts in summer.
1.7Pints of water it removes per hour
The dehumidification Amana publishes in cooling mode: 1.7 pints per hour. It's what keeps a room comfortable in summer without it turning clammy.
7⅝ inHow far it sticks into the room
Amana quotes a 7⅝ in deep front, one of the slimmest in the industry: the unit takes less space out of the room.
4 °CRoom freeze protection
As soon as the unit senses 40 °F (4 °C) or below, it starts the fan and the heater: an empty room won't freeze in winter.
6-30PThe outlet it needs
With the 5.0 kW heater: a NEMA 6-30P plug on a dedicated 30 A circuit. With 3.5 kW: 6-20P on 20 A. With 2.5 kW: 6-15P on 15 A. In a replacement, the outlet already in the wall dictates the heater size.
It fits the standard 42 × 16 in sleeve
Amana sleeves have the industry-standard dimensions: 42 in wide, 16 ¹⁄₁₆ in high, 14 ⅛ in deep. Our estimator checks the sleeve and the grille in place before ordering.
What it needs on site
In a replacement, we check the outlet and the breaker first: they set the heater size you can use. Our estimator confirms the sleeve, the outlet and the slope before ordering.

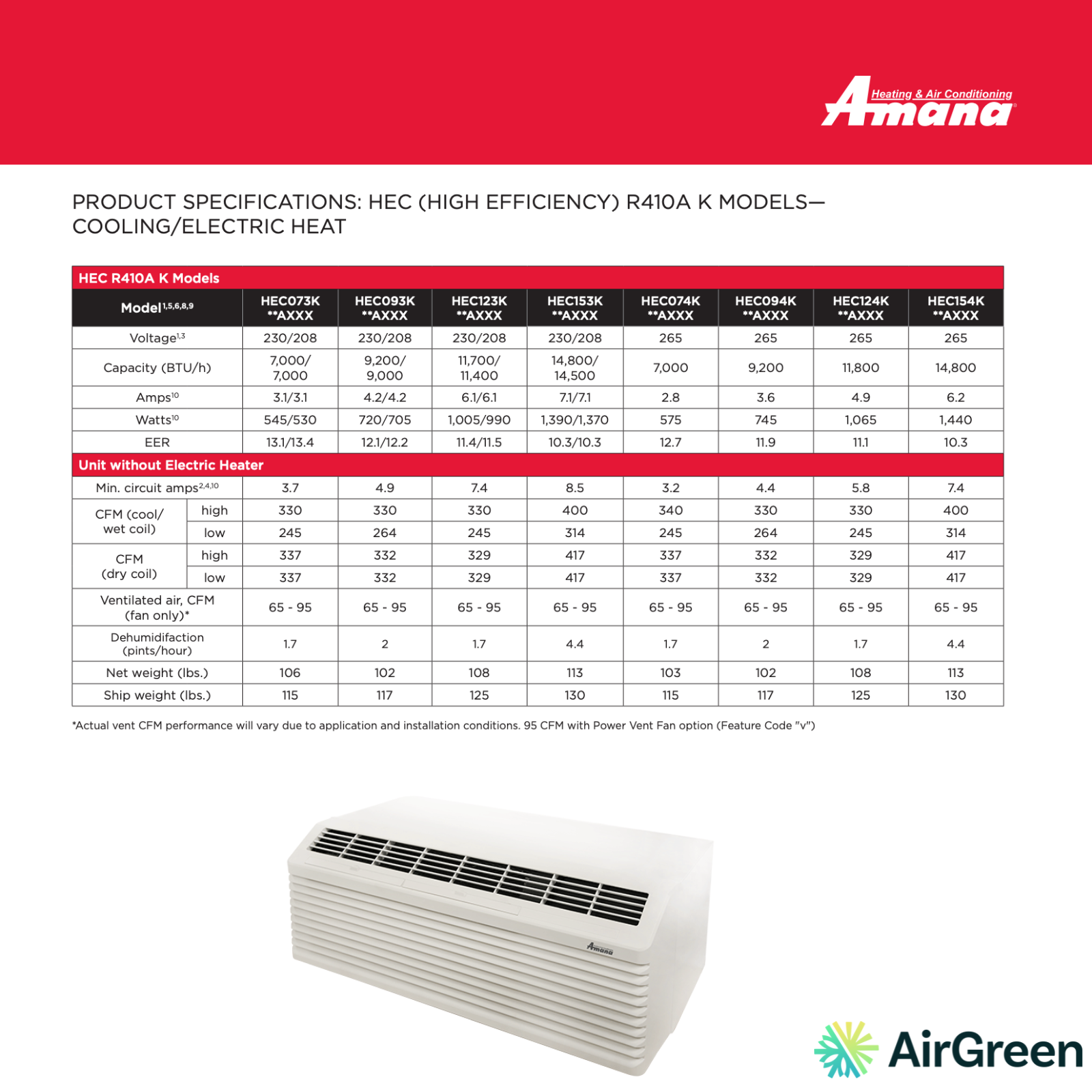

Complete spec sheetData and cited sources
- Model
- HEC123K**AXXX
- Cooling capacity (208/230 V)
- 11,400 / 11,700 BTU/h
- Electric heater (options)
- 1.5 kW · 2.5 kW · 3.5 kW · 5.0 kW
- EER (208/230 V)
- 11.5 / 11.4
- Current — compressor
- 6.1 A
- Airflow (low/high)
- 245 / 330 cfm
- Dehumidification
- 1.7 pints/h
- Application range
- ≈ 165 to 245 sq ft (AirGreen estimate)
- Front
- 7⅝ in deep
- Sleeve
- 42 × 16 ¹⁄₁₆ in, 14 ⅛ in deep
- Net weight
- 108 lb
- Refrigerant
- R-410A
- Power supply
- 208/230 V · 1 ph · 60 Hz
All values: Amana catalog MC-DPTAC 10-23 (October 2023) and manual IO-933A (December 2022). Operating cost: cooling at 1,026 W for 200 h per summer; heating estimated for a typical 205 sq ft room (1,464 kWh of heat per winter); at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The neighbouring models
Talk to an HVAC technician before you choose
We check the existing sleeve, the outlet and the heater size, and give you an installed price. For a building, we order the same series for every room.
Comfort, performance and energy efficiency for your spaces
At AirGreen, we know that a high-performance HVAC system isn't just about temperature, it's also about sound comfort, energy efficiency, and long-term reliability. The AMANA PTAC | 12,000 BTU | HEC (HIGH EFFICIENCY) R410A K perfectly illustrates this philosophy: a solution designed for residential and commercial environments, capable of delivering exceptional performance while reducing energy consumption.
Technical characteristics and specifications
Capacity and design
-
Cooling capacity : 12,000 BTU
-
Refrigerant gas : R-410A
-
Voltage : 220V
-
Dimensions : 42 x 21.5 x 16 inches
-
Manufacturer's warranty : 5 years on the compressor, 1 year on parts
This model is designed to be installed with zero floor clearance , making it easy to integrate into any space, while preserving usable surface area.
Energy efficiency and savings
With an EER of up to 14.0 and a COP of up to 3.9 , the AMANA PTAC can potentially qualify you for subsidies offered by electricity companies. Combined with the Eden Concierge system , it can reduce energy consumption by up to 35% or more through intelligent temperature and operating cycle management.
Exceptional acoustic comfort
The new design of this PTAC makes it the quietest in the Amana range :
-
Two separate motors for indoor and outdoor use
-
Internal tangential fan for quiet operation
-
Sound insulation index STC 29 , ideal for environments requiring peace and quiet
At AirGreen, we have installed this model in hotels, student residences and offices in Montreal , Laval and Longueuil , and customer feedback is unanimous: the noise level is so low that you can barely hear it.
Integrated technologies and connectivity
The AMANA PTAC is designed to simplify management and maintenance:
-
Built-in Bluetooth® : Quick setup and diagnostics via the Amana mobile app (iOS and Android)
-
Integrated RF communication : direct connection to the Eden wireless thermostat (optional)
-
Centralized control possible for managing multiple units
These features allow our customers on the North Shore and South Shore to easily monitor and adjust their systems, optimizing comfort and energy performance.
Maintenance and durability
-
Washable and easy to remove filters
-
Condensate dispersion system that reduces water flow and increases cooling efficiency
-
Anti-freeze protection that activates the heating as soon as the temperature drops below 4°C
-
High pressure protection to extend the life of the device
We have found on our construction sites that these elements significantly reduce maintenance interventions and increase the longevity of the device.
Safety and reliability
Each unit is 100% factory tested , including leak detection and performance checks. In the event of compressor failure, the emergency heating mode automatically takes over, ensuring continuous comfort even in the coldest conditions.
Why choose AirGreen for your AMANA PTAC installation
-
100% free on-site estimate throughout Montreal, Laval, Longueuil, North Shore and South Shore
-
Certified refrigeration technicians with years of experience in HVAC installation
-
Transparent prices : no surprises, final quote before work
-
Payment at the end only when you are completely satisfied
Thanks to our numerous installations of the AMANA PTAC in various contexts, we have acquired expertise that guarantees rapid installation, compliant with standards and optimized for performance.
Conclusion
The PTAC AMANA | 12,000 BTU | HEC R410A K is much more than just an air conditioning and heating unit. It's a complete, durable, quiet, and energy-efficient solution, perfectly suited to the diverse needs of homes, businesses, and hotels in the greater Montreal area.
Contact AirGreen today to benefit from our expertise and discover how this model can transform the comfort of your space.
