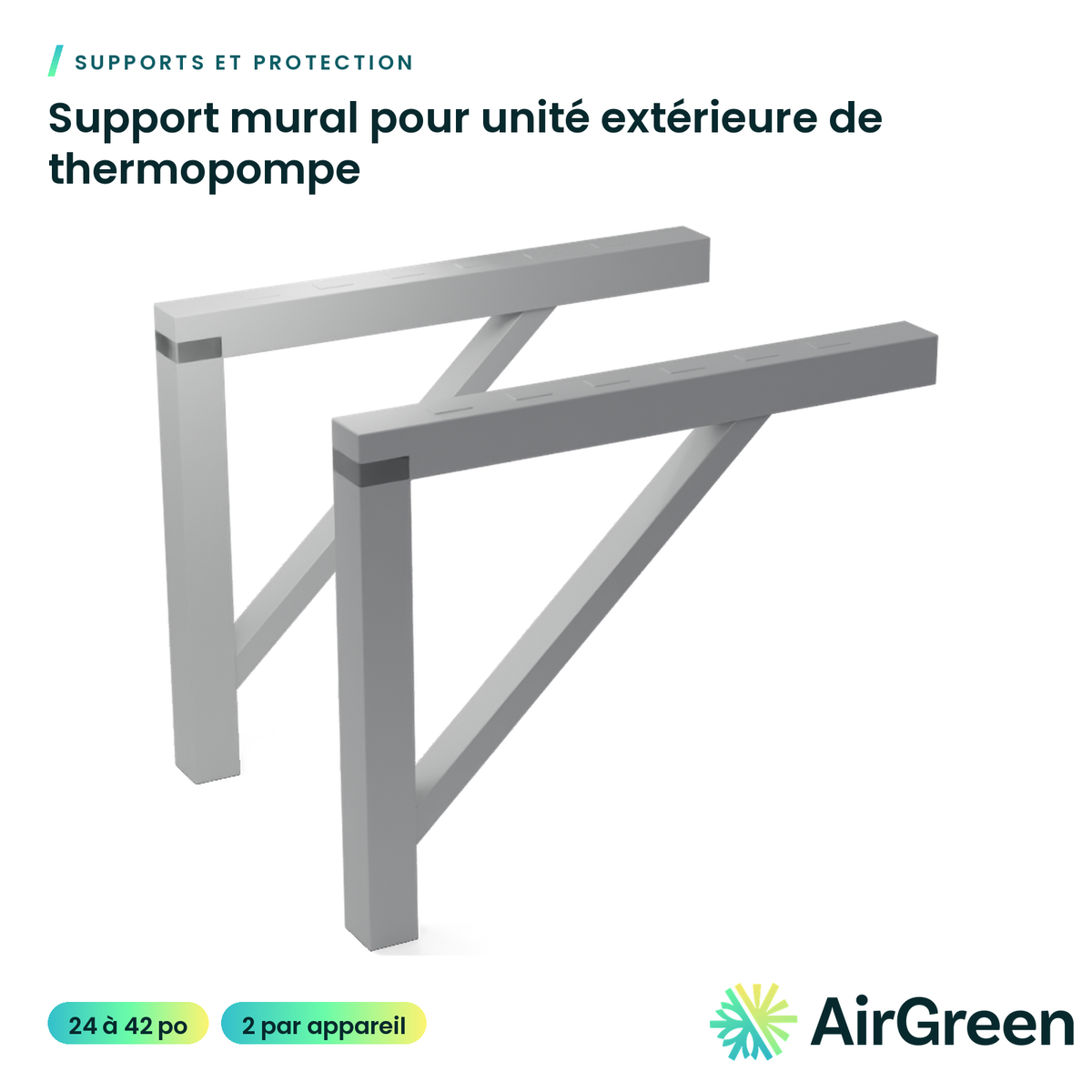

Wall Bracket for Heat Pump Outdoor Unit
The wall bracket that keeps your heat pump’s outdoor unit above the snow, firmly fixed to the wall.
AirGreen codeAG-SP-00101
514 316-2973 · sales@airgreen.ca
Quick facts
The outdoor unit wall bracket lets you hang the outdoor unit of a wall-mounted heat pump or a multi-zone system directly on the wall of the house. The unit stays above snow and standing water, and the space in front of the wall stays clear. The bracket is sold individually: you need two per unit.
Why mount the outdoor unit on the wall
In Montréal, snow can pile up high against the foundation. A unit set too low ends up buried, and defrost water refreezes under it. On a wall, the unit breathes better in winter and water drips away freely. It is also the answer when the ground is sloped, cluttered or too narrow for a ground stand.
Four sizes
- 24 × 16 in
- 30 × 16 in
- 36 × 24 in
- 42 × 22 in
The right size depends on the depth and weight of the outdoor unit, listed in the unit’s manual. For a heavy unit, see our heavy-duty 115 lb or 200 lb wall bracket instead.
Installation tips
The anchors depend on the wall: brick, concrete and wood studs are not fastened the same way. Place anti-vibration pads between the unit and the rails to limit the noise carried into the house, and respect the clearances around the unit required by the heat pump manufacturer.
Supplied and installed by AirGreen across Greater Montréal
Our refrigeration technicians install the brackets and the outdoor unit on every heat pump installation in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For the availability of a size or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the size and quantity.

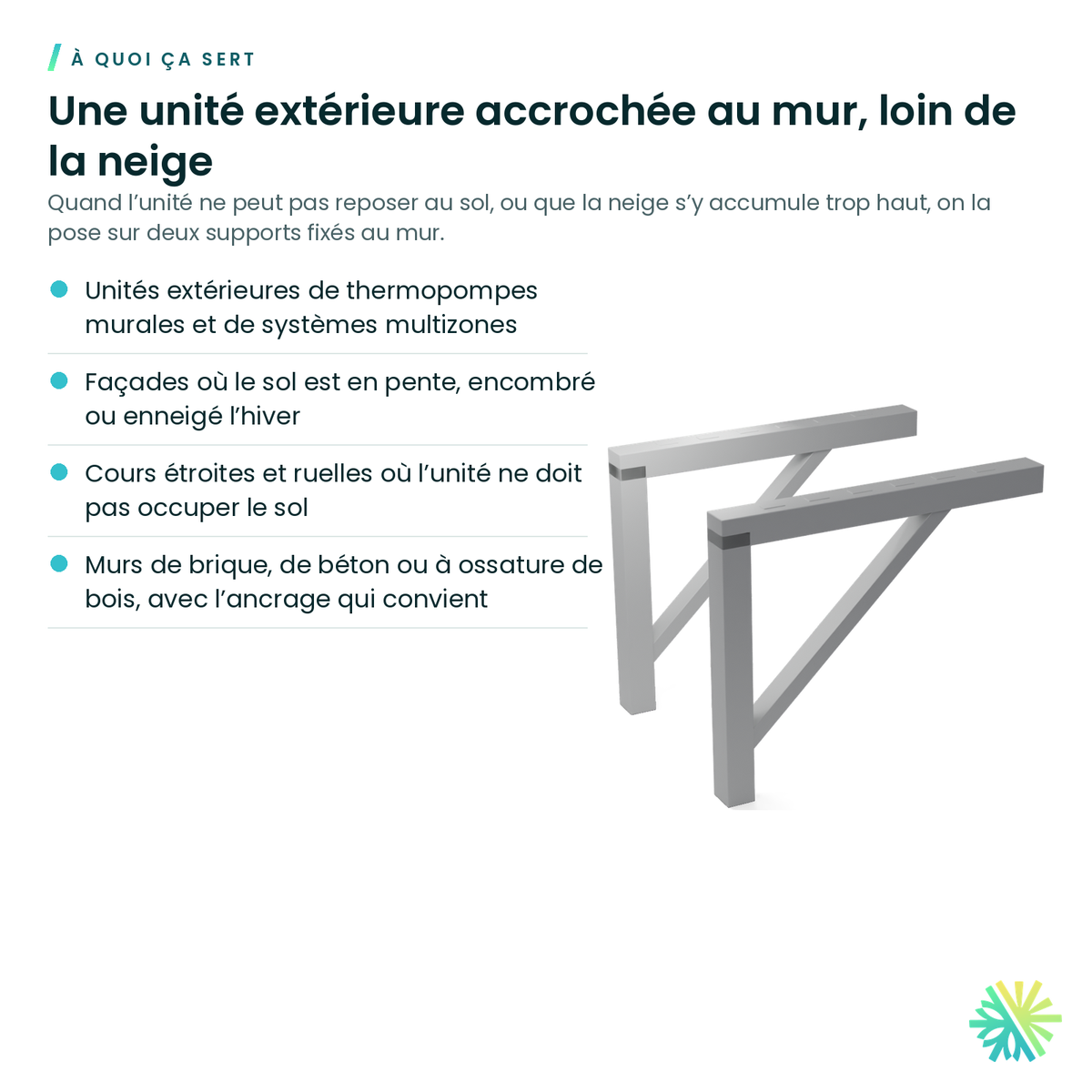

An outdoor unit on the wall, away from the snow
When the unit cannot sit on the ground, or snow piles up too high, it goes on two brackets fixed to the wall.
- Outdoor units of wall-mount heat pumps and multi-zone systems
- Walls where the ground is sloped, cluttered or snowed in during winter
- Narrow yards and lanes where the unit should not take up ground space
- Brick, concrete or wood-frame walls, with the right anchors

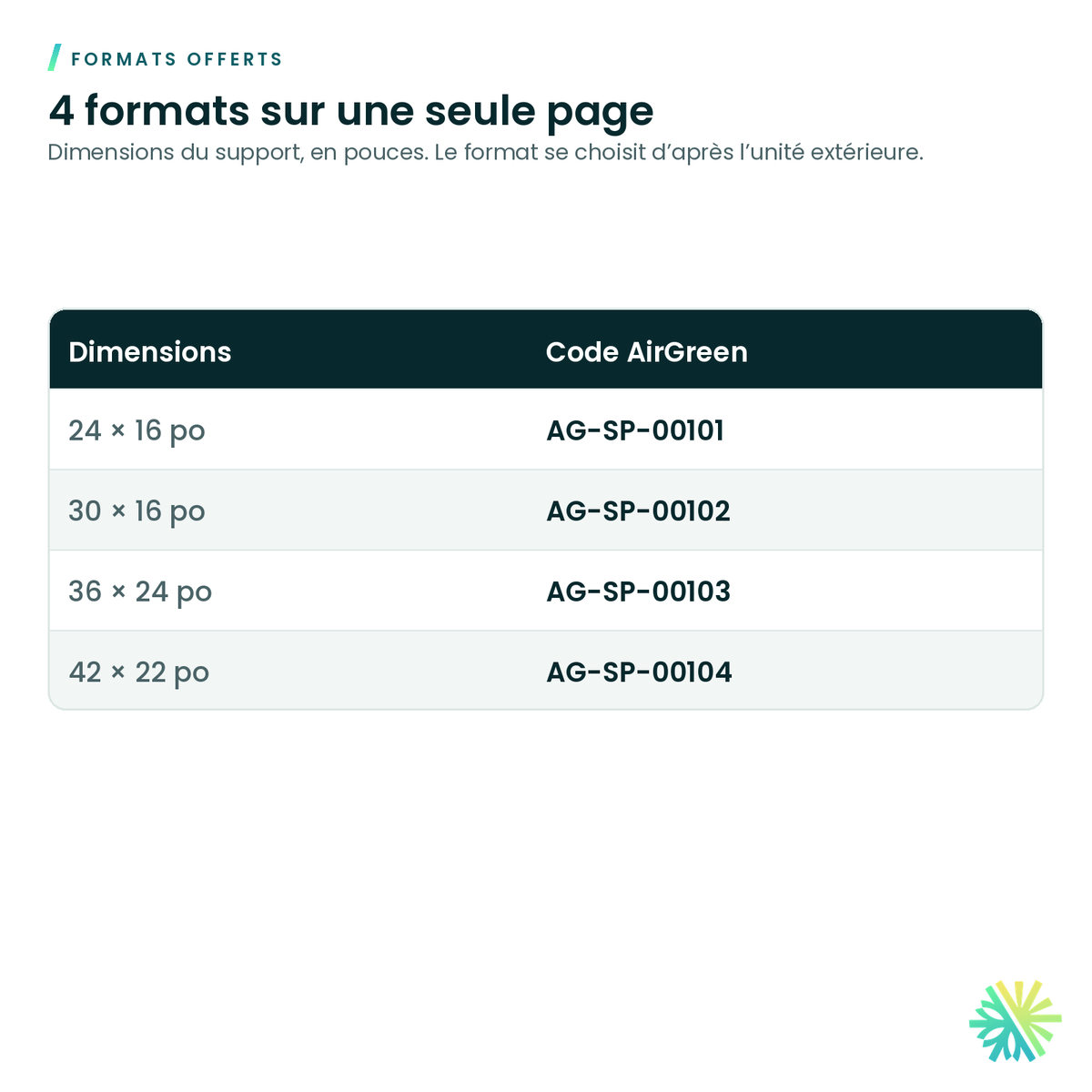

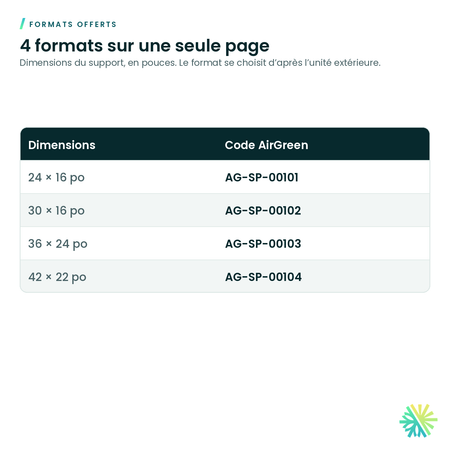

4 sizes, one page
Each size has its own AirGreen code. Tap a row to select it.
| Dimensions | AirGreen code |
|---|---|
| 24 × 16 in | AG-SP-00101 |
| 30 × 16 in | AG-SP-00102 |
| 36 × 24 in | AG-SP-00103 |
| 42 × 22 in | AG-SP-00104 |
Bracket dimensions, in inches. The size depends on the outdoor unit.

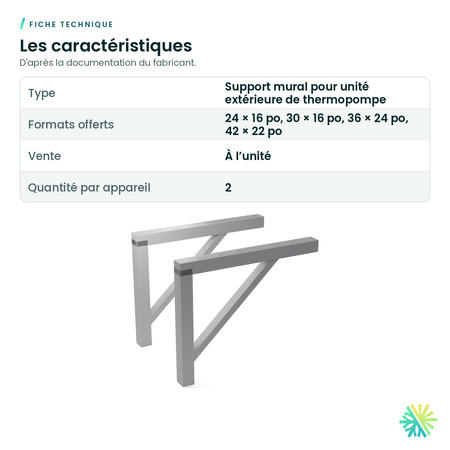

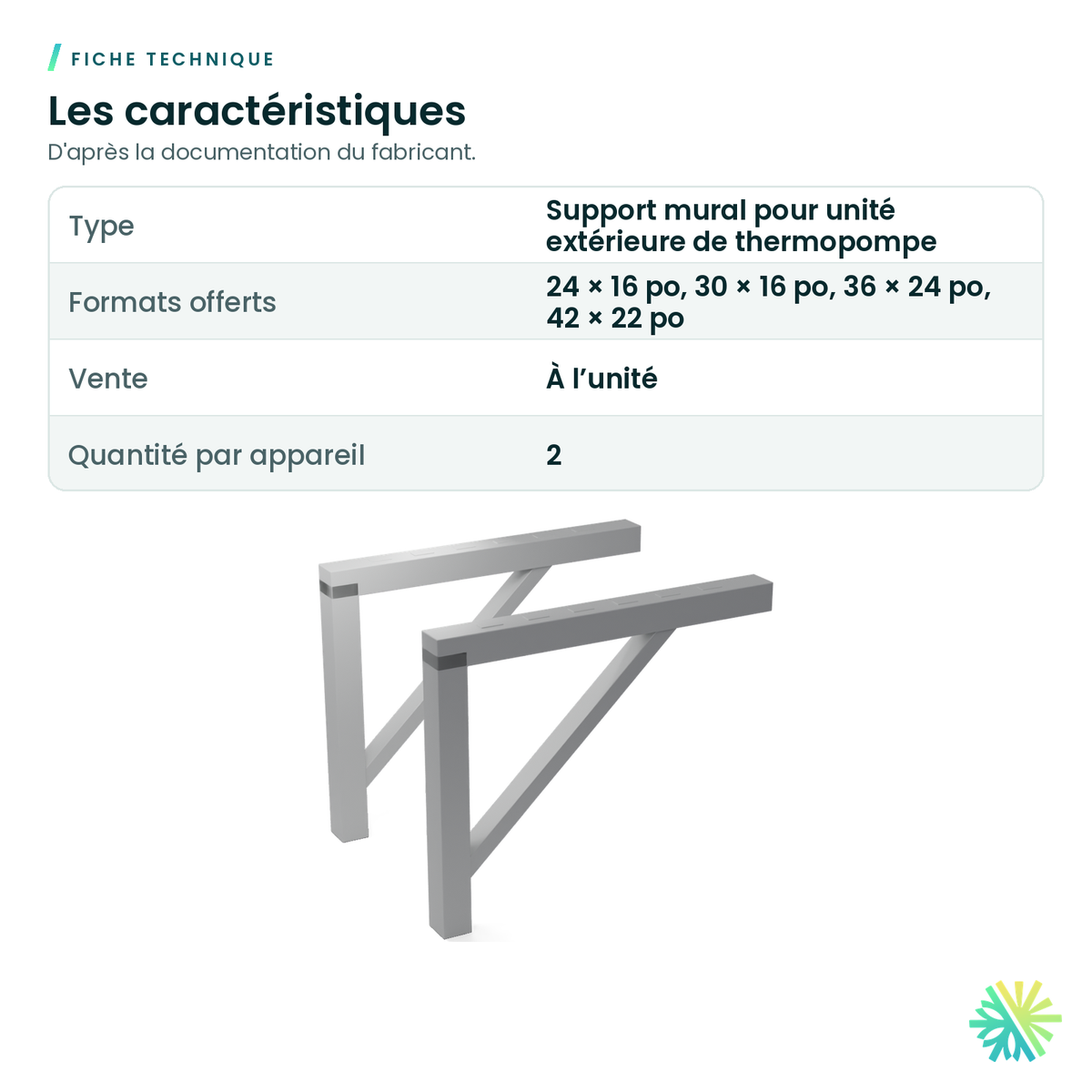

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

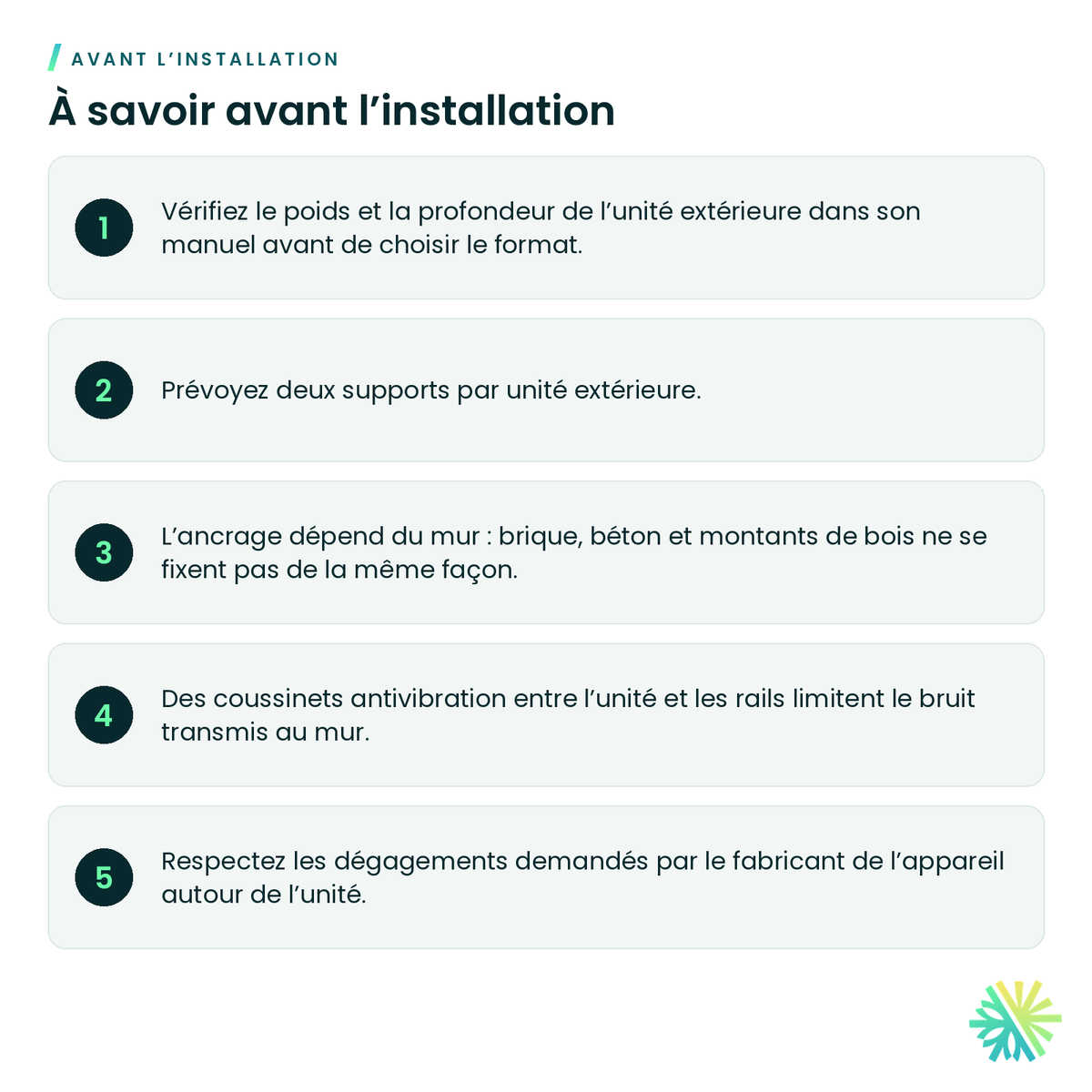

What to know before installing
- Check the outdoor unit’s weight and depth in its manual before choosing a size.
- Plan two brackets per outdoor unit.
- Anchoring depends on the wall: brick, concrete and wood studs are fastened differently.
- Anti-vibration pads between the unit and the rails reduce noise carried into the wall.
- Keep the clearances the equipment maker asks for around the unit.
You may also need
Heavy-Duty Wall Bracket for Heat Pump (115 or 200 lb)
Rubber Anti-Vibration Pads – Box of 48
Plastic End Caps for Wall Bracket – Box of 50
Protective Roof for Heat Pump Outdoor Unit
Outdoor Disconnect Switch for Heat Pump
Copper Pipe Clamp
Protective Roof Extension for Two-Fan Units
3 in Thick Condenser PadLine sets, brackets, cover, drain, disconnect and cable on one page.See the kitSame category
Brackets and protectionSee all
Frequently asked questions
Which size do I need?
It depends on the depth and weight of the outdoor unit, listed in its manual. Send us your heat pump model and we tell you which size fits.
How many brackets do I need?
Two per outdoor unit. The bracket is sold individually.
How is it different from the heavy-duty wall bracket?
The heavy-duty bracket is meant for heavier units, such as large multi-zone units, with a 115 lb or 200 lb capacity depending on the model.
Can you install it?
Yes. Our technicians mount the brackets and the outdoor unit when they install your heat pump, everywhere in Greater Montréal.
Wall brackets for a properly mounted outdoor unit
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
