MIDEA28 5-Head Heat Pump | Compressor: 36,000 BTU | Montreal, Laval, South Shore and North Shore
The Midea28 36 000 multi-zone heat pump heats and cools 5 rooms with a single outdoor unit. it delivers 38,000 BTU/h at −8 °C, heats down to −30 °C and qualifies for a $4,560 LogisVert grant. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
5 rooms, one outdoor unit.
Compared with the 141 multi-zone systems of 36,000 BTU we sell. Every number on this page carries its source.
The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 5 heads and modulates from 10,000 to 38,000 BTU/h depending on what the rooms call for (NEEP).
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.
Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 100 % of its rated capacity.
Tap a temperature: certified capacity, efficiency and the cost of one hour of heating.
It slows down, it speeds up: the certified modulation range
Light bar: from minimum to maximum capacity. Dark mark: the rated value.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
A grant you can calculate, not guess.
The capacity at −8 °C comes from Hydro-Québec’s list of October 1, 2026. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).
Where it ranks among same-size multi-zone systems.
Compared with the 141 multi-zone systems of 36,000 BTU we sell, using the LogisVert list figures. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.
What is particular about this machine.
Only facts published by ENERGY STAR, NEEP or the manufacturer.
Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.

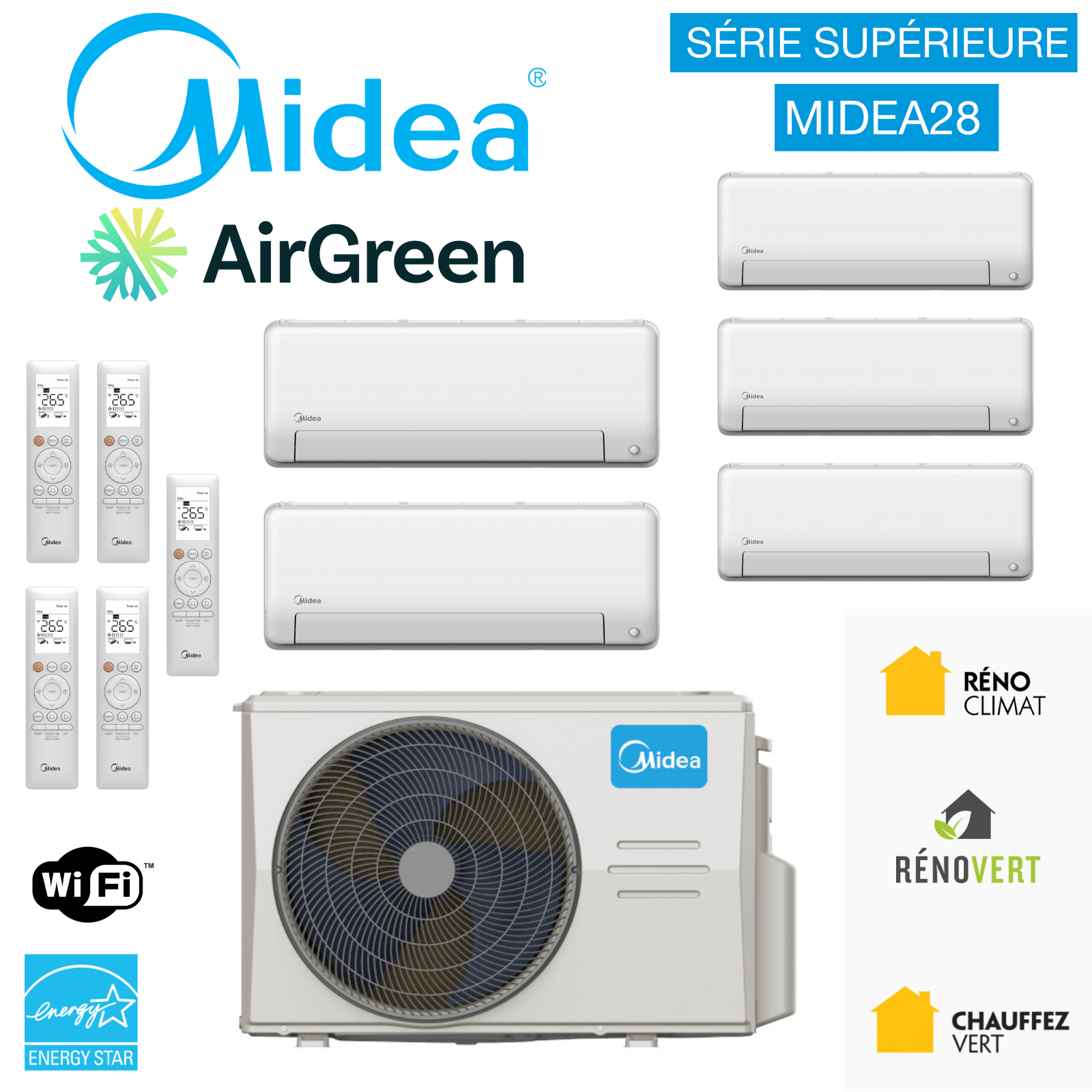

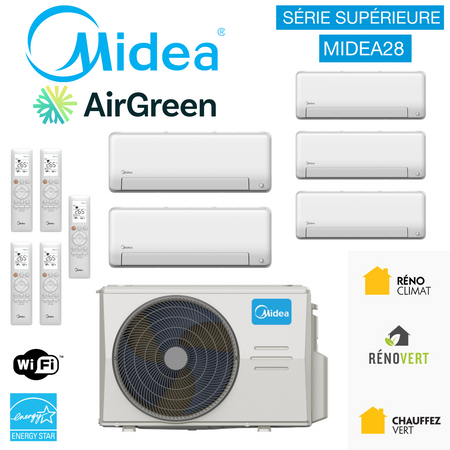

Tailor-made comfort in every room with the MIDEA28 5-Head Heat Pump – 36,000 BTU Compressor
At AirGreen, we understand that every home is unique. That's why we offer truly customized HVAC solutions for homes in Montreal, Laval, Longueuil, the North Shore, and the South Shore. Today, we're taking a closer look at the MIDEA28 5-head heat pump with a 36,000 BTU compressor , a high-performance, ENERGY STAR®-certified multi-zone system that redefines comfort and energy efficiency for large properties or complex developments.
A powerful and flexible multi-zone solution
The MIDEA28 5-zone heat pump , with its 36,000 BTU compressor (outdoor model MO5HX-H36B-2A ), allows you to connect up to five indoor units of different capacities (6K to 18K BTU), all individually controlled. It is the ideal option for efficiently cooling or heating multiple rooms while maintaining precise control over energy consumption.
Main technical characteristics
-
Heating capacity to -30°C : Ideal for the Quebec climate.
-
High performance 36,000 BTU compressor .
-
Eco-friendly refrigerant R-454B : Less polluting, more efficient.
-
Energy efficiency :
-
SEER2: 23.0
-
HSPF2: 10.7
-
EER2: 13.0
-
-
ENERGY STAR® (Cold Climate) certified .
-
Full 12-12-10 year warranty (parts, compressor, labor).
-
Exterior noise level : 65 dB(A).
-
Voltage : 220V.
-
External dimensions : 38.5 x 16.38 x 38.38 inches.
Compatible indoor units
The MIDEA28 model is compatible with a wide range of wall-mounted, console, ceiling-mounted, and ducted indoor units. Here are some commonly installed models:
-
MSEHU-H06B-2A (6,000 BTU)
-
MSEHU-H09B-2A (9,000 BTU)
-
MSEHU-H12B-2A (12,000 BTU)
-
MSEHU-H18B-2A (18,000 BTU)
-
MSEHU-H24B-2A and H33B-2A (24,000 and 33,000 BTU)
These units can be configured in custom combinations such as 6+6+6+6+12 , 6+6+9+9+18 , or 9+9+9+9+12 , depending on the thermal needs of your home.
A heat pump perfectly suited to Quebec homes
Moving to Longueuil: Total Comfort for a Family of Five
Recently, our AirGreen team installed this MIDEA28 system in a single-family home in Longueuil. Each children's bedroom received a 6,000 BTU wall-mounted unit, while the master bedroom and living room were equipped with 9,000 BTU units. The result: independent room temperature control , reduced energy consumption , and total customer satisfaction.
Why choose a multi-zone heat pump?
1. Individualized comfort
Each occupant can adjust the temperature according to their preferences, without impacting other zones.
2. Energy savings
There is no need to heat or air condition unoccupied rooms. This results in lower bills .
3. Flexible installation
Whether in a house being renovated or a new construction, the MIDEA28 heat pump adapts to all configurations thanks to its wall-mounted, console or ducted units .
4. Small footprint
One outdoor unit for five zones = less space required and reduced visual impact.
Smart and autonomous technology
The system is Wi-Fi compatible (optional) and can be controlled remotely. It also incorporates SynchroConnect technology, which allows for auto-detection and auto-configuration of refrigerant and cable connections, even if they are reversed during installation—a huge advantage for ensuring fast, error-free operation.
Grants available – up to $3,600 with LogisVert
Thanks to its exceptional performance and Cold Climate ENERGY STAR® certification, this system is eligible for the $3,600 LogisVert provincial grant (updated: May 1, 2025). Our AirGreen experts will assist you in the complete preparation of the grant application , at no additional cost.
AirGreen: unparalleled field expertise
With certified teams and hundreds of successful installations in Montreal, Laval, Longueuil, the South Shore, and the North Shore, we have recognized expertise in complex multi-zone systems like the MIDEA28. Every project begins with a free on-site evaluation , followed by a clear, detailed, and no-surprise quote.
What our customers appreciate about AirGreen
-
No advance payment required: pay only at the end.
-
Transparent prices , always communicated before installation.
-
Experienced, efficient and courteous technicians .
-
Fast and available after-sales support .
-
Showroom in Boucherville , to see the units in person.
Additional system details
-
Maximum number of zones: 5
-
AHRI : 215471463
-
Outdoor compressor reference : MO5HX-H36B-2A
-
Cooling capacity: 36,000 BTU
-
Stable heating capacity down to -30°C
-
R-454B gas : efficient and ecological
AirGreen: the benchmark in multi-head heat pumps in Montreal
Whether it's to modernize a duplex in Montreal , optimize a house in Laval or install a complete system in a triplex on the South Shore , the MIDEA28 5-zone heat pump stands out as one of the most efficient, ecological and comfortable solutions on the market.
Is this system right for you?
If you are looking for:
-
To manage different temperature zones in your residence.
-
Reduce your energy costs by targeting only occupied rooms.
-
A system that works even during the extreme cold of Quebec .
-
A solution subsidized by the Quebec government .
…then this model is made for you .
Get a free estimate now
At AirGreen, we believe in transparency, efficiency, and professional service. Contact us today for a free, no-obligation in-home assessment and discover why hundreds of families in the Greater Montreal area trust us every year.
Call us now at (514) 316-2973 or email sales@airgreen.ca to schedule your free appointment.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 38,000 BTU/h at −8 °C, 36,000 at −15 °C and 22,400 at −30 °C.
How many heads can I connect?
Up to 5 on this outdoor unit. This product is configured for 5 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 12 combinations, from 6+6+6+6+6 to 9+9+9+9+12 (in thousands of BTU). Each head is sized for its room.
How much is the LogisVert grant?
$4,560 according to Hydro-Québec’s list of October 1, 2026. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.
Is it ENERGY STAR certified?
Yes, cold climate, ID 3627489. It also meets the ENERGY STAR Most Efficient criteria, according to the ENERGY STAR database.
Down to what temperature does it heat?
Down to −30 °C. At −30 °C, it still delivers 22,400 BTU/h with a COP of 1.47.
Is it noisy?
Indoors, the reference head goes down to 20 dB(A). Outdoors, 65 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 12 years on the compressor and 12 years on parts; labour is not included by the manufacturer. AirGreen extended warranty: included.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
