MIDEA28 Dual Zone Heat Pump | Compressor: 18,000 BTU | Montreal, Laval, South Shore and North Shore

In stock
SKU: MO3HX-H18B-2A-2-1
18,000BTU/h · 2 heads
−30 °Cheats down to
$2,400LogisVert, indicative
ENERGY STAR® cold climateENERGY STAR Most EfficientOptional Wi-FiR-454BUp to 3 heads
Areas
Talk to a technician · 514 316-2973
Outdoor unit MO3HX-H18B-2APossible indoor models MSEHU-H06B-2A, MSEHU-H09B-2A, MSEHU-H12B-2AAHRI 215471457· ENERGY STAR 3627483
In short

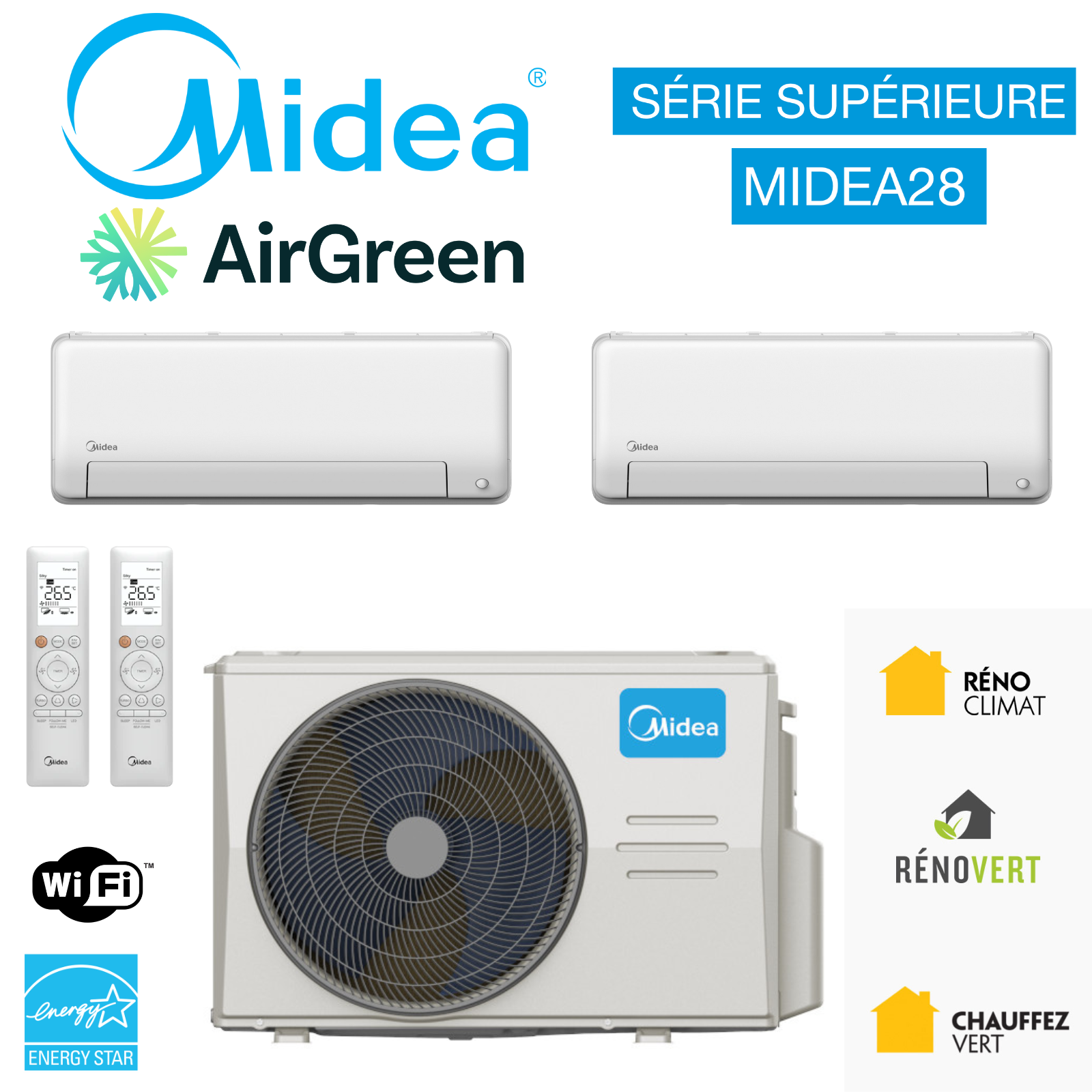

The Midea28 18 000 multi-zone heat pump heats and cools 2 rooms with a single outdoor unit. it delivers 20,000 BTU/h at −8 °C, heats down to −30 °C and qualifies for a $2,400 LogisVert grant. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.

01 · The verdict in 10 seconds

2 rooms, one outdoor unit.

Compared with the 48 multi-zone systems of 18,000 BTU we sell. Every number on this page carries its source.

ENERGY STAR Most EfficientNEEP 387282AHRI 215471457LogisVert · October 1, 2026
+SEER2 25.0Rank 1 (tied) of 47. Class median: 22.0.
+EER2 15.0Rank 1 (tied) of 45. Class median: 12.5.
+20,000 BTU/h at −8 °CRank 2 (tied) of 45. Class median: 15,000 BTU/h.
!Good to know: 62 dB(A) outdoorsRank 42 of 48; class median: 56 dB(A).
20,000BTU/h certified at −8 °C
−30 °Cstill heating
2 → 3heads, on the same unit
2.53COP at −8 °C
$2,400LogisVert, indicative
02 · The machine

The parts that make a multi-zone system.

Tap a part to learn more.

MO3HX-H18B-2A

Outdoor unit

One compressor for the whole house. It supplies up to 3 heads and modulates from 5,700 to 20,000 BTU/h depending on what the rooms call for (NEEP).

03 · How it works

Turn rooms on and off. Watch the power being shared.

One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.

04 · My plan

Tell us your rooms. We tell you if this size is enough.

Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.

05 · The series

The whole series at a glance: find the box that fits you.

Each box is a product: the outdoor unit’s size, and the number of heads.

Outdoor2 zones3 zones4 zones5 zones6 zones
18,000BTU
Here3
27,000BTU
234
36,000BTU
2345
48,000BTU
23456

Midea28 18 000 · 2 zones

20,000 BTU/h
at −8 °C
$2,400
LogisVert

Up to 3 heads on this outdoor unit. Tap another box to see that size.

06 · Deep cold

At −15 °C, it still delivers 105 % of its rated capacity.

Tap a temperature: certified capacity, efficiency and the cost of one hour of heating.

It slows down, it speeds up: the certified modulation range

Light bar: from minimum to maximum capacity. Dark mark: the rated value.

+8.3 °C
5,700 → 27,000 BTU/h
-8 °C
3,800 → 20,000 BTU/h
-15 °C
3,500 → 19,000 BTU/h
Source: NEEP, minimum, rated and maximum ratings at 47, 17 and 5 °F.
07 · The bill

At every temperature, cheaper than baseboards.

Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.

08 · Efficiency

The official ratings, on the same scales as before.

SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.

SEER2 · seasonal cooling25.0
Scale 1 – 30Median: 22
Rank 1 (tied) of 47 in its class.
HSPF2 · seasonal heating10.4
Scale 1 – 15Median: 10
Rank 8 (tied) of 46 in its class.
EER2 · cooling in peak heat15.0
Scale 1 – 20Median: 12.5
Rank 1 (tied) of 45 in its class.
COP at −15 °C2.0
Scale 0 – 4Median: 2
Rank 16 (tied) of 41 in its class.
ENERGY STAR Most EfficientCold climate · ID 3627483 · ENERGY STAR database
09 · LogisVert grant

A grant you can calculate, not guess.

20,000 BTU/h÷ 1,000 ×$120=$2,400

The capacity at −8 °C comes from Hydro-Québec’s list of October 1, 2026. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).

Set for this system (AHRI 215471457). Another head combination (ducted, console) can change the AHRI number, and so the amount.
Cap: the grant never exceeds 100 % of the purchase and installation cost before taxes.
9 months after installation to apply; +5 % when two measures are in the same request.
All about LogisVert, with the simulator
10 · Report card

Where it ranks among same-size multi-zone systems.

Compared with the 48 multi-zone systems of 18,000 BTU we sell, using the LogisVert list figures. Weaknesses too, said plainly.

11 · Head-to-head

Against three other brands in its class.

Same rated size, other manufacturers. Pick the opponent.

12 · Multi-zone or wall units

One multi-zone or several wall units? Both sides, honestly.

This multi-zone2 wall units
On the wall1 outdoor unit2 outdoor units
Electrical1 dedicated circuitOne circuit per unit
CapacityShared between roomsReserved for each room
If the outdoor unit stopsEvery zone stopsOnly one room
ModesSame mode everywhereEach room chooses
LogisVert$2,400 for the systemDepends on each model

We compare both options on your floor plan during the estimate.

13 · Installation

What to know before installing a multi-zone system.

Dimensions, wiring and lines, drawn. Then our six steps.

The outdoor unit, dimensioned

31.88 in
MO3HX-H18B-2ADepth 16.13 in
37.25 in
Dimensions: product sheet (W × D × H).

One circuit for the whole house

Electrical panel
Load calculation before the quote
20 A max. breaker
MCA 16 A · 220 V
Outdoor unit
Head 1
Head 2
Our RBQ licence covers electrical work (subclass 16).
01Room-by-room visit and surveyWe measure each zone and note insulation and windows. The on-site estimate is free.
02Heads and line layoutOne pair of lines per head.
03Outdoor unit baseAbove the snow line, away from the neighbours’ bedroom windows.
04Exposed, finished linesLines 1/4 - 3/8 in under line covers, no work inside the walls.
05Dedicated circuit220 V, MCA 16 A, 20 A protection. The panel load calculation is done before the quote.
06Commissioning, zone by zoneEach head is tested and the controls set up. Then the LogisVert application within 9 months.
14 · Sound

Published sound levels, on one scale.

We use the outdoor figure to choose where the unit goes.

20
47
62
27
56
20 dB(A)3040506070
20 Reference head, lowest speed47 Reference head, highest speed27 Class indoor median62 Outdoor unit56 Class outdoor median
Values in dB(A). Indoor values are those of the sheet’s reference head; each head has its own, confirmed for the chosen model. Municipal noise by-laws vary by borough.
15 · What sets it apart

What is particular about this machine.

Only facts published by ENERGY STAR, NEEP or the manufacturer.

Most EfficientENERGY STARAmong the year’s most efficient according to ENERGY STAR, on top of its cold-climate certification.
5,700BTU/h at low speedMinimum certified capacity (NEEP): it slows down instead of stopping when a single room calls.
−30 °CColdest certified pointNEEP still lists 10,000 BTU/h at a COP of 1.30 at −22 °F.
150 WBase pan heaterHeater in the outdoor unit’s base pan, against ice (NEEP).
16 · Specifications

Every number, and where it comes from.

Each line carries its source; a line with no published value is not shown.

Performance
Cooling capacity (size)18,000 BTU · 1,5 tonsSheet
Certified cooling at 35 °C19,000 BTU/hNEEP
SEER2 (seasonal cooling efficiency)25.0AHRI
EER2 (instant cooling efficiency)15.0AHRI
HSPF2 (seasonal heating efficiency, region IV)10.4AHRI
HSPF2, region V (coldest)8.5NEEP
Dehumidification0.0 pints/hSheet
Heating
Capacity at +8.3 °C20,000 BTU/h · COP 3.99NEEP
Capacity at −8 °C20,000 BTU/h · COP 2.53NEEP
Capacity at −15 °C19,000 BTU/h · COP 2.0NEEP
Capacity at −30 °C (max.)10,000 BTU/h · COP 1.3NEEP
Modulation range5,700 – 20,000 BTU/hNEEP
Heats down to−30 °CSheet
Zones and heads
Zones on this product2 Zones (Dual Zone)Sheet
Maximum zones3 Zones (Triple Zone)Sheet
Possible indoor modelsMSEHU-H06B-2A, MSEHU-H09B-2A, MSEHU-H12B-2ASheet
Combinations offered7 · 6+6 … 12+12Sheet
Indoor dimensions (W × D × H)33.38 × 9.13 × 11.75 inSheet
Vertical louversManualSheet
Horizontal louversAutoSheet
Airflow (reference head)441 CFMSheet
Indoor sound (reference head)20 – 47 dB(A)Sheet
Installation
Outdoor unit (W × D × H)37.25 x 16.13 x 31.88 inSheet
Line sizes1/4 - 3/8 inSheet
Outdoor sound62 dB(A)Sheet
Base pan heater150 WNEEP
Electrical
Voltage220 VSheet
MCA (minimum circuit ampacity)16 ASheet
MOP (maximum overcurrent protection)20 ASheet
RefrigerantR-454BSheet
Wi-FiOptionalSheet
Certifications and warranty
AHRI215471457AHRI
ENERGY STARYes · cold climate · ID 3627483ENERGY STAR
ENERGY STAR Most EfficientYesENERGY STAR
LogisVert grant (indicative)$2,400LogisVert
Warranty (compressor · parts · labour)12 yrs · 12 yrs · 0 yrsSheet
AirGreen extended warrantyIncludedSheet
17 · Official brochures

The manufacturer’s documentation, as PDF.

18 · Description

Everything we have written about this system.

Exemplary performance for two distinct zones

The MIDEA28 Dual Zone Heat Pump | Compressor: 18,000 BTU is a high-quality HVAC (heating, ventilation and air conditioning) solution to meet the comfort needs of two separate spaces. At AirGreen, we frequently see that many homeowners in Montreal , Laval , Longueuil , as well as on the North Shore and South Shore , are looking for systems that can offer precise temperature control while remaining energy efficient. This dual zone heat pump is a very attractive choice for several reasons: optimized performance, a reliable 18,000 BTU compressor, operation in difficult climatic conditions, and the possibility of expanding to a third zone if necessary.

Why choose the MIDEA28 DoubleZone Heat Pump

Several features set the MIDEA28 Dual Zone Heat Pump apart on the market. First and foremost, its 18,000 BTU compressor provides adequate heating and cooling capacity for most mid-sized homes or small businesses. Furthermore, this model supports up to two indoor units simultaneously, allowing two separate rooms or floors to be heated or cooled. Occupants in each zone can then adjust the temperature to their preferences, avoiding the energy waste that typically occurs when a single system manages an entire property.

At AirGreen, we have already installed this type of dual-zone heat pump in duplexes and multi-story homes located in Longueuil and on the North Shore . The results have demonstrated significant customer satisfaction in terms of comfort. In addition, homeowners have observed savings on their electricity bills, especially during periods of extreme cold.

Technical sheet and key points

  • Heating capacity : up to -30°C , making it an excellent option for facing our harsh Quebec winters.

  • Cooling Capacity : 18,000 BTU , ideal for areas of approximately 800 to 1,200 sq ft, depending on insulation and configuration.

  • Refrigerant : R-454B , a newer refrigerant with low global warming potential. At AirGreen, we advocate innovation and respect for the environment, hence our choice of products based on more environmentally friendly refrigerants.

  • SEER2 : 25.0, which indicates remarkable energy efficiency in air conditioning mode.

  • HSPF2 : 10.4, a guarantee of excellent performance in heating mode.

  • Exterior Dimensions : 37.25 in (Width) x 16.13 in (Depth) x 31.88 in (Height).

  • WiFi technology (optional): to control the system remotely via your smartphone or tablet.

  • Sound level : 62 dB(A) outside, which remains relatively low for a heat pump of this range.

  • Warranty : 12 years compressor, 12 years parts, 10 years labor. An additional warranty (10-10-10) is also included, proof of the reliability of this equipment.

Getting Started with the DoubleZone Feature

The MIDEA28 Heat Pump 's DualZone feature allows for connection to two separate indoor units (wall-mounted, ceiling-mounted, mini-ducted, etc.). The main advantage is the individual temperature management per zone. For example, if you have a lower floor that is used more during the day and an upper floor that is used mainly in the evening, you can distribute the temperature and heating/cooling power according to the actual occupancy of the space. This flexibility prevents sudden temperature increases and decreases in unused rooms, while helping to reduce overall energy consumption.

AirGreen Experience: Real Case Studies

  1. Longueuil Project : A homeowner wanted to heat and cool both their ground floor and a finished basement. After analysis, we recommended the MIDEA28 DoubleZone Heat Pump | Compressor: 18,000 BTU . The main indoor unit was placed in the living room, while the second indoor unit was located in the basement. Residents reported savings of approximately 15% on their annual energy bill, as well as increased comfort thanks to independent control of both floors.

  2. North Shore Installation : In a small business, we installed this dual-zone heat pump to heat and cool two adjoining offices, each with its own remote control and schedule. Employees greatly appreciated the ability to adjust the temperature to their individual preferences. The management team also sees it as an excellent long-term investment.

Energy savings and reliability

The MIDEA28 Dual Zone Heat Pump 's high efficiency comes in part from its variable-speed compressor, which modulates power according to actual needs. In heating mode, especially in very cold weather, the heat pump can maintain a stable performance level down to -30 °C , reducing dependence on a backup system. At the same time, the ENERGY STAR (Cold Climate) energy class and the excellent SEER2/HSPF2 rating translate into lower electricity bills.

We also emphasize durability: the equipment is built with robust, corrosion-resistant components and a fan motor optimized to minimize wear. AirGreen offers a complete HVAC maintenance and follow-up service, ensuring that your HVAC system remains efficient over the long term.

Design and installation: practical points

  • Outdoor Unit Location : Thanks to its compact dimensions (37.25 x 16.13 x 31.88 in), it is easy to find a suitable location on the side or back of the house to limit space requirements and protect the unit from the elements.

  • Pipe Distances and Lengths : With Midea technology, you have the flexibility to connect indoor and outdoor units over distances that suit different housing configurations.

  • Optional Wi-Fi : Many customers appreciate the remote control. You can manage the temperature of each zone via a dedicated app.

  • Easy maintenance : Accessibility to filters and internal components has been designed to facilitate HVAC maintenance and promote increased longevity.

Provincial Grant (LogisVert): $2,112

As of May 1, 2025, the LogisVert grant can reach $2,112 for this model, depending on the eligibility criteria in effect. AirGreen is available to guide you through the process and help you maximize possible financial assistance. Many customers in Montreal , Laval , and on the South and North Shores have taken advantage of these government programs to reduce the total cost of acquiring and installing their heat pump.

Possibility of expansion to a third zone

Although this is a dual-zone system at its core, the manufacturer's documentation indicates that it can be expanded to three zones (triple zone) depending on the indoor configuration and the desired total output. At AirGreen, we can assess whether the three-indoor unit option is suitable for your future needs. Furthermore, the 18,000 BTU compressor is powerful enough to support a third unit, provided Midea recommends sizing.

Concrete example: a triplex in Montreal

In a triplex located in Montreal , one of the owner-occupants preferred to plan for a possible third zone for a basement expansion. We planned the installation taking this eventuality into account. For the moment, only two indoor units are operational (on the ground floor and the first floor). However, the wiring and piping for a future additional unit are in place. Therefore, when the basement is finished, it will be enough to add the compatible indoor unit.

Points of attention for the end user

  1. Regular Filtration : One of the most common issues our customers face is filter clogging. We recommend checking and cleaning the filter at least every two months to maintain optimal airflow.

  2. Automatic defrost : In winter, the heat pump occasionally performs defrost cycles. These operating phases are normal and essential to prevent frost from forming on the outdoor heat exchanger.

  3. Annual Maintenance : Our technicians recommend a thorough inspection every year to check the integrity of the components and ensure maximum performance.

  4. Smart use of programming : Reducing the temperature in unoccupied areas or programming a specific schedule helps reduce energy consumption, especially at night or when you are away.

The benefits of doing business with AirGreen

  • Free on-site estimate : We come to your home or business to assess your property and provide you with a detailed and transparent quote.

  • Experienced Technicians : The AirGreen team brings together professionals with solid experience in HVAC installation and maintenance . Their expertise guarantees commissioning that complies with standards and respects your property.

  • Responsive after-sales service : We know how important it is to have a reliable heating and cooling system, especially during extreme temperatures. That's why our experts provide fast and efficient follow-up when needed.

  • Payment upon completion only : We strive to offer our customers peace of mind. At AirGreen, you only pay once the work is completed and your satisfaction is confirmed.

Reliability and extended warranty

The MIDEA28 DoubleZone Heat Pump is backed by a 12-year warranty on the compressor and parts, as well as a 10-year warranty on labor. Additionally, AirGreen includes an additional 10-10-10 warranty to further protect your investment. Our market positioning in Montreal , Laval , Longueuil , the North Shore and the South Shore allows us to offer fast, local service. In the event of a breakdown, we have the necessary spare parts and a qualified team to intervene on site.

Customer feedback

Many of our customers highlight the flexibility of managing the two independent zones. Some have noted a reduction of more than 20% on their electricity bill compared to their previous all-or-nothing system. Most also appreciate the unit's quiet operation and consistent comfort. In our sector, which often experiences fluctuating temperatures, having a reliable compressor and a responsive heat pump is a major asset.

Conclusion and perspectives

By choosing the MIDEA28 DoubleZone Heat Pump | Compressor: 18,000 BTU , you are investing in an HVAC system adapted to the climatic reality of Quebec. Its capacity to operate down to -30 °C , its controlled energy consumption and its dual zone design (expandable to three) make it an ally of choice to improve your daily comfort. AirGreen is proud to offer this solution to residents and businesses in Montreal , Laval , Longueuil , the North Shore and the South Shore wishing to combine energy savings, performance and reliability.

Contact AirGreen now

Are you looking for a high-performance, long-lasting HVAC system for your home or business? We invite you to contact our team for more information, a detailed quote, or a personalized evaluation. At AirGreen, we strive to ensure that each customer benefits from a system tailored to their heating , ventilation , and air conditioning needs.

19 · Questions

What people ask us about multi-zone systems.

Can I heat one room and cool another at the same time?

No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.

What happens when every room calls for heat?

They share the outdoor unit’s capacity: 20,000 BTU/h at −8 °C, 19,000 at −15 °C and 10,000 at −30 °C.

How many heads can I connect?

Up to 3 on this outdoor unit. This product is configured for 2 heads.

Can I mix head sizes?

Yes. The “Zones” menu offers 7 combinations, from 6+6 to 12+12 (in thousands of BTU). Each head is sized for its room.

How much is the LogisVert grant?

$2,400 according to Hydro-Québec’s list of October 1, 2026. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.

Is it ENERGY STAR certified?

Yes, cold climate, ID 3627483. It also meets the ENERGY STAR Most Efficient criteria, according to the ENERGY STAR database.

Down to what temperature does it heat?

Down to −30 °C. At −30 °C, it still delivers 10,000 BTU/h with a COP of 1.3.

Is it noisy?

Indoors, the reference head goes down to 20 dB(A). Outdoors, 62 dB(A): we place the unit away from bedroom windows.

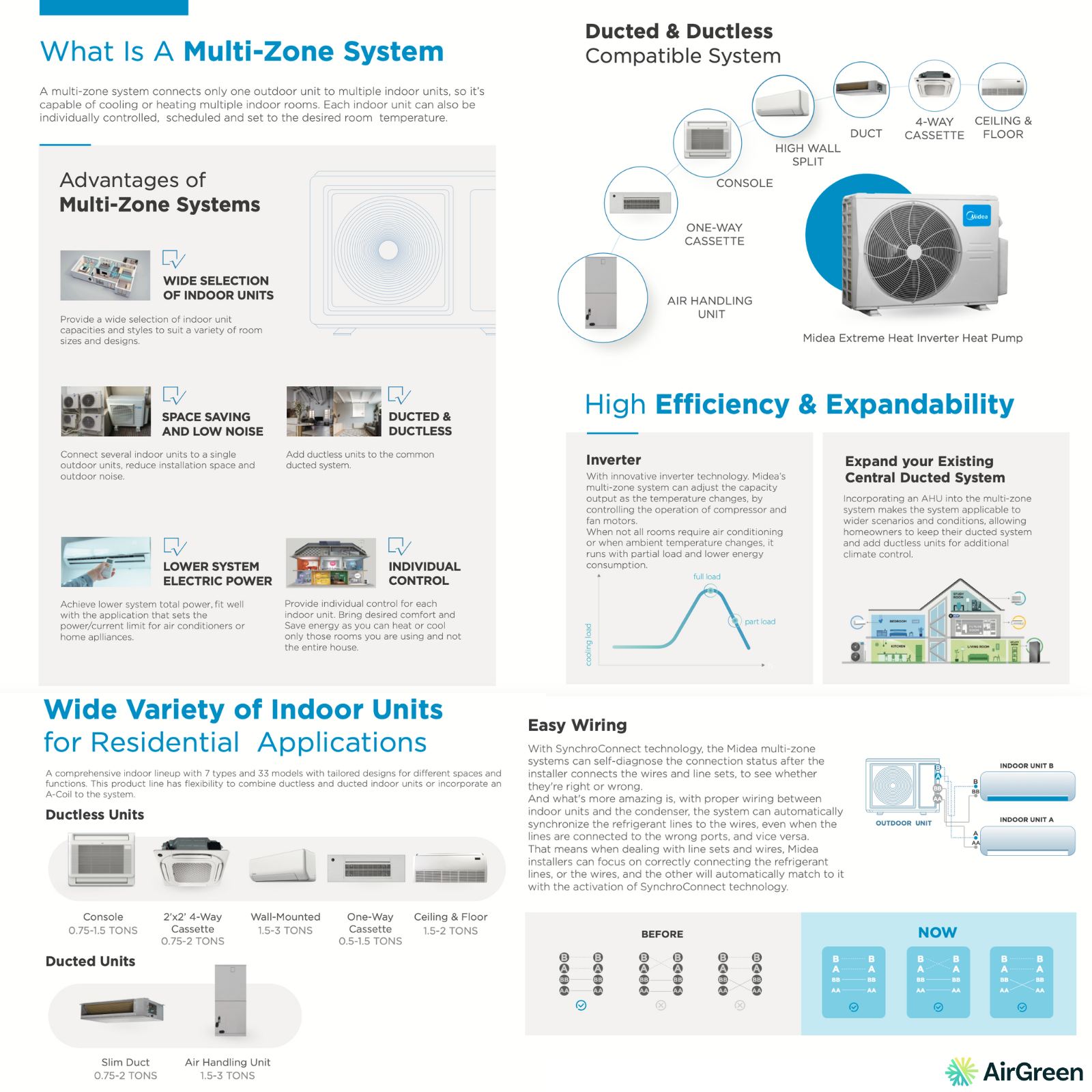

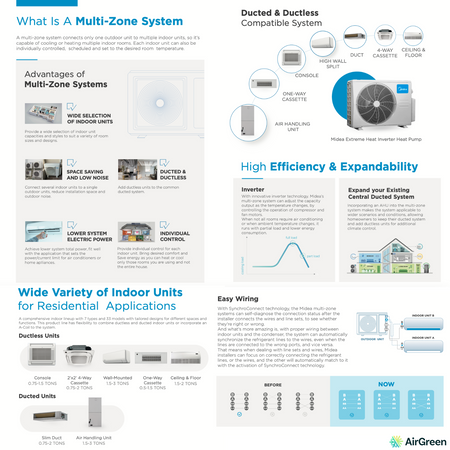

Why a multi-zone instead of several wall units?

One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.

What does the warranty cover?

Our sheet lists 12 years on the compressor and 12 years on parts; labour is not included by the manufacturer. AirGreen extended warranty: included.

AirGreen

A multi-zone system is planned room by room. At your home.

We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.

RBQ 5645-9605-01Ventilation 15.8, refrigeration 15.10, electrical 16
We handle the circuitOur licence covers the electrical work
LogisVert : $2,400AHRI 215471457 checked against the list of October 1, 2026
Beware of scamsHydro-Québec does no phone or door-to-door solicitation for LogisVert
Sources checked on October 1, 2026.NEEP, Cold Climate Air Source Heat Pump List, product 387282 (AHRI 215471457): capacities and COP, modulation, SEER2, EER2, HSPF2.ENERGY STAR certified heat pump database, ID 3627483.Hydro-Québec, LogisVert eligible heat pump list (owner, existing home), file of October 1, 2026; participation guide, version 1.10.Costs: Hydro-Québec Rate D, 11.142 ¢/kWh (second tier, since 1 April 2026). Amounts shown are estimates; only the responsible bodies confirm the grant awarded.
