FUJITSU Aquila R32 QuadZone Heat Pump | 45,000 BTU | Montreal, Laval, South Shore, North Shore
The Fujitsu Aquila R32 45 000 multi-zone heat pump heats and cools 4 rooms with a single outdoor unit. it delivers 31,000 BTU/h at −8 °C, heats down to −15 °C and qualifies for a $3,720 LogisVert grant. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
4 rooms, one outdoor unit, and the most powerful in its class at −8 °C.
Compared with the 8 multi-zone systems of 45,000 BTU we sell. Every number on this page carries its source.
Before the numbers, watch it run.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 80 % of its rated capacity.
Tap a temperature: certified capacity, efficiency and the cost of one hour of heating.
It slows down, it speeds up: the certified modulation range
Light bar: from minimum to maximum capacity. Dark mark: the rated value.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
A grant you can calculate, not guess.
The capacity at −8 °C comes from Hydro-Québec’s list of October 1, 2026. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).
Where it ranks among same-size multi-zone systems.
Compared with the 8 multi-zone systems of 45,000 BTU we sell, using the LogisVert list figures. Weaknesses too, said plainly.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.
What is particular about this machine.
Only facts published by ENERGY STAR, NEEP or the manufacturer.
Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
Tailor-made comfort for four distinct zones thanks to FUJITSU Aquila R32 technology
When your cooling and heating needs extend beyond a single room, the solution becomes clear: a reliable, high-performance multi-zone heat pump that's adapted to Quebec's climate. This is exactly what the FUJITSU Aquila R32 | 45,000 BTU QuadZone Heat Pump offers, a highly flexible system designed to serve up to four zones in your home or business in Montreal, Laval, the South Shore and the North Shore .
45,000 BTUs of power for comfort in all weather conditions
Performance is at the heart of this AOUH45KWAS5 outdoor unit, which delivers a cooling capacity of 45,000 BTU and maintains a heating capacity down to -15 °C . It works with an INVERTER compressor , ensuring precise and constant adjustments according to the needs of each room. Thanks to its environmentally friendly R-32 refrigerant , this system not only offers better energy performance, but also reduces its environmental impact.
Why choose a QuadZone heat pump?
Installing a 4-zone heat pump maximizes comfort while avoiding the energy losses often associated with centralized systems. Each wall-mounted heat pump operates independently, providing a customized temperature in each room: living room, bedroom, basement, office, etc.
At AirGreen, we have installed this model in many different configurations throughout Boucherville, Sainte-Thérèse, Verdun and Saint-Lambert . One client in Laval opted for a 7+7+12+18 combination, ideal for his living spaces, master bedroom, and a renovated basement playroom. The result? Total temperature control , room by room, without conflict between family members.
Technical specifications: an asset for connoisseurs

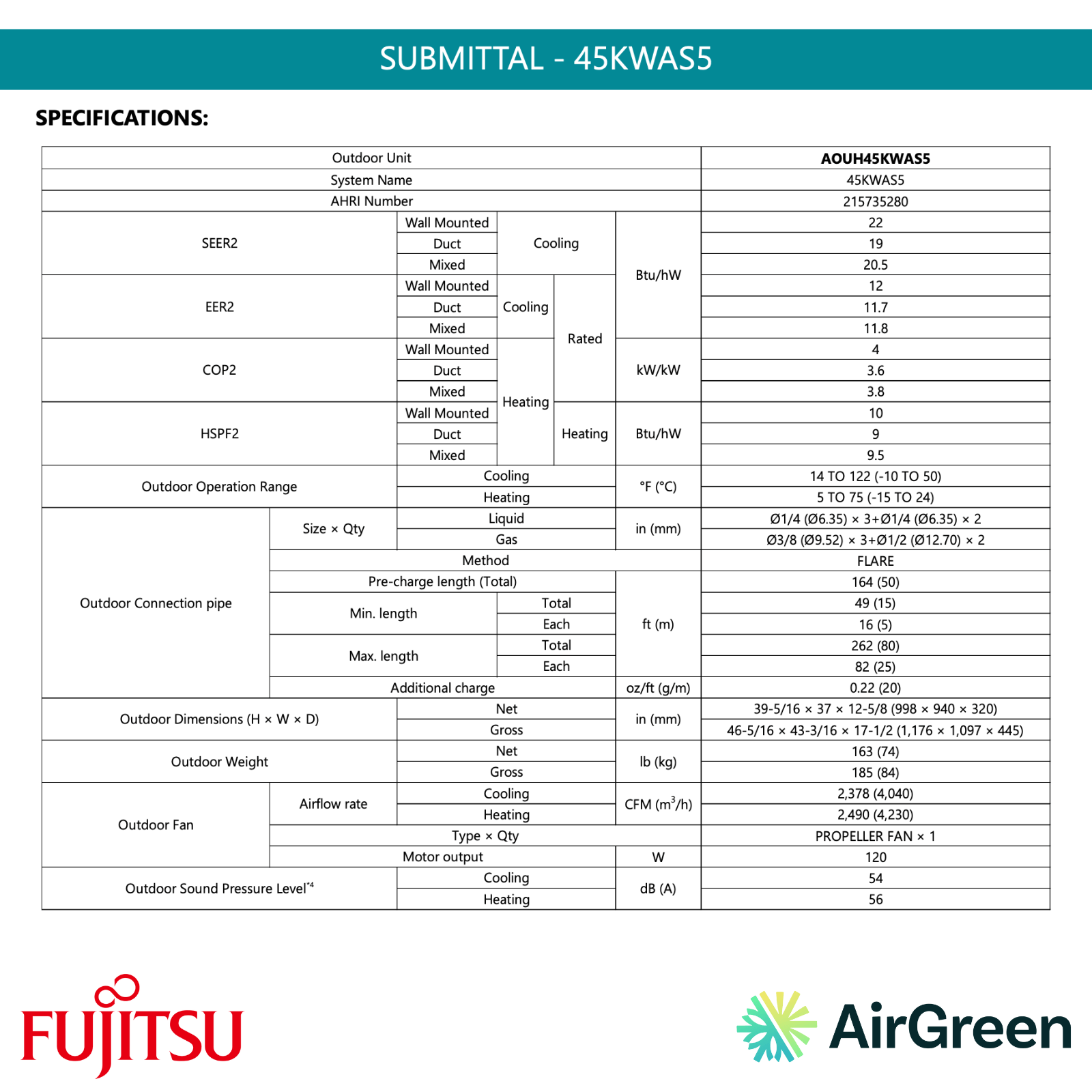

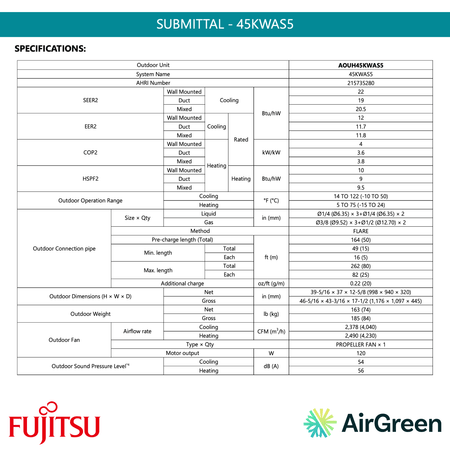

Here is a detailed overview of the technical characteristics of the AOUH45KWAS5 outdoor unit:
-
Refrigerant : R-32 with low GWP
-
Heating power : up to -15°C
-
SEER2 : 22.0
-
HSPF2 : 10.0
-
EER2 : 12.0
-
Exterior noise level : 56 dB(A)
-
External dimensions : 37 x 12.63 x 39.31 in
-
Connection of up to 5 zones possible
-
Maximum length of refrigeration lines : 80 m (262 ft)
The system is also compatible with a wide range of FUJITSU wall-mounted indoor units: ASUH07KPAS, ASUH09KPAS, ASUH12KPAS, ASUH18KPAS, ASUH24KPAS — allowing for tailor-made configurations to meet every need.
Professional HVAC installation by AirGreen
At AirGreen , we perform custom HVAC installations throughout the metropolitan area. When installing this QuadZone heat pump in a single-family home in Longueuil, our team recommended a 9+9+12+15 layout to ensure optimal comfort in all rooms, even those upstairs.
Our customers benefit from:
-
A free on-site estimate
-
Transparent prices with no surprises
-
A team of experienced RBQ certified refrigeration engineers
-
No deposit required: payment at the end, satisfaction guaranteed
LogisVert grant of $3,720: a major advantage
The FUJITSU Aquila R32 QuadZone heat pump is eligible for the $3,720 provincial LogisVert grant (updated May 1, 2025). This significantly reduces the total cost of the project, especially for homeowners looking to replace an older central system or energy-intensive electrical appliances.
A design thought out for the Quebec climate
Designed to operate from -15°C to +50°C , this heat pump easily withstands the region's harsh winters and humid summers. Its Blue Fin coated heat exchanger provides increased corrosion resistance, essential in urban environments like Montreal or along the river on the South Shore .
Thanks to its low-noise helical fan , the outdoor units can be installed near homes without disturbing the peace and quiet of the neighborhood.
Reliability backed by a solid guarantee
The heat pump is covered by a standard 10-year warranty on the compressor and parts . An extended warranty (10-10-10) is also available for those who wish to include labor. This type of coverage is particularly appreciated by rental property owners on the North Shore .
Case study: a fourplex in Montreal
A fourplex owner in Rosemont–La Petite-Patrie called on AirGreen to air condition his four apartments. Our recommendation? A multi-zone installation with two QuadZone units , allowing each apartment to be managed independently. The result: improved tenant comfort, immediate building value, and energy savings from the first month .
AirGreen: your HVAC partner for multi-zone projects
Choosing AirGreen means ensuring expert service, personalized advice, and lasting results. Our technicians don't just install wall units—they study each configuration , identify the best pipe lengths , verify electrical conditions , and ensure full compliance with RBQ standards .
Each installation comes with a final, no-obligation offer , and we are always available for technical monitoring or annual maintenance .
Why is the FUJITSU Aquila R32 QuadZone model the smart choice?
-
Unmatched versatility : support for up to 5 separate zones
-
Eco-friendly R-32 refrigerant
-
High-performance INVERTER technology
-
Quiet, compact and powerful
-
Perfectly adapted to Quebec's climatic conditions
-
Significant LogisVert subsidy
-
Technical support and professional installation by AirGreen
Need personalized advice or a quick quote?
Contact our team of HVAC experts at AirGreen today to schedule the installation of your FUJITSU Aquila R32 | 45,000 BTU QuadZone heat pump . Whether you're in Montreal, Laval, Longueuil, on the North Shore or the South Shore , we're here to offer you the best HVAC service, at the best price.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 31,000 BTU/h at −8 °C, 36,000 at −15 °C.
How many heads can I connect?
Up to 5 on this outdoor unit. This product is configured for 4 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 68 combinations, from 7+7+7+7 to 9+18+18+18 (in thousands of BTU). Each head is sized for its room.
How much is the LogisVert grant?
$3,720 according to Hydro-Québec’s list of October 1, 2026. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.
Is it ENERGY STAR certified?
Yes, cold climate, ID 3630083. It also meets the ENERGY STAR Most Efficient criteria, according to the ENERGY STAR database.
Down to what temperature does it heat?
Down to −15 °C.
Is it noisy?
Indoors, the reference head goes down to 19 dB(A). Outdoors, 56 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 12 years on the compressor and 12 years on parts; labour is not included by the manufacturer. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
