An outdoor intervention that starts with a visible detail: the wall passage

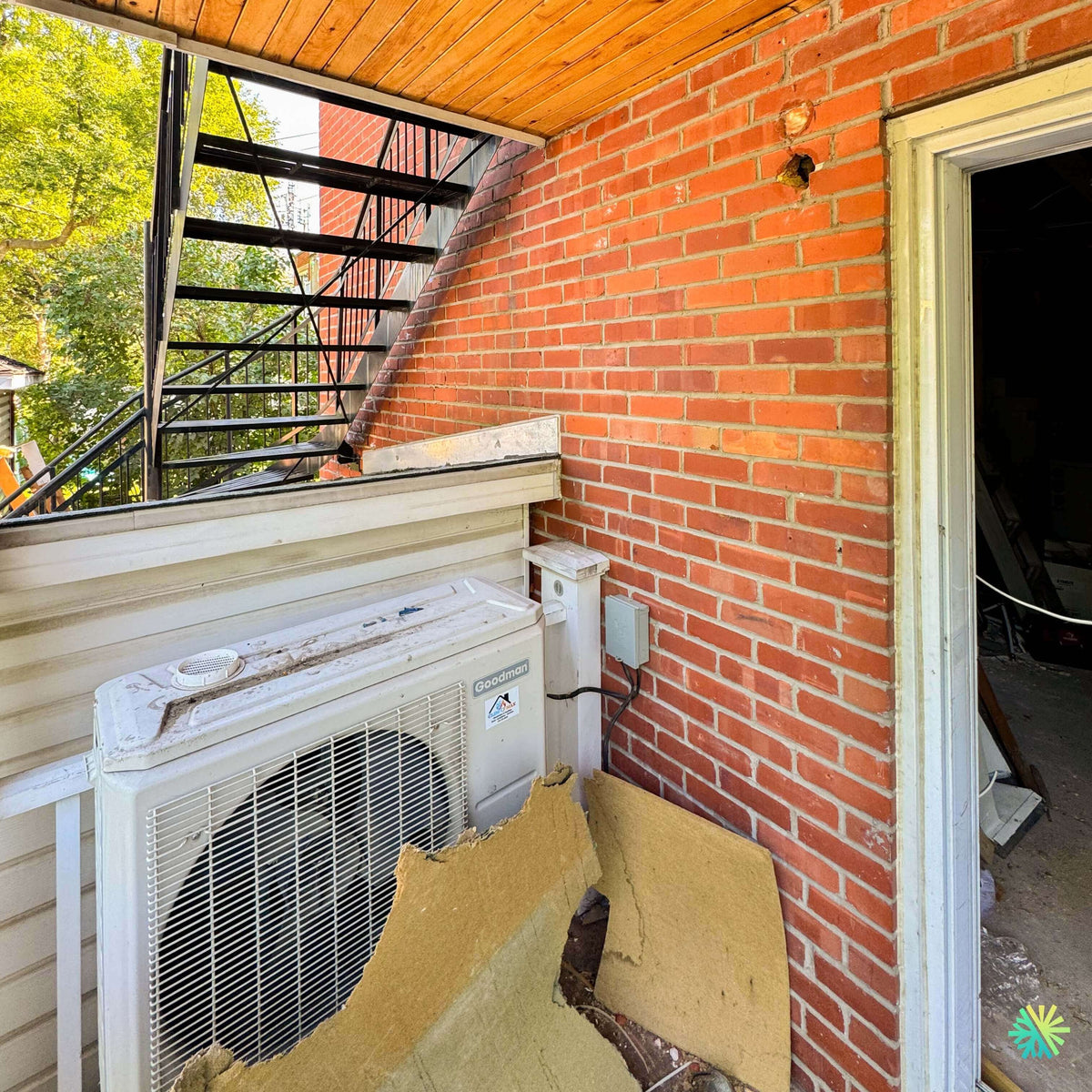

At first glance, the service call received in Sainte-Catherine concerned a Goodman wall-mounted heat pump installed on a rear balcony, in a relatively confined space, near an outdoor metal staircase. The client had noticed a gradual drop in performance, more irregular operation than usual, and especially a concern about the condition of the passage through the brick wall, where the refrigerant lines and wiring entered the residence.
On site, our AirGreen team quickly noted that the Goodman outdoor unit was a residential mini-split type machine, connected to an indoor wall unit. In residential HVAC categories, this is therefore a wall-mounted heat pump, designed to provide both air conditioning in summer and heating in mid-season or winter, depending on the capabilities of the installed model.
The installation had several important elements to analyze: an outdoor unit placed on a balcony, a brick wall pierced for the passage of ducts, a nearby electrical disconnect box, visible insulating materials on the floor, and a wall opening that required special attention. In this type of intervention, the problem is not always limited to the machine itself. The immediate environment, the quality of sealing, line protection, ventilation around the condenser, and the condition of electrical components can all influence the performance of a Goodman wall-mounted heat pump.
Symptoms reported before our arrival
The client described a typical situation of a system that still works but no longer inspires full confidence. The heat pump seemed to start, the outdoor unit activated, but the performance was no longer as stable. Some cycles seemed longer, the air produced inside seemed less consistent, and a visual inspection of the balcony raised doubts about the general condition of the installation.
The observed or reported symptoms included notably:
- a feeling of reduced air conditioning performance;
- less consistent operation of the outdoor unit;
- a visibly deteriorated wall passage around the lines;
- a concern about air, water, or small debris infiltration;
- a need to check the electrical and refrigeration condition of the system;
- a buildup of dirt on the top and grilles of the outdoor unit.
In a city like Sainte-Catherine, where outdoor installations are exposed to freezing, rain cycles, humidity, and temperature fluctuations, a simple lack of sealing around a wall penetration can eventually lead to more serious consequences. This is especially true when the system is installed near a balcony or under an outdoor structure, as was the case here.
Visual diagnosis: the importance of the condenser’s location
The Goodman outdoor unit was placed in a compact space, between the balcony railing, the exterior siding, and the brick wall. This type of location is common in residential areas of Montreal, the South Shore, Laval, Longueuil, and the North Shore, especially in duplexes, triplexes, townhouses, and buildings where available space is limited.
Our first step was to assess whether the outdoor unit could breathe properly. A wall-mounted heat pump needs sufficient clearance to expel heat in cooling mode and absorb outdoor energy in heating mode. Even a good machine can lose efficiency if it is too confined, if the grilles are blocked, or if the hot air expelled by the condenser recirculates back to the unit.
In this particular case, the unit was not completely blocked, but the space required careful inspection. The presence of debris, dust, and insulating materials nearby could hinder air circulation if nothing was corrected. We also paid special attention to the base of the unit, possible vibrations, and the stability of the installation, as balconies sometimes transmit more vibrations than a well-insulated ground base.
The brick penetration: a critical point often underestimated
The most important detail of this service call was the hole in the brick wall, where the refrigerant lines, communication wiring, and possibly the drain passed through depending on the interior setup. The opening was visible, irregular, and insufficiently protected. Over time, foams, sealants, or finishing materials can deteriorate, peel off, or crack.
A poorly sealed wall penetration can cause several problems:
Water infiltration
Rain driven by the wind, melting snow, or water running down the brick can seep around the lines. Even a small opening can allow moisture to reach the inside of the wall.
Air infiltration
A poorly insulated opening creates an air bridge between the outside and inside. In winter, this can cause a cold sensation, condensation, or energy efficiency loss.
Wear of refrigeration line insulation
The lines of a Goodman wall-mounted heat pump must be protected. When the insulation is damaged, crushed, or exposed, it can reduce thermal transfer efficiency and promote condensation.
Risk of vibration or rubbing
If the lines are not well stabilized in the wall passage, they can vibrate slightly with each compressor cycle. Over time, this movement can wear the insulation or put stress on the fittings.
Electrical check of the Goodman heat pump
The outdoor electrical box was accessible, which allowed us to safely verify the power supply. On a wall-mounted heat pump, the outdoor unit is generally the heart of the system: it powers and communicates with the indoor unit. A bad contact, a loose connection, inadequate protection, or unstable voltage can cause intermittent symptoms.
Our technicians therefore checked:
- condition of the outdoor disconnect switch;
- quality of electrical connections;
- presence of corrosion or moisture;
- power supply voltage;
- communication wiring between the outdoor unit and the indoor unit;
- absence of visible overheating at connection points.
No major failure such as a burnt electronic board or compressor out of service was observed during this intervention. The problem was more related to the general condition of the outdoor installation, protection of the passages, and necessary maintenance to restore good operating conditions to the system.
Refrigeration check and system performance
After the visual and electrical inspection, we continued with HVAC checks specific to the heat pump's operation. A Goodman wall-mounted heat pump must be evaluated according to several parameters: temperature difference between return air and supply air, compressor behavior, condition of the outdoor exchanger, operating noise, cycle stability, and potential signs of refrigerant shortage.
In this case, the outdoor unit did not indicate a catastrophic failure, but maintenance was clearly necessary. A dirty outer grille, a dusty condenser, or a cluttered environment can raise operating pressures, lengthen cycles, and give the impression that the machine is "working harder."
We therefore carried out targeted reconditioning, starting with cleaning the outdoor unit and checking the machine's behavior after restarting.
Cleaning the outdoor unit and clearing the area
The intervention included careful cleaning of the accessible surfaces of the Goodman outdoor unit. Debris on top, accumulated dust, and elements around the condenser were removed to improve airflow.
This step is often overlooked, but it makes a real difference. A clean condenser works with less strain. In cooling, it rejects heat better. In heating, it exchanges more efficiently with outside air. In Sainte-Catherine, as elsewhere on the South Shore, units installed on balconies are exposed to leaves, dust, pollen, brick dust, blown snow, and debris from outdoor structures.
We also recommended keeping the space in front of and around the machine clear at all times. Insulating materials, stored objects, or panels placed too close to the unit can reduce efficiency and complicate future maintenance.
Sealing correction around the wall passage
The most important part of the service was securing the wall passage. After checking the lines and their apparent condition, we corrected the protection around the opening to reduce infiltration risks. The goal was not just aesthetic: it was necessary to protect the building envelope and ensure the heat pump lines were better stabilized.
A good seal around the lines must be durable, weather-resistant, and adapted to the natural movement of materials. Brick, metal, copper, insulation, and finishing materials do not all react the same way to freeze-thaw cycles. That’s why a quick repair with the wrong product can deteriorate quickly.
We therefore favored a professional approach: cleaning the area, checking the space around the lines, stabilizing when necessary, replacing or repairing damaged insulation, and properly sealing the passage.
Why this type of problem can affect indoor comfort
A customer might think that an opening in the brick is just a finishing issue. In reality, in an HVAC installation, this detail can affect several aspects of comfort.
If outside air enters around the lines, the wall can become cold in winter. If moisture seeps in, it can affect the insulation or interior materials. If the lines are not well protected, the system's performance may slightly decrease and unwanted condensation may appear. If vibrations are transmitted to the wall, the customer may hear noises that seem to come from the indoor unit, while the source is outside.
At AirGreen, we therefore consider the complete system: the machine, the lines, the wall, the drainage, the electricity, the location, and the client’s experience.
Result: a better protected, more stable, and more reassuring Goodman heat pump
After the intervention, the Goodman wall-mounted heat pump was restarted and observed in operation. The cycles were more stable, the outdoor unit breathed better, and the wall penetration was better protected against infiltration. The client was especially reassured on one essential point: it was not a dead compressor nor a mandatory machine replacement, but a set of necessary corrections to preserve performance and prevent small defects from becoming big problems.
What this intervention shows about HVAC service calls
A good service call is not limited to checking if the machine starts. In a residential intervention in Sainte-Catherine, as in Montreal, Laval, Longueuil, on the North Shore or the South Shore, it is necessary to understand why the client feels a drop in comfort and why the installation shows signs of weakness.
In this case, the most important elements were:
Condition of the outdoor condenser
A Goodman unit installed on a balcony must remain clean and well cleared. The proximity of a staircase, wall, or stored objects can reduce airflow.
Quality of the wall penetration
A poorly sealed hole in the brick is a real risk of infiltration, condensation, and long-term damage.
Protection of refrigerant lines
The insulation must remain in good condition. When it is torn, crushed, or exposed, it must be replaced or repaired.
Electrical inspection
Even if the failure is not electrical, outdoor connections should always be inspected, especially when the disconnect box is exposed to the elements.
Preventive maintenance
A heat pump that is still working may still need maintenance before a more costly breakdown occurs.
Mistakes to avoid with a wall-mounted heat pump installed on a balcony
We regularly see similar situations during our service calls. Here are the most common mistakes:
- leaving exposed lines without proper protection;
- ignoring an open or cracked hole in the brick;
- storing objects too close to the outdoor unit;
- postponing condenser cleaning for several years;
- assuming that a drop in performance automatically means a refrigerant shortage;
- neglecting vibrations transmitted by an installation on a balcony;
- using sealing materials not suited to Quebec’s outdoor conditions.
These mistakes can reduce the lifespan of a wall heat pump, increase energy consumption, and cause avoidable service calls.
An AirGreen approach focused on real diagnostics
Our goal is never to replace a part unnecessarily or recommend a new system when the unit can be restored to good condition. For this Goodman wall heat pump in Sainte-Catherine, the most professional approach was to inspect, clean, secure, seal, and test.
This method allows us to provide reliable service, whether for a small wall installation, a central heat pump, a MultiZone heat pump, a wall air conditioner, or other residential HVAC equipment. Every detail matters, especially in installations where the outdoor unit is placed in a confined space.
When should you request a service call for a Goodman wall heat pump?
A service call is recommended as soon as a client notices a drop in performance, unusual noise, new vibration, water leak, ice, odor, intermittent shutdown, or damaged opening around the wall pass-through. The earlier the intervention, the more costly repairs can be avoided.
In Sainte-Catherine, this intervention helped fix a situation before it turned into a more serious problem. The Goodman unit was restored to better operating conditions, the client received clear explanations, and the outdoor installation was secured for the upcoming seasons.
