A meticulous residential project on the North Shore
At AirGreen , every HVAC system installation is designed to provide our customers with lasting comfort, optimal energy performance and impeccable aesthetic integration. This project in Rosemère , on Montreal's North Shore , perfectly illustrates our approach.
The client, the owner of a semi-detached house, wanted to modernize his heating and cooling system by replacing several independent wall-mounted air conditioners with a Trane MultiZone heat pump capable of powering several indoor units with a single outdoor compressor.
Needs analysis and system selection
Our technicians first carried out a complete energy assessment of the building to determine the ideal power and the most appropriate type of installation.
The main criteria were:
-
Reduce electricity consumption.
-
Uniform the temperature in all rooms.
-
Free up outdoor space by limiting the number of compressors.
The choice fell on a Trane 24,000 BTU MultiZone system using R-410A refrigerant , known for its efficiency and reliability. This model allows the connection of up to four independent indoor units, perfect for a multi-story house.
Installation: precision and space optimization

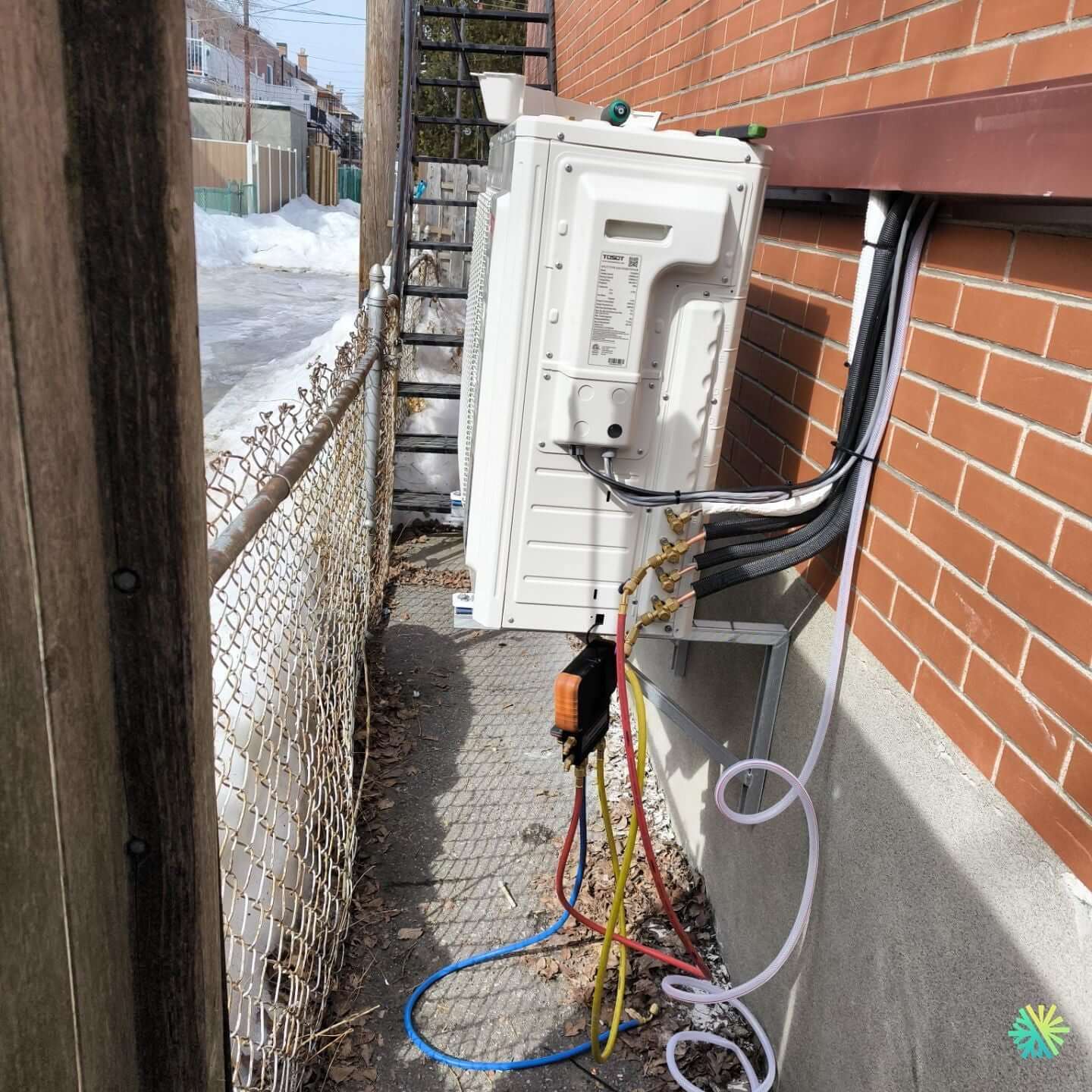

The main challenge of this project was the limited space between the house and the side fence , leaving barely any room for the technician to pass through. This constraint required careful planning.
Our experts have:
-
Securely mounts the Trane outdoor compressor to a reinforced wall bracket, ensuring stability even in freezing and thawing conditions.
-
Installed a system of insulated and carefully sheathed refrigeration pipes , protected by a wall cover in a color matching the brick.
-
Completed the connection of the four independent circuits (one per indoor unit) with perfectly calibrated connections.
-
Performed a complete vacuum draw down to 500 microns to eliminate all traces of moisture and ensure the longevity of the system.
-
Charged the refrigerant according to the manufacturer's exact specifications.
Final pressure tests confirmed a perfect seal.
Commissioning and calibration
Once the mechanical installation was complete, we commissioned each indoor unit to calibrate the airflow and set temperature.
Results :
-
Remarkable thermal stability in all rooms.
-
Reduced noise level , even in heating mode.
-
Increased responsiveness thanks to Trane inverter modulation.
The customer was impressed by the rapid temperature rise and the simplicity of the integrated Wi-Fi central control.
Observed benefits and customer satisfaction
From the first week, the client noted:
-
A significant reduction in the electricity bill .
-
Better overall comfort , especially in upstairs bedrooms.
-
Discreet integration of the external compressor despite limited space.
We also recommended annual preventative maintenance including cleaning the coils, checking pressures and calibrating the temperature probes.
AirGreen expertise at your service
This project in Rosemère demonstrates our ability to adapt each HVAC installation to the constraints of the site , whether it is a small side passage, a row house or an urban triplex.
Our technicians are trained to work with precision and compliance with CSA standards , while ensuring a durable and aesthetic installation.
Whether you are in Montreal, Laval, Longueuil, on the North Shore or the South Shore , AirGreen remains your trusted partner for the installation, repair and maintenance of MultiZone Trane, Fujitsu, Midea, Gree, or Sharp heat pumps .
