A wall unit installed high up, uneven comfort, and an HVAC diagnosis that had to go beyond simple cleaning
In a residence in Baie-D’Urfé, on the west side of Montreal Island, our AirGreen team was called for a service call on a wall-mounted heat pump installed in a high-ceiling bedroom. Upon arrival, one thing was obvious: the indoor unit was positioned very high on the wall, near the junction of the ceiling and a side wall, in a relatively narrow space. This type of installation can work properly when well maintained, but it can also complicate access, inspection, maintenance, and air circulation.
The client reported unstable operation: the wall-mounted heat pump would start, blow air, but comfort was no longer consistent. At times, the room remained too warm despite a cooling demand. At other times, the air seemed weak, as if the unit was running without effectively treating the room. No dramatic noise or complete shutdown was reported, but the discomfort was enough to justify a full inspection.
At AirGreen, we approach this type of situation methodically. A wall-mounted heat pump may seem simply "weak" when the real cause could be related to a dirty heat exchanger, an inaccurate temperature sensor, a slowed indoor fan, a drainage problem, a refrigerant shortage, poor communication with the outdoor compressor, or an electronic board that reacts intermittently. A good HVAC diagnosis is therefore not about guessing: it involves isolating each possibility, one by one, until finding the most likely cause and properly fixing it.
A residential wall-mounted heat pump with limited technical access

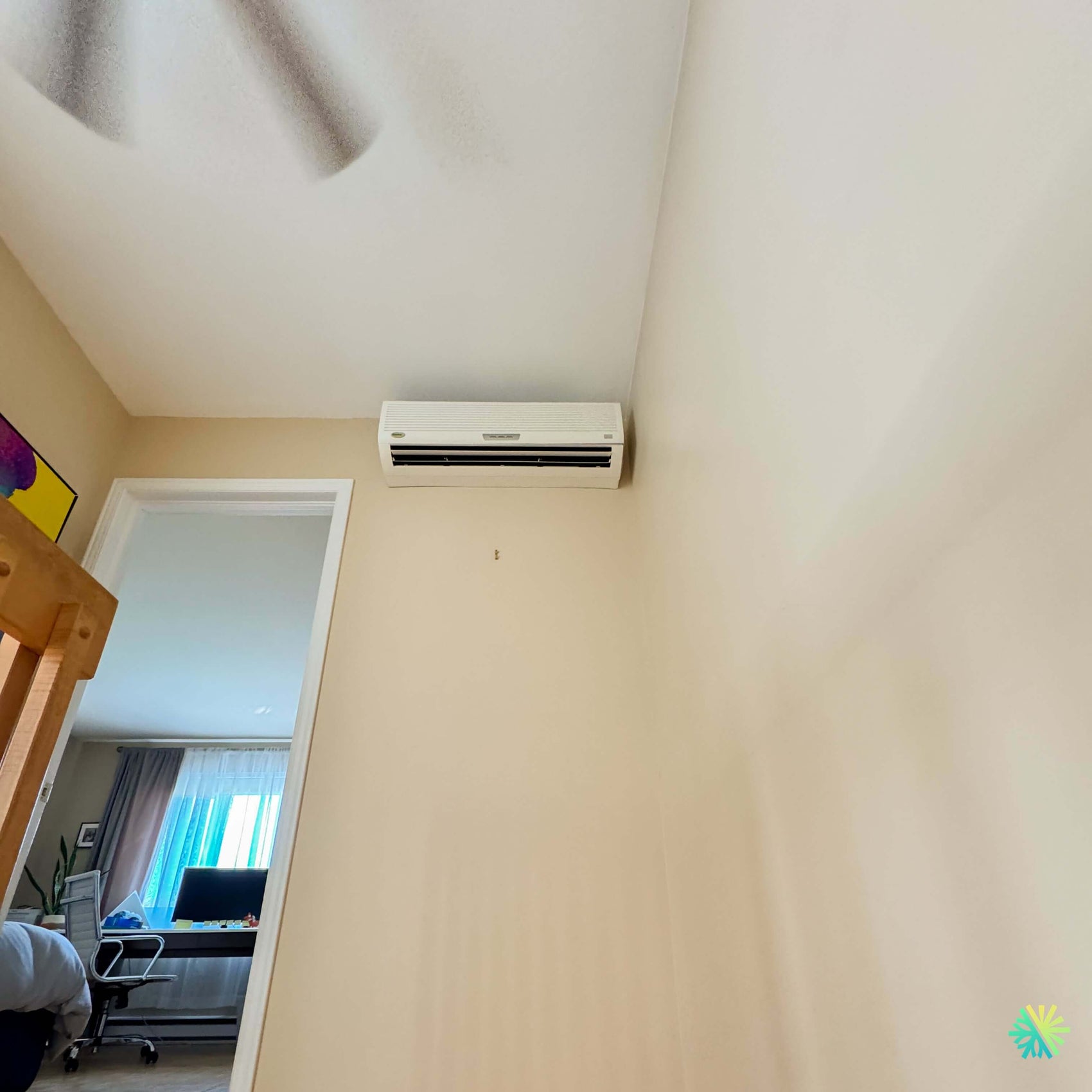

The unit on site was a mini-split type wall-mounted heat pump, installed above a door opening, in a bedroom. This positioning is common in some homes where available wall space is limited, but it imposes practical constraints.
First, the unit is located near the ceiling. Warm air naturally accumulates at the top, which can affect the reading of the unit’s internal sensor. A wall-mounted heat pump that reads a temperature too high or too low compared to the actual occupied zone may adjust its power imperfectly. Next, the unit is placed near a corner, which can partially restrict lateral air diffusion. Finally, access to the front panel, filters, turbine, and condensate tray requires extra care, especially when working in a furnished room.
Our inspection therefore began with visible elements: general condition of the unit, position of the louvers, response to the remote control, airflow, odor at startup, ventilation noise, presence of moisture marks on the wall, condition of the filters, and the unit’s reaction when changing the setpoint.
Symptoms observed during the service call
During the initial test, the wall unit responded to commands, but the airflow was not as steady as expected for a well-functioning wall-mounted heat pump. The airflow seemed uneven, particularly when the fan was set to a higher speed. In a room like this, where the unit is installed high up, insufficient airflow quickly creates stratification: the treated air stays too close to the ceiling, while the actual comfort zone—such as the bed, desk, or living area—does not receive enough cooled or heated air.
We also paid attention to the behavior of the outlet temperature. A wall-mounted heat pump can blow air, but if the heat exchange is reduced, the comfort level will remain low. In this case, the unit did not have a total failure but rather a gradual loss of performance. This type of situation is common with older or heavily used wall units, especially when maintenance has been delayed or when the indoor environment promotes the accumulation of fine dust on the turbine.
In this residence in Baie-D’Urfé, the goal was not just to get the unit running again. It was necessary to understand why the performance had decreased, check if the system could still operate reliably, and then clearly explain the possible options to the client.
Diagnostic: ventilation, heat exchanger, drainage, and electronic control
Our diagnosis was carried out in several steps. The first check concerned the indoor ventilation. The filters were inspected, then the condition of the turbine was evaluated. On a wall-mounted heat pump, the cylindrical turbine is one of the most often neglected components. Even when filters are cleaned regularly, a fine layer of dust can accumulate on the turbine fins. Over time, this buildup reduces the volume of air moved, creates a slight imbalance, and can make the airflow irregular.
The second check concerned the indoor heat exchanger. When the fins are clogged with dust, air circulates less well through the coil. In cooling mode, this can lead to reduced efficiency, excessive condensation production, or even the beginning of frost under certain conditions. In heating mode, it can create a sensation of lukewarm air, even if the outdoor compressor is working properly.
The third step focused on the condensate tray and drain. A wall unit installed very high must evacuate condensation water without restriction. A partially clogged drain does not always cause an immediate leak. Sometimes, it rather creates persistent humidity inside the unit, promotes odors, increases dirt buildup, and can eventually cause overflows. We therefore checked the flow, slope, and absence of visible blockage.
Finally, we validated the control elements: sensor, electronic board response, operating modes, fan speed, and device stability during cycles. A defective board or an inaccurate sensor can cause premature shutdowns, but in this particular case, the observed behavior pointed more towards mechanical efficiency loss and reduced air circulation than a major electronic failure.
Intervention performed: restoration of the wall unit
After isolating the main cause, our team carried out a targeted intervention on the indoor unit. The goal was to restore a more stable airflow and allow the wall-mounted heat pump to regain better heat exchange capacity.
The intervention included notably:
- Filter inspection and cleaning, to remove accumulated particles and improve air intake.
- Inspection of the indoor turbine, with attention to deposits that can slow down or unbalance the ventilation.
- Visual inspection of the indoor heat exchanger, to confirm that air could pass properly through the fins.
- Condensate drainage validation, to reduce the risk of leaks or stagnant moisture.
- Operation test in cooling mode, with comparison of behavior before and after the intervention.
- Adjustment of the diffusion louvers, to improve air distribution in the room despite the installation height.
In some cases, a heavily clogged wall-mounted heat pump requires deep cleaning with wall protection, washing pump, specialized solution, and controlled rinsing. Here, the intervention clearly improved the unit’s performance, while recommending more thorough maintenance if symptoms return or if the client wants to extend the device’s lifespan.
Why a high-mounted wall unit can give a false impression of failure
An important point explained to the client concerned the position of the unit. A wall-mounted heat pump installed near the ceiling can operate normally, but it must compensate for certain physical challenges. The treated air must effectively descend into the room. If the turbine is dirty, if the louvers are poorly oriented, or if the fan speed is too low, the air remains high, and comfort at occupant level becomes insufficient.
This situation is particularly common in bedrooms, home offices, or rooms with tall furniture. The client may then think the heat pump is no longer cooling, while the problem is sometimes related to air distribution rather than the actual cooling capacity of the device.
To avoid this mistake, we often recommend testing the device at a higher fan speed for a short period, directing the louvers toward the occupied area, and avoiding blocking airflow with furniture, curtains, or partially closed doors. An adjacent room visible from the door opening can also influence comfort perception: if the air disperses into another space, the room will take longer to reach the desired temperature.
Mistakes to avoid with a residential wall-mounted heat pump
During this service call in Baie-D’Urfé, we also took the opportunity to remind about some common mistakes that can turn a minor problem into a more costly repair.
The first mistake is to clean only the filters and believe that the unit is fully maintained. Filters are important, but they do not perfectly protect the turbine or the heat exchanger. A wall-mounted heat pump may look clean on the outside but be heavily clogged inside.
The second mistake is running the unit for weeks with reduced airflow. Poor airflow increases the system’s load, reduces efficiency, can cause icing, and forces the outdoor compressor to work under less favorable conditions.
The third mistake is ignoring early signs of moisture. A small mark on the wall, a smell at startup, or an occasional drop can indicate a partially clogged drain or a dirty condensate pan.
The fourth mistake is frequently changing modes and temperatures without waiting for the system to stabilize. A wall-mounted heat pump needs consistent cycles to perform well. Extreme settings, like requesting very low cooling immediately after a long shutdown, can give the impression of weakness when the unit is simply catching up with a large thermal load.
A concrete result: better airflow, more stable comfort, and a reassured client
After the service, the wall-mounted heat pump was restarted and tested on different settings. The airflow was more consistent, the blowing better directed, and the unit responded correctly to the controls. The client noticed a tangible improvement in comfort in the room, especially thanks to better air distribution from the unit installed high up.
This type of service call clearly illustrates our approach at AirGreen: we don’t just check whether a wall-mounted heat pump works or not. We verify how it works, the environment it’s installed in, how air circulates, what physical constraints affect its performance, and what actions can improve efficiency without unnecessarily replacing the equipment.
Local expertise for Montreal, Laval, Longueuil, the North Shore, and the South Shore
Even though this service call took place in Baie-D’Urfé, our team performs similar service calls every week throughout Greater Montreal: Montreal, Laval, Longueuil, the North Shore, and the South Shore. Wall-mounted heat pump issues can be similar, but each home has its own constraints: ceiling height, unit location, insulation, sun exposure, length of refrigerant lines, drain access, equipment age, and usage habits.
This is precisely why an on-site diagnosis remains essential. Two devices showing the same symptom can have completely different causes. A lack of cold can come from a dirty heat exchanger, a slowed indoor fan, a poorly positioned sensor, a refrigerant shortage, a worn compressor, an unstable electronic board, or an installation that limits air circulation.
What this repair reminds us about maintaining wall-mounted heat pumps
A well-maintained wall-mounted heat pump can provide excellent comfort for many years. However, its performance depends heavily on three elements: the cleanliness of the indoor unit, the quality of air circulation, and the stability of the refrigeration system.
In the case of this residence in Baie-D’Urfé, the intervention corrected a performance loss before it turned into a complete breakdown. This is often the best time to act. A unit that still works, but less well than before, provides an ideal window to intervene quickly, limit costs, and avoid a complete shutdown during a period of intense heat or cold.
When to request an AirGreen service call
A service call is recommended as soon as any of the following symptoms appear:
- The blown air seems less cold or less hot than before.
- The airflow becomes weak or irregular.
- The unit starts then stops too quickly.
- A smell appears at startup.
- Water is leaking or leaving a mark on the wall.
- The heat pump makes an unusual noise.
- The room no longer reaches the requested temperature.
- The system runs for a long time without improving comfort.
These signs do not always mean a major repair is necessary. In many cases, a professional inspection and reconditioning can extend the life of the device and restore satisfactory operation.
AirGreen: repair precisely, explain clearly, intervene cleanly
Our work on this wall-mounted heat pump in Baie-D’Urfé demonstrates the importance of a comprehensive technical approach. A unit installed high up, reduced airflow, and uneven comfort may seem like a simple problem, but the diagnosis must consider the entire HVAC system.
At AirGreen, we focus on methodical repairs, clear explanations, and clean execution. Every service call is an opportunity to fix the immediate problem, but also to help the customer better understand their equipment, avoid bad practices, and maintain reliable comfort in their home.
