An outdoor unit installed high up, under a covered balcony, with symptoms requiring a precise diagnosis
During this service call in Montreal, our AirGreen team intervened for a mini-split type wall-mounted heat pump whose outdoor unit was installed on wall brackets above an exterior door, in a covered balcony space. The visual configuration of the site immediately revealed several important elements for a serious HVAC diagnosis: a compact unit mounted high, limited clearance around the unit, partial protection from the weather thanks to the balcony roof, and a residential environment where vibrations, noise, and condensate drainage can quickly become problematic.
The client contacted us because the heat pump was no longer delivering the same performance as before. According to their observations, the unit was still working, but indoor comfort had become inconsistent. Some days, the wall unit seemed to produce less cool air when cooling; at other times, it would start normally but then slow down too quickly, as if the system could no longer maintain its performance. The client also noticed increased noise outside, especially when the compressor ramped up.
At AirGreen, we know that a wall-mounted heat pump repair is never just about replacing a random part. A mini-split can lose performance for several reasons: lack of maintenance, blockage of the outdoor heat exchanger, ventilation problems, refrigerant leaks, faulty sensor, unstable electronic board, poorly drained condensate, weakened supports, or irregular power supply. That’s why our approach always involves following a complete, structured diagnostic sequence tailored to the actual installation.
A wall installation that imposed technical constraints

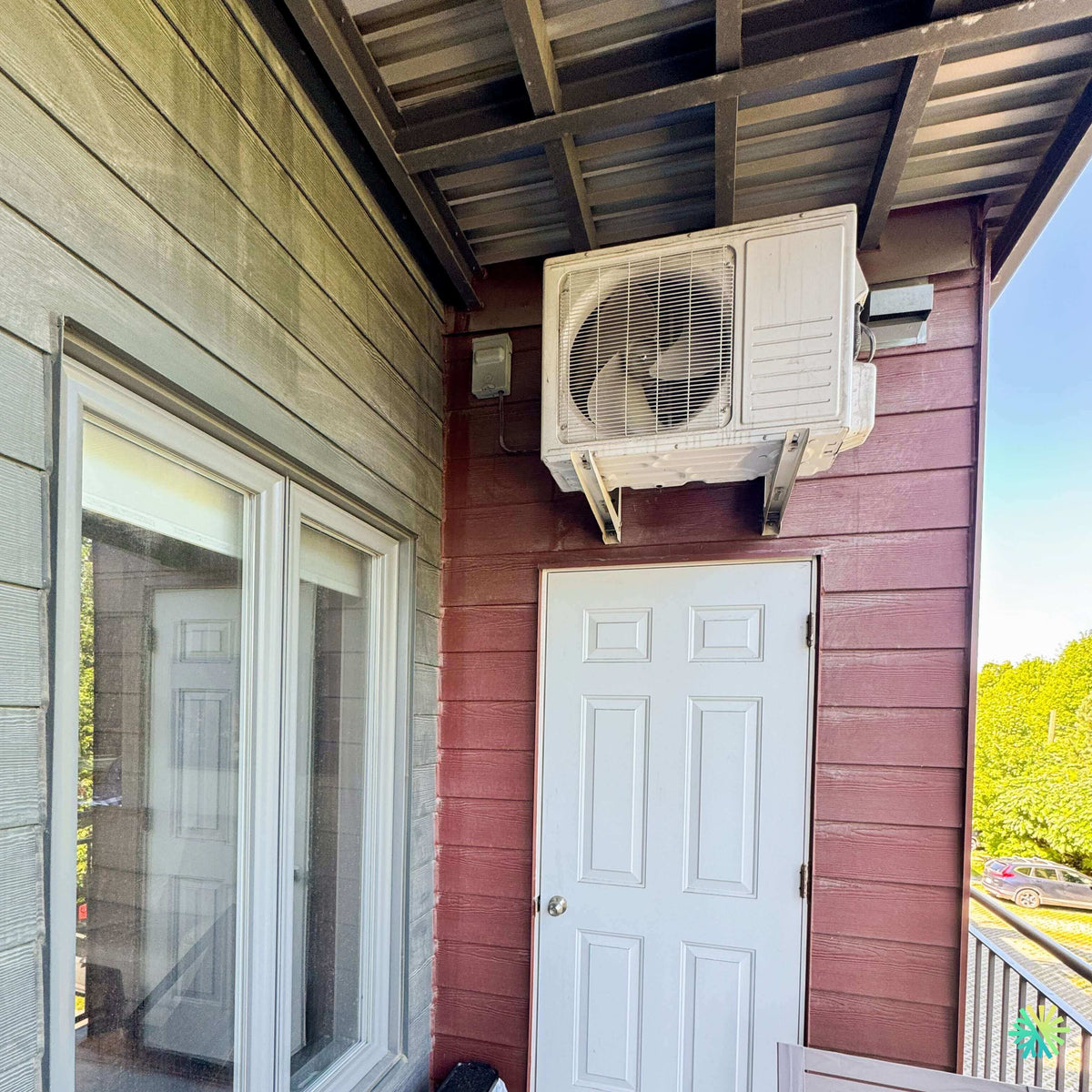

The outdoor unit was located above a door, mounted on two metal brackets. This setup is common in Montreal, Laval, Longueuil, on the North Shore and the South Shore, especially in buildings with balconies, condos, and townhouses. It frees up floor space but requires special attention.
In this specific case, several constraints had to be taken into account:
- access to the outdoor unit was more difficult due to its height;
- the lateral clearance was limited by the wall and balcony structure;
- the roof above partially protected the device but could also trap heat in summer;
- the proximity to the door increased the importance of clean and safe drainage;
- the wall mounts had to be checked to avoid vibrations transmitted to the structure.
This type of intervention requires experience because a heat pump installed in a confined space does not always behave like a unit placed on the ground with perfect clearance. The hot air expelled by the outdoor fan must be able to circulate properly. If the heat exchanger is dirty or if air recirculates under the balcony, system pressure can increase, which reduces efficiency and puts more strain on the compressor.
Symptoms observed by the client
Even before opening the device, we took the time to validate the symptoms with the client. This step is essential because the behavior of a heat pump can vary depending on the outside temperature, the mode used, the maintenance performed, and usage habits.
The reported signs were as follows:
- slower cooling than before;
- louder external noise;
- irregular operating cycles;
- feeling of reduced performance during hot days;
- concern related to the unit’s position above the door.
These symptoms already pointed the diagnosis towards three possible cause categories: a loss of heat exchange outside, an electrical or electronic weakness, or an anomaly in the refrigeration circuit. Our job was to confirm the real source of the problem without drawing premature conclusions.
Visual inspection of the outdoor unit
The first step was the visual inspection of the outdoor unit. Even when the device seems functional, the physical condition of the unit often reveals a lot of information. We checked the front grille, the fan blades, the cleanliness of the heat exchanger, the presence of oil traces, the condition of the supports, vibrations, visible connections, and the immediate environment.
On this type of wall-mounted heat pump, a partially blocked outdoor exchanger can be enough to cause significant performance loss. Dust, pollen, plant fibers, leaves, and urban deposits can accumulate on the fins. In a covered balcony, the unit is less exposed to direct rain, which may seem advantageous, but this natural protection sometimes prevents natural rinsing of the exterior surfaces. The result: dirt stays stuck to the fins longer.
We also checked if the outdoor fan was spinning freely, without friction or imbalance. A fan that struggles, a slightly misaligned blade, or a worn motor can cause unusual noise and reduce airflow. In a space like this, sound can be amplified by the walls and balcony structure, which explains why a slight noise can become very noticeable to the customer.
Electrical inspection and power control
The presence of an electrical box near the outdoor unit allowed for safe power control. Our technicians checked accessible connections, voltage, power stability, and signs of overheating. A wall-mounted heat pump heavily depends on stable electrical power, especially when it uses an inverter compressor.
A slightly loose connection, oxidation in a box, poor contact, or fluctuation can cause intermittent shutdowns, error codes, or reduced efficiency. In this case, the electrical inspection aimed to eliminate these causes before proceeding further into the refrigeration circuit.
We also checked the communication between the indoor and outdoor units. On modern wall-mounted systems, a communication problem can sometimes be interpreted by the customer as a lack of performance, when it is actually an unstable command or an irregular response from the outdoor unit.
Technical cleaning of the exchanger and airflow control
After the initial checks, we performed a targeted technical cleaning of the outdoor unit. The goal was not only to make the device look cleaner but to restore effective heat exchange. The exchanger fins must allow air to pass through the surface without obstruction. When this airflow is reduced, the heat pump has to work harder to produce the same result.
The cleaning was carried out carefully to avoid damaging the fins. A common mistake is to use too much pressure or an incorrect angle, which can bend the fins and worsen the problem. Our technicians worked progressively, taking into account the height position of the unit and the proximity of the door.
Once the exchanger was cleaned, we restarted the system to observe the fan behavior, compressor speed variation, and operational stability. The improved airflow reduced the effort of the outdoor unit and provided a more consistent response.
Refrigeration diagnosis: confirm before intervening
A drop in performance can sometimes suggest a lack of refrigerant. However, adding refrigerant without a complete diagnosis is bad practice. A sealed system should not naturally lose refrigerant. If the charge is insufficient, the reason must be understood.
We therefore carried out the necessary checks to assess the system's refrigeration behavior: supply and return temperatures, response in cooling mode, operational stability, condition of accessible fittings, and search for signs that could indicate a microleak. The absence of obvious oil traces on visible connections never alone rules out a leak, but it is a useful clue in the overall diagnosis.
In this intervention, the measures taken after cleaning and stabilizing operation indicated that the main problem was more due to weakened heat exchange and less effective outdoor ventilation than a major refrigerant leak. This distinction is important for the customer because it avoids unnecessary costs and allows targeting the real cause.
Noise reduction and control of wall supports
Outdoor noise was one of the customer's concerns. On a wall-mounted unit, noise can come from several sources: fan motor, compressor, panel vibration, metal supports, screws, contact between piping and structure, or resonance in the exterior cladding.
We inspected the supports and mounting points. The supports seemed to be doing their job, but a mechanical check was necessary to confirm that the unit was not vibrating abnormally. We tightened accessible components and checked points where vibration could be transferred to the wall. This type of check is especially important in balcony installations, as the structure can amplify certain frequencies.
We also examined the piping and its passage inside. A poorly insulated refrigerant line or one in direct contact with a rigid surface can transmit vibrations. Even if this detail seems minor, it can make a big difference in the customer's sound comfort, especially in a condo or apartment where the outdoor space is close to living areas.
An HVAC repair that restored performance and prevented premature replacement
After the diagnosis, technical cleaning, electrical checks, ventilation control, and adjustment of accessible mechanical parts, the wall-mounted heat pump regained more stable operation. The customer quickly noticed improved indoor comfort and reduced outdoor noise. The unit responded better to controls, cycles were more regular, and the air produced inside better met expectations.
This case clearly shows the importance of a professional HVAC service call. A wall-mounted heat pump that seems old or less efficient is not always to be replaced. In many cases, a well-targeted repair, accompanied by a thorough diagnosis, can extend the equipment’s lifespan and restore good efficiency.
Why this breakdown could have worsened
If the customer had waited too long, several problems could have appeared. A dirty outdoor heat exchanger forces the compressor to work under less favorable conditions. In the long term, this can lead to:
- higher electricity consumption;
- premature compressor wear;
- safety shutdowns;
- lower cooling efficiency;
- reduced heating performance;
- increased noise;
- more costly repairs.
In urban areas like Montreal, Laval, and Longueuil, outdoor units often accumulate fine particles, pollen, traffic dust, and seasonal deposits. On the North Shore and the South Shore, environments with trees, hedges, parking lots, or enclosed balconies can also promote debris buildup around outdoor units.
Mistakes to avoid with a wall-mounted heat pump installed on a balcony
A wall-mounted heat pump placed high up requires certain precautions. Here are the common mistakes we often see during our service calls:
Neglecting access to the outdoor unit
When a unit is installed above a door or on a balcony wall, some owners delay maintenance because access seems complicated. However, maintenance becomes even more important in this type of setup. The harder the access, the more you need to prevent problems from accumulating.
Blocking airflow
Objects placed too close to the unit, decorative panels, balcony storage, or dust buildup can reduce airflow. A heat pump needs to breathe properly to operate efficiently.
Ignore vibrations
A slight noise can be the first sign of a loose support, a vibrating panel, or a fan starting to strain. The earlier the problem is addressed, the simpler the repair.
Adding refrigerant without investigating the cause
A drop in performance does not automatically mean there is a refrigerant leak. An incorrect charge or an unjustified intervention can harm the system. Diagnosis must always precede intervention.
Cleaning with too much pressure
Aggressive cleaning can bend the fins of the outdoor heat exchanger. This reduces airflow and can cause the problem you were trying to fix.
The importance of a complete diagnosis before recommending a replacement
At AirGreen, our priority is to give the client a clear understanding of the actual condition of their system. Replacing a heat pump can be relevant when the unit is too old, when the compressor is defective, when parts are no longer available, or when repair costs exceed the reasonable value of the equipment. But when a targeted repair can restore operation, we always favor an honest and efficient approach.
In this case, the wall-mounted heat pump still showed promising operational potential. The main issue was related to the loss of heat exchange efficiency, some vibrations, and the need for a complete inspection. Once these issues were addressed, the client was able to continue using their system without immediately incurring the costs of a full replacement.
An AirGreen service adapted to the realities of residential buildings
Balcony installations, like this one, are common in Greater Montreal. They require specific expertise because technicians must work with limited spaces, high access points, condominium restrictions, exterior appearance rules, and neighborhood noise concerns.
Our team regularly works on wall-mounted heat pumps, wall air conditioners, MultiZone heat pumps, central systems, and specialized equipment in residential and commercial buildings in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Each service call is handled according to the actual site configuration, not based on a standard solution applied everywhere.
Final result for the client
At the end of the intervention, the client had a more stable, quieter, and more efficient system. We explained the observations made on site, the actions taken, the points to watch, and good maintenance practices. This transparency is essential because a well-informed client can spot signs of a future problem more quickly.
Indoor comfort was restored, the outdoor unit was functioning more normally, and the client was reassured about the general condition of their heat pump. This repair also helped avoid a hasty replacement decision while giving the system better operating conditions.
Practical advice after a wall-mounted heat pump repair
After this type of intervention, we generally recommend monitoring three elements: the quality of the blown air, the outdoor noise, and the regularity of the cycles. If the device starts to shut down unusually again, if the noise returns, or if performance quickly decreases, a check-up should be scheduled before the problem worsens.
Annual or seasonal maintenance is also recommended, especially for units installed in areas exposed to dust, leaves, pollen, or limited ventilation. A clean, well-secured, and well-ventilated heat pump consumes less energy, offers better comfort, and undergoes less mechanical stress.
A repair that demonstrates the value of local HVAC expertise
This intervention in Montreal shows that a successful wall-mounted heat pump repair relies on observation, experience, and precision. The image of the outdoor unit installed high up already tells part of the challenge: limited access, balcony environment, possible noise, clearance to verify, supports to check. But only a complete diagnosis can turn these clues into a concrete solution.
At AirGreen, we apply this rigor to serve owners, managers, and co-owners who want reliable, clear, and lasting service. Whether it’s a heat pump that cools less, a worrying noise, an ice problem, a sudden shutdown, a condensate leak, or doubts about overall performance, our team intervenes with a structured method and real knowledge of HVAC installations in Greater Montreal.
