A wall-mounted heat pump installed high on a brick wall: when noise, drainage, and technical access become the real challenge

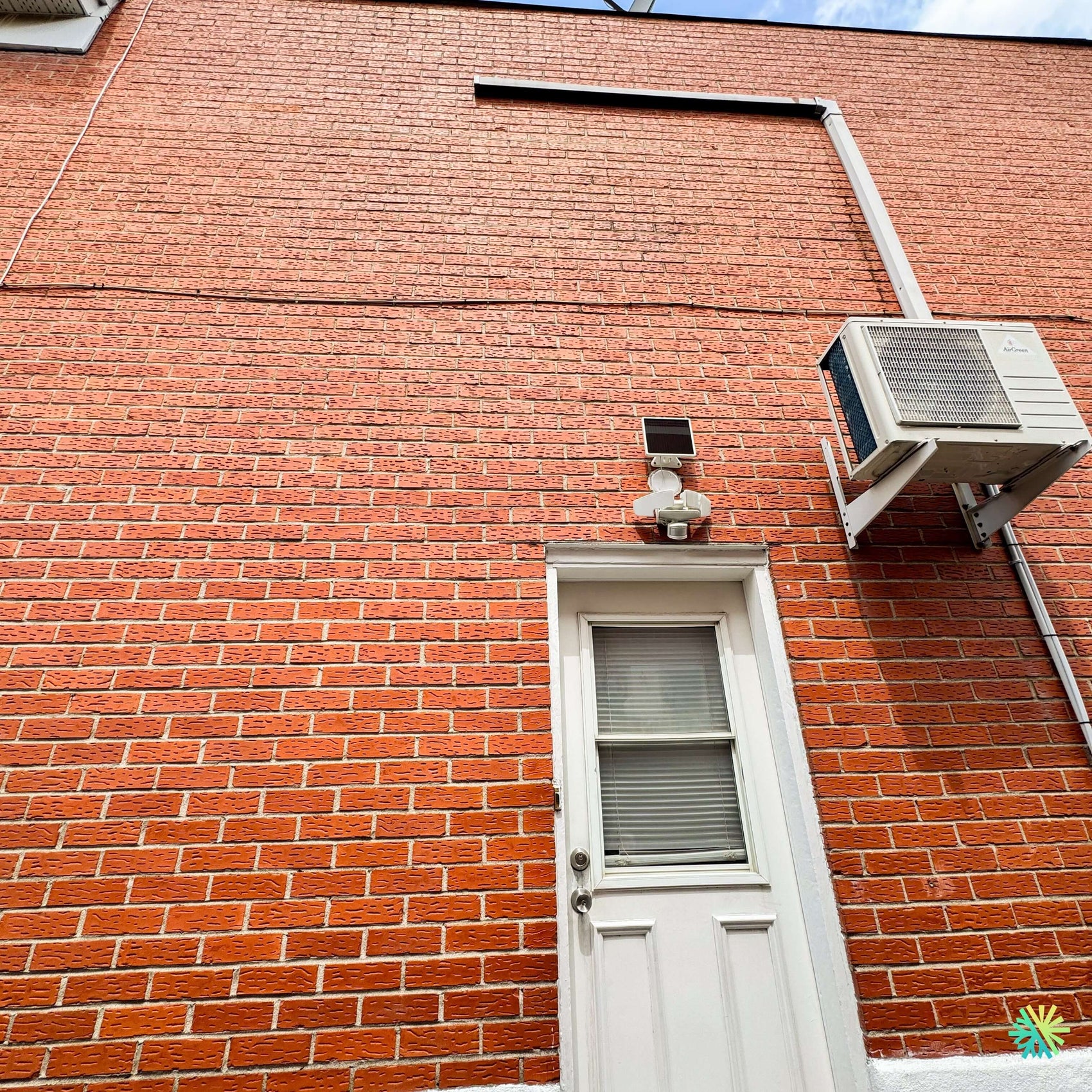

In Lachine, our AirGreen team responded to a service call on an AirGreen wall-mounted heat pump installed high up on a wall bracket fixed to a brick facade. The outdoor unit was located above a back door, with refrigerant lines protected by a vertical and horizontal sleeve running along the wall to the entry point of the indoor unit. This setup is common in residential areas of Montreal, where ground space is sometimes limited and wall-mounted installation helps clear the yard, terrace, or outdoor passage.
The client had contacted us for a problem that seemed simple at first: the heat pump was still working but was producing a louder noise than before, accompanied by a noticeable vibration on the wall during certain cycles. He had also noticed a possible water accumulation near the area under the unit, raising concerns about condensate drainage or defrosting in heating mode.
In this kind of situation, a wall-mounted heat pump should not be evaluated solely on its ability to start. A device can blow air, heat, or cool while having a mechanical, electrical, refrigeration, or installation problem that could develop into a more costly failure. Our intervention in Lachine was therefore structured around a complete diagnosis: wall support, vibration, mounting, drainage, outdoor coil, electrical supply, line condition, and overall performance.
A compact wall unit, but exposed to building constraints
The observed equipment was a mini-split wall-mounted heat pump, with a compact outdoor unit installed on two metal brackets. The setup corresponds to a typical residential system, usually used to serve an open area, a floor, a dwelling, or a specific zone of the house. Based on the unit's size and visible configuration, it was a device with a common capacity of about 12,000 to 18,000 BTU, a range widely used in homes in Lachine and western Montreal.
The installation had several important features:
- outdoor unit placed at height;
- wall support fixed into the brick;
- refrigerant lines protected by a rigid sheath;
- vertical passage along the wall;
- proximity to an exterior door;
- technical access requiring a ladder and a safe working method;
- direct exposure to temperature changes, wind, rain, and frost.
This type of installation offers good protection against snow accumulation on the ground but requires flawless fastening. A wall-mounted heat pump naturally produces vibrations: compressor, fan, defrost cycles, speed variations on inverter systems. When the unit is attached to a brick structure, these vibrations can sometimes be transmitted to the wall and then amplified inside the building.
Reported symptoms: vibration, intermittent noise, and less stable performance
The client described behavior that appeared mainly during startups and speed changes. The noise was not constant but occurred often enough to be concerning. In heating mode, the unit also seemed to work longer to reach the requested temperature.
The main symptoms were as follows:
- vibration noise at startup;
- slight resonance in the wall;
- longer cycles in cold weather;
- operation less quiet than at initial installation;
- concern about the strength of the support;
- doubt about water drainage during defrosting;
- possible presence of ice or water under the outdoor unit area.
At first glance, several causes were possible. Vibration can come from a poorly tightened wall support, worn anti-vibration pads, a loose body panel, a refrigerant line in contact with a hard surface, a resonating grille, an unbalanced fan, or a compressor under strain. A drop in performance can be related to a dirty outdoor coil, poor air circulation, incomplete defrosting, a faulty sensor, or a refrigerant level to check.
Our priority was to avoid quick conclusions. Replacing a part without a clear diagnosis can be costly for the client without solving the real cause of the problem.
Wall support inspection: a critical point on a brick facade
We started with the mechanical inspection of the support. On a wall installation, the brackets not only hold the unit in place. They must also limit movement, distribute weight, keep the device perfectly stable, and reduce vibration transmission.
We checked:
- the condition of the anchors in the brick;
- the tightening of the bolts;
- the stability of the support arms;
- the alignment of the unit;
- the presence and condition of anti-vibration pads;
- metal-to-metal contact points;
- the rigidity of the structure under load;
- signs of movement or twisting.
In this case, the unit was not in immediate danger, but some vibration points needed correction. Slightly loose fasteners and aging supports can be enough to create significant noise, especially when the compressor changes speed. We tightened accessible points, stabilized the supports, and checked that the unit was properly resting on its base.
Inspection of refrigerant lines and outdoor sheath
The protective sheath visible on the wall played a crucial role: it protected the refrigerant lines, communication cable, and drain according to the indoor setup. However, a poorly secured sheath or a too-tight passage can also transmit vibrations.
We inspected the vertical and horizontal runs to ensure the lines were not under stress. A refrigerant line must not be crushed, excessively bent, or forced against a rigid surface. With heating and cooling cycles, materials expand and contract. If the passage is too tight, rubbing or clicking noises may occur.
We also checked the duct outlets and connection points. A small poorly protected opening can let in water, cold air, or insects. In an outdoor installation in Montreal, Laval, Longueuil, on the North Shore or South Shore, these details are important because the weather conditions are demanding: heavy rain, frost, thaw, snow, defrost cycles, and large temperature swings.
Cleaning and inspection of the outdoor coil
The outdoor unit needed an inspection of its heat exchanger. Even when a unit looks clean from a distance, the coil fins can accumulate fine particles. In Lachine, the proximity to streets, wind, trees, and urban dust can gradually clog the condenser.
A partially clogged outdoor coil reduces heat exchange. In heating mode, the heat pump must extract heat from the outside air. If the exchanger is struggling to breathe, the unit works harder, cycles lengthen, defrosting may become more frequent, and operating noise increases.
We performed a targeted cleaning of the coil, taking care not to bend the fins. Overly aggressive cleaning can cause more harm than good. The right approach is to remove buildup, restore airflow, and visually check the overall condition of the heat exchanger.
Electrical tests and operation sequence
After the mechanical portion, we checked the device's behavior during operation. An AirGreen wall-mounted mini-split heat pump relies on constant communication between the indoor and outdoor units. Unstable power supply, weakened connection, or a malfunctioning electronic board can cause shutdowns, unusual noises, or irregular cycles.
We observed:
- outdoor fan startup;
- speed variation;
- compressor response;
- cycle stability;
- heating behavior;
- absence of major abnormal mechanical noise;
- ventilation regularity;
- potential signs of error or interruption.
No signs pointed to a complete compressor failure. The problem seemed rather related to a combination of mechanical vibration, necessary maintenance, and sound transmission through the structure.
Drainage, defrosting, and water around the unit
Water observed or suspected around an outdoor unit in heating mode does not always indicate a malfunction. A heat pump produces water during defrost cycles because the frost accumulated on the coil melts and drains under the unit. However, when the unit is installed above a door, it is important to ensure that this water does not create a slippery area, ice buildup, or runoff that inconveniences occupants.
We therefore explained to the client the difference between:
- normal defrost water;
- excessive buildup related to poor clearance;
- ice caused by an ineffective defrost cycle;
- abnormal leak coming from another component;
- condensation or runoff coming from the duct.
In this case, we recommended monitoring the drainage during freezing periods and keeping the area under the unit clear. If ice repeatedly forms near the door, it may be necessary to add a drainage management solution or review some positioning details.
A repair that improves comfort, reduces noise, and extends the system's lifespan
After the repairs, the behavior of the wall-mounted heat pump was more stable. The vibration noise had decreased, the wall mount was secured, the outdoor coil was breathing better, and the client had a clear explanation about the water related to defrost cycles. The intervention helped avoid premature replacement and extended the use of the device under better conditions.
What we fixed on site
Our intervention included several concrete actions:
- complete inspection of the outdoor unit;
- wall mount inspection;
- tightening accessible fasteners;
- checking anti-vibration supports;
- inspection of the duct and lines;
- cleaning of the outdoor coil;
- heating operation test;
- observation of the fan and compressor;
- explanation of drainage and defrosting;
- follow-up recommendations to the client.
This type of HVAC repair is especially important when the unit is installed at height. Since access is more complex, it’s better to intervene before a small noise becomes a major vibration or a weakened mount causes wall damage.
Mistakes to avoid with an outdoor wall-mounted heat pump
The first mistake is ignoring a new noise. A wall-mounted heat pump is never perfectly silent, but a change in sound often indicates that a part has shifted, aged, or accumulated dirt.
The second mistake is washing the unit with too much pressure. Outdoor coils are fragile. A jet that’s too strong can bend the fins and reduce performance.
The third mistake is neglecting wall mounts. Even if the unit seems well secured, repeated vibrations can loosen some components over time.
The fourth mistake is blocking air circulation around the condenser. An outdoor unit needs clearance to operate efficiently.
The fifth mistake is confusing any presence of water with a leak. In winter, defrost water is normal, but it must be well understood and monitored to avoid ice in passage areas.
Why choose AirGreen for a wall-mounted heat pump repair in Lachine
At AirGreen, we work every week on residential HVAC systems in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Our technicians know the realities of brick houses, high installations, wall mounts, outdoor ducts, and heat pumps exposed to Quebec’s climate.
A good repair is not just about replacing a part. It starts with an accurate diagnosis, understanding the building, and checking details that affect performance: air circulation, vibration, drainage, electricity, mounting, access, and maintenance.
In this service in Lachine, the client got a quieter, more stable, and better-maintained heat pump. They also received practical advice to monitor their system during upcoming heating cycles and prevent the problem from recurring.
