A Fujitsu heat pump installed in a tight space that was losing its efficiency
In Baie-D’Urfé, our AirGreen team worked on a Fujitsu mini-split wall-mounted heat pump, a compact outdoor unit from the residential Fujitsu Halcyon HFI range, installed on a wall bracket between two facades, in close proximity to a window, a brick wall, and with limited side clearance. This type of installation is common in residential areas of the West Island, where outdoor access is sometimes narrow and the facade’s aesthetics impose significant constraints.
The client contacted us because the device was no longer delivering the expected performance. In cooling mode, the indoor temperature dropped with difficulty. In heating mode, the cycles seemed less stable than before. The outdoor unit started, but its operation seemed forced, with less effective outdoor ventilation and more frequent stops. A Fujitsu wall-mounted heat pump is generally reliable, but when installed in a confined space, even the slightest coil obstruction or insufficient air circulation can quickly reduce performance.
A Fujitsu outdoor unit to analyze in its real environment

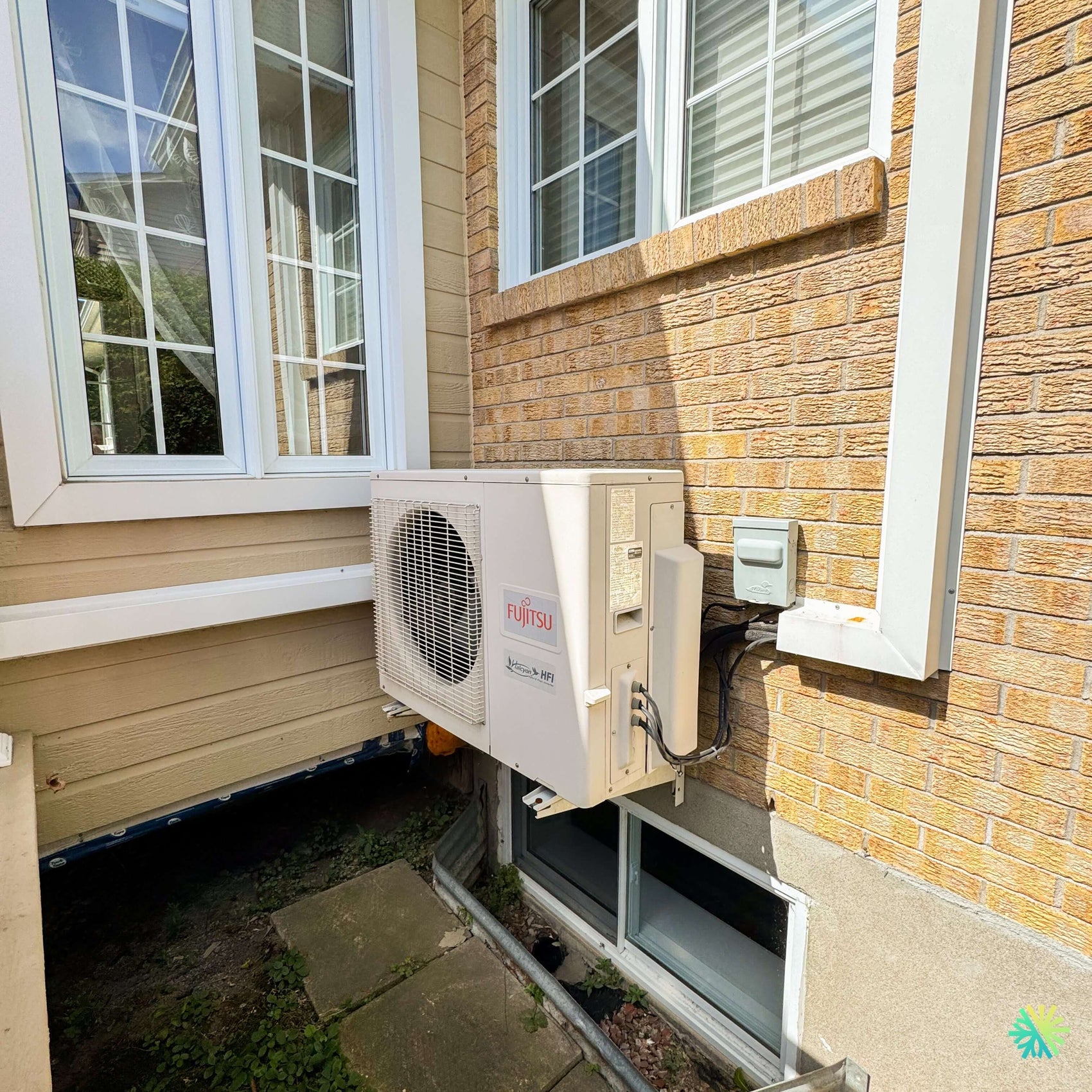

In the service photo, you can clearly see a Fujitsu outdoor unit installed on a metal wall bracket, with an outdoor electrical disconnect nearby and refrigerant lines connected on the right side. The unit is positioned above a basement window, in a relatively narrow outdoor corridor between two building volumes. This detail is essential for the diagnosis.
A wall-mounted heat pump does not operate solely thanks to its compressor. It also depends on a constant exchange of air around the outdoor unit. When the warm air expelled in cooling mode or the cold air treated in heating mode recirculates around the device, the system pressure can become less stable. The compressor works harder, the outdoor fan is more stressed, and overall performance decreases.
In this specific case, the symptoms reported by the customer pointed to a possible combination of factors:
- loss of air conditioning performance ;
- longer startups before achieving truly cool air;
- irregular operating cycles;
- more noticeable outdoor noise than before;
- partially clogged outdoor coil;
- limited clearance around the unit;
- possibility of abnormal pressure during hot periods.
Initial diagnosis: distinguishing a component failure from a heat exchange problem
During a service call on a Fujitsu wall-mounted heat pump, several factors must be checked before concluding a defective part. A customer might think the compressor is broken simply because the unit cools less effectively. However, a dirty coil, a slowed outdoor fan, poor heat discharge, or airflow restriction can produce very similar symptoms.
Our technician began by observing the behavior of the outdoor unit during an actual demand. We checked the startup, fan rotation, mechanical noise, compressor response, discharged air temperature, and the indoor unit’s reaction. The goal was to understand whether the unit was truly lacking capacity or if its performance was limited by operating conditions.
Outdoor coil inspection
One of the first elements checked was the outdoor coil. On a Fujitsu wall-mounted unit installed near a brick wall, dust, pollen, plant debris, and fine particles can accumulate in the fins. Even a thin layer of dirt can reduce heat exchange, especially when the unit is in a space where air circulates less freely.
We inspected:
- the condition of the fins;
- the obstructed areas;
- the presence of debris around the unit;
- the air intake circulation;
- the air discharge at the front of the unit;
- the available space around the condenser.
A partially clogged coil forces the heat pump to compensate. In air conditioning, the outdoor unit must release the heat extracted from the house. If this release is poor, efficiency drops. In heating mode, the unit must capture energy from the outside air. If the heat exchanger is dirty or poorly ventilated, the heat pump can lose its stability.
Technical cleaning and fin protection
Cleaning a coil should not be done aggressively. The fins of a condenser are thin and can easily bend. A poor method can further reduce airflow. We performed appropriate cleaning, respecting the fin orientation and removing deposits that limited heat exchange.
After cleaning, the outdoor unit breathed better. The fan could move air more efficiently, and the discharge temperature became more consistent with normal demand. This type of correction may seem simple, but it often makes a major difference on mini-split systems, especially units installed in confined areas.
Outdoor fan check
The outdoor fan is a central component of the operation of a wall-mounted heat pump. It must spin freely, without excessive vibration, friction, or abnormal slowing. On this Fujitsu unit, we observed the fan over several cycles to verify that it did not show bearing noise, imbalance, or intermittent shutdown.
A weakened fan can cause:
- increased pressure in cooling mode;
- reduced heating performance;
- protection shutdowns;
- louder noise;
- accelerated compressor wear.
In this intervention in Baie-D’Urfé, the fan was functional, but its efficiency was reduced by the condition of the coil and the installation environment. After cleaning and mechanical inspection, its operation became more stable again.
Refrigeration check without unnecessary recharge
A drop in performance often leads to a question: should refrigerant be added? Our answer always depends on the diagnosis, never on an impression. A recharge without investigating the cause can create another problem, especially on a mini-split heat pump where the refrigerant charge must be precise.
We therefore checked the behavior of the refrigeration circuit based on demand, outdoor temperature, supply air temperature, and compressor response. The goal was to assess whether the symptoms corresponded to a leak, a restriction, or rather a loss of heat exchange.
In this case, the device did not show the most typical signs of a significant refrigerant shortage. The priority was therefore to restore air exchange and validate performance after correction. This approach avoided unnecessary intervention on the refrigeration circuit.
Electrical check and outdoor disconnect switch
The outdoor unit was connected to a disconnect switch installed on the brick wall. We visually inspected the enclosure, accessible connections, and power supply stability. A heat pump that operates intermittently can sometimes be affected by poor contact, unstable power, or a connection exposed to moisture.
Our checks focused on:
- the outdoor disconnect switch;
- visible connections;
- start-up behavior;
- the unit’s reaction during repeated cycles;
- signs of overheating or unstable contact;
- continuity of operation on demand.
No major electrical faults were observed, but this step was essential to confirm that the main problem came from exchange performance and not from intermittent power cuts.
Analysis of clearance around the unit
The location of this Fujitsu heat pump required special attention. The unit was installed in a narrow outdoor space, with a brick facade on one side and a building structure on the other. This type of configuration can create air recirculation, especially on very hot days. The device then expels hot air that can return to its own coil, reducing its efficiency.
We recommended the client keep the space around the unit perfectly clear, specifically:
- do not let vegetation grow near the condenser;
- avoid storing objects under or in front of the unit;
- check that the wall mount remains stable;
- keep the area under the unit clean;
- monitor accumulations of leaves, dust, or debris;
- have the coil cleaned before periods of heavy use.
These details are especially important in Baie-D’Urfé, where several residences have narrow side yards and wall installations close to windows.
A targeted repair that restored stability to the Fujitsu system
After technical cleaning, fan inspection, electrical check, and analysis of the refrigeration behavior, the Fujitsu wall-mounted heat pump regained more stable operation. The outdoor unit expelled heat better, cycles were more regular, and the indoor blowing temperature improved. The client noticed a tangible difference: the device responded better to demand and comfort returned more quickly to the served area.
Result after operational tests
We performed several tests after the intervention to confirm that the system did not revert to the same behavior. The heat pump started correctly, the outdoor fan ran smoothly, the air discharge was more consistent, and the indoor unit delivered a more stable temperature.
The main result was an improvement in performance without major component replacement. In this case, the repair was based on precise diagnosis, professional cleaning, and restoring heat exchange conditions. This is exactly the kind of intervention that helps extend the lifespan of a wall-mounted heat pump.
Why this type of problem often recurs with mini-splits
Wall-mounted heat pumps are very popular in Montreal, Laval, Longueuil, on the North Shore and the South Shore, because they offer excellent efficiency in a compact format. However, their performance depends heavily on installation quality and maintenance.
The most common problems we encounter are:
- dirty outdoor coils;
- indoor filters too dirty;
- clogged condensation drains;
- noisy fans;
- installations with insufficient clearance;
- outdoor units too exposed to debris;
- diagnostic errors leading to unnecessary recharges;
- vibrations transmitted to the wall by a poorly adjusted support.
In the case of this Fujitsu heat pump in Baie-D’Urfé, the determining factor was heat exchange. The system could still operate, but it was no longer working under optimal conditions.
Mistakes to avoid with a Fujitsu heat pump
A common mistake is to clean only the indoor unit filters while forgetting the outdoor unit. Both sides of the system are important. A clean indoor unit will not compensate for a clogged outdoor condenser. Another mistake is to ignore new noises. A slight change in sound can indicate vibration, an unbalanced fan, or mechanical stress.
It is also necessary to avoid covering the outdoor unit or installing objects too close to the front facade. Even if the space seems free, air must be able to enter and exit without excessive recirculation. Finally, do not request a refrigerant recharge without a complete diagnosis. On a Fujitsu system, an incorrect charge can harm performance and cause more serious problems.
AirGreen’s approach to wall-mounted heat pump repairs
At AirGreen, every HVAC service call is treated as a complete system analysis. We don’t just look at the brand or symptom. We assess the unit, environment, airflow, electrical circuit, refrigerant behavior, and usage habits. This method solves the real cause rather than temporarily masking the problem.
For this intervention in Baie-D’Urfé, field experience was essential. The Fujitsu unit was properly installed on a wall mount, but its location required more rigorous maintenance. The diagnosis restored performance without turning a heat exchange issue into an expensive component replacement.
Practical advice after the intervention
After restarting the system, we recommended the client monitor the heat pump’s behavior during very hot days and early cold spells. A system operating in a tight space should be observed under different conditions, as air recirculation can be more pronounced in cooling than in heating.
The best practices to remember are simple:
- clean the indoor filters regularly;
- have the outdoor unit inspected before summer;
- keep clearance around the condenser;
- watch for unusual noises;
- do not let leaves or debris accumulate;
- have the system checked if cycles become short;
- request a diagnosis before any refrigerant recharge.
Conclusion: a Fujitsu heat pump restored to performance in Baie-D’Urfé
This repair of a Fujitsu wall-mounted heat pump in Baie-D’Urfé demonstrates the importance of a complete HVAC diagnosis. The problem was not due to a catastrophic failure but a loss of efficiency caused by reduced heat exchange and a challenging external environment. Thanks to coil inspection, cleaning, fan verification, electrical checks, and performance tests, the unit regained more stable operation.
A well-maintained Fujitsu mini-split can provide excellent comfort for many years. However, it is essential to meet its basic needs: air circulation, coil cleanliness, sufficient clearance, and professional diagnosis at the first signs of performance decline.
