A wall unit installed above a door: a small device, a big impact on comfort

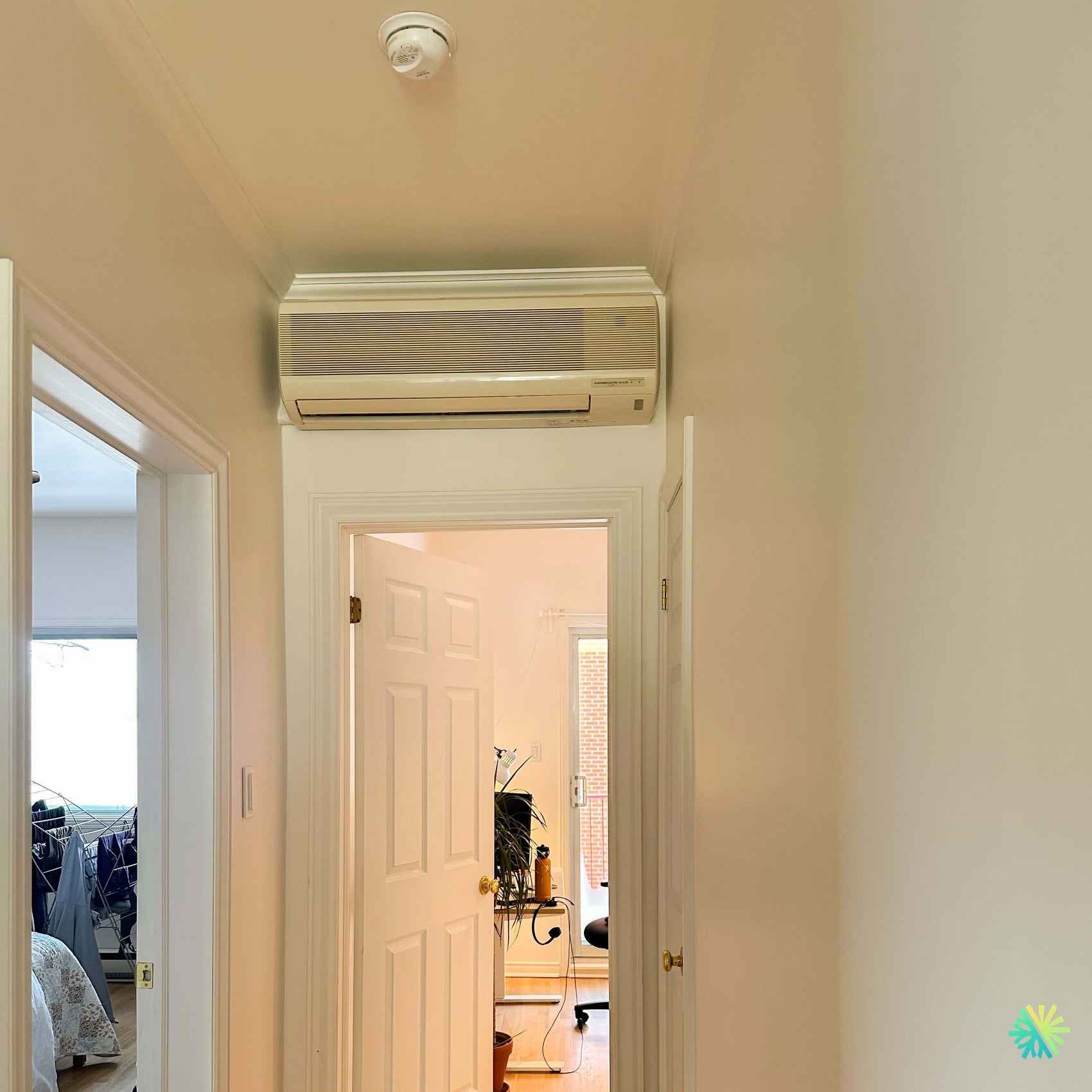

In this residence in Saint-Bruno, our AirGreen team was called for a Mitsubishi Electric wall-mounted heat pump installed in a narrow corridor, directly above a door frame. At first glance, the device just seemed to be aging: yellowed casing from years, slightly marked front panel, hard-to-reach location, and very high installation near the ceiling. Yet behind this discreet appearance was a real HVAC problem: the unit was running but no longer able to effectively cool the floor.
The client had noticed a gradual decrease in comfort. Air was still coming out of the unit, but the flow seemed weak, the blowing temperature varied, and a vibration noise was heard when the fan speed increased. In a house where rooms connect through a central corridor, a wall-mounted heat pump placed there often plays an important role: it must push air toward the bedrooms, stabilize the floor temperature, and prevent temperature differences between rooms.
This intervention was particularly interesting because the unit was installed in a busy area, above a door, with little space around to work. In this kind of setup, every move counts. Walls must be protected, internal components properly accessed, drainage checked, and it must be ensured that the device can be put back into service without creating noise, leaks, or vibration.
An old Mitsubishi Electric system, but still recoverable
The observed unit was a wall-mounted mini-split heat pump, probably with an approximate capacity of 12,000 BTU, installed mainly to serve the upper floor and corridor. The Mitsubishi Electric brand is known for the durability of its equipment, but even the most reliable devices eventually lose performance when certain components become dirty or worn.
The exact model was not fully readable on site, which often happens with older devices whose labels are partially erased or hard to access. So we worked from verifiable elements: unit type, startup behavior, turbine condition, coil cleanliness, condensate drainage, control board response, and general installation condition.
In this specific case, the client did not want to replace the device without a diagnosis. Our mandate was clear: determine if the wall-mounted heat pump could be repaired in a cost-effective and safe way, or if the symptoms indicated an imminent end of life.
Symptoms reported by the client
Before our arrival, several signs had been observed:
- Low airflow, especially when the door under the unit was open
- Slow cooling of adjacent rooms
- Vibration noise at startup
- Slightly damp smell after a long period of shutdown
- Air flap less smooth than before
- Impression that the unit ran for a long time without real results
- Concern about a possible indoor water leak
These symptoms are common on wall-mounted heat pumps installed high up, especially when they have not had a complete internal cleaning for several seasons. The problem may seem refrigeration-related at first, but very often, the cause lies in air circulation: clogged filters, blocked coil, dirty fan, or partially stuck flap.
Initial diagnosis: do not confuse breakdown with loss of efficiency
During an HVAC service call, we always avoid jumping to conclusions. A heat pump that cools poorly does not necessarily have a refrigerant shortage. A noisy unit does not always have a defective motor. A device that runs for a long time is not always seriously broken. Our diagnosis therefore begins with a complete reading of the situation.
We checked:
- The visual condition of the indoor unit
- The cleanliness of the filters
- The level of dirt on the evaporator coil
- The ventilation fan
- The movement of the horizontal flap
- The response to controls
- The temperature of the return air and the blown air
- The stability of the cooling cycle
- The condensate drain flow
- Mechanical noises and vibrations
The inspection quickly revealed that the fan was heavily loaded with dust and fine deposits. The blades could no longer move air efficiently. The filters were dirty, but the problem went beyond a simple surface cleaning. The coil also showed an accumulation that reduced airflow. This type of clogging causes a gradual loss of efficiency: the device still seems to work, but it has to run longer to produce less comfort.
The critical role of the location above the door
The location of this wall-mounted heat pump complicated its operation. Installed above a door frame, in a fairly narrow corridor, the unit had to blow air into a space where air movements are influenced by door openings, ceiling height, and the natural obstacles of the house.
When the turbine is clean, this type of placement can effectively distribute air to several rooms. When airflow decreases, air falls too close to the unit or remains trapped in the hallway. Result: the customer experiences poor comfort even though the unit is still blowing.
We also noticed that the flap no longer directed air optimally. Slight resistance in its movement contributed to less uniform diffusion. On an older wall unit, this detail can make a big difference, especially in a hallway where air must be projected precisely.
Technical cleaning, vibration correction, and unit performance restoration
After the diagnosis, we recommended a targeted intervention: thorough internal cleaning, drain inspection, vibration correction, flap control, and performance testing. The goal was to restore the Mitsubishi Electric wall-mounted heat pump’s blowing capacity and confirm that the system could continue to operate properly.
Cleaning of filters and indoor coil
We first removed the filters to clean them properly. Washable filters in a wall unit must be maintained regularly, but they don’t catch everything. Over time, particles pass through and accumulate on the coil.
The indoor coil was cleaned using a method suited for wall units. We worked carefully to clear the fins without damaging them. A clogged coil reduces heat exchange, increases run time, and can even cause excessive condensation or ice under certain conditions.
After this step, air was already circulating better through the unit, but the main issue remained the turbine.
Turbine cleaning: the real cause of low airflow
The turbine was the most problematic element of the service call. Deposits accumulated between the blades significantly reduced airflow. This is a situation we regularly encounter in Montreal, Laval, Longueuil, on the North Shore and South Shore, especially in homes where the wall-mounted heat pump runs for several months a year.
A dirty turbine can cause several problems:
- Reduced airflow
- Irregular rotation noise
- Vibration in the casing
- Poor air distribution
- Odor at startup
- Feeling that the device “no longer pushes”
- Risk of stagnant moisture in the unit
We thoroughly cleaned the turbine to restore its balance and ventilation capacity. After cleaning, the noise noticeably decreased. The vibration heard at startup was largely due to uneven buildup on the fan wheel, which caused a slight imbalance.
Condensate drain inspection
Since the client had mentioned a concern about water leakage, we inspected the condensate tray and drain. The flow was not completely blocked but was slower than desired. A partially clogged drain can work for some time before causing an overflow, especially during high humidity periods.
We rinsed and cleared the drain to ensure smoother drainage. This step is essential for units installed above a door, as a water leak there can quickly affect the framing, paint, flooring, and walking surfaces.
Noise correction and casing stabilization
We then checked the unit’s mounting points and areas that could cause vibration. Over time, a wall unit can develop small mechanical play: poorly seated front panel, aging plastic, slightly stiff flap, support transmitting vibration to the wall.
We correctly repositioned the accessible elements, confirmed the panel closure, and tested the unit at different fan speeds. The residual noise was much more stable after the intervention. In this case, the fan motor showed no obvious signs of failure; the problem mainly came from dirt buildup and vibration transmitted by certain parts.
Performance tests after the intervention
After cleaning and corrections, we restarted the heat pump in cooling mode. We observed the startup, fan speeds, flap orientation, and blowing temperature. The improvement was clear: the air came out with more force, diffusion in the corridor was better, and the device no longer produced the same vibration noise.
We confirmed:
- More regular airflow
- Consistent blowing temperature
- A functional flap
- A clear drain
- Reduced noise at startup
- Better distribution to adjacent rooms
- No immediate signs of water leakage
- No major control anomalies
The client was able to quickly notice the difference. The device had not been replaced, but it had regained much more satisfactory performance thanks to a well-targeted intervention.
Recommendations given to the client
We explained to the client that this Mitsubishi Electric wall-mounted heat pump could still be useful, but it needed to be maintained more regularly due to its age and location. A unit installed above a door is often forgotten because it is less accessible and harder to clean. Yet, it is precisely this type of device that requires rigorous monitoring.
Our main recommendations:
- Clean the filters more often during summer
- Monitor any drop in airflow
- Do not ignore odors at startup
- Have the drain checked before the cooling season
- Avoid forcing the flap manually
- Plan a complete internal cleaning if the noise returns
- Compare the cost of a future repair with the actual age of the device
We also mentioned that if the unit quickly lost efficiency again despite cleaning, an evaluation of the outdoor unit and refrigerant circuit would be relevant. For this specific call, however, the main symptoms were related to the indoor unit.
Mistakes to avoid with an older wall-mounted heat pump
Many owners wait until a wall-mounted heat pump completely stops working before calling a technician. This is a common mistake. Reduced airflow, odors, noise, or a slow leak are signs that deserve prompt attention.
Avoid the following:
- Automatically concluding there is a refrigerant shortage
- Cleaning only the filters thinking maintenance is complete
- Using a water jet or inappropriate product on the indoor unit
- Disassembling the flap without understanding the mechanism
- Allowing a slow drain to develop into a leak
- Continuing to use the device despite strong vibration
A successful HVAC repair relies on an accurate diagnosis. In this Saint-Bruno residence, a methodical approach prevented premature replacement and restored comfort to the upper floor.
AirGreen for wall-mounted heat pump repair in Saint-Bruno
At AirGreen, we provide repair services for wall-mounted heat pumps, wall air conditioners, MultiZone systems, central heat pumps, and other residential HVAC equipment in Greater Montreal. Our teams serve Saint-Bruno, Montreal, Laval, Longueuil, the North Shore, and the South Shore with a technical, clean, and tailored approach for each home.
This intervention on a Mitsubishi Electric wall-mounted heat pump demonstrates that an older device can sometimes regain an excellent level of performance through a complete internal cleaning, drainage correction, and careful inspection of mechanical components. The client experienced improved comfort, a quieter device, and a clear understanding of the actual condition of their system.
