A triple-zone installation designed for a bright urban home in Outremont
This triple-zone HITACHI airHome Multi multi-zone heat pump installation in Outremont was carried out in a residential space where every positioning detail mattered. The photograph shows one of the wall-mounted indoor units installed in a bright room, near a door providing access to a balcony or outdoor terrace.
The unit was mounted in the upper part of the wall, at a height that promotes air circulation throughout the room while keeping the entire living area clear. In a dense area such as Outremont, where properties may have multiple floors, enclosed rooms, and limited outdoor space, a multi-zone heat pump is often a suitable solution for distributing heating and cooling without multiplying outdoor units.
The selected system is a triple-zone configuration: a single outdoor unit powers three separate indoor units. Each zone can receive a unit suited to its size and purpose, whether it is a living room, bedroom, office, open-concept area, or separate floor.

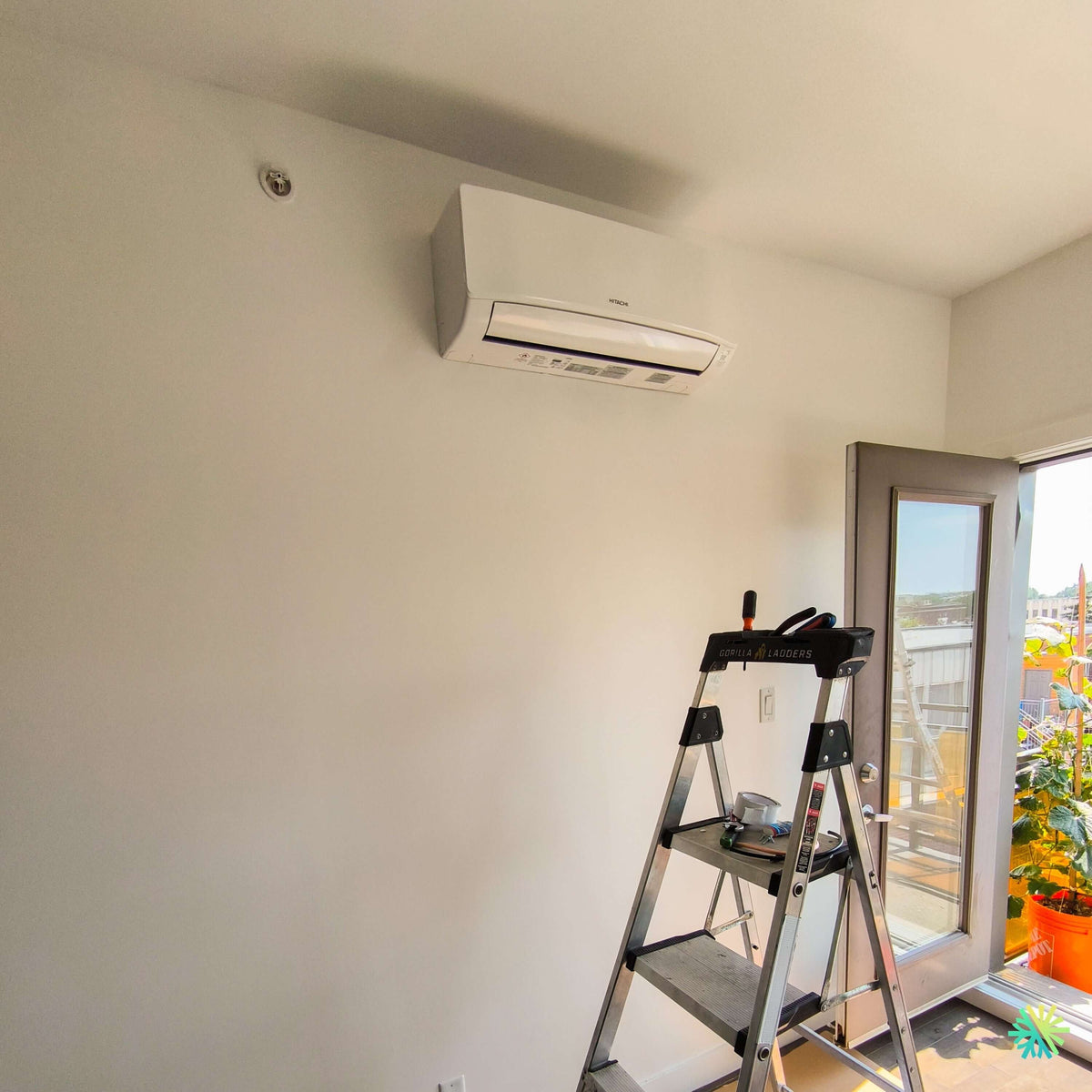

In the photo, the ladder still in place and the visible tools indicate that the installation was recently completed or is undergoing final checks. The HITACHI wall-mounted unit is installed near the ceiling, but with enough clearance to allow air intake from above, opening of the front panel, and filter maintenance.
Why was a triple-zone heat pump suitable for this Outremont property?
Outremont apartments and houses often have architecture that differs from that of a recently built, fully open-concept home. Rooms may be separated by load-bearing walls, corridors, doors, or stairwells. In this context, a single wall-mounted unit located in a central room is not always enough to distribute air evenly.
A triple-zone configuration makes it possible to treat the most important spaces directly, rather than hoping that warm or cool air will circulate naturally from one room to another.
The three zones can, for example, be divided among:
- a main living area;
- a bedroom;
- an office or another enclosed room;
- an upper floor;
- a finished basement;
- an extension or rear section of the home.
Each indoor unit has its own setpoint, fan speed, and settings. One room can be maintained at a different temperature from another, and a unit can be turned off when its zone is not in use.
However, it remains essential to understand how the system operates as a whole. The three indoor units share the same general mode. In summer, they operate in cooling, dehumidification, or fan mode. In winter, they operate in heating or fan mode. One unit cannot heat while another is cooling at the same time.
This limitation does not prevent individual temperature control, but it must be clearly explained before any multi-zone HVAC installation.
A wall-mounted unit installed near an exterior door
The location shown in the photo has several interesting features.
The unit is installed on a wall adjacent to a glass door. This position can be advantageous when the door and windows create an area of solar gains in summer or heat losses in winter.
Conditioned air can be directed into the room rather than straight at the glass. The location also avoids taking up the main wall with a unit that is too low or placed in an area intended for furniture.
Positioning a wall-mounted heat pump near an exterior door nevertheless requires several checks.
Avoid direct drafts
The unit must not blow directly onto an armchair, bed, or workstation. Even when the air temperature is appropriate, a continuous stream can be uncomfortable.
In this installation, the unit is mounted high on the wall, allowing the airflow to travel a greater distance before reaching the occupied area.
Account for frequent door openings
A balcony door that is opened regularly quickly introduces warm, humid air in summer or cold air in winter. Placing the unit nearby does not replace sealing the door, but it can help compensate for changes more quickly once the door is closed.
Maintain clearances around the unit
The unit must have sufficient clearance above and on the sides to draw in air properly. The front panel must also be able to open to access the filters.
The photograph shows a high installation with no immediate obstruction in front of the air outlet.
Choosing the height: a technical detail, not merely an aesthetic one
A wall-mounted unit installed too low unnecessarily takes up wall space and may blow directly onto occupants. A unit installed too close to the ceiling may, conversely, lack airflow or become difficult to maintain.
The height must therefore balance several needs:
- air circulation;
- access to the filters;
- the upper clearance;
- the drain slope;
- the position of the wall plate;
- the line routing;
- the interior finish;
- the future arrangement of the furniture.
In the case of Outremont, the wall was unobstructed and offered a suitable upper area for the unit. The exterior door on the right limited some possible locations, but it also made it possible to direct the airflow toward the center of the room.
A discreet interior finish
The HITACHI wall-mounted unit has a white casing that blends naturally with the light-colored wall. The absence of visible line-hide in the room suggests that the connections pass directly through the wall or follow a concealed route behind the unit.
This finish reduces the visual impact in a residential space where aesthetics matter. In several projects in Outremont and Montreal, homeowners want to benefit from a heating and cooling solution without turning the room into a technical space.
A clean installation notably requires:
- a hole positioned correctly behind the unit;
- a perfectly aligned mounting plate;
- lines prepared without deforming the casing;
- a properly sloped condensate drain;
- a discreet cable outlet;
- a complete inspection before final closure.
A properly installed wall-mounted unit should seem to be part of the room, even though significant technical work is hidden behind its casing.
The triple-zone model in the HITACHI airHome Multi range
In HITACHI documentation, the outdoor model associated with three indoor connections is the RAM-G24N3HAA. It is an outdoor unit with a rated capacity of 24,000 BTU/h in cooling and 24,000 BTU/h in heating.
The photograph shows only one of the indoor units. Therefore, the outdoor unit’s model number is not visible and cannot be confirmed from the image alone. RAM-G24N3HAA nevertheless remains the triple-connection model presented in the product line brochure.
For a ductless configuration, the published data includes:
- a nominal cooling capacity of 24,000 BTU/h;
- a cooling range of 7,000 to 28,000 BTU/h;
- a nominal heating capacity of 24,000 BTU/h;
- a heating range of 9,000 to 26,200 BTU/h;
- efficiency of up to 22.0 TRÉS2;
- a CPSC2 of up to 9.5 in Region 4 and 7.8 in Region 5;
- a COP of 3.5 at 8 °C;
- heating operation down to -20 °C;
- a maximum heating capacity of 18,500 BTU/h at -15 °C;
- a maximum heating capacity of 13,000 BTU/h at -20 °C;
- a refrigerant R32;
- an advertised outdoor sound level of 54 dB(A).
The documentation also specifies a 208–230 V single-phase power supply, a minimum circuit ampacity of 19 A, and maximum overcurrent protection of 35 A. The values shown on the nameplate of the actual installed unit always take precedence.
Three indoor units suited to three different needs
A three-zone installation does not necessarily mean that all three indoor units have the same capacity.
The HITACHI airHome Multi range allows different combinations, subject to the capacities authorized by the manufacturer. A small bedroom may receive a lower-capacity unit, while a larger open area may require a larger unit.
The selection should be based on the actual loads of each space, including:
- floor area;
- ceiling height;
- the number of windows;
- sun exposure;
- insulation;
- proximity to a balcony;
- the number of occupants;
- the presence of heat-generating appliances;
- how often the room is used.
Simply adding the total floor area of the home and then dividing the result by three is not a reliable method.
In an Outremont property, a south-facing room with a large glass door may have very different cooling needs from an interior bedroom on the north side.
Several indoor unit formats available
The airHome Multi range can be combined with several types of indoor units.
airHome 400 and airHome 650 wall-mounted units
Wall-mounted units are often the most practical option in existing homes. They require less work than ducted units and offer different capacities.
The airHome 650 series can include a motion sensor designed to reduce consumption when the room is unoccupied.
airHome Floor console
The floor-mounted console can suit a room where upper wall space is limited by windows, beams, or a sloped ceiling.
Mini cassette
The mini cassette distributes air in four directions and can be suitable for a large open-plan area. However, it requires sufficient ceiling space and maintenance access.
Ducted unit
The ducted unit allows for a more discreet installation, with visible grilles instead of a wall-mounted unit. However, it requires ductwork, an air return, and suitable mechanical space.
The photo from Outremont shows a wall-mounted unit, a logical choice in an already finished room where we wanted to limit the extent of the work.
Inverter technology in a triple-zone installation
Inverter technology adjusts the compressor speed according to demand. This modulation capability is particularly useful with three zones, since requirements are not constant.
Only one indoor unit may operate during part of the day, while two or three zones may call for air conditioning simultaneously. The compressor then adjusts its output within the system’s limits.
This modulation helps:
- maintain a more stable temperature;
- limit frequent starts;
- reduce noise when demand is low;
- adjust consumption to actual usage;
- improve comfort in each zone.
However, it is important to understand that the outdoor unit’s total capacity is shared among the active indoor units. Each unit does not automatically receive its full rated capacity when all three zones are operating at maximum output.
Heating performance in Outremont
The manufacturer indicates heating operation down to -20 °C for the airHome Multi range. This describes the operating limit, but it does not mean that the unit retains its full rated capacity when the temperature reaches -20 °C.
For the RAM-G24N3HAA triple-zone model, the published maximum capacity is approximately:
- 18,500 BTU/h at -15 °C;
- 13,000 BTU/h at -20 °C.
This reduction must be taken into account when sizing the system. For a project in Outremont, we must determine whether the system will be used as the primary heat source or as a supplement to electric baseboard heaters, a furnace, or another existing system.
A load calculation compares the home’s heat losses with the capacity actually available on cold days.
Having supplemental heating is often still recommended to cover winter peaks, even when the heat pump provides most of the seasonal heating.
Condensate drainage near a balcony
Placement near an exterior door can facilitate routing the lines, but it also requires careful planning of the water drainage.
In cooling mode, the indoor unit removes moisture from the air. This water must be directed to a drain with a continuous slope, without any upward sections or crushed portions.
Poor drainage can cause:
- drips beneath the unit;
- water accumulating in the pan;
- overflow onto the wall;
- odors;
- trickling noises;
- damage to the interior finish.
When the drain discharges near a balcony, you must also prevent water from flowing into a walkway, onto a lower floor, or against a sensitive surface.
Triple-zone system piping lengths
The RAM-G24N3HAA documentation indicates, among other things:
- a maximum total piping length of 200 ft;
- a maximum length of 82 ft between the units;
- a maximum total height of 66 ft;
- a minimum total length of 16 ft;
- a maximum elevation difference of 16 ft between the indoor units;
- three 1/4 in. liquid connections;
- three 3/8 in. gas connections.
In an urban installation, the lengths can increase quickly if the outdoor unit is placed on a roof, a distant balcony, or a rear facade. It is therefore essential to plan the three routes before confirming the final location of each indoor unit.
R32 refrigerant and leak sensor
The HITACHI airHome Multi range uses R32. According to the brochure, compatible indoor units incorporate a leak sensor that can trigger a visual or audible alert, depending on the model and accessories.
This feature does not replace installation procedures. Each circuit must be carefully prepared and tested.
A complete commissioning includes, among other things:
- checking the pipe diameters;
- preparing the flares;
- tightening to the recommended torque;
- leak testing;
- evacuation;
- checking the lengths;
- adjusting the charge when required;
- testing of the three indoor units;
- drainage inspection;
- confirmation that the devices are communicating with one another.
With three separate circuits, the quality of each connection becomes particularly important.
Air quality and indoor unit maintenance
Depending on the installed model, the range may offer various features related to air quality and internal cleanliness.
FrostWash
FrostWash technology uses a freeze-and-thaw cycle to help loosen contaminants on the coil.
It can help maintain airflow and heat exchanger efficiency, but it does not replace thorough cleaning of the fan, drain pan, and filters.
Mold Guard
The Mold Guard function helps dry the internal components after a period of cooling or dehumidification. The documentation indicates a cycle of approximately 60 minutes.
This function can limit residual moisture, but periodic HVAC maintenance is still necessary.
Filtration
Depending on the indoor-unit series, the system may use a PM2.5 activated carbon filter or a ViroSense S filter. The exact specifications must be confirmed for the installed model.
Accessing the filters in a high-mounted installation
The photo shows a unit installed relatively high. This position promotes air distribution, but it requires a safe maintenance method.
The owner must be able to open the front panel, remove the filters, and clean them without relying on an unstable piece of furniture. A suitable small ladder may be necessary.
The filters should be inspected regularly, particularly:
- during periods of heavy use;
- after renovation work;
- when pets are present;
- when dust accumulates quickly;
- if airflow seems to decrease;
- if the unit becomes noisier.
A dirty indoor unit can reduce comfort, increase energy consumption, and encourage moisture buildup.
A multizone installation adapted to Outremont's constraints
Mistakes to avoid in a triple-zone project
Installing the three units based on symmetry rather than needs
Each room must be evaluated individually. The most aesthetically pleasing locations are not always the best for air distribution.
Positioning a unit too close to the ceiling
The required clearance above the unit must comply with the manufacturer's instructions to preserve airflow intake and access to the filters.
Blowing air directly toward a bed or sofa
Airflow direction affects comfort just as much as the displayed temperature.
Neglecting the impact of closed doors
An indoor unit in a hallway will not effectively condition a bedroom whose door remains closed.
Forgetting that capacity is shared
The three indoor units use the capacity of a single outdoor unit.
Confusing separate settings with opposing modes
The zones may have different temperatures, but they must operate in the same general mode.
Choosing the outdoor unit without checking the certified combinations
The total indoor-unit capacity, connected models, and performance must comply with the configurations recognized by the manufacturer.
Eligibility for financial assistance
The brochure indicates that the airHome Multi range is eligible for most provincial heat pump incentives.
This statement does not guarantee that a specific combination will automatically receive financial assistance. Eligibility may depend on:
- the AHRI number or energy reference;
- the exact combination of units;
- certified performance;
- low-temperature capacity;
- the type of building;
- the existing heating system;
- the date of the work;
- proof of payment;
- the documents required by the program.
The criteria must therefore be verified when preparing the project.
Warranties offered for the HITACHI product line
The documentation indicates a standard seven-year warranty on the compressor and five years on parts.
A ten-year extended warranty on the compressor and parts is offered for eligible residential installations, with online registration required.
Enhanced coverage may also extend to twelve years on the compressor, ten years on parts and ten years on labor, subject to purchasing an upgrade and meeting the applicable conditions.
After installation, it is important to keep:
- the invoice;
- the model numbers;
- the serial numbers;
- the commissioning date;
- the registration confirmation;
- the warranty documents;
- the information about the three indoor units.
An AirGreen project focused on precision
This HITACHI airHome Multi triple-zone heat pump installation in Outremont illustrates the importance of indoor positioning in a multi-zone project.
The visible unit was installed in the upper part of the wall, near an exterior door, while maintaining clear space in front of the air outlet. The finish is understated, the lines are not visible in the room and the unit blends into the existing architecture.
Behind this simple appearance are several technical decisions: choosing the height, checking the structure, determining the drain slope, routing the refrigerant lines, directing the airflow and ensuring future access for maintenance.
At AirGreen, we apply this same attention to our projects in Outremont, Montreal, Laval, Longueuil, the North Shore and the South Shore. A successful multi-zone installation must meet the needs of each room, comply with the manufacturer's limits and remain practical long after the installation team has left.
In this project, the HITACHI airHome Multi heat pump brings together three comfort zones around a single outdoor unit while maintaining individual control in each space and an indoor integration suited to urban living.
