An outdoor installation designed for Quebec winters: elevated unit, clear technical access, and high efficiency
At Massueville, this FUJITSU AIRSTAGE ORION XLTH ductless wall-mounted heat pump installation carried out by our AirGreen team highlights an aspect that is often underestimated when purchasing a heat pump: the location and installation quality of the outdoor unit are just as important as the machine’s own specifications.
The project photo shows an installation that is particularly well suited to our climate. The FUJITSU outdoor unit is installed against a brick wall, well above ground level, on a sturdy metal structure. It is also located beneath a protected section of the building. The insulated refrigerant lines are grouped beneath the unit, and the nearby electrical disconnect is installed immediately to the right of the unit, providing clear technical access.
These are precisely the details that become especially important when a heat pump must provide heating during a winter in Massueville, where snow, freezing temperatures, defrost cycles, and subzero conditions are part of normal operation.
The choice of the FUJITSU ORION XLTH is particularly well suited to this context. The product line’s technical documentation confirms heating operation down to -26 °C, the use of R-32 refrigerant, an Inverter technology compressor, and a base pan heater designed for regions with harsh winter conditions.
What the photo of our Massueville installation actually reveals
A photograph of an outdoor unit can sometimes reveal more about the quality of a project than a long list of commercial features.

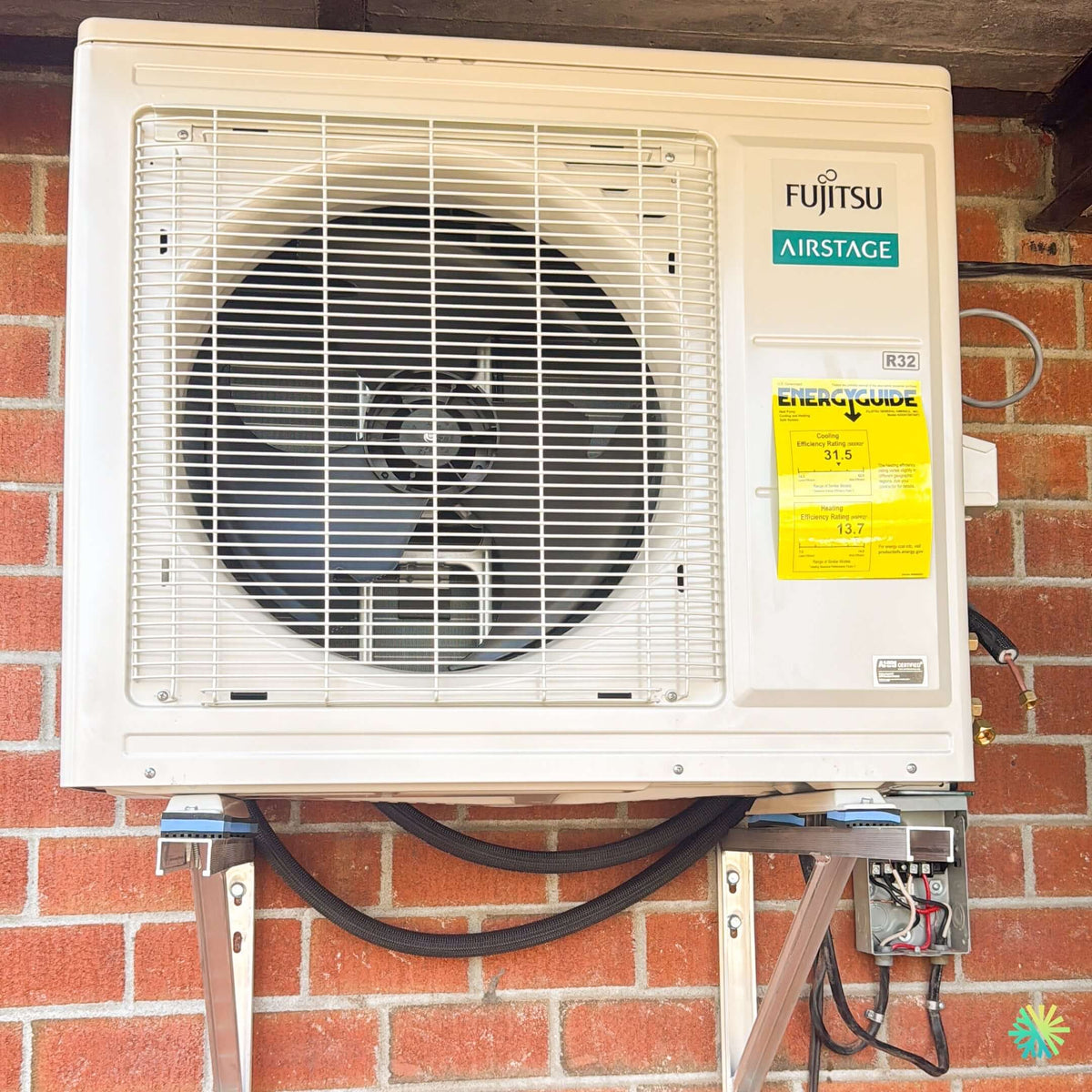

Here, several details are directly visible.
First, the condenser was not simply placed at ground level. It is elevated on a metal bracket attached in front of the brick wall. This configuration creates valuable space beneath the unit.
In a region like Massueville, this space is particularly relevant because it helps keep the unit away from:
- snow accumulation on the ground;
- ice buildup;
- splashing and moisture;
- leaves and debris;
- water generated during defrost cycles;
- obstacles that could hinder air circulation.
We can also distinguish support elements beneath the unit’s feet that help mechanically isolate the appliance from its supporting structure. On a masonry wall, vibration management deserves particular attention, especially when the heat pump operates for extended periods in heating mode.
The installation also includes an electrical disconnect located immediately next to the outdoor unit. This component facilitates access during service work and is part of an electrical installation suited to outdoor HVAC equipment.
Finally, the lines between the building and the heat pump are insulated and arranged beneath the unit. We place great importance on this type of finish because a refrigerant line is a functional component of the system, not simply something that must be hidden at all costs.
A particularly noteworthy EnergyGuide label on this ORION XLTH
One detail clearly stands out in the photo taken after installation: the yellow EnergyGuide label remains visible on the front of the unit.
For this specific installation, we can read:
- SEER2: 31.5 for cooling efficiency;
- HSPF2: 13.7 for heating efficiency.
These are levels that place this configuration among the wall-mounted systems intended for homeowners who place genuine importance on energy efficiency.
The SEER2 represents seasonal cooling efficiency. The higher this value, the more effectively the system can provide cooling throughout an entire season, under the conditions specified by the evaluation method.
The HSPF2, meanwhile, concerns seasonal heating performance.
For a property located in Massueville, this second aspect deserves particular attention. A heat pump is no longer chosen solely to cool the house during July and August. In many of the projects we carry out in Montérégie, Montreal, Laval, Longueuil, the South Shore and the North Shore, heating now represents a central part of the purchasing decision.
ORION XLTH: a range designed to operate when the temperature drops to -26 °C
The FUJITSU data sheet for the Orion CTEB / AIRSTAGE ORION XLTH series specifies a heating operating range from -26 °C to 24 °C for the various capacities presented.
In cooling mode, the stated operating range is from -10 °C to 50 °C.
This allows this heat pump to play a much broader role than a traditional wall-mounted air conditioner.
For the homeowner, the system can be used to:
- cool during hot periods;
- reduce indoor humidity in the summer;
- heat in the fall and spring;
- continue producing heat for a good part of the winter;
- maintain a more consistent temperature through compressor modulation.
The range is offered in several nominal cooling capacities: 9,000, 12,000, 14,500, 18,000 and 22,000 BTU/h, depending on the indoor/outdoor combination selected. The exact capacity of the unit photographed in Massueville is not legible in the provided image; we therefore do not arbitrarily assign it a BTU rating.
This detail is important. At AirGreen, we prefer to work with the exact model number and rating plate when information must be confirmed rather than infer capacity simply from the outdoor condenser’s dimensions.
Why elevating the condenser matters so much in Massueville
To understand the significance of the installation shown in the photo, it is necessary to consider what actually happens around a heat pump during winter.
In heating mode, the outdoor unit extracts energy from the outdoor air. The heat exchanger can then accumulate frost under certain conditions. The system periodically initiates a defrost cycle to restore heat exchange.
This process produces water.
When it is cold enough, this water can then freeze beneath the heat pump. A unit installed too close to the ground may gradually become surrounded by a mass of ice or an accumulation of snow.
On this project in Massueville, the considerable clearance beneath the unit provides additional space for winter management.
The ORION XLTH documentation also indicates the presence of a base pan heater specifically intended for very cold climate regions.
A mistake to avoid: confusing protection with obstruction
Installing a unit under a sheltered area can be beneficial when seeking to limit direct exposure to precipitation from the roof. However, the required clearances for air intake and, especially, air discharge must always be maintained.
The large front fan visible on this FUJITSU must be able to move a considerable volume of air.
A homeowner should therefore avoid placing the following in front of the condenser:
- bins;
- garden furniture;
- bags;
- construction materials;
- a fence that is too close;
- an insufficiently ventilated decorative screen;
- snow accumulation.
An outdoor heat pump only operates properly if it can exchange air freely with its surroundings.
Inverter technology: modulation adapted to actual needs
The FUJITSU AIRSTAGE ORION XLTH uses an inverter compressor.
Unlike equipment limited to fully on-off operating cycles, this technology allows the system to vary its capacity according to the thermal load.
In practice, when a room is far from the desired temperature, the heat pump may work harder. As the indoor temperature approaches the setpoint, it can reduce its output.
This operation promotes:
- more consistent temperature;
- extended periods of operation at reduced capacity;
- fewer noticeable comfort fluctuations;
- energy consumption better suited to demand;
- quieter operation when full power is not required.
FUJITSU also indicates several fan speeds for the indoor unit, with a noise level of only 23 dB(A) in quiet mode for certain models in the series.
From the technical choice to the finishing touches: what we check at AirGreen before considering an installation complete
R-32 clearly identified on the outdoor unit
The photo from the Massueville job site clearly shows the wording R32 on the front panel.
The ORION XLTH range described in the provided documentation indeed operates with R-32 refrigerant.
FUJITSU compares its global warming potential with that of R-410A: the documentation indicates a GWP of 675 for R-32, compared with 2,088 for R-410A, representing an announced reduction of 68%.
For us, however, using a new refrigerant does not change one essential principle: the quality of the refrigeration circuit remains decisive.
A professional installation requires, among other things:
- piping diameters compatible with the model;
- properly made connections;
- a thorough leak-tightness check;
- proper evacuation of the circuit;
- compliance with the permitted lengths;
- commissioning in accordance with the installed configuration.
The piping dimensions are not identical for all ORION XLTH models
This detail deserves emphasis, especially when a homeowner replaces an old heat pump and wants to keep the existing lines.
The FUJITSU technical sheet indicates the following dimensions according to capacity:
- 9,000 BTU: 1/4 in. liquid and 3/8 in. gas;
- 12,000 BTU: 1/4 in. liquid and 3/8 in. gas;
- 15,000 BTU: 1/4 in. liquid and 1/2 in. gas;
- 18,000 BTU: 3/8 in. liquid and 5/8 in. gas;
- 24,000 BTU: 3/8 in. liquid and 5/8 in. gas.
The maximum permitted lengths also vary by model, reaching 25 m, 30 m, or 50 m depending on the capacity.
It would therefore be incorrect to assume that an existing pair of pipes is automatically suitable for every capacity in the range.
This is exactly the kind of technical detail we validate during an HVAC installation in Massueville, as we do in our projects in Montreal, Laval, Longueuil, the North Shore, and the South Shore.
A power supply suited to the selected model
FUJITSU specifies a 208 to 230 V, 60 Hz, single-phase power supply for this series.
Depending on the model, the technical table specifies a 15 A or 20 A circuit breaker.
Outside, the photo of our installation shows the electrical disconnect installed near the condenser. Its location provides easy access during maintenance or technical service.
Electricity must never be treated as an afterthought after the heat pump has been installed.
Before installation, we must ensure that the selected equipment and the planned circuit are compatible. This avoids improvisation and ensures proper coordination of the mechanical and electrical work.
A design built to last in demanding conditions
FUJITSU specifies that the indoor units in this series use ProCore copper coils with high corrosion resistance.
On the outdoor side, the design includes in particular:
- the Inverter compressor;
- R-32 refrigerant;
- the base pan heater;
- an outdoor operating mode with low noise levels;
- a compact design;
- piping options that provide some installation flexibility.
The documentation also highlights significant heating capacity at low temperatures, with results varying according to the selected capacity. The technical table separately provides performance figures at -15 °C, -21 °C and -26 °C, which is particularly relevant when comparing systems intended for Quebec’s climate.
BTUs should never be selected based solely on floor area
We regularly see very simple rules circulating, such as “a certain area equals a certain number of BTUs.”
They can provide a rough estimate, but they do not replace an analysis of the building.
To choose a wall-mounted heat pump in Massueville, we must also consider:
- the layout of the rooms;
- insulation;
- the age of the building;
- the number and area of the windows;
- their orientation;
- heat loss;
- the ceiling height;
- the floor where the unit is located;
- the open or closed zones;
- the existing heating system;
- the owner’s expectations for winter heating.
An oversized heat pump is not necessarily better. Comfort quality depends more on proper sizing and the system’s ability to modulate efficiently.
Maintaining this outdoor installation: a few simple steps that matter
The raised installation visible in the photo already makes snow management easier, but the owner must still monitor the area around the unit.
During the winter, we recommend keeping the following clear:
- the front where the fan is located;
- the back of the unit;
- the sides;
- the lower space;
- the natural path of the defrost water.
There is no need to enclose the condenser to “protect” it. A structure that is too enclosed may instead hinder the ventilation the unit needs.
On the indoor side, the washable filters must also be cleaned regularly. A heavily loaded filter reduces airflow and can affect both comfort and performance.
Professional HVAC maintenance can then go further with the inspection of heat exchangers, drainage, electrical components, ventilation, and overall operation.
Wi-Fi and remote control with AIRSTAGE
The documentation provided also indicates integrated Wi-Fi connectivity, allowing remote monitoring and control through the AIRSTAGE app.
This feature is particularly useful for homeowners who want to adjust the temperature without being in front of the remote control, especially during an extended absence or before returning home.
The platform also offers various control and integration options, including wired controllers and certain interfaces compatible with BACnet and Modbus for more advanced applications.
This Massueville project reflects our approach to an HVAC installation very well.
What we appreciate about this installation is not only the choice of a FUJITSU ORION XLTH.
It is the consistency between the machine and its installation.
The condenser is installed high off the ground, on a structure designed to keep it away from ground-level accumulations. Access to the fan remains unobstructed. The electrical circuit is located nearby. The lines are insulated and organized. The unit is installed in a location that takes into account the realities of a system that also operates during the winter.
Added to this are the features specific to the ORION XLTH: heating down to -26 °C, Inverter technology, R-32 refrigerant, base pan heater, high energy efficiency, quiet operation, and Wi-Fi connectivity.
For a homeowner comparing a wall-mounted heat pump in Massueville, the lesson is simple: performance figures are important, but they reach their full value when the system is properly sized and installed.
At AirGreen, this attention to detail guides our heat pump, air conditioning, heating, and HVAC installation work, whether the project is located in Montérégie, Massueville, Montréal, Laval, Longueuil, on the South Shore, or on the North Shore.
