ARCOAIRE D5FUAAH Electric Furnace | 4 Tons - 48000 BTU - R454B
Arcoaire’s 4-ton D5FUAAH air handler: 1,472 CFM for large homes, in a cabinet 24.49 in wide.
Model numberD5FUAAH48XAK
514 316-2973 · sales@airgreen.ca
Quick facts
Four tons for a large home, with a well-planned installation
Who the D5FUAAH48XAK is for
A large home with a finished basement, open rooms and several bedrooms needs an air handler that can move a lot of air. Arcoaire’s D5FUAAH48XAK is the 4-ton size in the series: it publishes an airflow of 1,472 CFM and distributes the air heated or cooled by the outdoor unit through your ducts. In summer, it circulates the air cooled by its coil; in winter, paired with a heat pump, it spreads the heat to every room, basement included.
Sold alone, it is for homeowners replacing an air handler of the same capacity and for contractors pairing it with a compatible outdoor unit. The match, refrigerant included, is checked before ordering: the confirmed data for this model does not name an outdoor unit or an electric heat option.
The electrical supply deserves a close look
The cabinet accepts 115 V or 208/230 V, single phase. At 115 V, the minimum circuit ampacity reaches 14.5 A, very close to the 15 A maximum overcurrent protection. At 208/230 V, it drops to 11 A. Before choosing, we look at your panel: the space available, the existing circuits and what the rest of the project will require.
Our RBQ licence 5645-9605-01 covers ventilation, refrigeration and electrical work. We can therefore plan the air handler’s circuit at the same time as the refrigerant connection, in a single quote.
Planning the space and the access
The cabinet is 52.99 in high, 24.49 in wide and 21.02 in deep. In an existing home, you have to think about the path to bring it to the mechanical room: stairs, door frames, tight corners. We measure that route during the estimate, along with the final location and the service clearance the manufacturer requires. If the cabinet has to pass through a narrow door, we plan for it before installation day rather than improvising on site.
Its refrigerant connections are 3/8 in for the liquid line and 3/4 in for suction. If you keep an existing line set, we check that it matches.

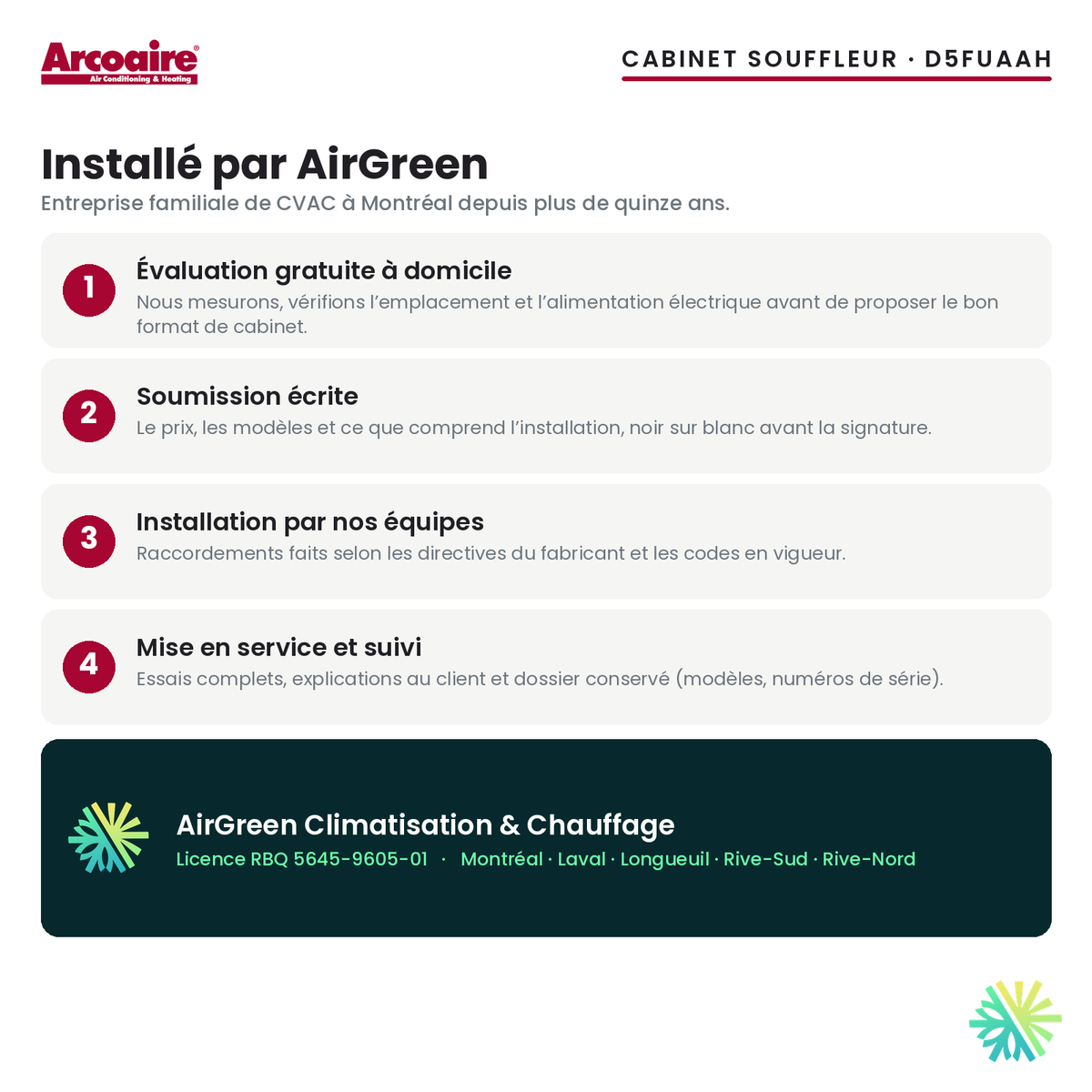

Installation by AirGreen
After the free on-site estimate, you receive a written quote. Our technicians set the cabinet, connect the ducts, the refrigerant line set, the drain and the electrical supply, then commission the system. AirGreen is a family business established in Montreal for more than fifteen years. We also work in Laval, Longueuil, on the North Shore and on the South Shore.
Sold alone, this air handler does not qualify for the LogisVert grant, which follows a certified outdoor unit + air handler pair. If you are replacing the whole system, we present that option as well.
Ask for your free on-site estimate and receive a written quote. Financing is available for your project.
A large size for spacious homes
The D5FUAAH48XAK is a 4-ton air handler sold alone. Connected to a compatible outdoor unit, it pushes 1,472 CFM through an extensive duct system.
- Large homes with a finished basement and extensive ductwork
- Replacing a 4-ton air handler, after the match is checked
- Mechanical rooms that offer 24.49 in of width or more
- Electrical panels that can take a 208/230 V circuit

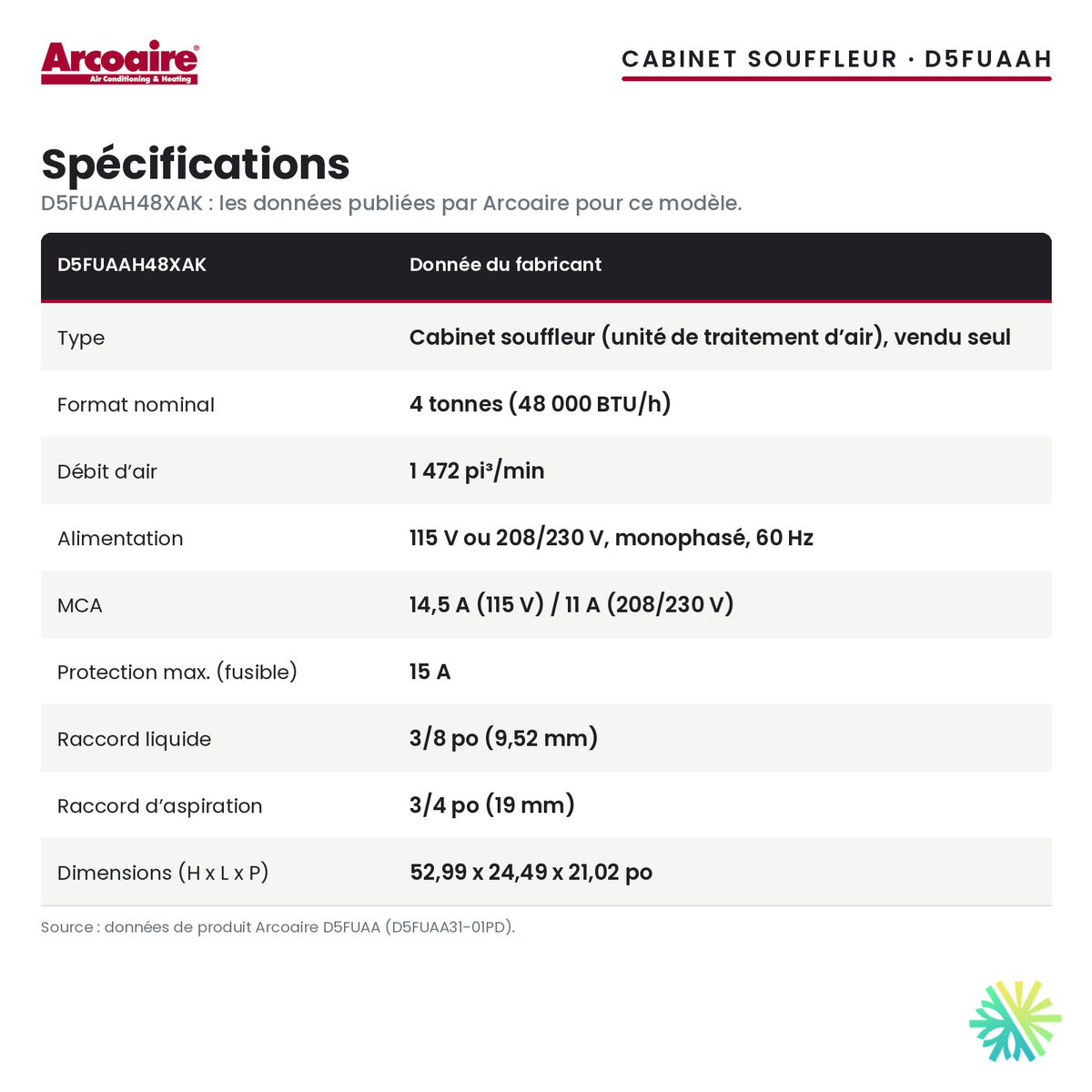

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

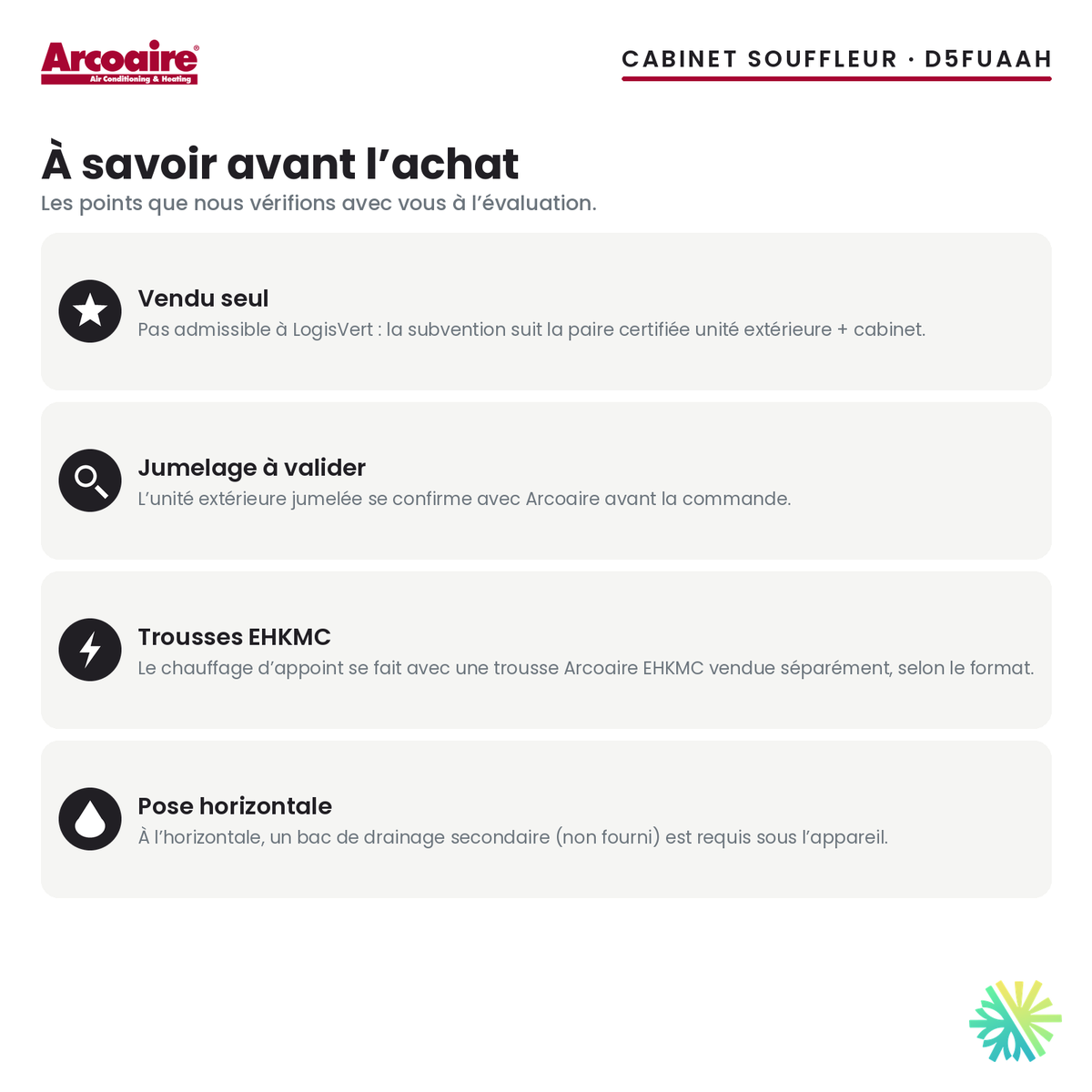

What to know before installing
- Sold alone: not eligible for the LogisVert grant. The grant follows the certified outdoor unit + air handler pair.
- The matched outdoor unit and electric backup heat are not in the confirmed data for this model: we validate the match, refrigerant included, before ordering.
- At 115 V, the minimum circuit ampacity (14.5 A) is close to the maximum overcurrent protection (15 A); at 208/230 V, it is 11 A. We choose the voltage after seeing your panel.
- Plan room for a 52.99 x 24.49 x 21.02 in cabinet (H x W x D), a path to bring it in and the service clearance the manufacturer requires.
Manufacturer documents
Explore the range
Electric furnaces – air handlersSee allSame brand
ARCOAIRESee all
Frequently asked questions

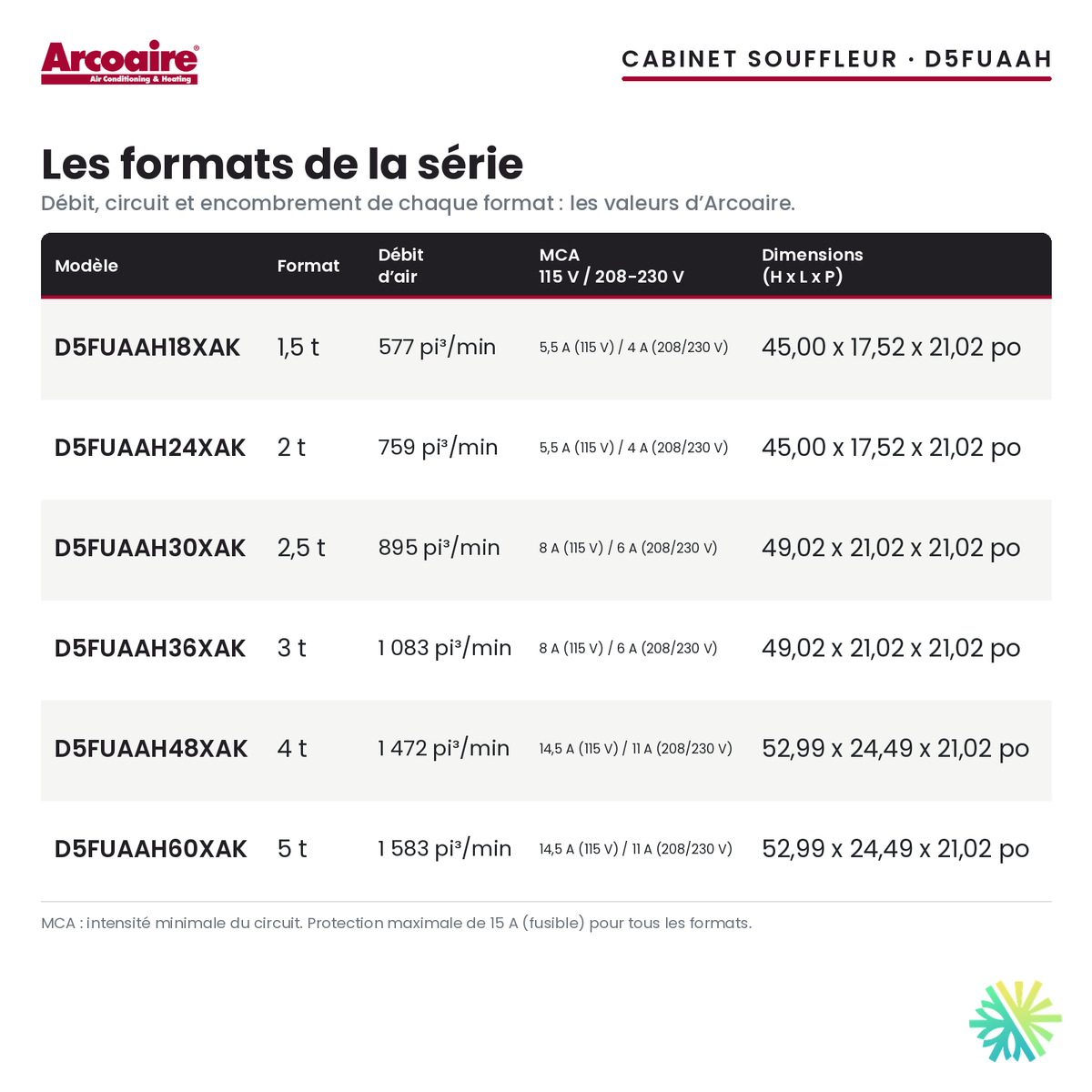

How does it differ from the 5-ton size in the series?
Both share the same 52.99 x 24.49 x 21.02 in cabinet and the same electrical data. The 4-ton size publishes 1,472 CFM. The right choice depends on the needs of the house and your outdoor unit.
Does it have to be connected at 208/230 V?
Both voltages are possible. At 115 V, the minimum circuit ampacity reaches 14.5 A for a 15 A maximum overcurrent protection; at 208/230 V, it is 11 A. We choose after seeing your panel.
Which outdoor unit does it work with?
The confirmed data for this model does not name an outdoor unit. Send us your unit’s model number and we check compatibility, refrigerant included, before ordering.
Does this air handler qualify for a grant?
Not when it is sold alone. Hydro-Québec’s LogisVert grant follows a certified outdoor unit + air handler pair.
Can you install it?
Yes. Our technicians set the cabinet, connect it to the ductwork, the refrigerant line set, the drain and the power supply, then commission the system.
A 4-ton Arcoaire air handler, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
