ARCOAIRE D5FUAAH Electric Furnace | 5 Tons - 60000 BTU - R454B
Arcoaire’s 5-ton D5FUAAH air handler: the largest size in the series, with a published airflow of 1,583 CFM.
Model numberD5FUAAH60XAK
514 316-2973 · sales@airgreen.ca
Quick facts
The largest size in the D5FUAAH series, to choose for the right reasons
What the D5FUAAH60XAK offers
Arcoaire’s D5FUAAH60XAK is the 5-ton air handler in the series, with the highest airflow: 1,583 CFM. Installed indoors, it circulates the air heated or cooled by the outdoor unit through the ducts. It is sold alone: it is used to replace an air handler of the same capacity or to complete a system with a compatible outdoor unit.
It is for very large homes, properties whose ductwork serves three levels and buildings whose heating and cooling needs truly justify a system of this size.
Four or five tons: sizing first
The 5-ton size shares its cabinet and electrical data with the 4-ton size; only the airflow changes. Choosing the larger one just in case is not a good idea: a system too large for the house runs in short cycles and brings no extra comfort. We therefore assess the real needs of the house before recommending one or the other.
That assessment takes into account the living area, the insulation, the windows and the outdoor unit, existing or planned. The match, refrigerant included, is also checked before ordering, because the confirmed data for this model does not name an outdoor unit or an electric heat option.
What to plan for at home
The cabinet is 52.99 in high, 24.49 in wide and 21.02 in deep. We check the access route to the mechanical room, stairs and door frames included, as well as the service clearance the manufacturer requires.
On the electrical side, it accepts 115 V or 208/230 V, single phase. At 115 V, the minimum circuit ampacity reaches 14.5 A for a 15 A maximum overcurrent protection; at 208/230 V, it is 11 A. Its refrigerant connections are 3/8 in for the liquid line and 3/4 in for suction.
Installation by AirGreen
After a free on-site estimate, you receive a written quote. Our technicians set the cabinet, connect the ducts, the refrigerant line set, the drain and the electrical supply, then commission the system. Our RBQ licence 5645-9605-01 covers ventilation, refrigeration and electrical work. AirGreen is a family business established in Montreal for more than fifteen years, also serving the South Shore, Longueuil, the North Shore and Laval.
Let’s talk about your home
Sold alone, this air handler does not qualify for the LogisVert grant, which follows a certified outdoor unit + air handler pair. If you are replacing the whole system, we present that option as well.
Ask for your free on-site estimate and receive a written quote. Financing is available for your project.
The highest size in the series
The D5FUAAH60XAK is a 5-ton air handler sold alone. Connected to a compatible outdoor unit, it distributes 1,583 CFM through large duct systems.
- Very large homes whose needs justify a 5-ton system
- Replacing a 5-ton air handler, after the match is checked
- Duct systems serving three levels
- Projects where a 208/230 V circuit is available

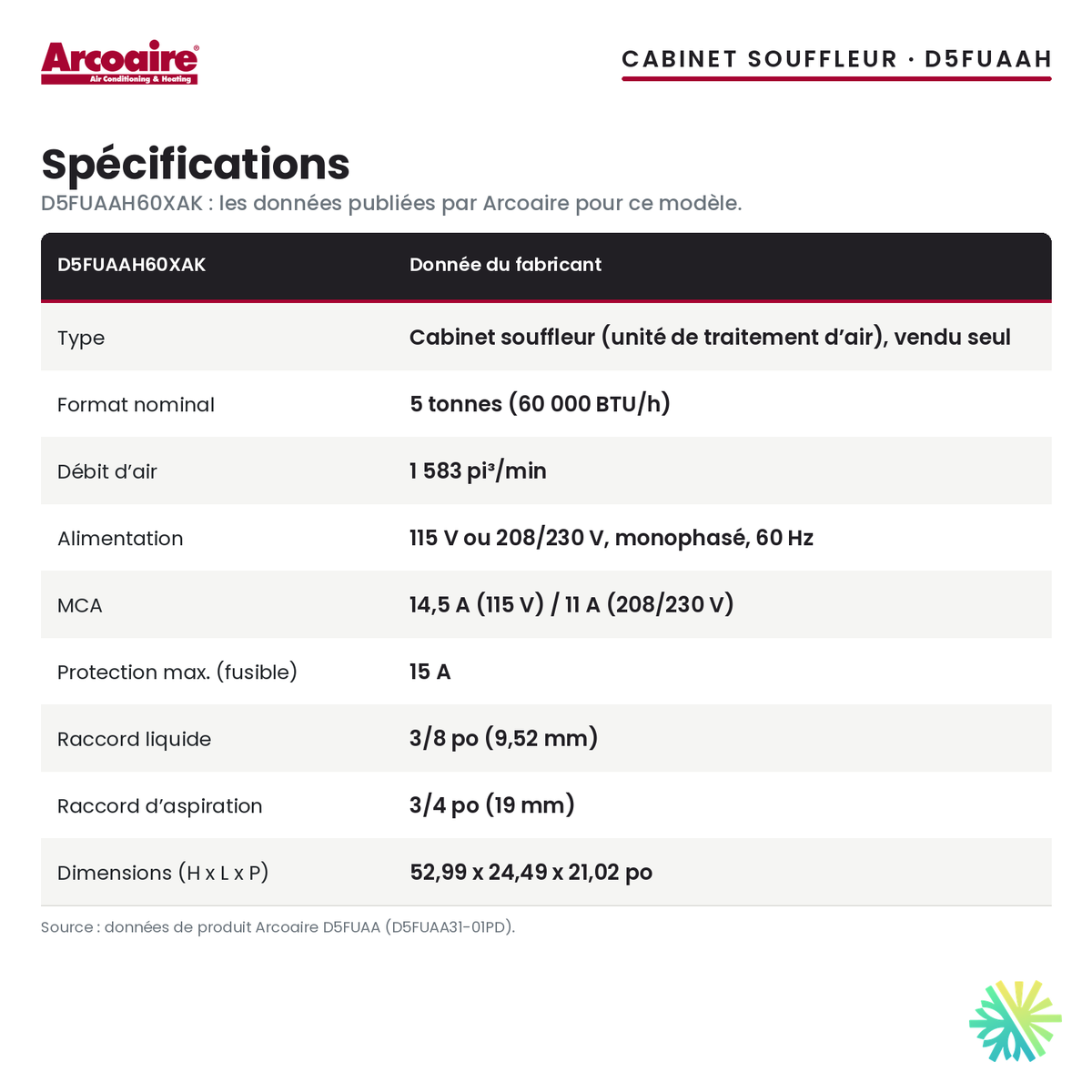

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Sold alone: not eligible for the LogisVert grant. The grant follows the certified outdoor unit + air handler pair.
- The matched outdoor unit and electric backup heat are not in the confirmed data for this model: we validate the match, refrigerant included, before ordering.
- At 115 V, the minimum circuit ampacity (14.5 A) is close to the maximum overcurrent protection (15 A); at 208/230 V, it is 11 A.
- Plan room for a 52.99 x 24.49 x 21.02 in cabinet (H x W x D), a path to bring it in and the service clearance the manufacturer requires.
Manufacturer documents
Explore the range
Electric furnaces – air handlersSee allSame brand
ARCOAIRESee all
Frequently asked questions
Does my home need 5 tons?
Only an assessment of the heating and cooling needs can tell. An oversized unit does not bring more comfort. We do that assessment during the free estimate, before recommending this air handler or the 4-ton size.
How does it differ from the 4-ton size?
Both share the same 52.99 x 24.49 x 21.02 in cabinet and the same electrical data. The 5-ton size publishes 1,583 CFM, the highest airflow in the series.
Which outdoor unit does it work with?
The confirmed data for this model does not name an outdoor unit. Send us your unit’s model number and we check compatibility, refrigerant included, before ordering.
Does this air handler qualify for a grant?
Not when it is sold alone. Hydro-Québec’s LogisVert grant follows a certified outdoor unit + air handler pair.
Can you install it?
Yes. Our technicians set the cabinet, connect it to the ductwork, the refrigerant line set, the drain and the power supply, then commission the system.
A 5-ton Arcoaire air handler, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
