ARCOAIRE FJMA4X Electric Furnace | 4 Tons - 48000 BTU - R410A

A 4-ton air handler for large forced-air homes

Which homes it suits

Four tons is the size for large spaces: two-storey homes with a finished basement, houses extended over the years, homes where the original system has fallen short since a room was added. In Laval and on the North Shore, we see them regularly. Arcoaire’s FJMA4X48L0CB is the 4-ton (48,000 BTU/h) air handler of the FJMA4X series. Installed in the basement, it pushes a published nominal airflow of 1,400 CFM through the ductwork, working with an outdoor unit of the same capacity.

That airflow is of no use if the ducts cannot keep up. Before proposing this size, we measure the main ducts and the return air; when they are undersized, we say so in the quote rather than let the system whistle at the grilles.

A wider cabinet: what it changes

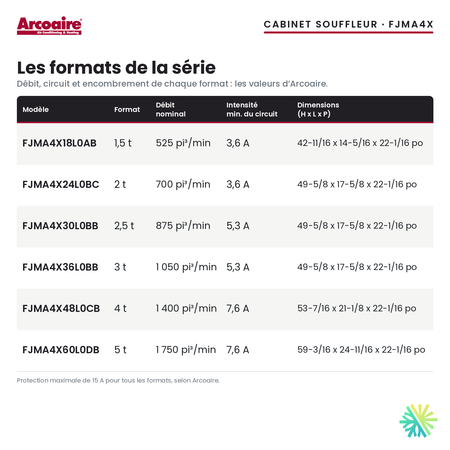

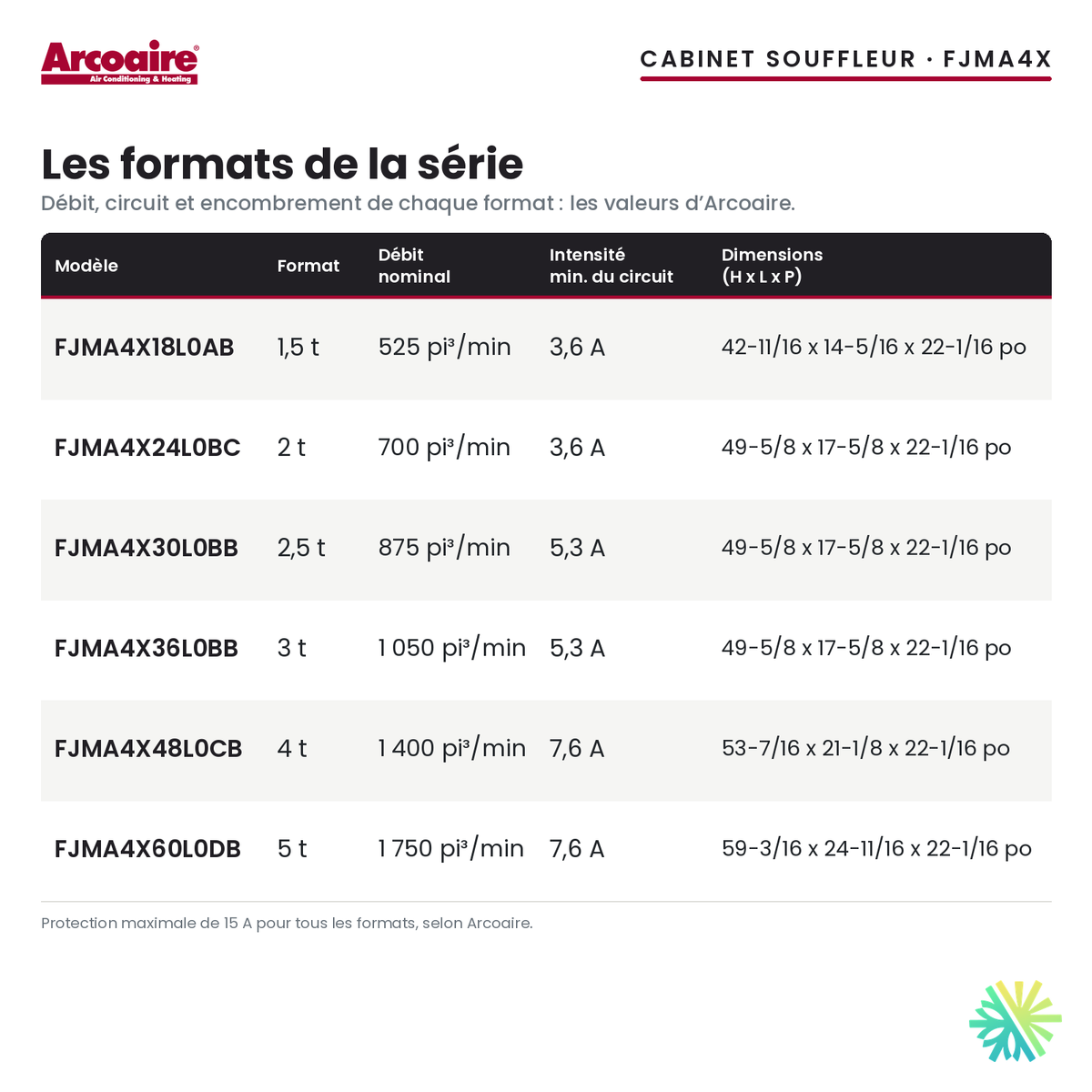

Arcoaire publishes a cabinet 53-7/16 in high, 21-1/8 in wide and 22-1/16 in deep. If your old unit was narrower, the plenum often has to be adapted with a custom transition. It is not a big job, but it has to be planned in the quote, just like the height available below the joists.

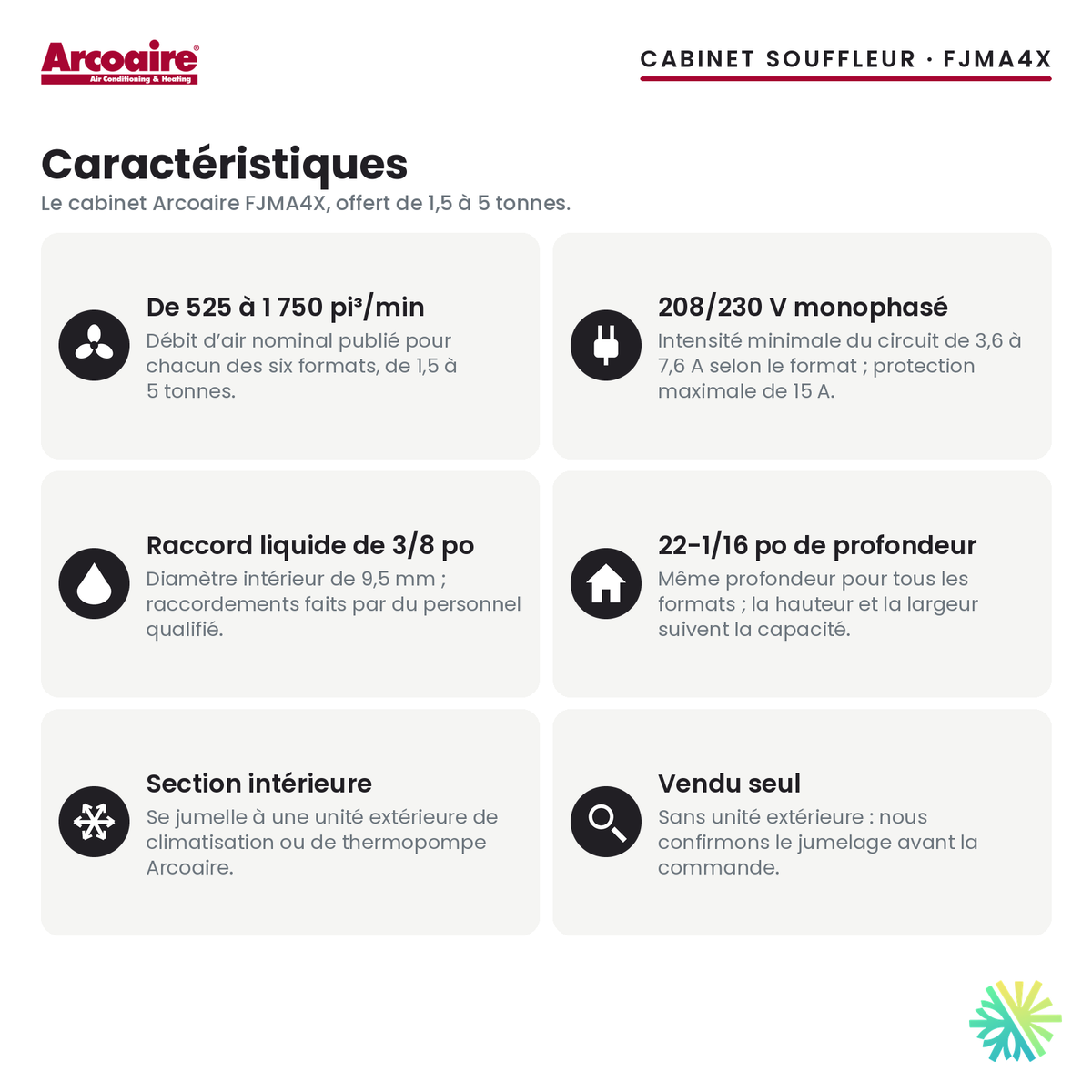

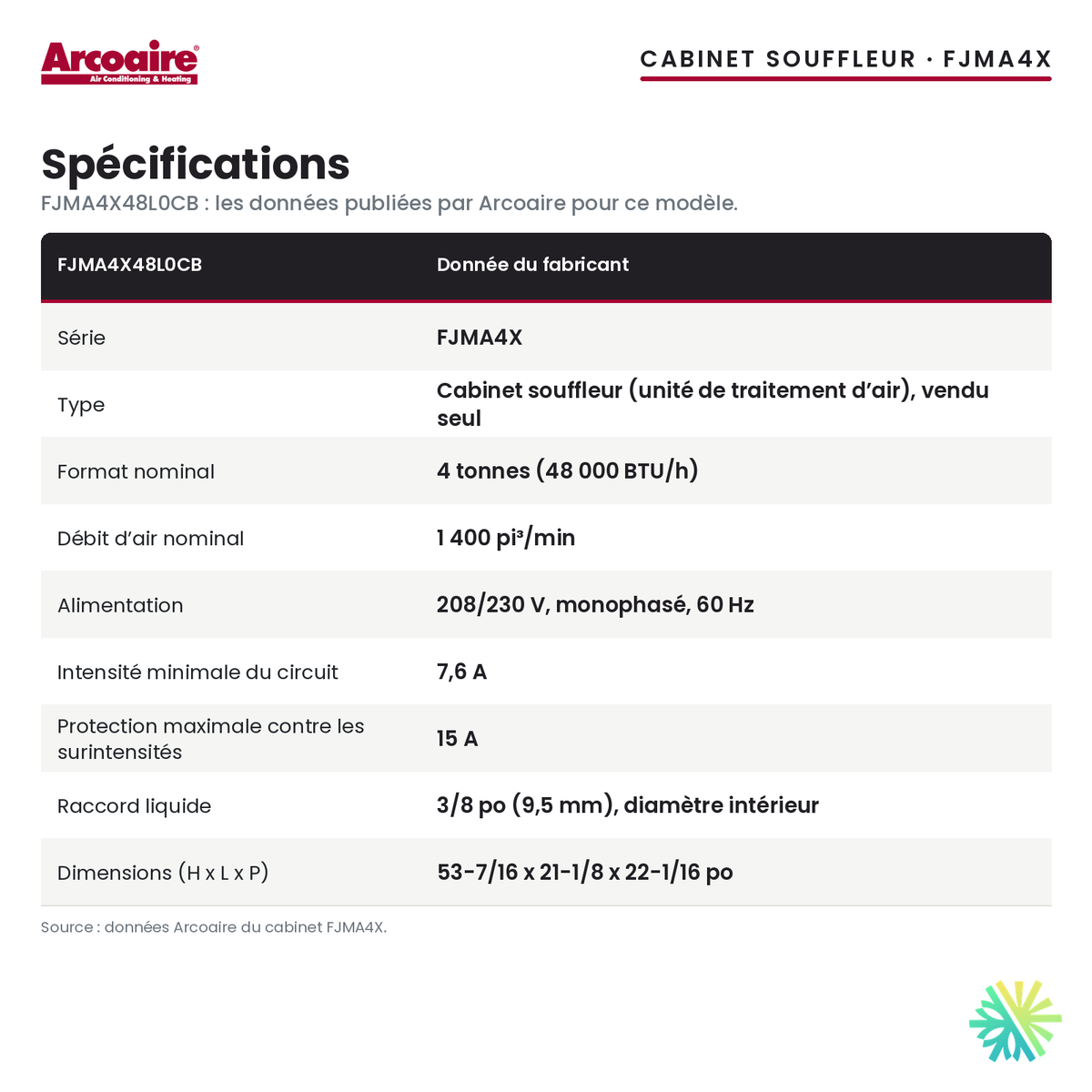

On the electrical side, the air handler runs on 208/230 V single phase, 60 Hz, with a 7.6 A minimum circuit ampacity and 15 A maximum overcurrent protection. The liquid connection is 3/8 in (9.5 mm) inside diameter.

Sold alone: what to know

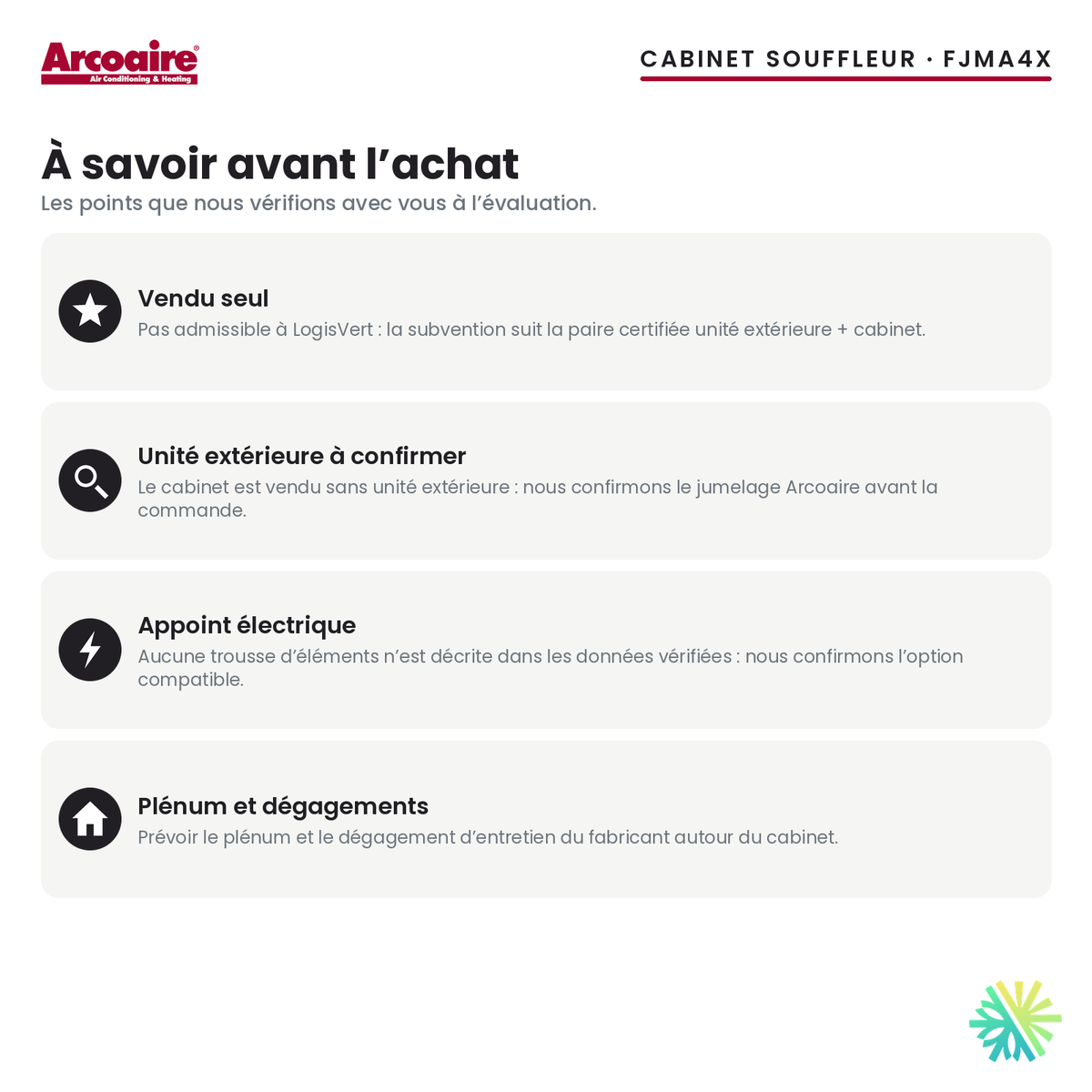

The FJMA4X48L0CB is sold without an outdoor unit. It therefore does not qualify for the LogisVert grant, which follows the certified outdoor unit + air handler pair. For a full replacement, we choose a 4-ton central heat pump or central air conditioner from the manufacturer’s matches, then check the pair’s eligibility.

No heater kit is described for this model in the data we verified. For electric backup heat, we confirm the compatible kit before placing the order.

AirGreen installation

AirGreen is a family business established in Montreal for more than fifteen years, holding RBQ licence 5645-9605-01 in ventilation, refrigeration and electrical work. On a 4-ton job, we take care of:

• the free on-site estimate and duct measurements;
• the written quote, outdoor unit included;
• removing the old air handler and fitting a plenum transition if needed;
• refrigerant, electrical and condensate connections, with a vacuum;
• commissioning and airflow adjustment.

We work in Montreal, Longueuil, on the South Shore and throughout Greater Montreal.

A large home, a clear plan

Book your free estimate: we measure the ducts, confirm the 4-ton size and give you a written quote. Financing is available.
