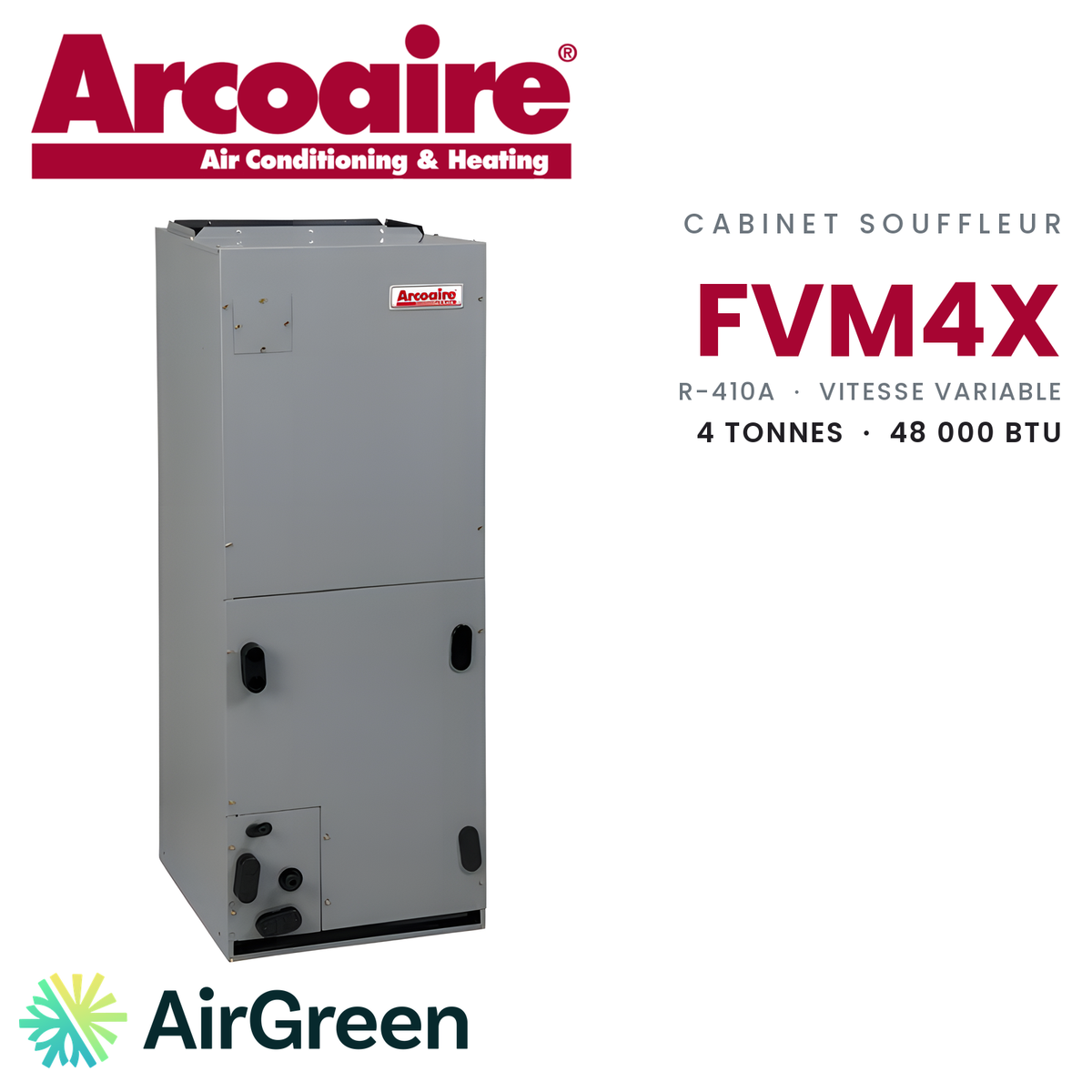

ARCOAIRE FVM4X Electric Furnace | 4 Tons - 48000 BTU - R410A
Arcoaire’s 4-ton FVM4X fan coil: variable-speed ECM motor, 425 to 1,600 CFM, with dehumidification and a heat pump comfort option.
Model numberFVM4X4800BL
514 316-2973 · sales@airgreen.ca
Quick facts
A variable-speed fan coil that follows the size of your outdoor unit
What the FVM4X4800BL is
The FVM4X4800BL is the indoor part of an R-410A central system: it receives refrigerant from the heat pump or air conditioner, conditions the air and distributes it through your ducts. Its 1/2 HP variable-speed ECM motor covers a range of 425 to 1,600 CFM, and Arcoaire’s tables list it with outdoor units of size 30, 36, 42 or 48. The three-row aluminum coil ships with its TXV already installed at the factory.
That flexibility suits large homes, cottages with a finished basement and properties whose outdoor unit will be replaced later: the cabinet adjusts to the size of the unit chosen. The model is available while supplies last.
Humid summers, cold winters: what it brings to a home here
In July, comfort does not depend on temperature alone. The FVM4X has a built-in dehumidification function, so the supply air is drier on muggy days. The cabinet is insulated with 1 in of R-4.2 insulation, and its published air leakage stays below 2% at 0.5 in of water column.
In winter, the Heat Pump Comfort option lowers the airflow in heat pump heating to deliver warmer air, which avoids the feeling of a cool draft at the registers. For extreme cold, an electric heater kit can be added to the cabinet; it is sold separately and we choose it based on your electrical panel and your needs.
The cabinet installs upright or lying on its left side as standard, on its right side after a minor modification, and downflow with accessory kits. The washable filter is factory supplied.
What AirGreen’s installation covers
Everything starts with a free on-site estimate. We note the size of your outdoor unit, the condition of the ductwork and the space available, then you receive a written quote. At installation, our technicians set the cabinet, connect the refrigerant line set, the drain and the power supply, set the airflow for the outdoor unit size and the mode you want, then commission the system.
Our RBQ licence 5645-9605-01 covers ventilation, refrigeration and electrical work. AirGreen is a family business established in Montreal for more than fifteen years; our teams also work in Laval, on the North Shore, in Longueuil and on the South Shore.
Let’s plan your project
Sold alone, this fan coil does not qualify for the LogisVert grant: the grant follows a certified outdoor unit + air handler pair. If you are also replacing the outdoor unit, we present both scenarios in the quote.
Book your free on-site estimate and receive a written quote. Financing is available to spread your investment.
One air handler for several outdoor unit sizes

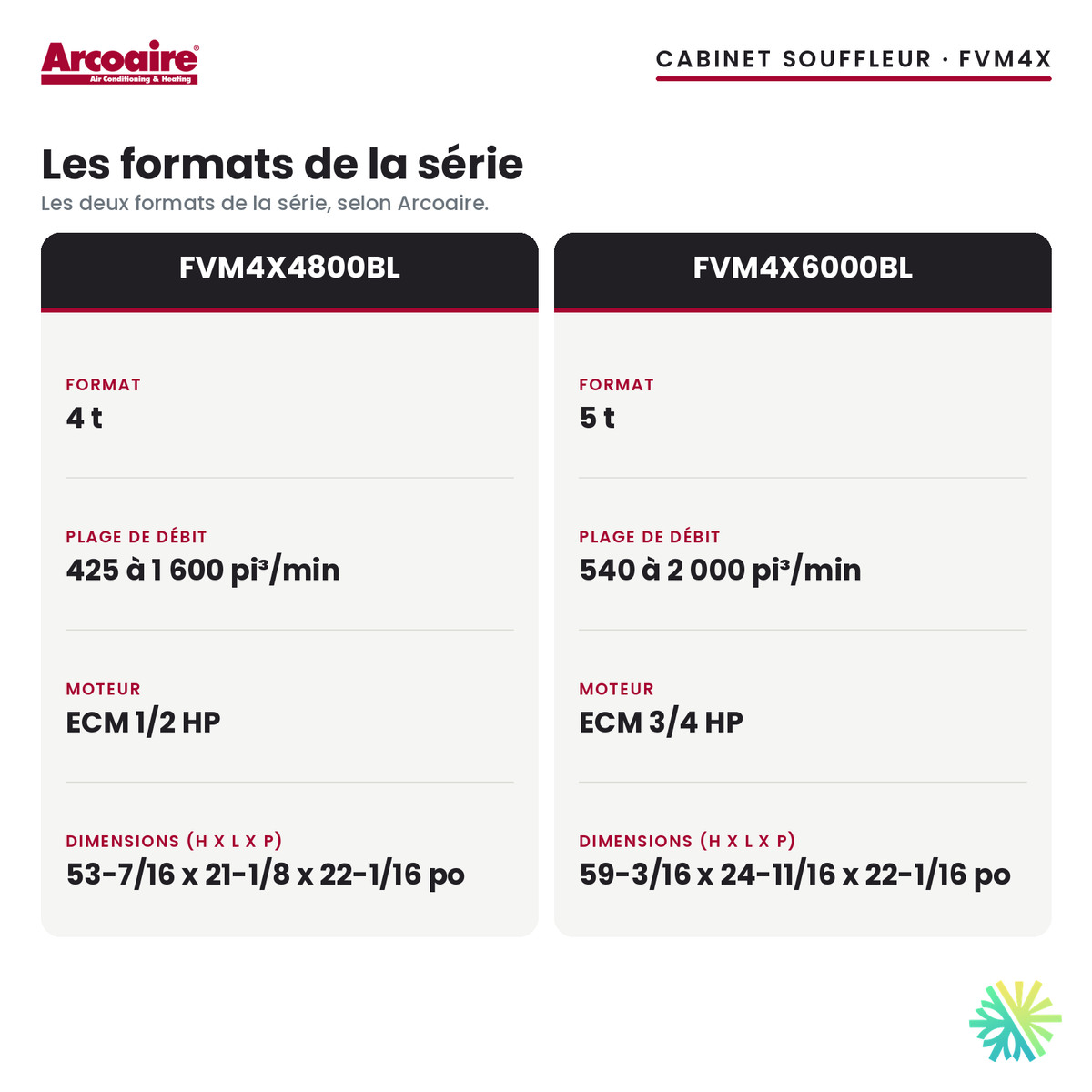

The FVM4X4800BL is the indoor unit of an R-410A central system. Arcoaire’s airflow tables list it with outdoor units of size 30, 36, 42 or 48: the variable-speed motor adjusts the airflow to the size chosen.
- Large homes and cottages with extensive ductwork
- Replacing the air handler of an R-410A central system whose outdoor unit is size 30 to 48
- Homes where summer humidity is a comfort issue
- Projects that add electric backup heat with a kit

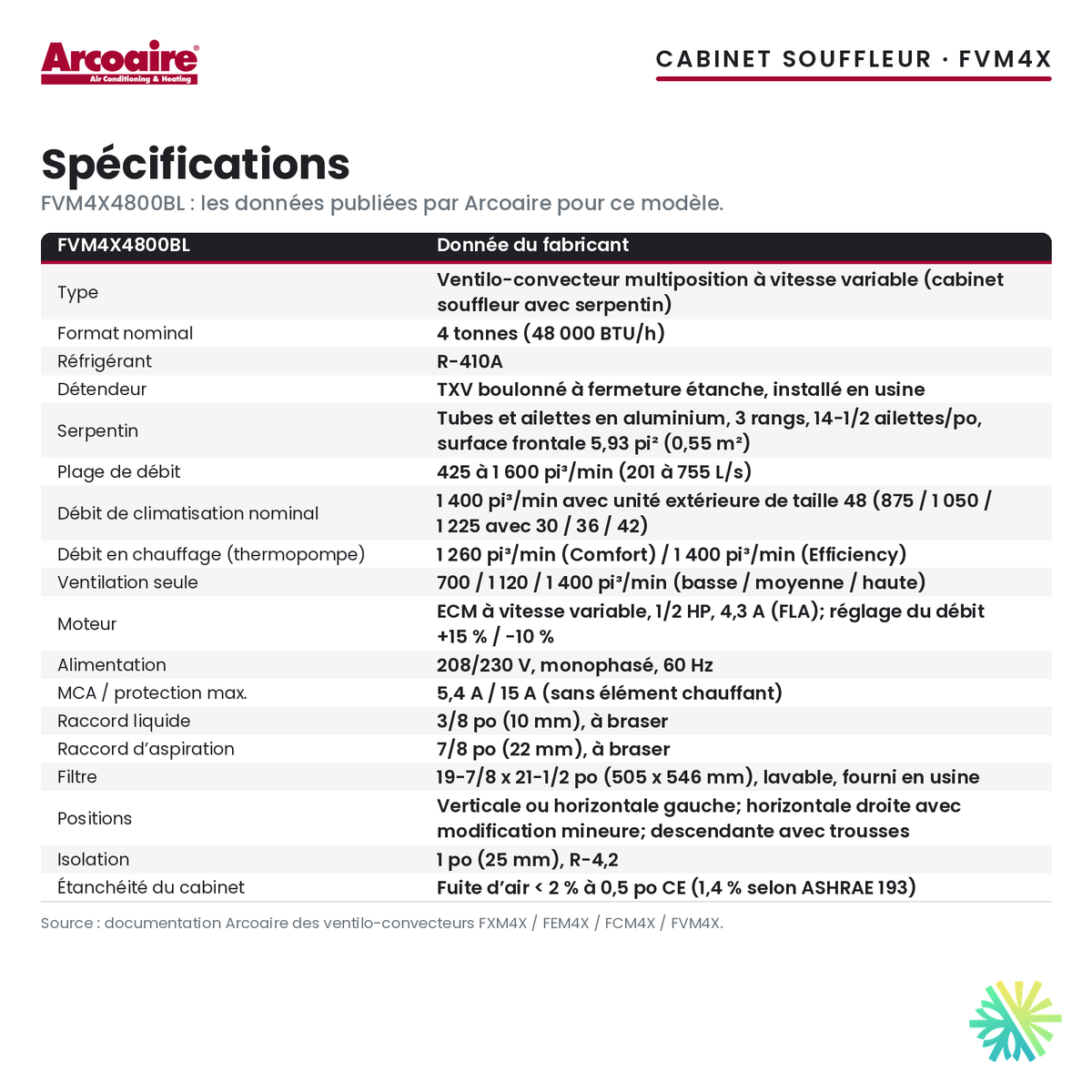

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Available while supplies last.
- Sold alone: not eligible for the LogisVert grant. The grant follows the certified outdoor unit + air handler pair.
- The heating element is not included: it is added with a kit sold separately, selected from the manufacturer’s documentation.
- 208/230 V single-phase, 60 Hz power supply. Without a heating element: 5.4 A minimum circuit ampacity, 15 A maximum overcurrent protection.
- Plan room for a 53-7/16 x 21-1/8 x 22-1/16 in cabinet (H x W x D) weighing 172 lb shipped, plus the service clearance the manufacturer requires.
- Downflow requires accessory kits; horizontal right requires a minor modification.
Manufacturer documents
Explore the range
Electric furnaces – air handlersSee allSame brand
ARCOAIRESee all
Frequently asked questions
Which outdoor unit does it work with?
Arcoaire’s airflow tables list this air handler with R-410A outdoor units of size 30, 36, 42 or 48. Send us your model and we confirm compatibility and the setting before ordering.
What is the Heat Pump Comfort option for?
In heat pump heating, it lowers the airflow to deliver warmer air: 1,260 CFM in Comfort mode versus 1,400 in Efficiency mode, according to the manufacturer.
Is electric heat included?
No. The heating element is added with a kit sold separately, selected from Arcoaire’s documentation and the capacity of your electrical panel.
Does this air handler qualify for a grant?
Not when it is sold alone. Hydro-Québec’s LogisVert grant follows a certified outdoor unit + air handler pair.
What warranty does Arcoaire provide?
For this model, Arcoaire prints a 10-year No Hassle replacement limited warranty and a 5-year parts limited warranty, extended by 5 years with timely registration, for owner-occupied residential use.
Is this model still available?
Yes, while supplies last. If it is no longer available when your project starts, we propose an air handler compatible with your outdoor unit.
A 4-ton Arcoaire fan coil, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
