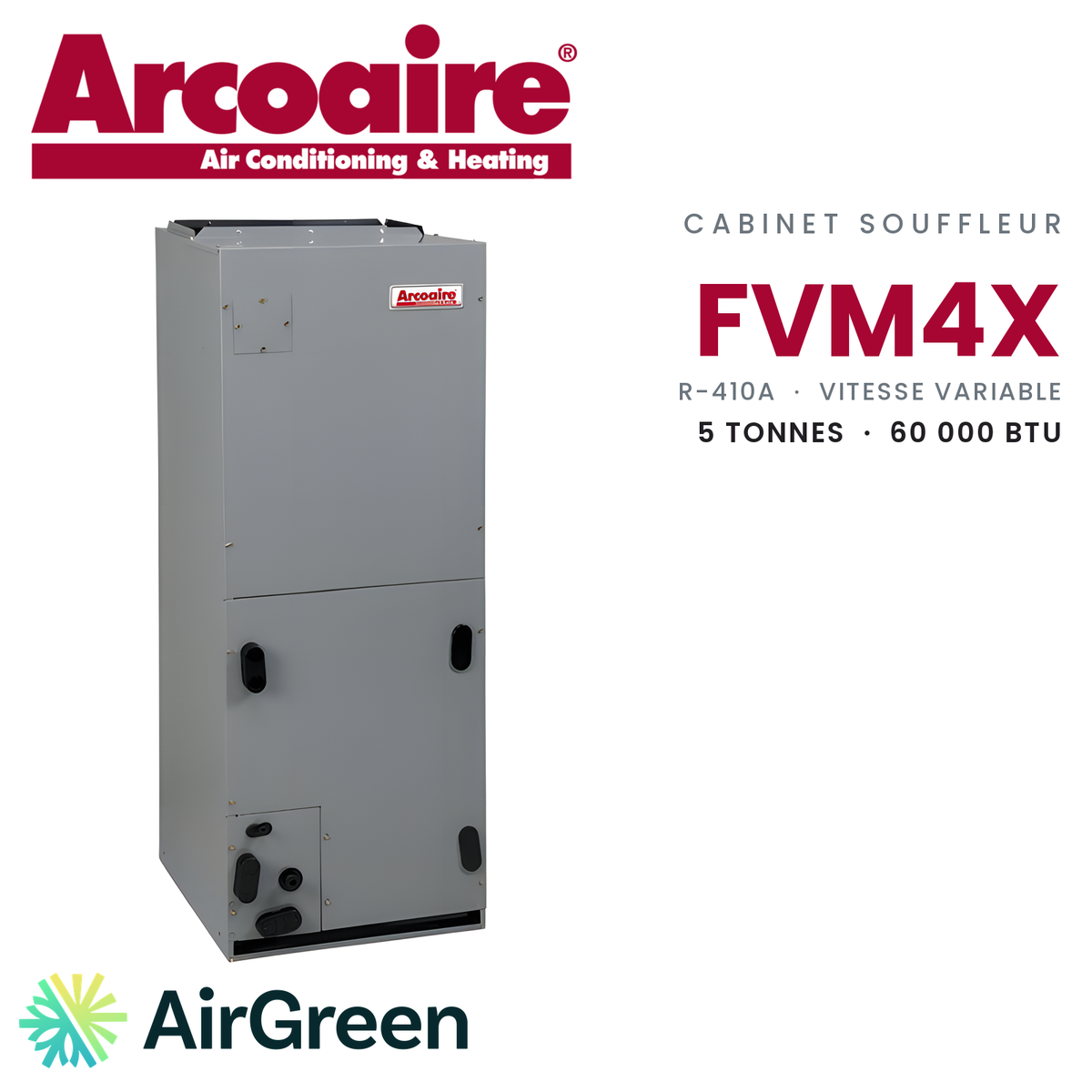

ARCOAIRE FVM4X Electric Furnace | 5 Tons - 60000 BTU - R410A
Arcoaire’s 5-ton FVM4X fan coil: a 3/4 HP variable-speed ECM motor that moves up to 2,000 CFM, R-410A.
Model numberFVM4X6000BL
514 316-2973 · sales@airgreen.ca
Quick facts
The largest FVM4X fan coil, for homes that need a lot of air
Who the FVM4X6000BL is for
A large multi-storey home with a finished basement often means a long duct system, bedrooms far from the mechanical room and rooms that do not all respond at the same pace. The FVM4X6000BL is designed for those cases: with its 3/4 HP variable-speed ECM motor, it covers a range of 540 to 2,000 CFM and reaches 1,750 CFM in nominal cooling with a size-60 outdoor unit.
It is the indoor unit of an R-410A central system. Arcoaire also lists it with outdoor units of size 36, 42 or 48, which leaves room if your system needs to change. The model is available while supplies last.
Before choosing: space and access
A 5-ton air handler is large. This one is 59-3/16 in high and 24-11/16 in wide, and weighs 207 lb shipped. In an existing home, the first check is therefore not technical: the cabinet has to fit down the basement stairs and leave enough room in front of it for service. We check that route during the estimate, before proposing this model.
The 7/8 in suction connection also deserves a check if you keep an existing refrigerant line set. The cabinet installs upright or lying on its left side as standard, on its right side with a minor modification, and downflow with accessory kits.
Comfort through the seasons
In summer, the dehumidification function helps keep the air drier in the rooms. In winter, the Heat Pump Comfort option lowers the airflow in heat pump heating to deliver warmer air at the registers. If you want electric backup heat for extreme cold, a heater kit is added to the cabinet; it is sold separately and we choose it based on your electrical panel. The washable filter is factory supplied, and the TXV is already installed on the three-row aluminum coil.
Installation by AirGreen
After a free estimate and a written quote, our technicians set the cabinet, connect the refrigerant line set, the drain and the power supply, set the airflow for the size of your outdoor unit, then commission the system. Our RBQ licence 5645-9605-01 covers ventilation, refrigeration and electrical work. A Montreal family business for more than fifteen years, we also work on the South Shore, in Longueuil, in Laval and on the North Shore.
Sold alone, this air handler does not qualify for the LogisVert grant, which follows a certified outdoor unit + air handler pair.
Ask for your free on-site estimate and receive a written quote. Financing is available for your project.
Plenty of air for large homes
The FVM4X6000BL is the largest size in the FVM4X series. Its 3/4 HP motor covers 540 to 2,000 CFM, and Arcoaire lists it with R-410A outdoor units of size 36, 42, 48 or 60.
- Large multi-storey homes with a finished basement
- Replacing the air handler of a 5-ton R-410A central system
- Long duct runs serving several floors
- Projects that plan electric backup heat with a kit

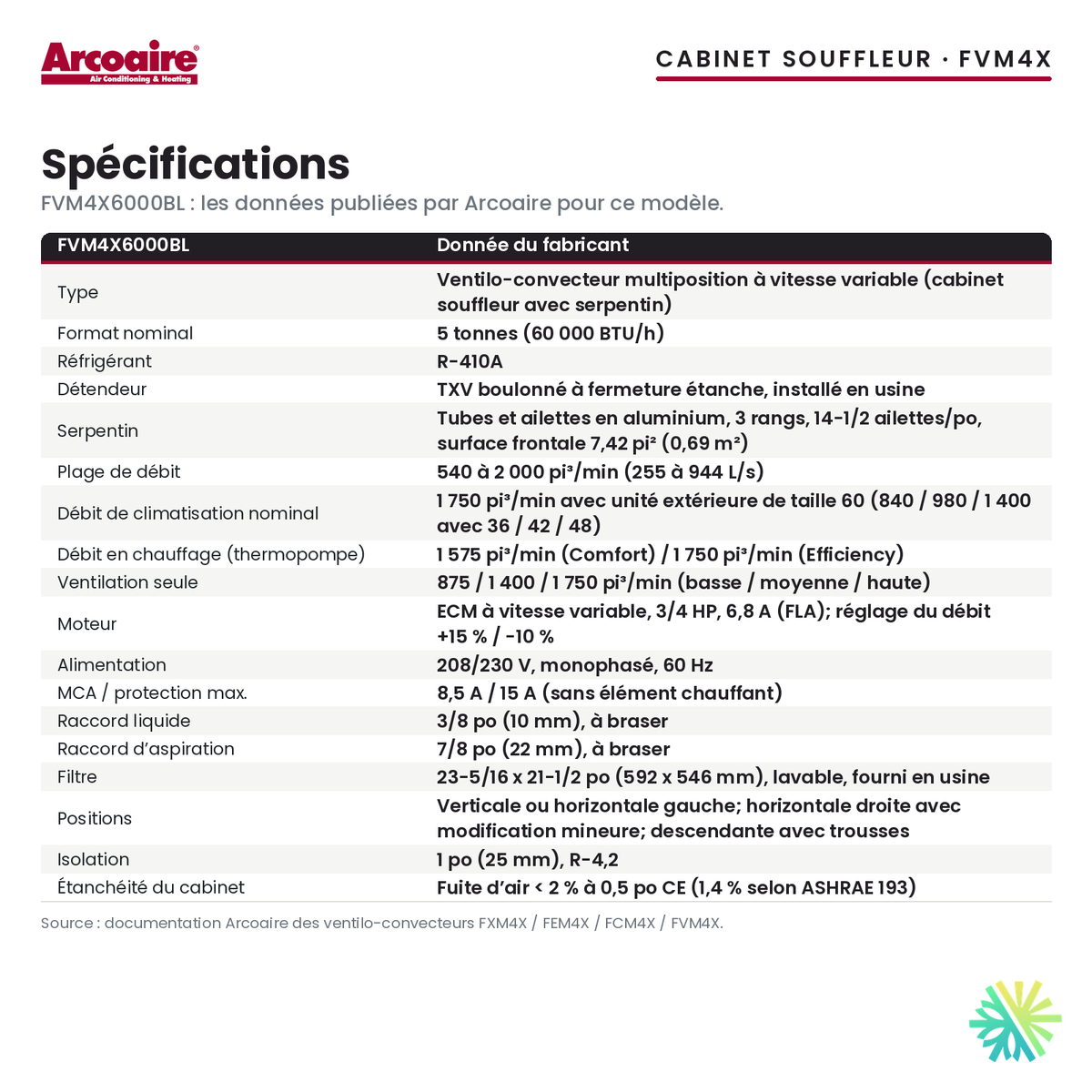

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Available while supplies last.
- Sold alone: not eligible for the LogisVert grant. The grant follows the certified outdoor unit + air handler pair.
- This is a large cabinet: 59-3/16 x 24-11/16 x 22-1/16 in (H x W x D) and 207 lb shipped. Check access through the stairs and into the mechanical room, plus the service clearance the manufacturer requires.
- The heating element is not included: it is added with a kit sold separately, selected from the manufacturer’s documentation.
- 208/230 V single-phase, 60 Hz power supply. Without a heating element: 8.5 A minimum circuit ampacity, 15 A maximum overcurrent protection.
- 7/8 in suction connection: a smaller existing line set must be checked before the work.
Manufacturer documents
Explore the range
Electric furnaces – air handlersSee allSame brand
ARCOAIRESee all
Frequently asked questions
How does it differ from the other 5-ton air handler in the range?
The FVM4X6000BL runs on R-410A with a 3/4 HP variable-speed ECM motor. The other 5-ton air handlers differ by refrigerant and dimensions: give us the model of your outdoor unit and we confirm which one suits it.
Which outdoor unit does it work with?
Arcoaire’s airflow tables list R-410A outdoor units of size 36, 42, 48 or 60. We check that yours is compatible before ordering.
Will the cabinet fit down my stairs?
It is 59-3/16 in high, 24-11/16 in wide and 22-1/16 in deep, and weighs 207 lb shipped. We check the access route during the estimate.
Is electric heat included?
No. The heating element is added with a kit sold separately, selected from Arcoaire’s documentation and the capacity of your electrical panel.
Does this air handler qualify for a grant?
Not when it is sold alone. Hydro-Québec’s LogisVert grant follows a certified outdoor unit + air handler pair.
What warranty does Arcoaire provide?
For this model, Arcoaire prints a 10-year No Hassle replacement limited warranty and a 5-year parts limited warranty, extended by 5 years with timely registration, for owner-occupied residential use.
A 5-ton Arcoaire fan coil, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
