ARCOAIRE FXM4X Electric Furnace | 1.5 Tons - 18000 BTU - R410A
Arcoaire’s 1.5-ton FXM4X fan coil: a multiposition R-410A cabinet with an aluminum coil, TXV and constant-torque ECM motor.
Model numberFXM4X1800AL
514 316-2973 · sales@airgreen.ca
Quick facts
A compact fan coil to get a small R-410A central system running again
What the FXM4X1800AL is and who it suits
The FXM4X1800AL is the indoor part of a central system: a cabinet that holds the blower, the coil and the expansion valve. The outdoor unit, heat pump or air conditioner, sends it refrigerant; the cabinet turns that energy into warm or cool air and distributes it through your ducts. It does not produce heat on its own until a heater kit is added.
This 1.5-ton size is aimed at smaller spaces: a bungalow, a condo with ductwork, a well-insulated ground floor. It mainly suits homeowners whose R-410A air handler has failed while the outdoor unit still works, and contractors looking for a same-capacity replacement. The model is available while supplies last.
How it fits a Québec home
In our homes, the air handler often ends up in a corner of the basement, at the back of a closet or lying in a service space. The FXM4X handles all three: it installs upflow or horizontal left with no modification, horizontal right with a minor modification, and downflow with a conversion kit.
For winter, the cabinet can take electric backup heat. Arcoaire lists three kits for this size, 5, 8 or 10 kW, sold separately. We choose the right one based on the capacity of your electrical panel and the role the backup must play when the heat pump slows down in extreme cold.
The constant-torque ECM motor has five speed taps. At commissioning, we select the one that suits your ductwork instead of leaving the factory setting.
What AirGreen’s installation covers
We start with a free on-site estimate. We note the model of your outdoor unit, the condition of the ducts, the space available and the power supply, then we provide a written quote. If the FXM4X1800AL does not suit your outdoor unit, we tell you before ordering.
On installation day, our technicians remove the old cabinet, set the new one, connect the refrigerant line set, the drain and the power supply, add the heater kit if it is part of the project, then commission the system and check the airflow. Our RBQ licence 5645-9605-01 covers ventilation, refrigeration and electrical work: one team handles everything.
AirGreen is a family business established in Montreal for more than fifteen years. We work in Laval, Longueuil, on the North Shore and on the South Shore.
Let’s talk about your project
Sold alone, this fan coil does not qualify for the LogisVert grant: the grant applies to a certified pair. If you are considering replacing the whole system, we compare both options with you.
Ask for your free on-site estimate and receive a clear written quote. Financing is available to spread the cost of your project.

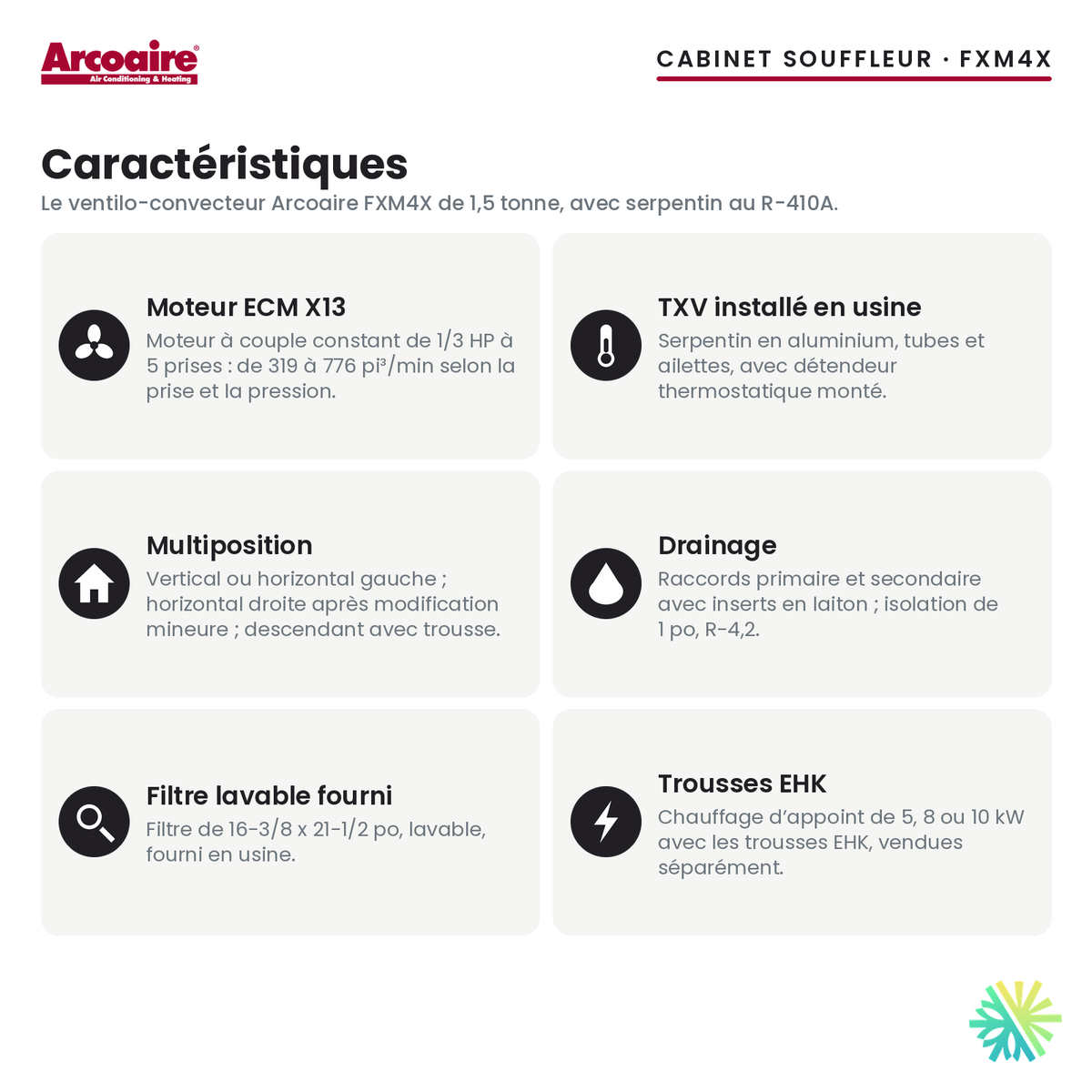

The indoor cabinet of a small R-410A central system
The FXM4X1800AL carries refrigerant from the outdoor unit through its aluminum coil and pushes conditioned air into the ductwork. It installs vertically or horizontally, which makes replacements easier in a basement, a closet or a service space.
- Replacing a 1.5-ton R-410A air handler at the end of its life
- Bungalows, condos and small houses that already have ductwork
- Upflow or horizontal-left installation with no cabinet modification
- Adding 5, 8 or 10 kW of electric backup heat with an EHK kit

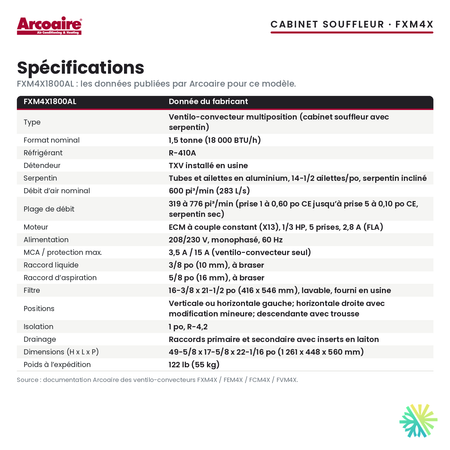

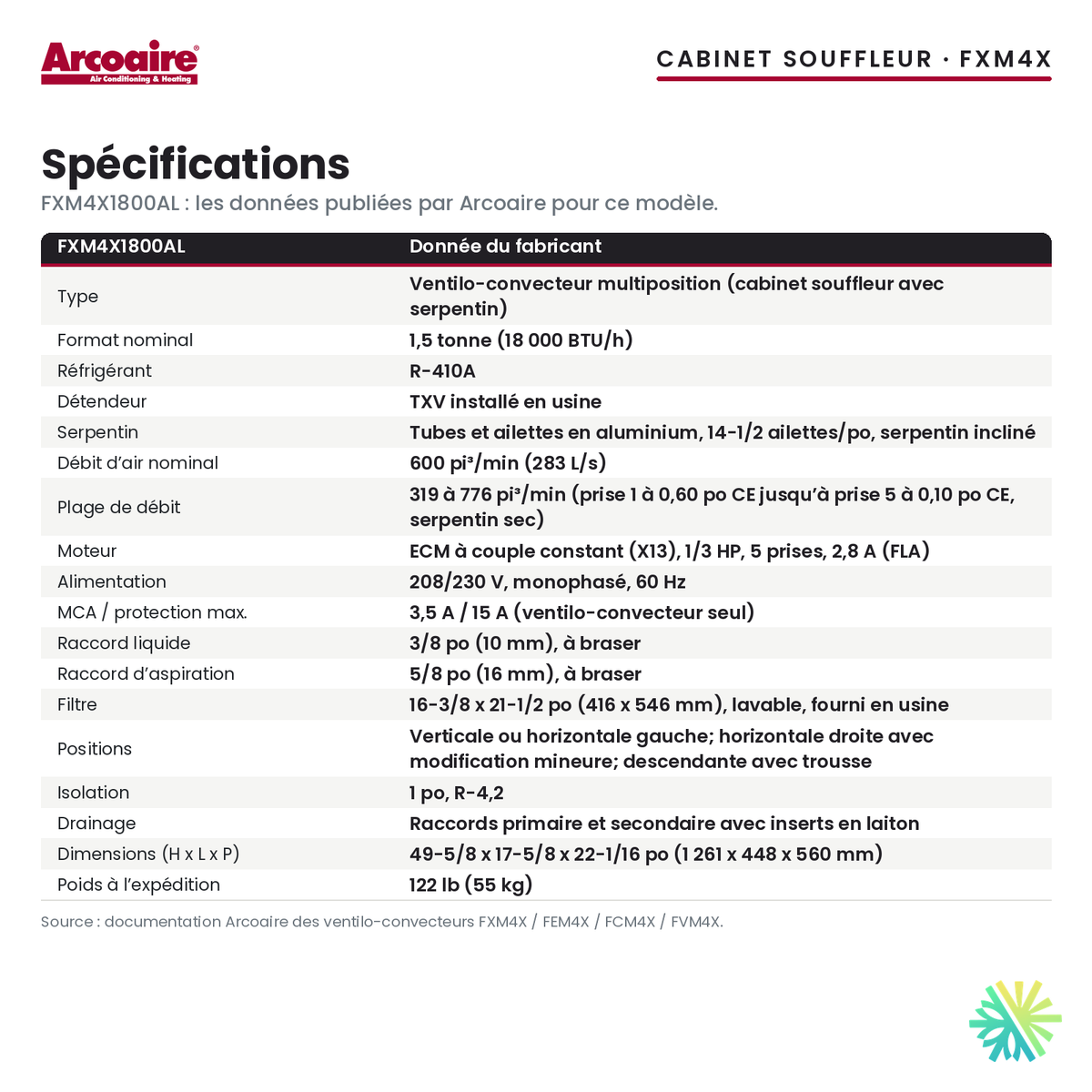

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

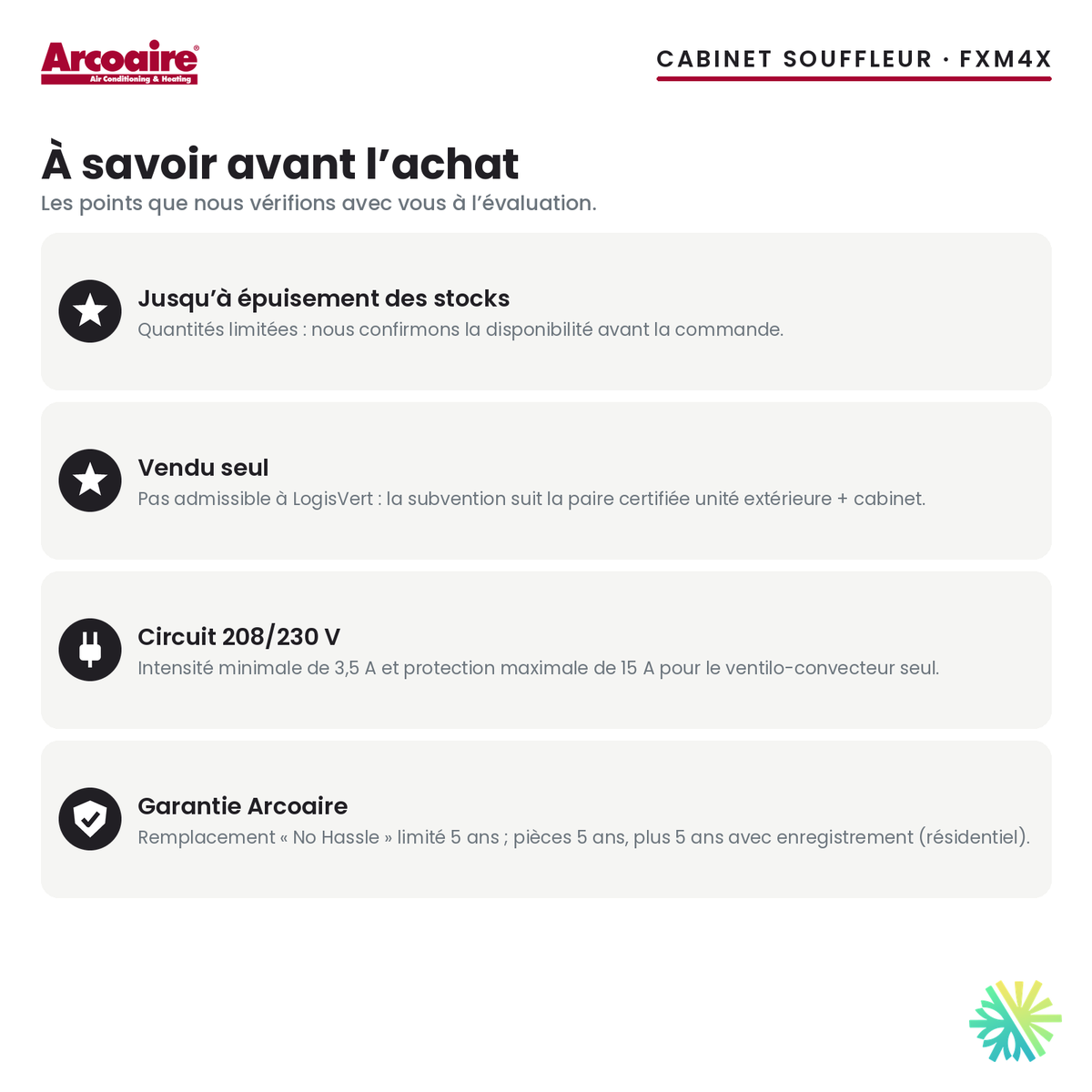

What to know before installing
- Available while supplies last.
- Sold alone: not eligible for the LogisVert grant. The grant follows the certified outdoor unit + air handler pair.
- The heating element is not included. For this size, Arcoaire lists the EHK05 (5 kW), EHK07 (8 kW) and EHK10 (10 kW) kits, sold separately; no 15 kW or larger kit is listed.
- 208/230 V single-phase, 60 Hz power supply. For the fan coil alone: 3.5 A minimum circuit ampacity, 15 A maximum overcurrent protection. With a heater kit, follow the values on the rating plate.
- Plan room for a 49-5/8 x 17-5/8 x 22-1/16 in cabinet (H x W x D), plus the service clearance the manufacturer requires.
- Horizontal-right installation requires a minor modification; downflow requires a conversion kit sold separately.
Manufacturer documents
Explore the range
Electric furnaces – air handlersSee allSame brand
ARCOAIRESee all
Frequently asked questions
Is this model still available?
Yes, while supplies last. If the FXM4X1800AL is no longer available when your project starts, we propose a replacement air handler that is compatible with your outdoor unit.
Is electric heat included?
No. The fan coil has no heating element. For this size, Arcoaire lists the EHK05 (5 kW), EHK07 (8 kW) and EHK10 (10 kW) kits, sold separately.
Which outdoor unit does it work with?
The manufacturer’s data sheet does not name a specific outdoor unit for this model. It is a 1.5-ton R-410A cabinet: send us the model number of your heat pump or air conditioner and we check compatibility before ordering.
Does this air handler qualify for a grant?
Not when it is sold alone. Hydro-Québec’s LogisVert grant follows a certified outdoor unit + air handler pair. For a complete system, ask us for a quote.
What warranty does Arcoaire provide?
For this model, Arcoaire prints a 5-year No Hassle replacement limited warranty and a 5-year parts limited warranty, extended by 5 years on parts with timely registration, for residential use.
Can you install it?
Yes. Our technicians set the cabinet, connect it to the ductwork, the refrigerant line set and the power supply, then commission the system.
A 1.5-ton Arcoaire fan coil, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
