BOSCH BVA M15 Electric Furnace | 5 Tons - 60000 BTU - R410A

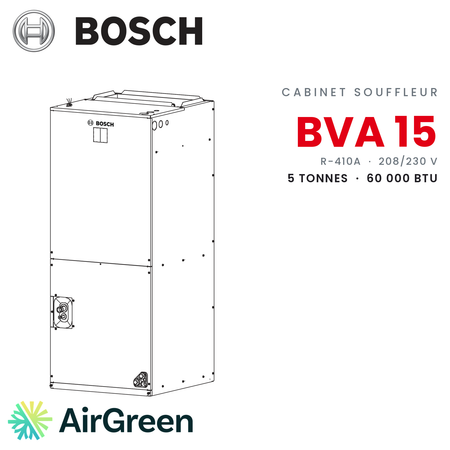

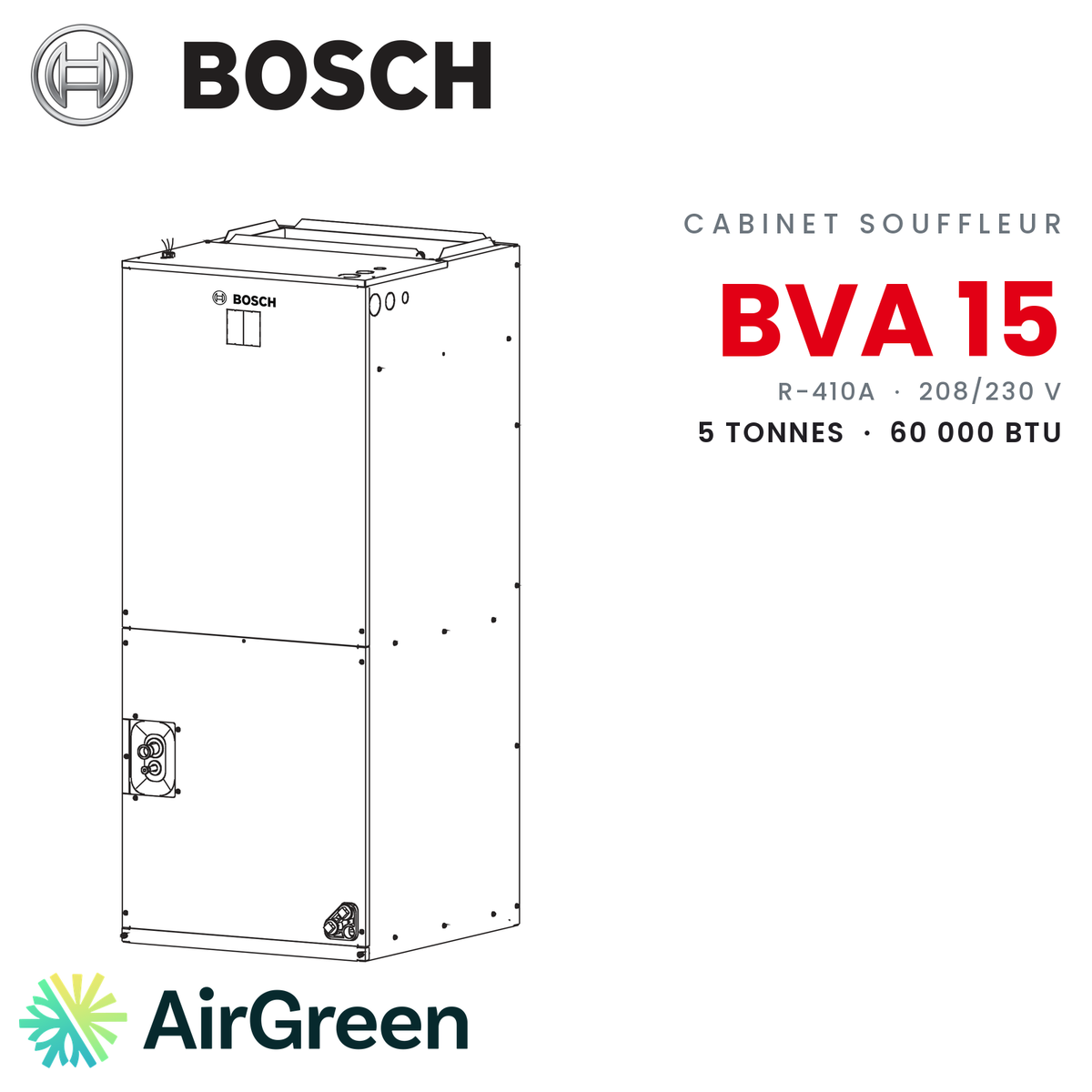

Bosch’s 5-ton BVA-60WN1-M15 multiposition air handler: the largest size in the BVA 15 series, with 2,138 SCFM at high speed.
Model numberBVA-60WN1-M15
514 316-2973 · sales@airgreen.ca
Quick facts
Five tons of airflow, placed with care
For very large homes
The BVA-60WN1-M15 is the largest air handler in Bosch’s BVA 15 series: 5 tons (60,000 BTU/h), a 3/4 HP PSC motor and an R-410A coil in the same cabinet. It is the indoor section of the BOVA M15-series inverter heat pump, on the IDS 1.0 Plus platform. It is aimed at very large homes, extended residences and some small commercial spaces served by ducts.
Bosch publishes the same dimensions for it as for the 4-ton size: 54-1/2 in high, 22 in wide and 24 in deep (1385 x 560 x 610 mm). If the final load calculation hesitates between the two sizes, the space to reserve in the mechanical room stays the same. The cabinet weighs 165 lb net.
Airflow and noise go together
The motor offers three speeds: 1,726, 1,983 or 2,138 SCFM, with medium as the factory setting. Bosch publishes 69, 67 and 63 dB(A) depending on speed. At this airflow, two things matter more than anything: ducts and return air large enough, and a location that keeps the cabinet away from bedrooms. In a large home in Laval or on the South Shore, we often choose a basement corner away from the rooms people sleep in, or a horizontal installation when the space calls for it, since the cabinet converts to horizontal left or downflow.
Electrical, backup heat and connections
- Without a kit: 208/230 V single phase, 60 Hz, 5.7 A minimum circuit ampacity, 15 A maximum overcurrent protection.
- Electric backup, sold separately: EHK-05B (5 kW), EHK-08B (7.5 kW), EHK-10B (10 kW), EHK-15B (15 kW) or EHK-20B (20 kW); the last two are dual circuit.
- Refrigerant: 3/8 in liquid connection, 7/8 in suction connection.
- Filter: integrated 20 x 22 in rack, tool-less door.
The air handler is sold alone. The spec sheet does not name the exact outdoor model: we confirm the match before ordering. Sold alone, it does not qualify for the LogisVert grant, which follows the certified outdoor unit + air handler pair.
What AirGreen does
AirGreen is a family business established in Montreal for more than fifteen years, holding RBQ licence 5645-9605-01 in ventilation, refrigeration and electrical work. The on-site estimate is free: we measure the ducts, assess the location and the panel, then give you a written quote. At installation, we set the cabinet, connect the ducts, the refrigerant piping and the condensate drain, install the kit and its circuits, set the speed and commission the system. We work in Montreal, Longueuil, on the North Shore and throughout Greater Montreal.
A large system, well placed
Book your free estimate: we check your ducts, choose the location and the kit, then you receive a written quote. Financing is available.
The Bosch air handler for very large homes
The BVA-60WN1-M15 is the 5-ton indoor section of the Bosch BOVA M15-series inverter heat pump: a 3/4 HP blower and an R-410A coil in one cabinet. It accepts EHK backup kits from 5 to 20 kW.
- Very large homes whose load calculation reaches 5 tons
- Completing a 5-ton Bosch IDS 1.0 Plus central heat pump
- Replacing a large electric furnace, with an EHK kit up to 20 kW
- Small commercial spaces served by ducts

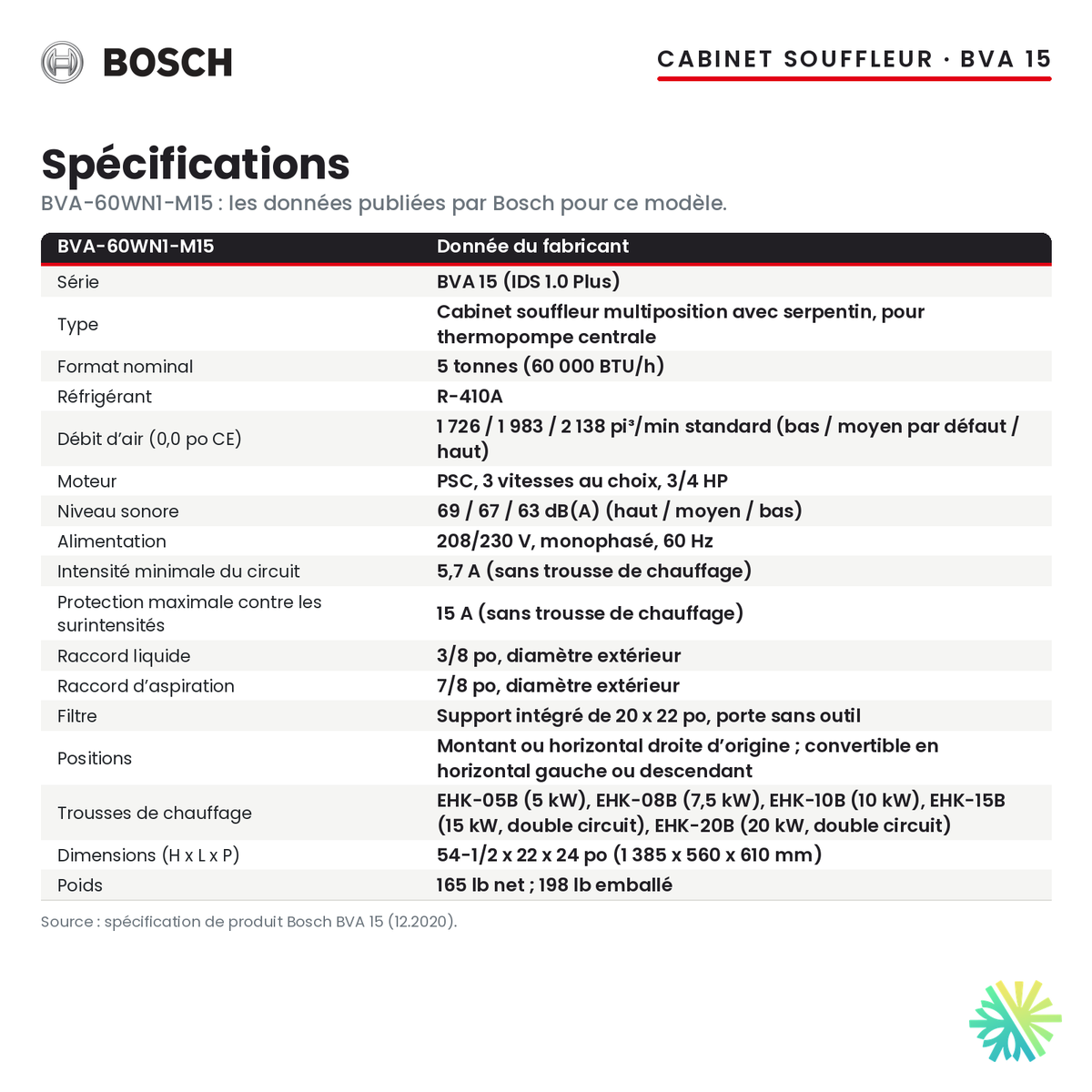

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Sold alone: the LogisVert grant follows the certified outdoor unit + air handler pair; the air handler alone does not qualify.
- The outdoor unit is not included and the spec sheet does not name the exact outdoor model: we confirm the match before ordering.
- The main ducts and return air must be able to carry the selected airflow; at 5 tons, that is the first thing to check.
- Heater kit sold separately: EHK-05B (5 kW), EHK-08B (7.5 kW), EHK-10B (10 kW), EHK-15B or EHK-20B (15 or 20 kW, dual circuit).
- Without a kit: 5.7 A minimum circuit ampacity and 15 A maximum overcurrent protection, at 208/230 V single phase, 60 Hz. 165 lb net cabinet.
Manufacturer documents
Explore the range
Electric furnaces – air handlersSee allSame brand
BOSCHSee all
Frequently asked questions
Is this air handler noisy?
Bosch publishes 69 dB(A) at high speed, 67 dB(A) at medium and 63 dB(A) at low. At this size, location matters: we avoid placing it against a bedroom and set the speed to suit the ducts.
Can my ducts keep up?
That is the first check on any 5-ton project. The air handler can deliver up to 2,138 SCFM; we measure the main ducts and return air, and the quote lists any corrections needed.
Is the 5-ton cabinet larger than the 4-ton one?
No. Bosch publishes the same dimensions for sizes 48 and 60: 54-1/2 in high, 22 in wide and 24 in deep. The 5-ton size weighs 165 lb net.
Which heater kit should I choose?
Bosch lists five kits for this size, from 5 to 20 kW; the EHK-15B and EHK-20B are dual circuit and need two circuits at the panel. We choose the kit based on the house and the panel’s capacity.
Does it qualify for the LogisVert grant?
Not when sold alone. The grant follows a certified outdoor unit + air handler pair; for a complete system, we check eligibility in the quote.
A 5-ton Bosch BVA air handler, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
