BOSCH BVA M18 Electric Furnace | 2 Tons - 24000 BTU - R410A
Bosch’s 2-ton BVA-24WN1-M18 air handler with a multi-speed ECM motor: the original BVA series, available while supplies last.
Model numberBVA-24WN1-M18
514 316-2973 · sales@airgreen.ca
Quick facts
A Bosch air handler with an ECM motor, while it lasts
The BVA-24WN1-M18 in brief
The BVA-24WN1-M18 is the 2-ton (24,000 BTU/h) air handler of Bosch’s original BVA series, designed for the first Bosch IDS 1.0 heat pump platform. It is available while supplies last. Its distinguishing feature is its motor: a 1/3 HP multi-speed ECM with five speed taps.
For those five taps, Bosch publishes airflows of 1,016, 955, 927, 887 and 829 SCFM, measured at 0.0 in. W.C. In practice, the installer has several settings to match the airflow to the house and the ductwork, which helps keep the system quiet at the grilles.
Who this air handler makes sense for
The most natural case is replacement. If your home in Laval or on the North Shore has a Bosch IDS 1.0 system whose air handler needs replacing, finding a BVA from the same family keeps things simple. It also suits a new 2-ton project in a single-storey house or a Montreal condo that already has ducts, as long as stock allows.
If stock runs out, Bosch offers another 2-ton air handler in the BVA family: the BVA-24WN1-M15, with a three-speed PSC motor and the same published footprint. The two do not use the same heater kits.
Points to check
- Electrical: 208/230 V single phase, 60 Hz; 3.5 A minimum circuit ampacity; 15 A maximum time-delay fuse or HACR breaker. The motor is rated at 2.8 A.
- Space: a cabinet 46-1/2 in high, 19-5/8 in wide and 21-5/8 in deep, plus the plenum and service clearance.
- Filter: 18 x 20 in size.
- Backup heat: not included. It is added with a WEHK-series kit; the heat output allowed for size 24 is confirmed before ordering.
The air handler is sold alone, without an outdoor unit. It does not qualify for the LogisVert grant, which follows the certified outdoor unit + air handler pair; we confirm the match with the manufacturer before ordering.
Installation by AirGreen
AirGreen is a family business established in Montreal for more than fifteen years, holding RBQ licence 5645-9605-01 in ventilation, refrigeration and electrical work. The on-site estimate is free and you receive a written quote. Our technicians remove the old air handler, install the BVA-24WN1-M18, connect it to the ducts, the refrigerant piping and the condensate drain, fit the WEHK kit if planned, choose the speed tap that suits your ducts and commission the system. We work in Longueuil, on the South Shore and throughout Greater Montreal.
Reserve it before it is gone
Book your free estimate: we confirm availability, the match and the heater kit, then you receive a written quote. Financing is available.

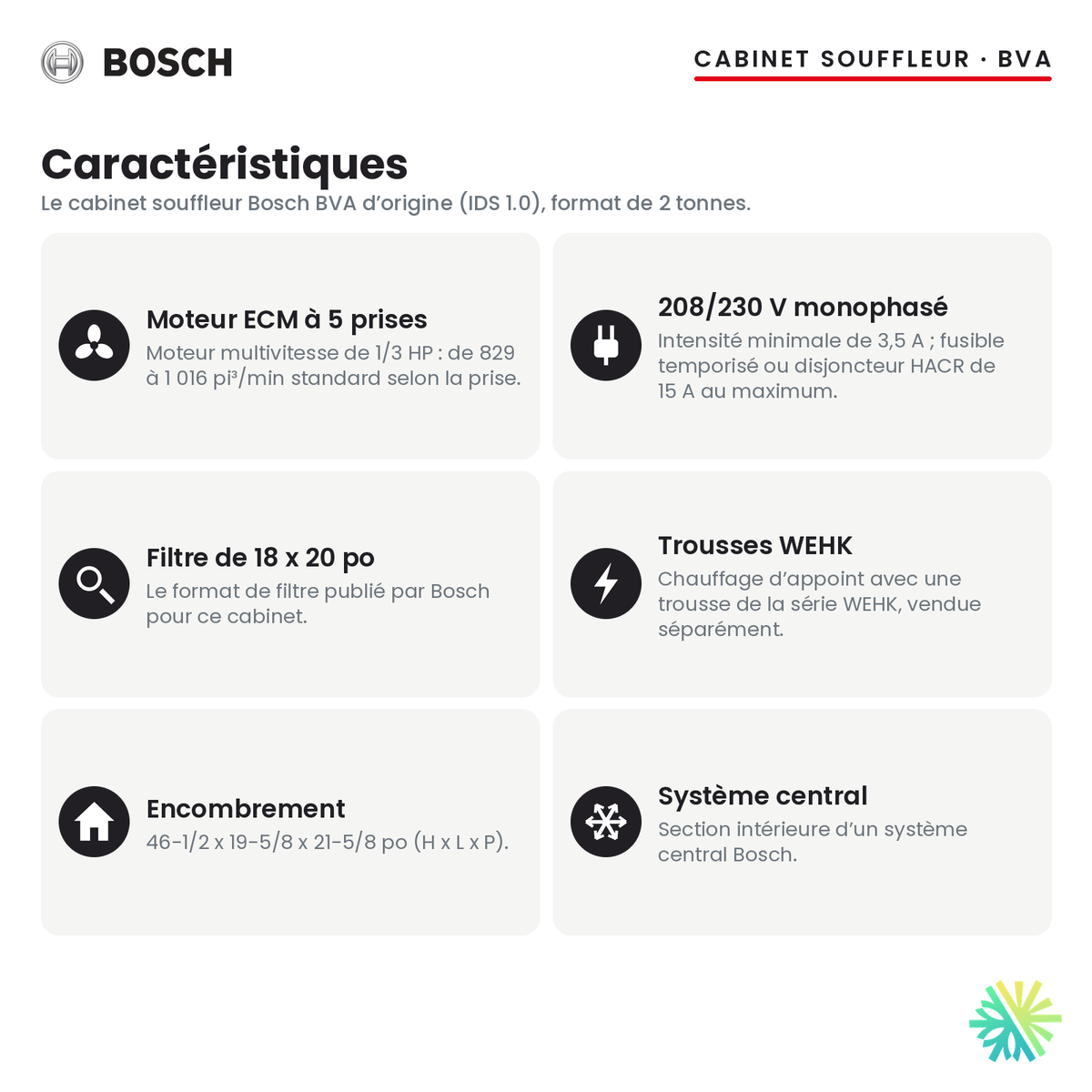

The ECM air handler of the first Bosch IDS platform
The BVA-24WN1-M18 is the 2-ton air handler of Bosch’s original BVA series, on the IDS 1.0 platform. Its multi-speed ECM motor offers five speed taps. It is available while supplies last.
- Replacing a 2-ton original BVA air handler in a Bosch IDS 1.0 installation
- Completing a 2-ton central system with an ECM-motor air handler
- Single-storey houses and condos with ductwork
- Projects planning electric backup heat with a WEHK kit

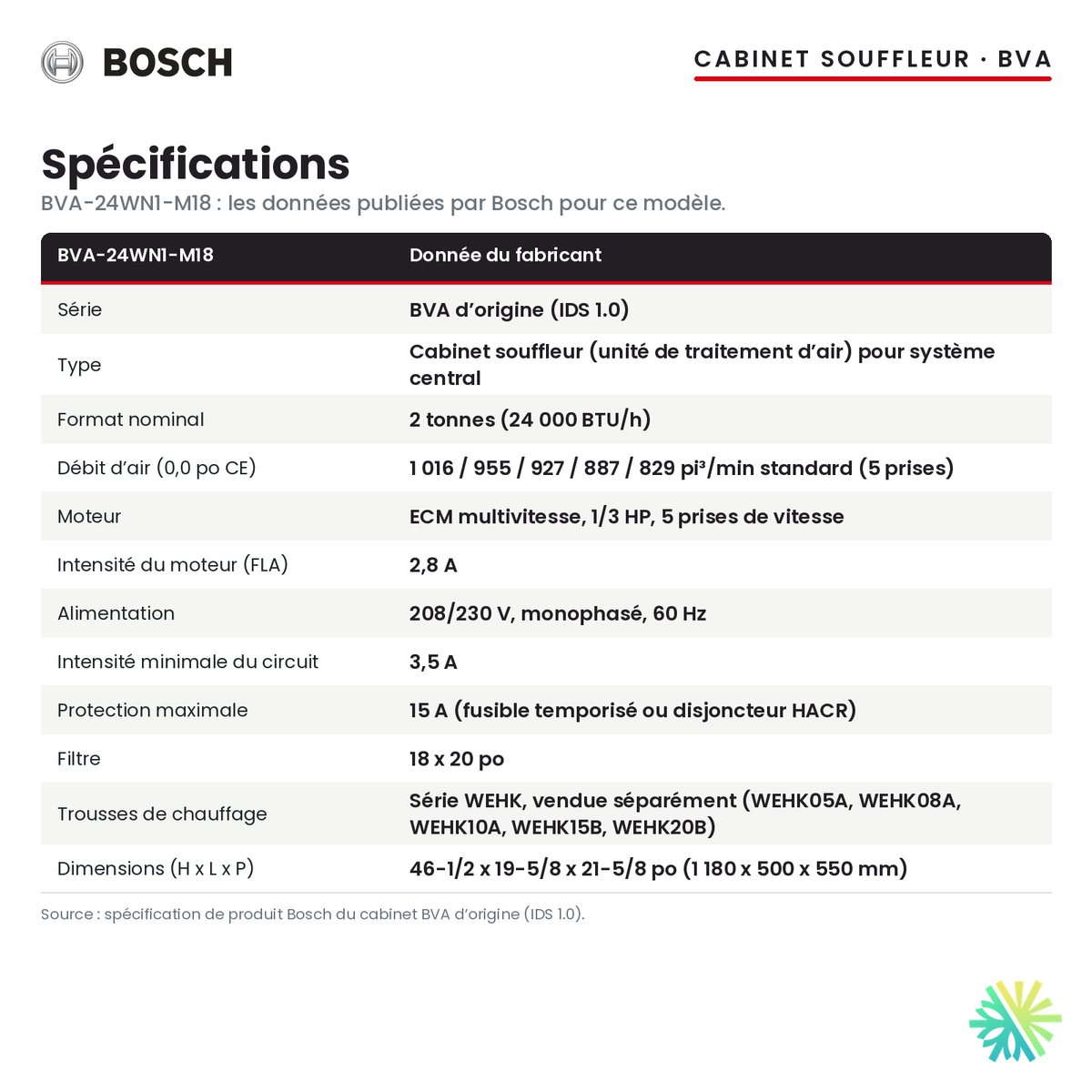

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

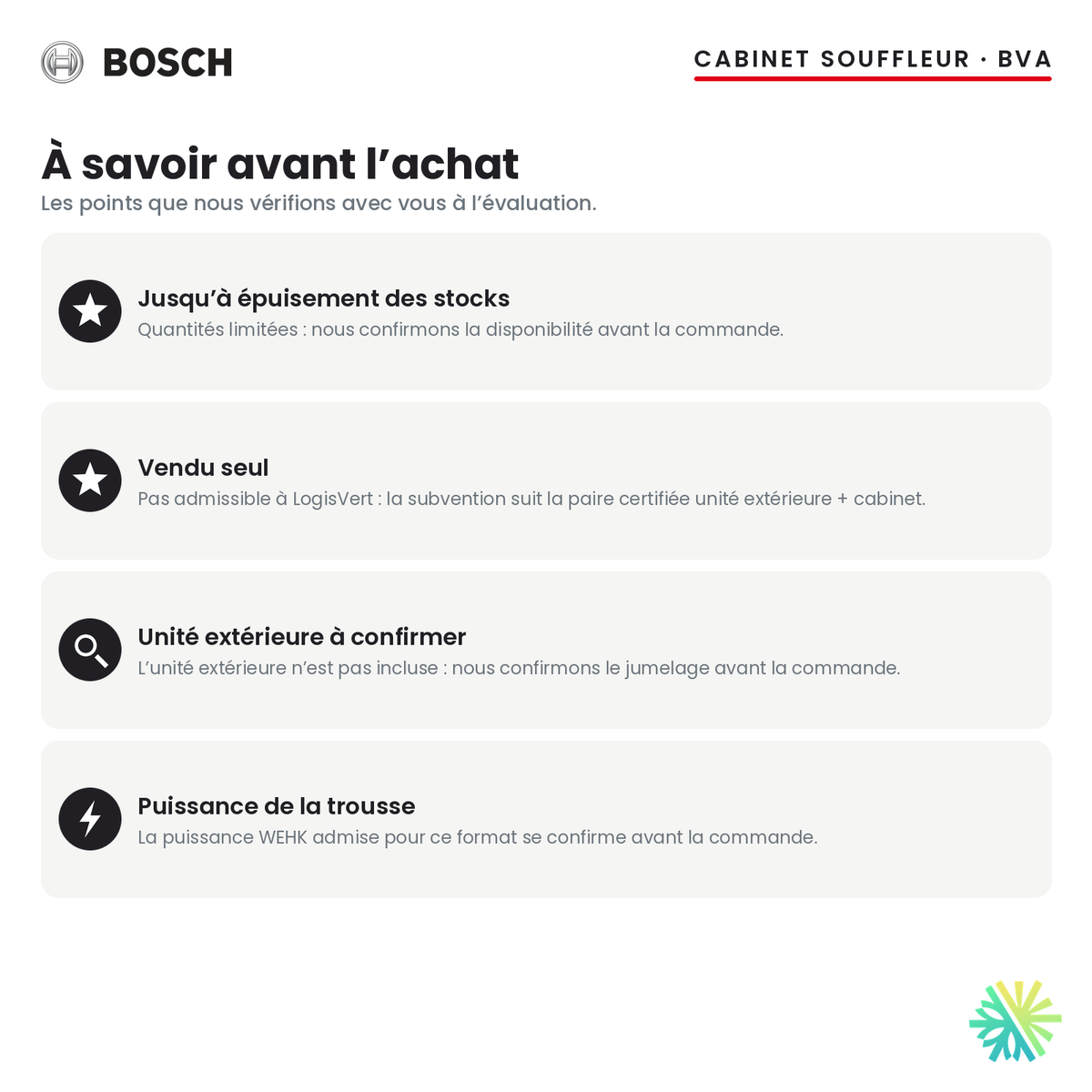

What to know before installing
- Available while supplies last.
- Sold alone: the LogisVert grant follows the certified outdoor unit + air handler pair; this air handler alone does not qualify.
- The outdoor unit is not included: we confirm the match with the manufacturer before ordering.
- Backup heat not included: it is added with a WEHK-series kit (WEHK05A to WEHK20B). The heat output allowed for size 24 cannot be read in the spec sheet consulted; we confirm it before ordering.
- 208/230 V single-phase, 60 Hz power supply: 3.5 A minimum circuit ampacity, 15 A maximum time-delay fuse or HACR breaker.
- Plan room for a 46-1/2 x 19-5/8 x 21-5/8 in cabinet (H x W x D), plus the service clearance the manufacturer requires.
Manufacturer documents
Explore the range
Electric furnaces – air handlersSee allSame brand
BOSCHSee all
Frequently asked questions
Is this model still available?
It is available while supplies last; we confirm availability in the quote. If stock runs out, the BVA-24WN1-M15, with a PSC motor, is the other 2-ton Bosch air handler in the BVA family.
How does it differ from the BVA-24WN1-M15?
Both are 2-ton air handlers with the same published footprint, 46-1/2 x 19-5/8 x 21-5/8 in. The M18 has a 5-tap multi-speed ECM motor; the M15 has a 3-speed PSC motor. Their heater kits differ: WEHK for the M18, EHK for the M15.
Which heater kit can be added?
The M18 uses WEHK-series kits. The spec sheet consulted does not show reliably which heat outputs are allowed for size 24: we confirm it with the manufacturer before ordering.
What electrical circuit is needed?
Bosch publishes a 3.5 A minimum circuit ampacity and 15 A maximum protection, by time-delay fuse or HACR breaker, at 208/230 V single phase. A heater kit raises the load; we check the panel on site.
Does it qualify for the LogisVert grant?
Not when sold alone. The grant follows a certified outdoor unit + air handler pair. For a complete system, we check the proposed pair’s eligibility.
A Bosch BVA ECM air handler, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
