HITACHI | Mini Ceiling Cassette - Heat Pump | 18000 BTU

A discreet heat pump designed for ceilings, large open-plan rooms, and demanding commercial spaces

The HITACHI Mini Ceiling Cassette – 18,000 BTU Heat Pump addresses a very specific need that we regularly encounter at AirGreen: providing stable, efficient, and discreet comfort in a room where a classic wall-mounted unit is not always the best option. In many properties in Montreal, Laval, Longueuil, on the North Shore and the South Shore, clients are looking for a heating and air conditioning solution that doesn't occupy a wall, distributes air more uniformly, and integrates better with the interior architecture.

This is exactly the role of a mini ceiling cassette. Installed in the ceiling, it diffuses air in multiple directions, which helps to avoid overly cold zones near the unit and less well-treated corners in the room. For an open-plan living room, a professional office, a conference room, a retail store, a restaurant, a modern condo, or a commercial space with a suspended ceiling, this configuration can make a significant difference.

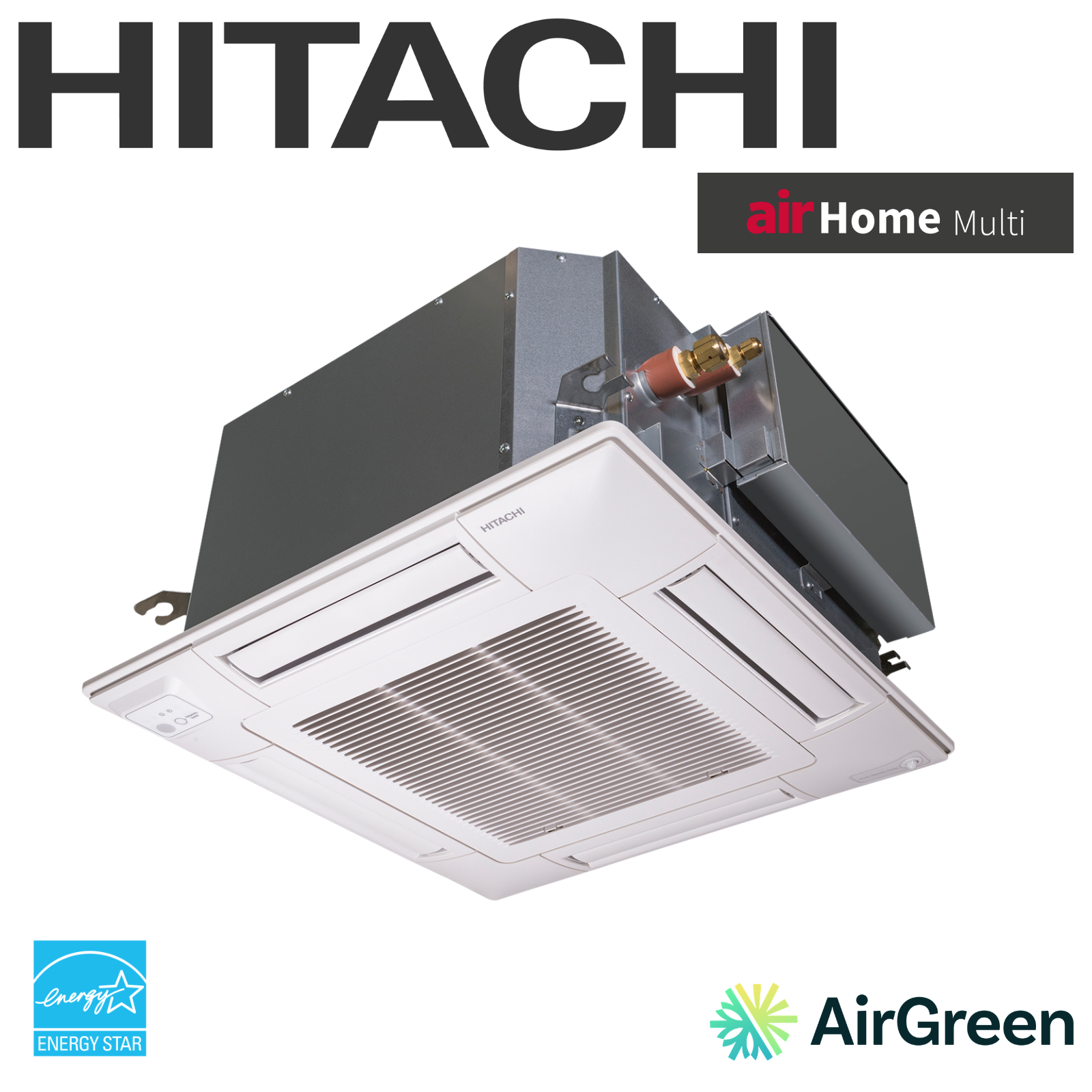

The model presented here, the indoor unit RAI-GJ18QHAA, combined with the outdoor unit RAM-G24N3HAA, is part of the Hitachi airHome Multi range, a multi-zone system with Inverter technology designed to air condition and heat several rooms individually. The Hitachi technical brochure specifies that the airHome Multi series allows for the connection of several types of indoor units, including the Mini Cassette, with operation up to 5 zones depending on the chosen outdoor model.

Why choose a mini cassette rather than a wall-mounted unit?

A wall-mounted unit remains an excellent choice in many residential projects, but the mini ceiling cassette becomes particularly interesting when comfort needs to be more uniform or when available wall space is limited. In a condo with large windows, a store with wall displays, an office with glass partitions, or a kitchen open to the dining room, wall space is often precious. Installing a visible unit on the wall can be difficult, aesthetically unpleasing, or technically less optimal.

The HITACHI Mini Cassette 18,000 BTU, on the other hand, frees up walls while ensuring 4-way air distribution. This distribution helps to stabilize the temperature throughout the room, especially in spaces where occupants don't always stay in the same place. In a retail store, for example, customers circulate; in a residential open-plan area, occupants move from the living room to the kitchen, then to the dining room. A well-positioned ceiling cassette can better accommodate this reality.

At AirGreen, we often recommend this type of solution when a client is looking for:

• a discreet heat pump with neat integration;
• better air distribution in a large room;
• a solution suitable for a suspended ceiling or a structure allowing recessing;
• an option compatible with a Hitachi multi-zone system;
• reliable comfort for cooling in summer and heating in winter;
• a clean, durable HVAC installation designed for long-term maintenance.

An 18,000 BTU capacity suitable for open-plan rooms and professional spaces

With a nominal capacity of 18,000 BTU, this mini cassette is suitable for good-sized rooms, depending on insulation, fenestration, ceiling height, sun exposure, and actual use of the space. A commercial room with an often-open door does not have the same needs as a well-insulated residential living room. A south-facing room with large windows also requires a different analysis than a more enclosed interior space.

That's why, before recommending this Hitachi heat pump, we always evaluate the actual context: surface area, air volume, materials, possible cassette location, piping layout, drainage, electrical supply, distance to the outdoor unit, and client expectations. A successful HVAC installation is not just about the number of BTUs; it also depends on the precision of the analysis before the work begins.

In a recent project in Boucherville, on the South Shore, a commercial client wanted to air condition a consultation room where wall units were impossible to place without interfering with the layout. The chosen solution was a ceiling cassette, installed centrally to allow for balanced diffusion. The client particularly wanted to avoid direct airflow over the workstations. By adjusting the location, fan speed, and louvre orientation, we achieved more uniform comfort, without sacrificing the room's appearance.

Compact dimensions for easier integration

The Hitachi mini cassette RAI-GJ18QHAA has internal dimensions of 22 x 22 x 11 inches, with a finishing panel of approximately 24.4 x 24.4 inches. This format is particularly useful in ceilings where available space is restricted. For many commercial or residential buildings with suspended ceilings, this size simplifies planning.

The outdoor unit RAM-G24N3HAA measures 33.5 x 11.7 x 31.5 inches, operates on 220V, uses R-32 refrigerant, and has an outdoor sound level of 54 dB(A). The indicated piping is 1/4 – 3/8 inches, a size that can facilitate certain replacements or installations where passage space is limited.

These technical details are important because they directly influence cost, installation time, and feasibility. A mini cassette requires different planning than a wall-mounted unit: you need to plan for ceiling space, drain management, access for maintenance, panel finishing, refrigerant line routing, and electrical supply. Our role at AirGreen is precisely to anticipate these elements before installation, to avoid surprises.

Heating down to -20 °C and performance adapted to the Quebec climate

This heat pump is designed to operate in heating down to -20 °C, making it relevant for several applications in Quebec. It is also listed as ENERGY STAR® and ENERGY STAR® Cold Climate, with ENERGY STAR ID 3799342. For homeowners in Montreal, Laval, Longueuil, on the North Shore and the South Shore, these elements are essential, as they directly impact energy efficiency, winter comfort, and eligibility for subsidy programs.

The model is associated with a provincial LogisVert subsidy of $1,920, according to the information on the product sheet updated on February 8, 2026. This aid can significantly alter the actual cost of the project after installation. As programs can evolve, we always validate the criteria when preparing a final quote.

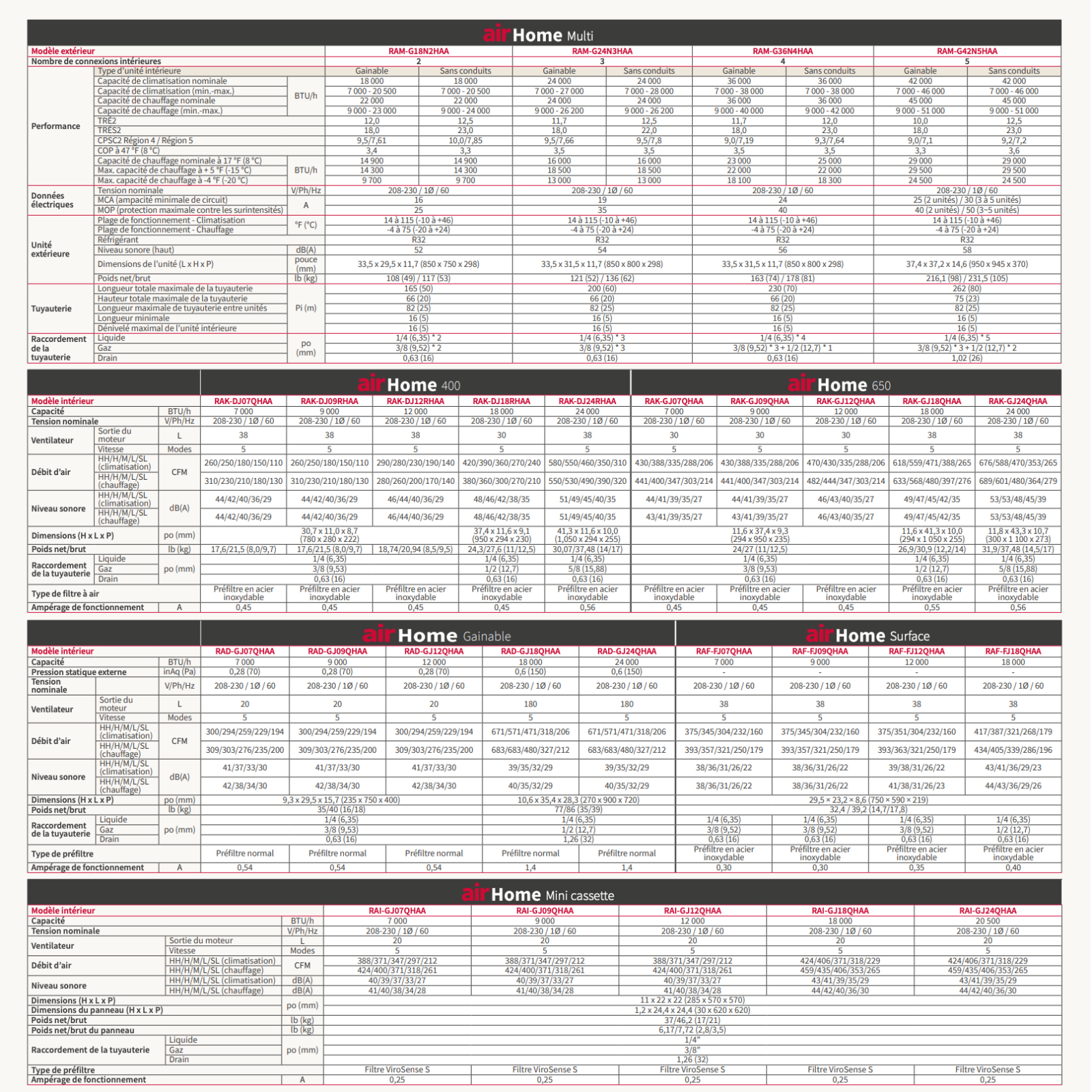

The advertised efficiency notably includes a SEER2 of 22.03, an HSPF2 of 9.515, an EER2 of 12.52, as well as heating performance indicated by the COP at -8 °C. This data allows for better comparison of the product with other HVAC solutions, but it must always be interpreted according to the project. In an old Montreal house with variable insulation, the result will not be identical to that of a recent condo in Laval or a well-insulated commercial space in Longueuil.

Installation, Comfort, Maintenance, and AirGreen Tips for a Successful Project

4-Way Air Diffusion for More Consistent Comfort

One of the most tangible advantages of this Hitachi mini ceiling cassette is its 4-way airflow. Unlike a wall-mounted unit that primarily projects air from one side of the room, the cassette distributes air in multiple directions. This approach is very well suited for rooms where comfort needs to be uniform: family rooms, retail stores, offices, waiting rooms, hair salons, clinics, light workshops, or shared workspaces.

The indicated indoor sound level varies from 29 to 44 dB(A), depending on the fan speed. This range allows for comfortable use in environments where noise matters: offices, secondary bedrooms, meeting rooms, or businesses where the atmosphere needs to remain pleasant.

In an installation carried out in an office in Laval, the client complained about an old system that cooled too much near the unit but left the back of the room warmer. Switching to a ceiling cassette allowed for better air distribution, especially on humid July days. The important point was not just the cooling capacity, but how the air was distributed. This is a nuance that significantly changes the daily experience.

ViroSense S Filtration, FrostWash, and Indoor Air Quality

The HITACHI Mini Cassette is equipped with a ViroSense S filter, a particularly relevant feature for clients who value indoor air quality. Hitachi documentation associates this filter with a reduction in molds, viruses, and bacteria, while FrostWash technology helps clean the coil through a freeze-thaw process. The goal is to limit the accumulation of contaminants on the heat exchanger and maintain better airflow over time.

For an owner, this does not replace periodic HVAC maintenance, but it is a real advantage. A poorly maintained system gradually loses efficiency, can emit odors, and may consume more energy. With a ceiling cassette, maintenance must be carefully planned, as the unit is recessed and its access differs from a wall-mounted unit.

At AirGreen, we always emphasize three points:

1. regularly clean filters according to usage;
2. check drainage to prevent water backups;
3. schedule professional maintenance when the system is operating intensively.

In a restaurant on the South Shore, for example, a ceiling cassette often operates more hours per day than a residential unit. The presence of steam, fine dust, and constant circulation makes maintenance even more important. A good installation must therefore plan not only for initial operation but also for future service access.

Motion Sensor and Smart Savings

The airHome Mini Cassette range includes an integrated motion sensor, designed to adjust operation when the room is unoccupied. Functions like Smart Eco or automatic shutdown can help reduce unnecessary consumption. In an office, a meeting room, or a retail store where occupancy varies throughout the day, this feature becomes interesting.

Let's take the example of a conference room in Longueuil used only a few hours a day. A classic system might continue to air condition or heat unnecessarily if no one remembers to adjust it. With a presence detector, the device can adapt its behavior based on actual occupancy. This type of detail doesn't replace good programming, but it adds a layer of intelligent management.

Wi-Fi is available as an option with the compatible interface, allowing remote management of the device, programming of usage periods, and easier monitoring of comfort habits. For rental property owners, businesses, or offices, this option can simplify daily management.

R-32, Leak Sensor, and Installation Safety

This heat pump uses R-32 refrigerant, a gas increasingly present in recent HVAC equipment. R-32 offers good energy performance but requires rigorous installation by qualified professionals. Hitachi also integrates a refrigerant leak sensor on the indoor units of this range, with an alarm signal depending on the configuration and installed accessories.

At AirGreen, we place great importance on the quality of refrigerant installation: clean flares, adequate insulation, vacuum pulling, leak testing, adherence to minimum and maximum lengths, mechanical protection of lines, and careful drain management. A ceiling cassette does not tolerate approximations, especially regarding drainage. A poorly conceived slope or an unsuitable condensate pump can lead to water, noise, or maintenance problems.

Mistakes to Avoid with a Mini Ceiling Cassette

We sometimes see projects where the cassette is chosen solely for its discreet appearance, without sufficient analysis. This is a mistake. Before installing this type of unit, several elements must be verified:

• the available space in the ceiling;
• the structure of the joists or suspended ceiling;
• the possible routing of piping;
• the method of condensate evacuation;
• future access for maintenance;
• compatibility with the outdoor unit;
• the electrical supply, notably the MCA of 19A and the MOP of 35A for this configuration;
• proper sizing according to the room.

Another common mistake is to only consider BTU capacity without accounting for air distribution. A room might theoretically require 18,000 BTUs, but if the unit is poorly positioned, comfort will be uneven. Conversely, a well-placed cassette can offer a much more pleasant result than a poorly oriented unit.

Hitachi Warranty and AirGreen Support

The product sheet indicates a warranty of 10 years on the compressor, 10 years on parts, and 0 years on labor, with the possibility of extended warranty. For residential customers, Hitachi documentation also mentions extended warranty options depending on registration and applicable conditions.

At AirGreen, we always clearly explain what is covered by the manufacturer, what depends on the installation, and what can be added for labor protection. This transparency is important because a heat pump is a long-term investment. The customer needs to understand not only the initial price but also after-sales service, maintenance, parts availability, and warranty conditions.

Our team handles both HVAC installation and HVAC maintenance, as well as service calls. This continuity is a concrete advantage: we know the equipment we install, the specific characteristics of buildings in the region, and the demands of the Quebec climate.

For what type of client is this Hitachi mini-cassette an excellent choice?

The HITACHI Ceiling Mini Cassette – 18,000 BTU Heat Pump is particularly suitable for clients who want a discreet, efficient, and well-integrated solution. It is often relevant for:

• modern condos with few available walls;
• open-plan living areas;
• professional offices;
• retail businesses;
• conference rooms;
• restaurants or cafes with suitable ceilings;
• multi-zone spaces combining several types of indoor units;
• projects where interior aesthetics are a priority.

It is also for clients who want an ENERGY STAR Cold Climate solution, eligible for a significant subsidy, with more balanced air distribution than a classic wall-mounted unit.

Why have your Hitachi heat pump installed by AirGreen?

A ceiling cassette requires more than just simple mechanical installation. It demands a precise reading of the building, coordination between aesthetics and performance, proper drain management, meticulous refrigeration installation, and a clean finish. At AirGreen, we bring this field-based approach to every project, whether in Montreal, Laval, Longueuil, on the North Shore, the South Shore, or in Montérégie.

We take the time to recommend the right model, check eligibility for subsidies, explain options such as WiFi, additional warranties, and maintenance, and then perform an installation that respects the manufacturer's technical requirements and the client's expectations.

For a house, condo, business, or multi-unit building, the HITACHI 18,000 BTU Ceiling Mini Cassette can become a very high-performing solution when properly chosen and installed.

Contact AirGreen today for a clear quote, a professional analysis of your project, and precise advice on the installation of your Hitachi heat pump in Montreal, Laval, Longueuil, on the North Shore, or the South Shore.
