The ACD MPD 24 000 multi-zone heat pump heats and cools 2 rooms with a single outdoor unit. it delivers 16,600 BTU/h at −8 °C, heats down to −20 °C. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
2 rooms, one outdoor unit.
Compared with the 59 multi-zone systems of 24,000 BTU we sell. Figures come from the manufacturer’s data and the AHRI certification.
The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 3 heads.
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.
Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 76 % of its rated capacity.
Tap a temperature: capacity, efficiency and the cost of one hour of heating.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
Where it ranks among same-size multi-zone systems.
Compared with the 59 multi-zone systems of 24,000 BTU we sell. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.

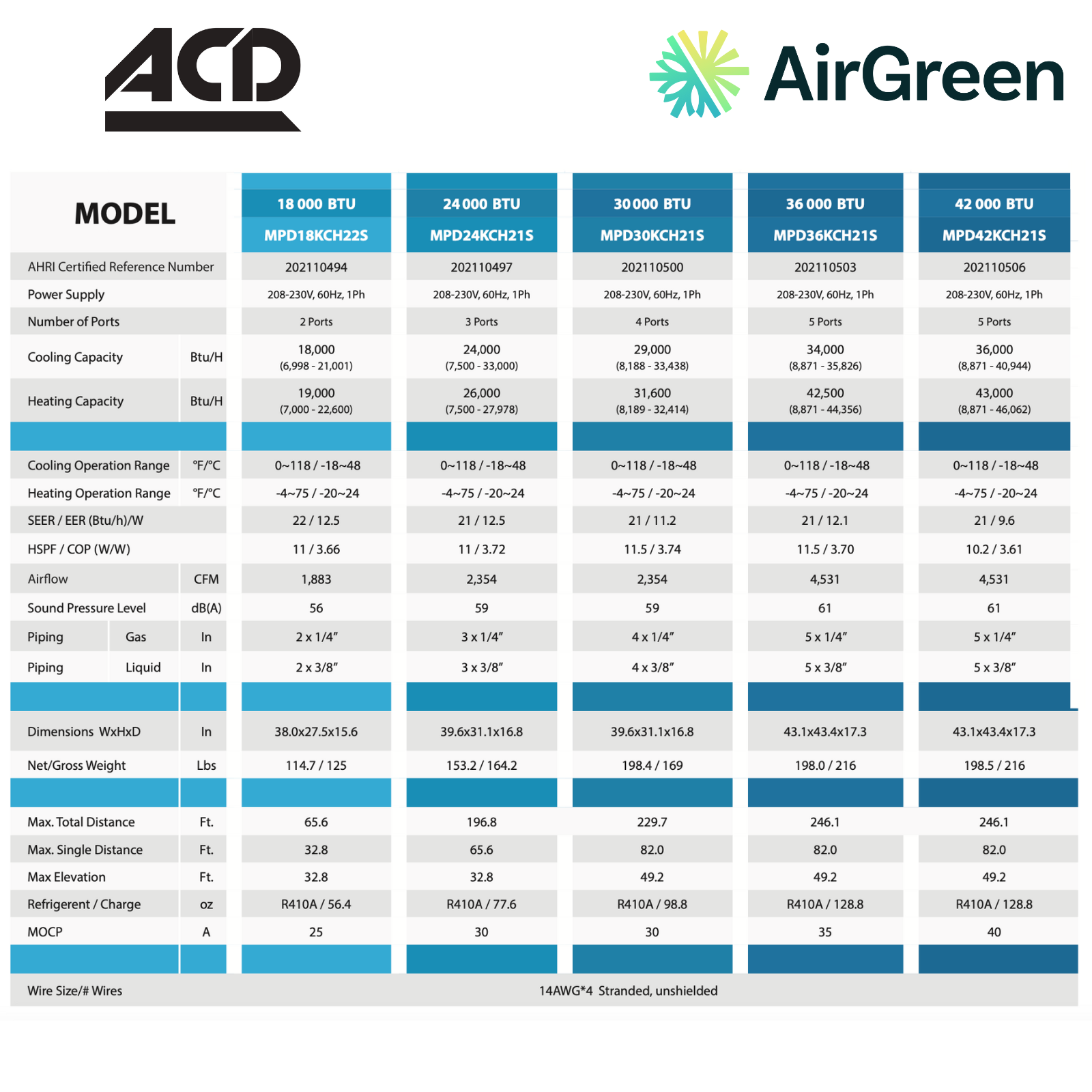

Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
ACD - MPD Heat Pump | 2 Heads - 24,000 BTU Compressor
Your Ultimate Comfort Solution: The Wall-Mounted 2-Zone Heat Pump
At AirGreen, specialists in HVAC (Heating, Ventilation, and Air Conditioning) in Montreal, Laval, Longueuil, as well as on the South Shore and North Shore, we are committed to providing heating and air conditioning solutions tailored to the specific needs of each home. The ACD - MPD Heat Pump with its 2 heads and a 24,000 BTU compressor represents the pinnacle of home comfort technology, combining exceptional performance with substantial energy savings.
Exceptional Features
The Wall-Mounted 2-Zone Heat Pump stands out for its remarkable capabilities in both cooling and heating. With a cooling capacity of 24,000 BTU and an effective heating capacity down to -20°C, this device is designed to provide optimal comfort in various weather conditions. Thanks to its dual-zone functionality, expandable to a triple zone, it allows for advanced customization of the indoor climate, ensuring a pleasant temperature in multiple areas of your home.
Dimensions and Installation
Compact and stylish, the heat pump is characterized by exterior dimensions of 39.6x31.1x16.8, facilitating its installation in various settings without compromising the aesthetics of your space. The serial numbers, for both the outdoor unit (MPD24KCH21S-O) and the indoor units (OCD09KCH23S-I, OCD12KCH22S-I, OCD18KCH20S-I), attest to the authenticity and superior quality of our product.
Economic and Ecological Benefits
Subsidies and Savings
Acquiring our Wall-Mounted 2-Zone Heat Pump is supported by federal subsidies of up to $5,000, as well as a provincial subsidy of $830, making this investment even more attractive. Certified Energy Star®, it guarantees top-tier energy efficiency, with a 21.0 SEER performance, minimizing your carbon footprint while reducing your energy bills.
Technology and Comfort
Equipped with Inverter technology and the eco-friendly R-410A gas, it ensures stable performance and quiet operation (59.0 dB(A) outdoor sound pressure level), essential for your peace of mind. Its low voltage start-up, LED display, self-diagnostic, vertical swing, and control lock features are designed to enhance the user experience and ease daily use.
Filtration and Maintenance
Washable filters and the dehumidify mode contribute to healthier indoor air, while the turbo mode and multiple fan speeds offer maximum flexibility to quickly reach the desired temperature. The sleep timer and sleep mode are thoughtfully designed for your nighttime comfort, ensuring a peaceful night's sleep without interruptions.
Warranty and Service
Our commitment to quality and customer satisfaction is backed by a 10-year warranty on the compressor and parts, with an option for an additional 10-10-10 warranty, ensuring unparalleled peace of mind. At AirGreen, we pride ourselves on our exceptional customer service and technical expertise, guaranteeing professional installation and reliable support throughout the life of your heat pump.
In Conclusion, the Wall-Mounted 2-Zone ACD - MPD Heat Pump from AirGreen is a top-choice heating and air conditioning solution for those looking to enhance the comfort of their home while achieving significant long-term savings. Its exceptional performance, energy efficiency, and advanced features make it a must-have for residents of Montreal, Laval, Longueuil, as well as on the South Shore and North Shore.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 16,600 BTU/h at −8 °C, 18,400 at −15 °C.
How many heads can I connect?
Up to 3 on this outdoor unit. This product is configured for 2 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 6 combinations, from 9 + 9 to 18 + 18 (in thousands of BTU). Each head is sized for its room.
Down to what temperature does it heat?
Down to −20 °C.
Is it noisy?
Indoors, the reference head goes down to 29 dB(A). Outdoors, 59 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 10 years on the compressor and 10 years on parts; labour is not included by the manufacturer. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
